Беспроводной пульт дистанционного управления Kebidumei 433 МГц

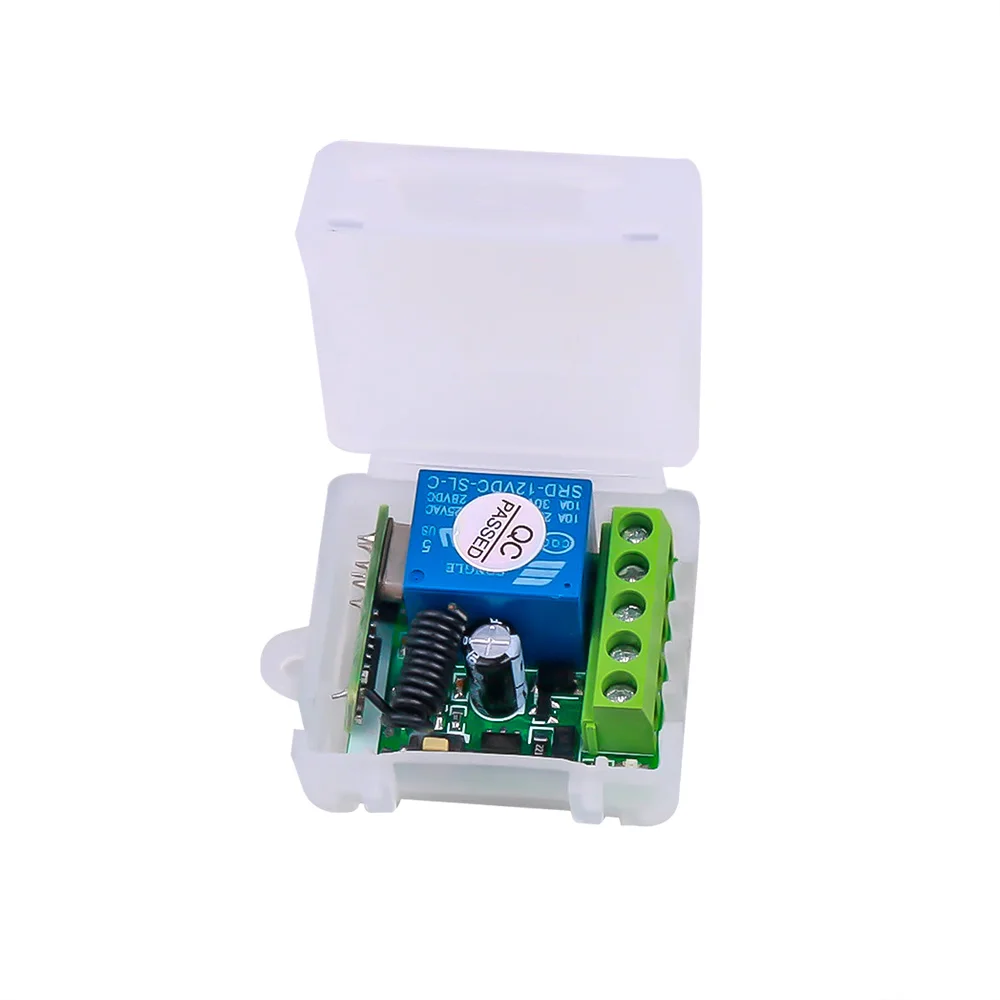

KEBIDU DC 12V 1CH 433 Mhz Wireless Remote Control Switch Relay 433Mhz Receiver Module For Learning Code Transmitter Remote

Feature:

Material: Plastic.

Size: 60*36*12mm.

Type: Wireless remote.

For: Such as electric telescopic door remote control, road gate remote control, alarm remote control and so on.

Rated voltage: 12V Battery(included).

Wireless transmission distance: 50-150 (m).

Operation Introduction:
About Working Mode:
Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.
Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.
Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.
Time Delay Mode: Press the remote control button, the relay connects; Start timing when release the remote button, the relay disconnect automatically after 5s or 10s or 15s.

Clearing the Code:
Press the Learning Button on the receivers for 8 times, the codes will be cleaned.
After cleaning the code, all the remote control cannot work any more.
Learning the Code:(Momentary)
Press the learning key on the receiver once time, it comes into momentary setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Push the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the Code: (Toggle)
Press the learning key on the receiver twice time, it comes into toggle setting mode.
Wait for a moment, the LED will be off , it comes into learning state.
Press the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the Code:( Latching)
Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.
For example: Button A = ON, Button B = OFF
Press the learning key on the receiver triple time, it comes into latching mode .
Wait for a moment, the LED indicator on the receiver board will flash then come off.
Press the remote button A. LED flash for 5 times.
Press the remote button B. LED flash for 5 times
After 3 seconds, the LED indicator will be on again, learning successfully.
A = ON, B = OFF .
Learning the Code :(Time Delay Mode)
Press the learning key on the receiver four times, the time delay for 5 seconds.
Press the learning key on the receiver five times, the time delay for 10 seconds.
Press the learning key on the receiver six times, the time delay for 15 seconds. The LED indicator will be off . Press the remote button, LED flashes and off.
After 3 seconds, the LED indicator will be on again, means learning successfully.

Package included:

1 * 433mhz remote control transmitter 220v
