Беспроводной радиочастотный пульт дистанционного управления QIACHIP 433 МГц

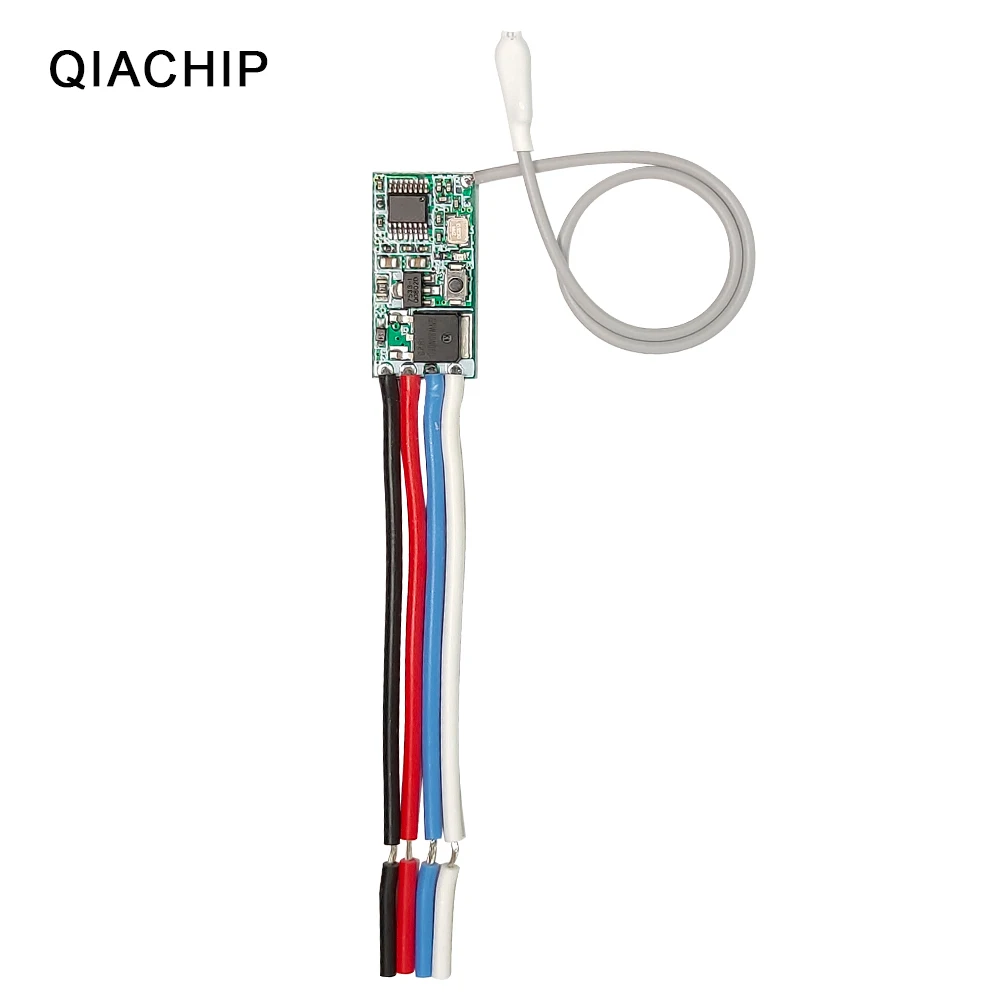

433MHz Wireless RF Remote control DC6V 12V 24V Mirco Switch Receiver Module DIY with 433 mhz Long range Transmitter Light on/off

Application environment:
Remote control switch,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

Features:
·Wireless control LED lamp string, Christmas tree light string, light control switch
·Long range working voltage
·Ultra low power,High sensitive response.
.Operating Voltage: DC 3.6V-24V
.Encoding : EV1527 Learning code

Note:
We would suggest you to purchase our remote control for the better working performance.

Specification:
Working voltage: DC 3.6V~24V
Maximum load: 2A
Static current: <5 mA
Working frequency: 433MHz
Reception sensitivity:<-108dBm
Size: 25.5 mm x 13mm x 5mm (length × width × high)
Mini size support coding format 1527 learning code
Input: DC 3.6V ~ DC 24V
Output: DC 3.6V ~ DC 24V
Modulation mode:ASK (superheterodyne)
Appearance size: 25.5mmx 13mm x 5mm (length × width × high)
Number of stored remote controls: ≤ 5
Working mode: Momentary, Toggle, Latching Mode
Learning style: Learning Button
Working temperature: -20 degrees 80 degrees.

Specifications Of The Remote Control:

Operating frequency: 433.92MHz
Power by 12V23A Battery  (Battery not included ),
Material: PVC.
Button: 4 buttons
Size: 55mm x 30mm
Operating voltage: 12V
Operating Current: 12mA
Transmitting power: 10mw
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 80m.

the receiver and transmitter can work together ,their frequency ,IC chip and Shock resistance must be taken in to consideration.
If you need it to work with your own receiver, you must make sure 100% that your receiver is 433mhz Frequency,does your receiver have a learning button to learn the transmitter code? and does your receiver can be compatible with 1527 ic chip transmitter.

Notice:
Different options include different packages:

About Working mode:

Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects.

Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .

Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.

Tiem delay mode :Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or 15s or 20s , the relay disconnect automatically.

Automatic energize when power on mode: when power supply, the relay connects.

Clearing the code :

After push the receiver's learning button 8 times , the receiver Clear all the remote control data in its memory.

When the LED flashes for 5 few times,it indicates that the clear function is completed.

(After cleared the code in the receiver,all the remote control must study from receiver onece again to restart.）

Receiver operating mode Settings

1.Learning the code :(momentary)

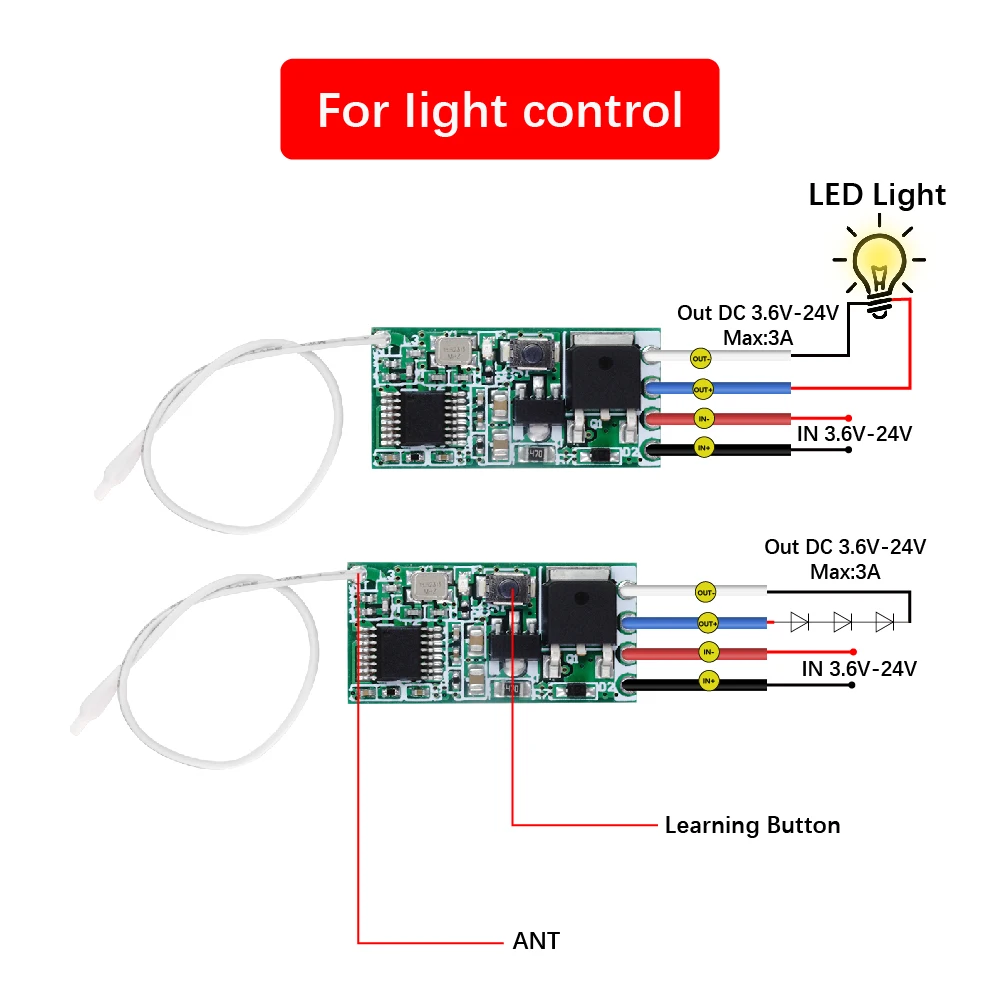

Push the learning key on the receiver once time ,it comes into momentary setting mode .

Wait for a moment ,the LED will be on, it comes into learning state .Push the remote button ,

LED indicator on the receiver board will flash 3 times and then come off ,learning successfully.

2.Learning the code : ( Toggle )

Push the learning key on the receiver twice time , it comes into toggle setting mode Wait for a

moment ,the LED will be on , it comes into learning state .Push the remote button ,LED indicator

on the receiver board will flash 3 times and then come off, learning successfully .

3.Learning the code :( Latching )

Note: When you choose for latching mode ,in order to learn more remote control ,you need to

learn two different button,the first time learnt is for “ON”, the second time learnt for“OFF”.

For example : button A = ON , button B = OFF ,Push the learning key on the receiver triple time ,

it comes into latching mode .Wait for a moment , the LED indicator on thereceiver board will be on,

Push the remote button A,LED flash for 3 times .Push the remote button B .LED indicator flash for 3

times and then come off, learning successfully .

4.Learning the code :( Time delay mode )

Push the learning key on the receiver forth time , the time dealy for 5 seconds .

Push the learning key on the receiver fifth time , the time delay for 10 seconds .

Push the learning key on the receiver sixth time , the time delay for 15 seconds .

Push the learning key on the receiver seven time , the time delay for 20 seconds .

The LED indicator will be off .Push the remote button , LED flashes and off ，learning successfully .

5.Learning the code : (Automatic energize when power)

Press and hold the receiver module for 5 seconds, the receiver indicator flashes 3 times, the setting is complete.

NOTE: The system can store for 5 pcs of remotes , if the remote get more than 5 pcs , the initial remote control will be lost .
