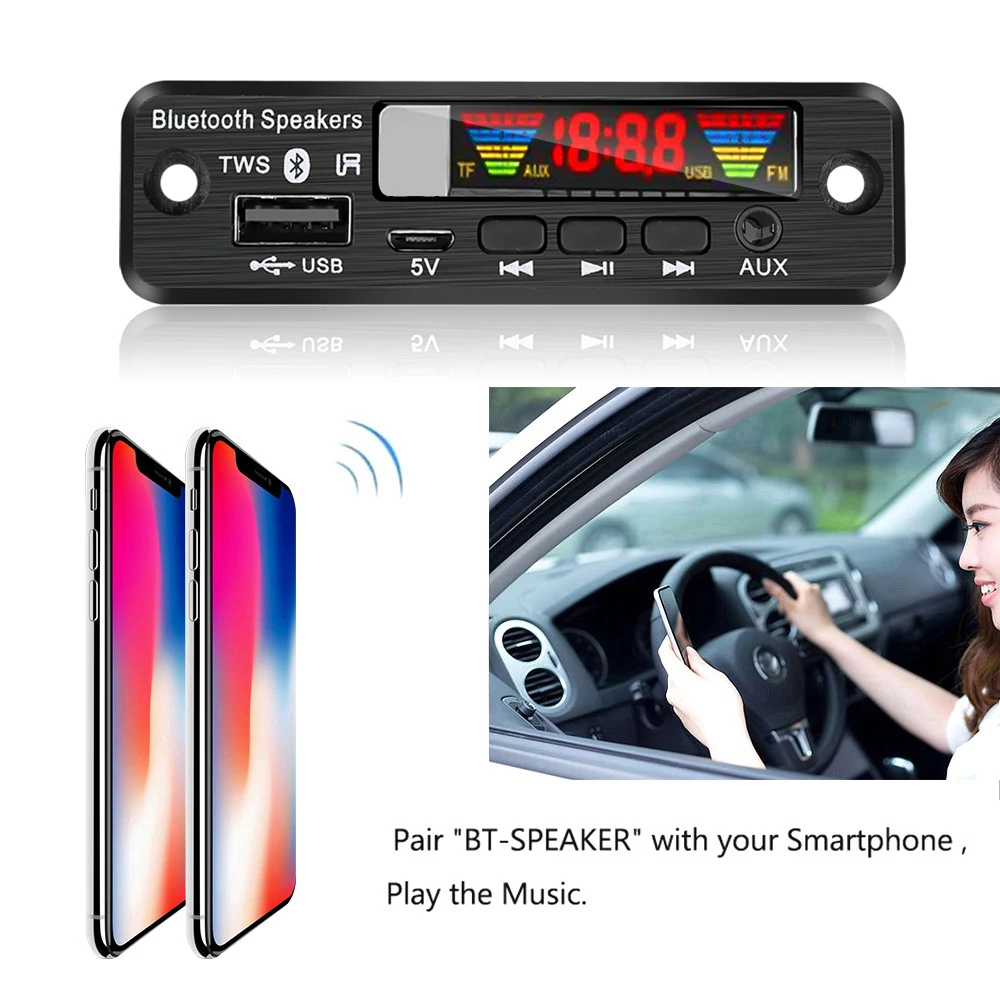

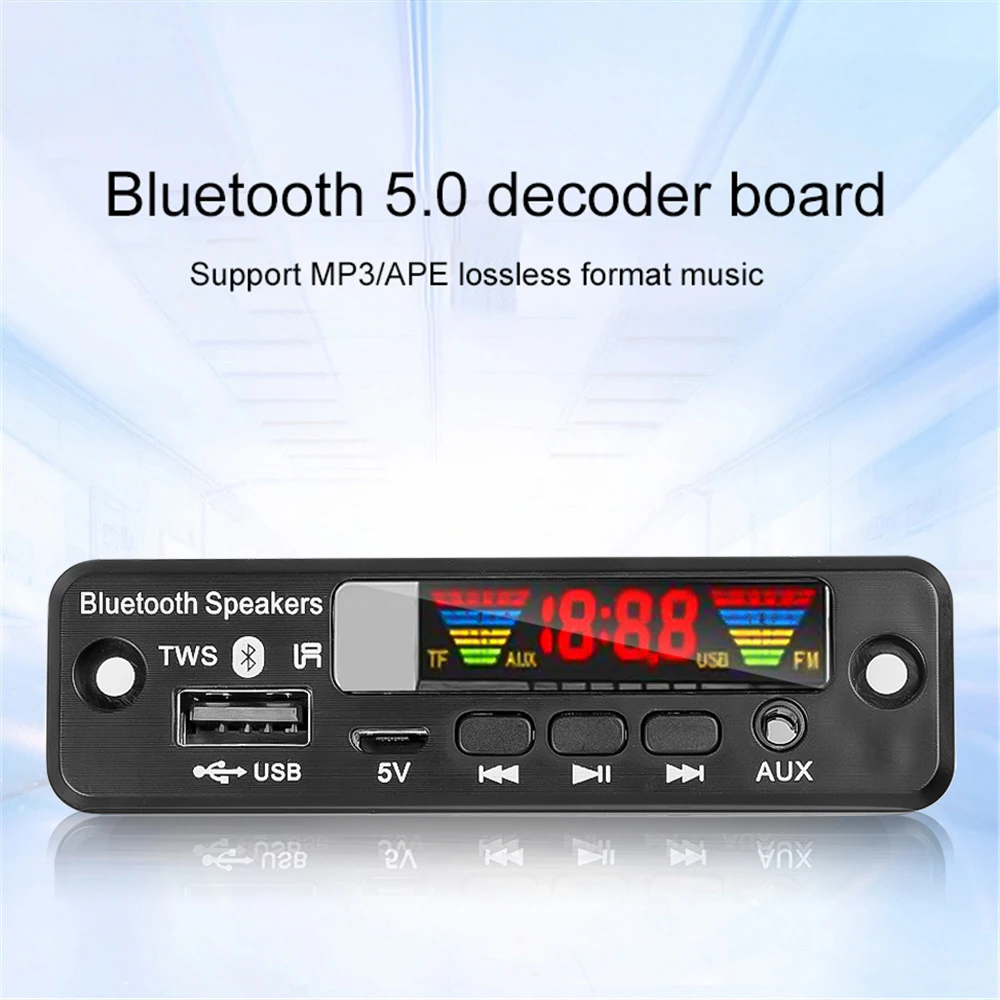

Плата декодера MP3, 5 В, цветной экран, TWS Bluetooth 5.0, беспроводной аудиомодуль с поддержкой APE USB AUX TF FM-радио для автомобильных аксессуаров

Rated input: 5V/500MA

Power supply type: direct current (DC) 3.7~5V power supply

Appearance size: 88(L)*25(H)mm

Rated power consumption: USB playback current <120M

Other status: <80MA

Panel interface: USB, AUX

Operating temperature: -20℃~60℃

Output amplitude: >600MV

Key Function

Short press: previous song

Short press: play/stop

Short press: next song

Long press: volume up

Long press: mode switch

Double-click: TWS pairing

Long press: volume down

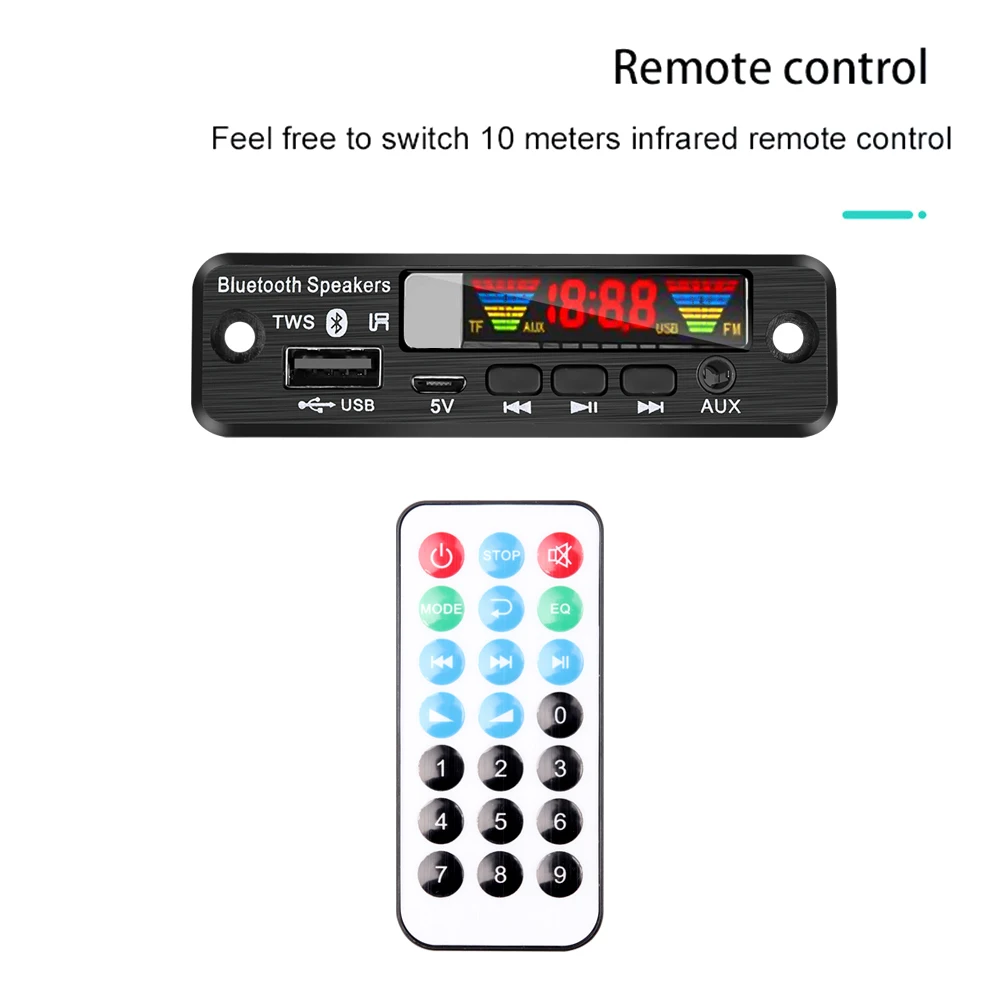

Key Function

POWER: STANDBY ON/OFF

MODE: Press this key to cycle selection and input USB→SD→BLUE→FM→LINE

PREV: In the USB/SD/BT playback state, short press to select the previous song, long press to rewind (BT is invalid in receiving

In the FM state, short press to select the previous station and long press to search backwards.

Radio AUX status is invalid

NEXT: In the USB/SD/BT playback state, short press to select the next song and long press to fast forward (BT is invalid)

In the FM state, short press to select the next station and long press to search forward to find the station and play the current

Radio, AUX status is invalid

VOL+: Increase the volume

VOL-: Volume down

REP: Enter the loop mode during USB/SD playback, short press the loop button and enter A (full loop)

→O (single loop) → FOLDER (current folder loop) → Random (random play)

→ NORMAL (cancel the loop function and enter the sequence play

STOP: Stop playing in the USB/SD card state and press the play button to start playing other states from the first

State is invalid

MUTE: press mute in all states and press again to unmute

EQ: USB/SD state is sound field mode. NORMAL→BASS→ ROCKPOP→ROCK

→JAZZ→ CLASSIC→CUR

PLAY PAUSE: In the USB/SD/BT playback state, short press once to pause and press again to play

In the radio mode, press this button to enter the automatic search station

0~9: Directly select more than 10 numbers on USB/SD and input the number to be selected. In FM state

Select a saved station in the mode. You can also press the number keys to directly enter the radio frequency to play the radio station

Package Content:

1 x Decoder

1 x Remote Control (without battery)
