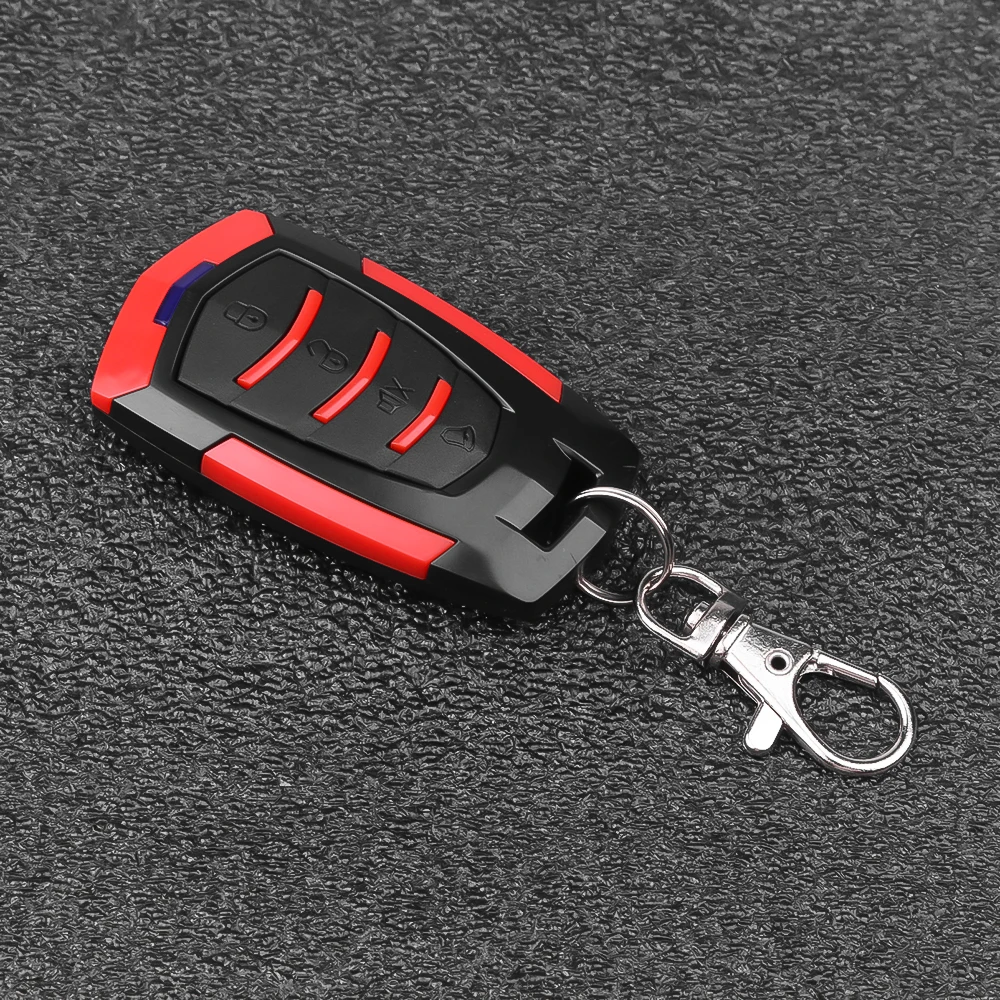

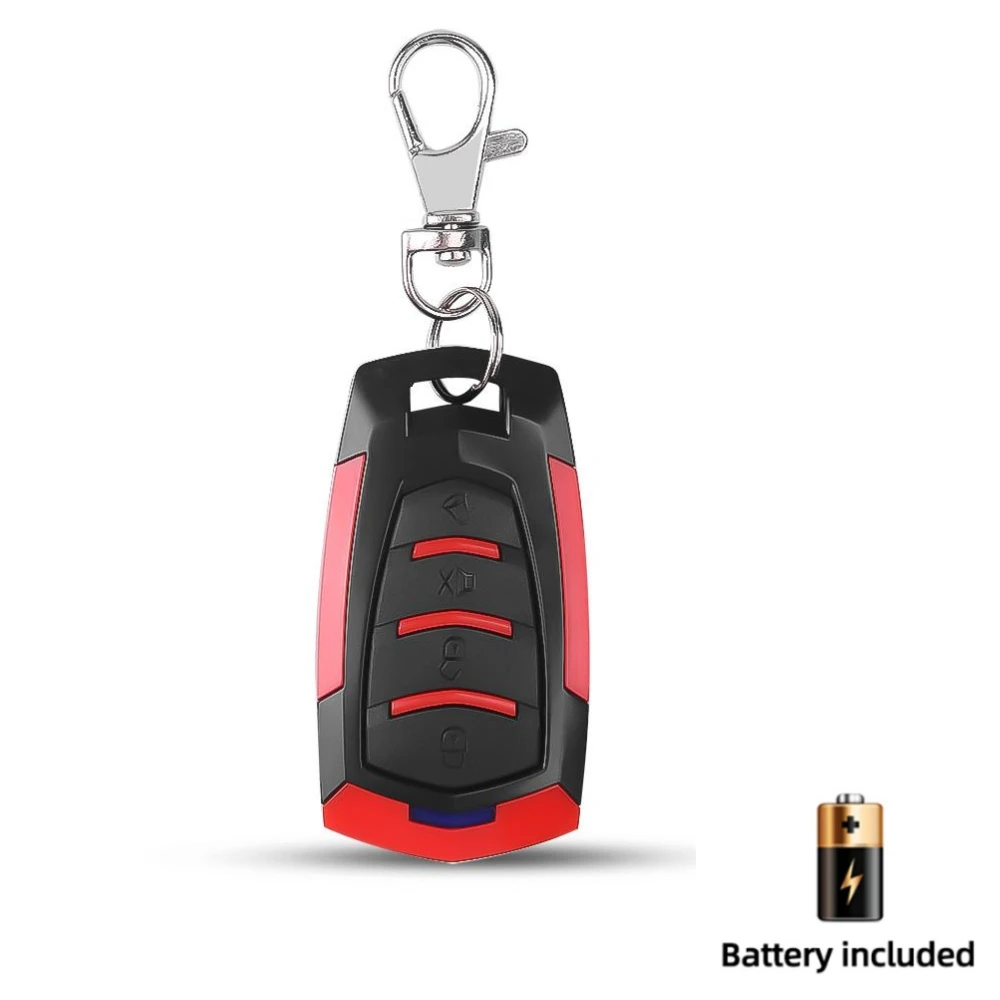

433Mhz Remote Control 4 Keys Copy Code For Electric Garage Door Car LED Lamp AK-KB-KZ00427 Wireless Duplicator Remote Controller

pls see carefully before buying ,The remote control's frequency and chip model are the same as your original remote control that they can be copy.

Condition I: the original remote control may be used normally

Condition II: know the transmission frequency of original remote control

Condition III: IC of original remote control is PT2262 PT2264 SC2262 SC2260 HS2262 2260 LX2262 2260 EV1527 PT2240 or other fixed code. But if you are not sure what chip it is, you can open the remote, and send the photo to us. We will contact our technical to check whether it can copy. And Rolling Code will not copy.

Package Included:

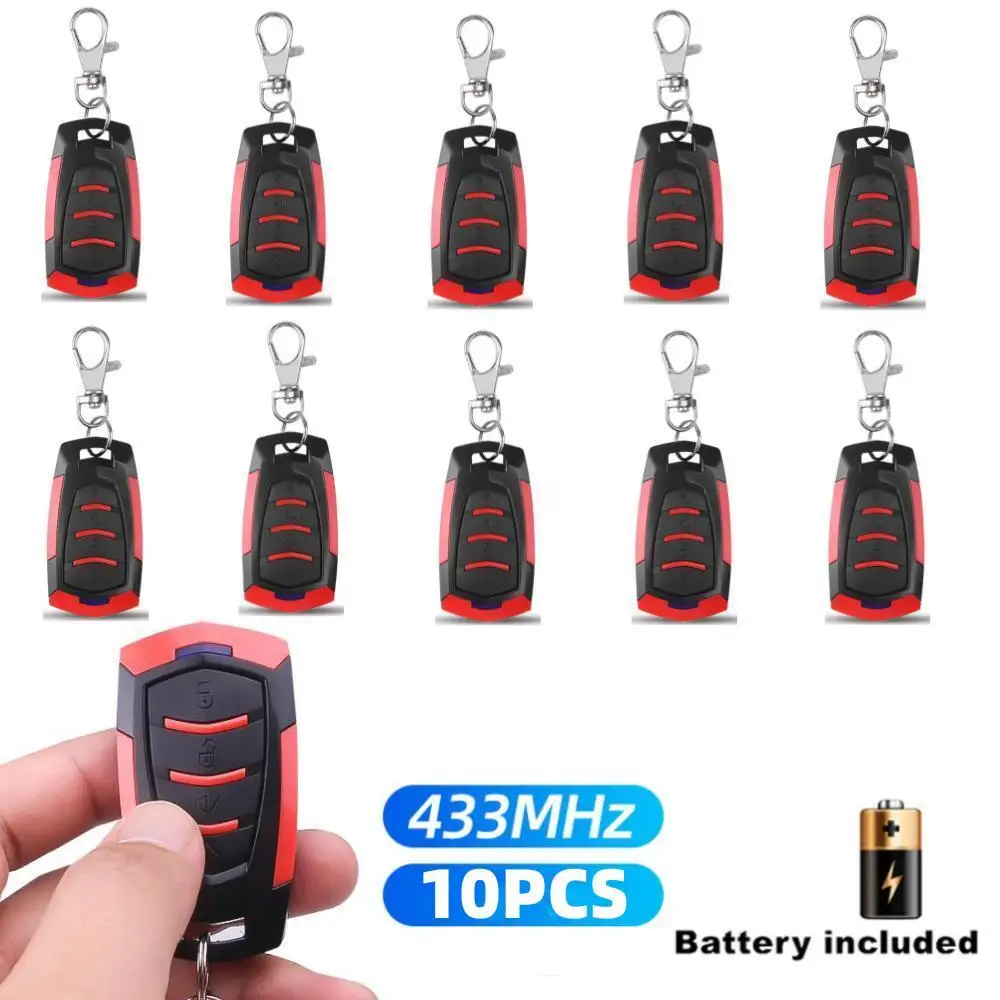

20/10/5PCS * 433MHZ remote control duplicator.(battery included)

Multi-functional and multi-variable, personalized and user-friendly simple design and fast to use.

This smart copy remote control is suitable for electric door remote control, telescopic door remote control, garage door remote control.

Cloning chip types:

2260(PT2260,SC2260,LX2260,HX2260); 2262,(PT2262,SC2262,LX2262,HS2262,HX2262),PT2264,PT2240(LX2240),1527( EV1527,HS1527,HX1527 ),FP527,CS5211,SMC918,SMC926,AX5026,AX5326-3,AX5326-4,HT600,HT680,HT6207,HT6010,HT6012,HT6013,HT6014,HT12D, HT46F49E, PIC16F629,PIC16F630 and so on. Different chip manufacturers have different prefixes chip model, as long as the digital portion of the chip can be the same model.

Use steps:

1. Clear code:

two fingers at the same time hold the unlock key and lock key; the LED light rapidly flashes 3 times in about 2 seconds; let one of the fingers go (the other hand cannot let go), and then use the loose finger to quickly click three times on the loose button until the LED light flashes quickly; the two fingers can release; then press any one key of the remote control; when LED light goes off, it means clear code is successful(four keys all empty); if after you press any button of the remote control, the light is still on, it indicates that the original code has not been cleared successfully. You need to re-clear, and only successfully clearing the code can cloning be successful. You can repeatedly clear and clone the code.

2. Copy:

left hand taking the original remote control, right hand taking our cloned remote control and keep two remote control as close as possible; press the first keys of two remote controls at the same time; in about 2 seconds, the LED light will flash quickly 2 times; after one second, the indicator light keeps flashing and let go of your fingers; and then press the key after successful study, the light keeps on, which means that the first key code on original remote control has been copied to the other remote control; the same method can be used in turn on the second key, the third key... If the copy is successful, the remote control function is the same as the original matching remote control.

3. Restore:

When you accidentally clear the copy of the remote control code, you can simultaneously press the copy of the remote control of the bottom two keys, LED lights will flash quickly, let go after pressing any key, light long, this Indicating that the code for the remote control is restored. Before using our copy remote control, please be sure to remove the existing code from the remote control.

For Electronic Garage Gate Door , For Home Appliance

Long Remote Control Distance
Open space is more than 50 meters
Mini Remote Control

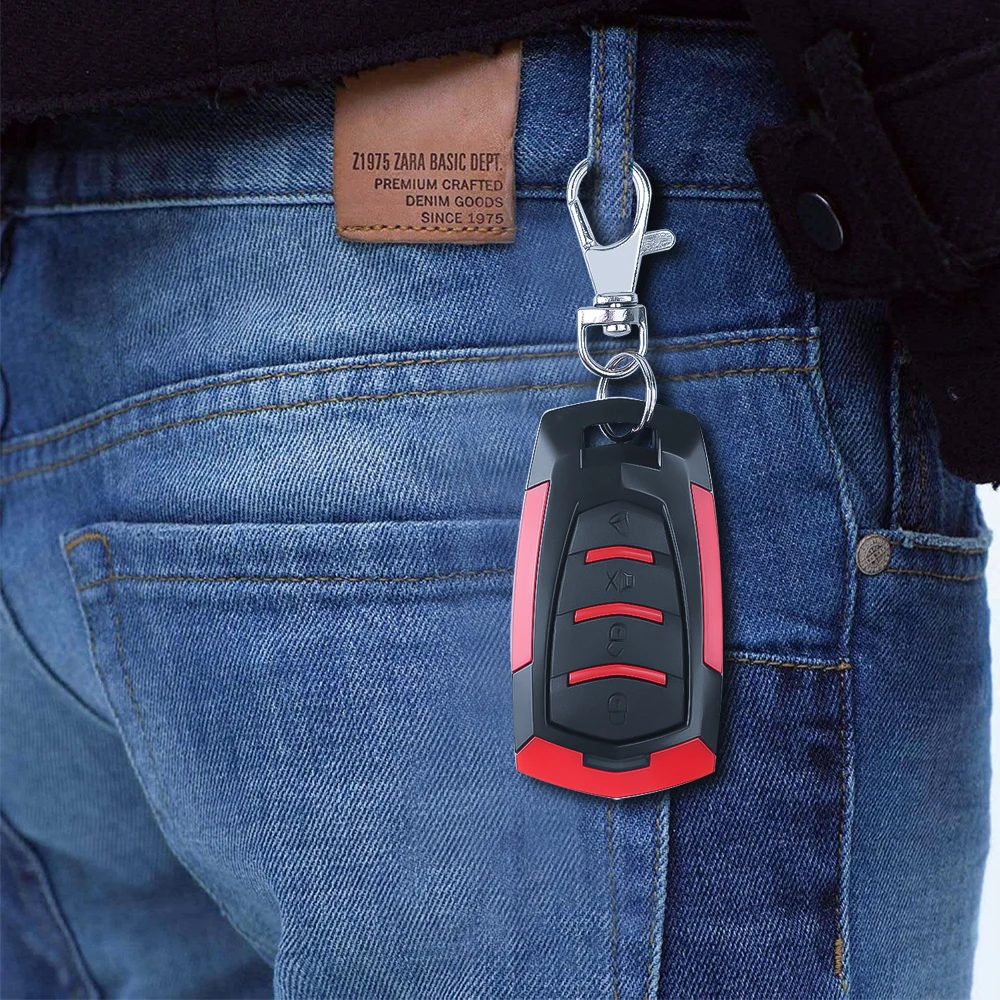

Portable Remote Control
