Шпиндель двигателя 24000 об/мин 220v AC

Package include:

800w/1.5kw/2.2kw water cooled spindle

100% Brand New

Specfications

(Feature ofspindle motor:)

1.Reasonable structure desgin ,simple and compact configuration ,easy to take apart.

2.High precision.high inflexibility ,high efficiency,long operation life.

3.With high grade size .shape,.position precision,and quality of surface .

4.Enough abrasive resistance ,vibration resistance,stable size.

5.Work stable ,low noise,enough fatigue strength

800w water spindle features :

Size:65mm

Power:800W

Voltage:220V

Frequency:0-400Hz

Speed:0-24000rpm

Water Cooling ER11 collet

Runout off:less than 0.005mm

2 X 7004C P4 DT and 2X 7002C

Grease Lubrication

1500w er11 water spindle features :

Size:65mmPower:1.5KWVoltage:220VFrequency:0-400HzSpeed:0-24000rpmWater Cooling ER11colletRunout off:less than 0.005mmGrease LubricationBearing: 4pcs bearing C7005X2 C7002X2

1500w er16 water spindle features :

Size:80mm

Power:1.5KW

Voltage:220V

Frequency:0-400Hz

Speed:0-24000rpm

Water Cooling ER16 collet

Runout off:less than 0.005mm

Germany SKS 4pcs bearing

Grease Lubrication

2200w er20 water spindle features :

Size:80mm

Power:2.2KW

Voltage:220V

Frequency:0-400Hz

Speed:0-24000rpm

Water Cooling ER20 collet

Runout off:less than 0.005mm

Grease Lubrication

Bearing: 4pcs bearing C7005X2 C7002X2

Reminder

A new electric spindle is received to start from low speed 6000. It will increase by 3000 after every ten minutes, and it will be used normally after 24,000 revolutions. The bearing inside the new spindle needs to be preheated and run-in, remember! In order to extend the service life of the spindle, it is best to start the test run for 10-15 minutes when the spindle is used normally.

Take the 24000 rpm spindle as an example, the other speed spindles are the same.

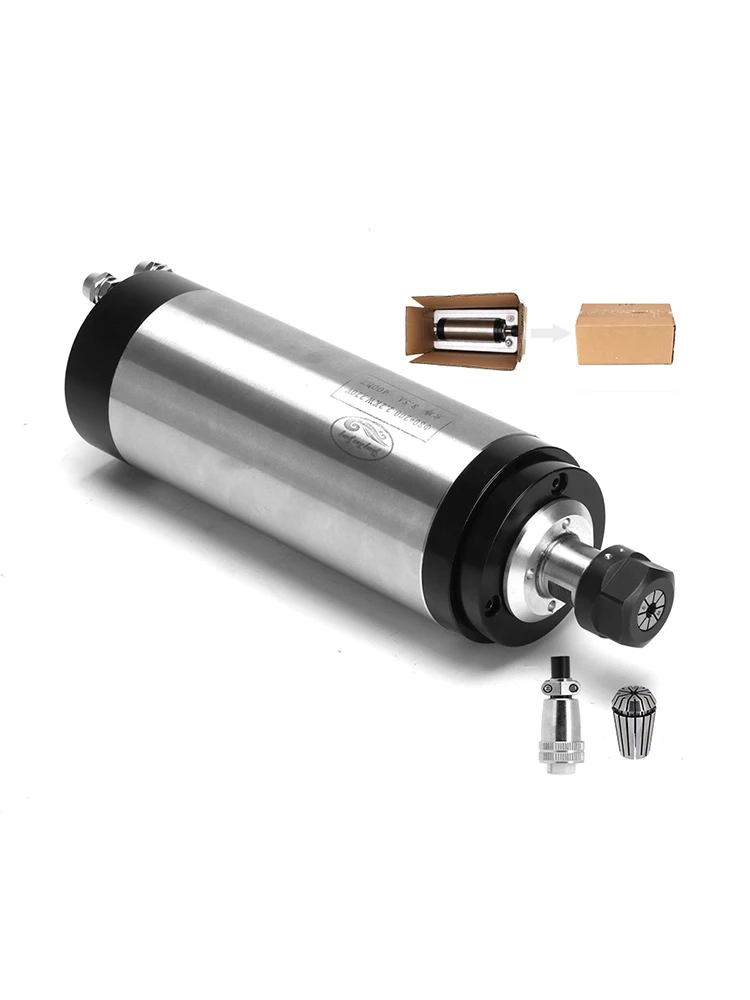

800w/1.5kw/2.2kw Water-cooled Spindle Motor 2.2kw CNC Spindle Motor 24000rpm Milling Motor ER20 80mm for CNC Milling Machine

1. Imported bearings; bearings with dust cover, more secure

2. Using grinding process, can improvespindle motorconcentricity and prolong life

3. Water-cooled motor, sculpture forceful, high precision, long life

Related Products

Mainspindle motor,So if u need other spindle motor.you also buy them from me.

1.water cooled spindle motor:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw

2.air cooled spindle motor: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw

We can provide all thespindle motorparts if you have more needs. We can give you more advice, pls feel free to contact me ~~

0.8kw spindle size

1.5kw er11 size

1.5kw er16 size

2.2kw er20 size
