Универсальный разделитель звеньев гаечного ключа из углеродистой стали, инструмент для удаления штифта 420-530, резак для цепей, инструменты для ремонта мотоцикла, велосипеда, квадроцикла

Description:

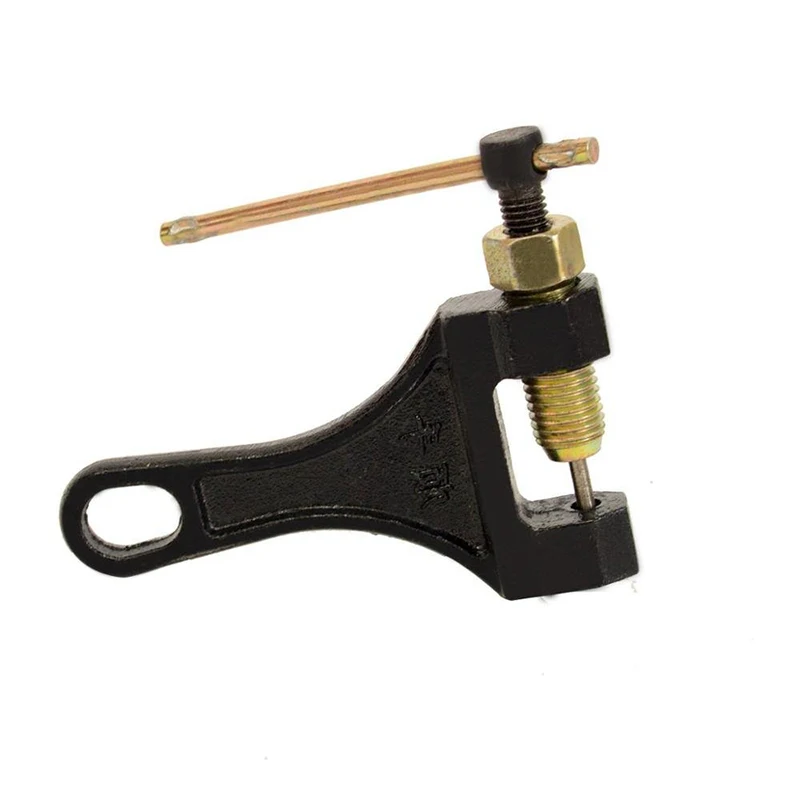

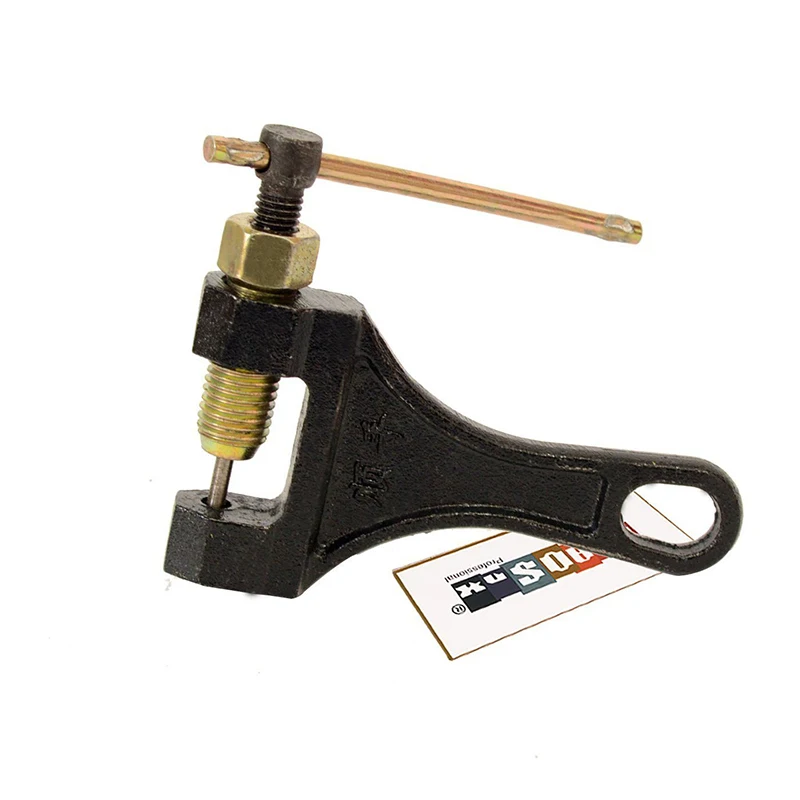

The item is a professional and practical motorcycle chain breaker link splitter tool.

Which is mainly made of high-grade carbon steel material for durable to use.

It is recommended to grind off the chain pin head before using this tool.

This will significantly reduce the load on the tool and help prevent premature wear or damage to the breaking tips.

The chain breaker link splitter is compatible with #420, #428, #520, #525, #528, #530 chains.

Installation instructions:

Unscrew bolt "A" so that the pin "C" is fully retracted into the bolt "B".

Unscrew bolt "B" and position the chain under "B", so that the ends of the chain pin can fit into the holes "D" adn the bolt "B".

Thread bolt "B" in until the chain is clamped in place, against the hole "D".

Turn bolt "A" to push the chain pin head out of its plate.

Repeat the operation on the second pin of the link to be disassembled.

Material: Iron

Fits chain sizes 420, 428, 520, 525, 528,530.

Replaceable press pin is heat treated and hardened

Please be sure to verify that the push pin is aligned properly with the chain pin.

It is recommended to grind off the chain pin head before using this tool.

This will significantly reduce the load on the tool and help prevent premature wear or damage to the breaking tips.

Package Included:

1x Chain Breaker Tool
