30-200mm Thermowell Immersion Sleeve Pocket Stainless Steel 304 1/2 BSP G Thread For Temperature Sensor

Features:
*Made of high quality materials, durable
*Waterproof, durable and long service life
*No bubbles, no pinhole and other blemishes
*The inlet accepts 1/2 inch male pipe thread
*A quick fit thermowell protects your thermometer from possible damage

Specifications:
Thread:BSP(G) Type 1/2" DN15
inner diameter: 6mm
outer diameter: 8mm
sensor line with a diameter of under 6mm can be installed
Max Temperature:250 celsius
Max Pressure:2Mpa

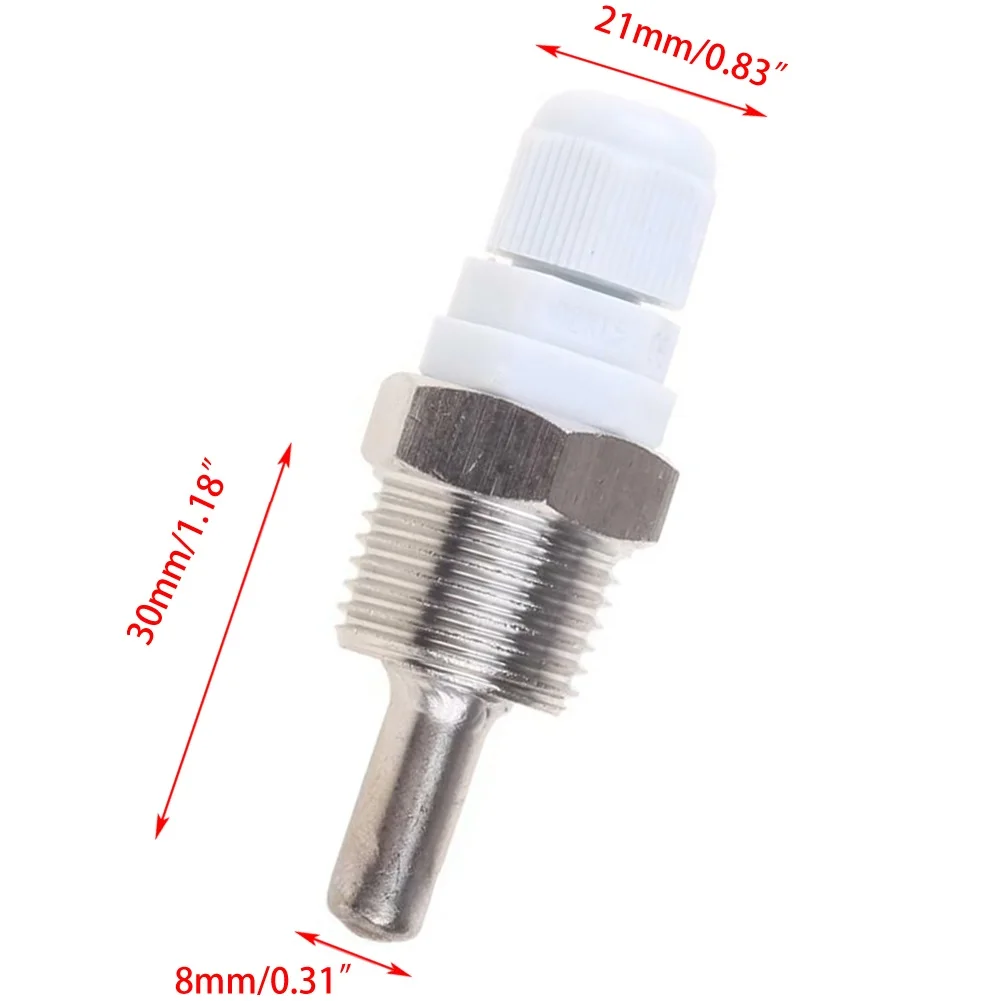

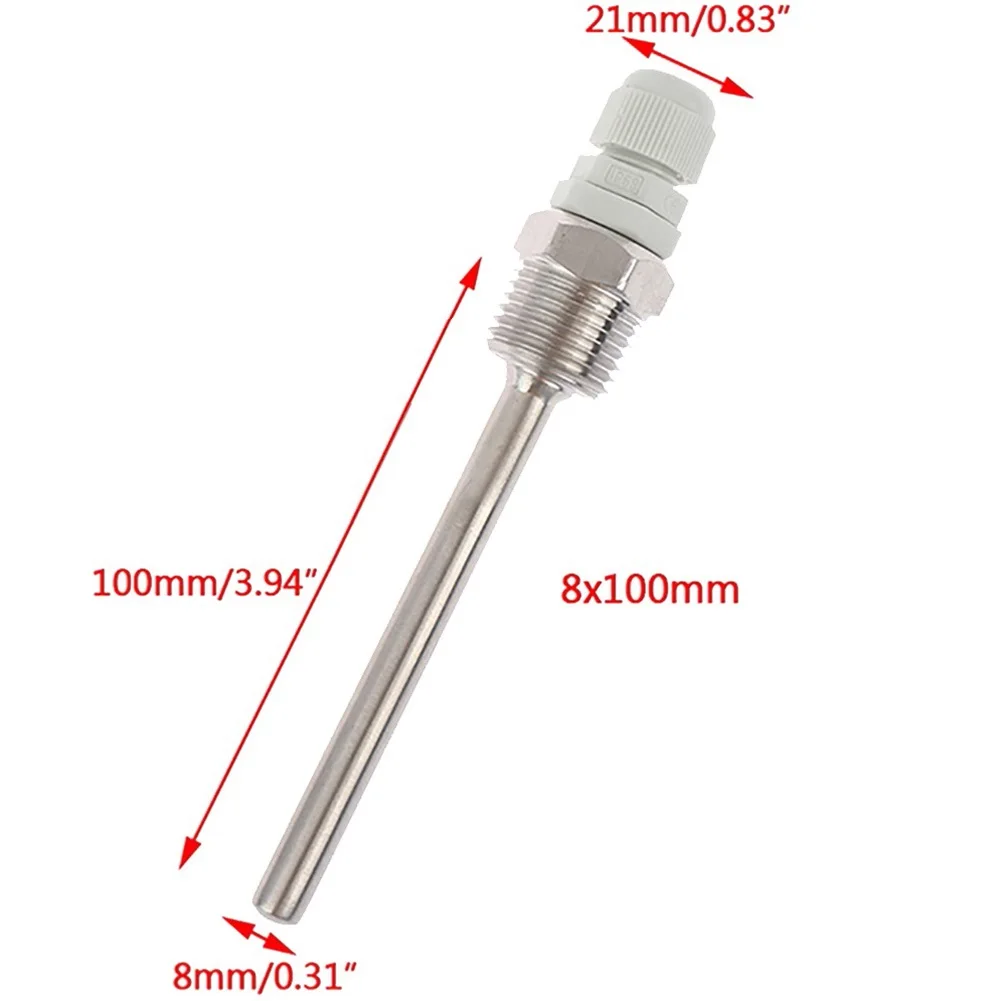

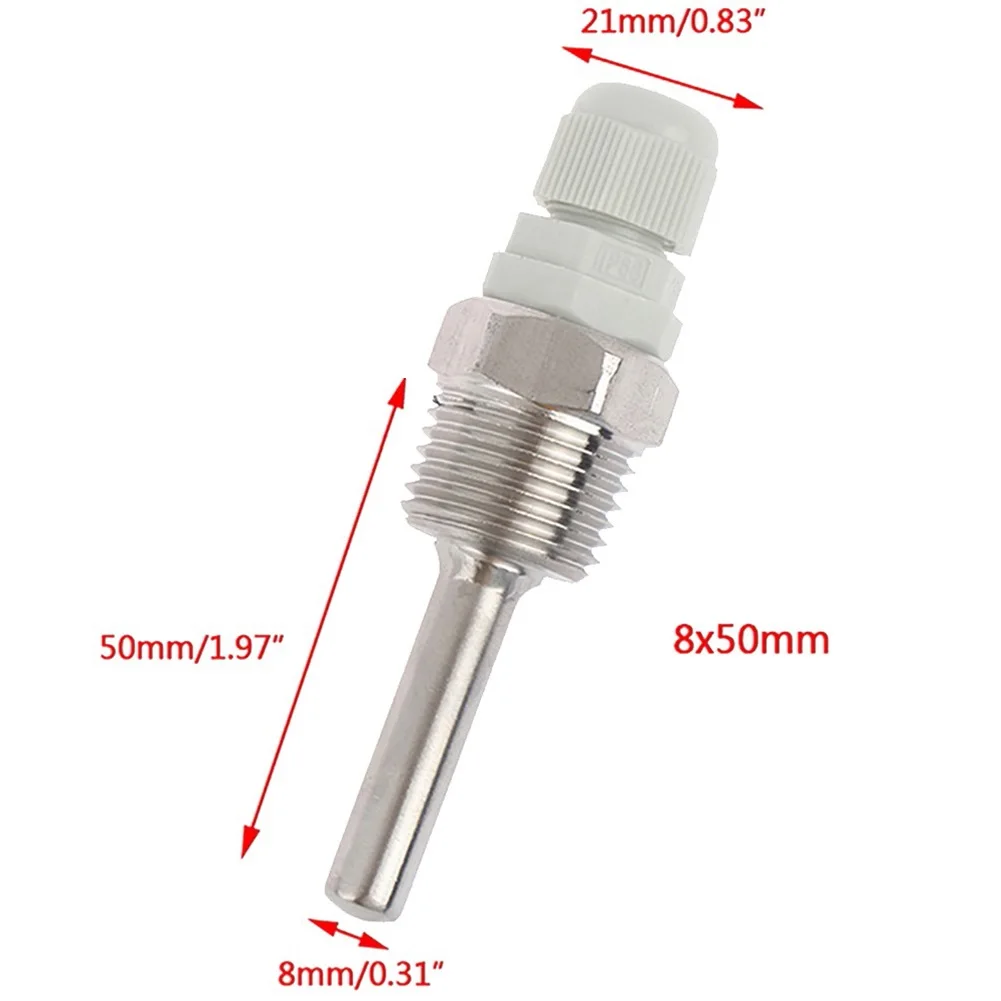

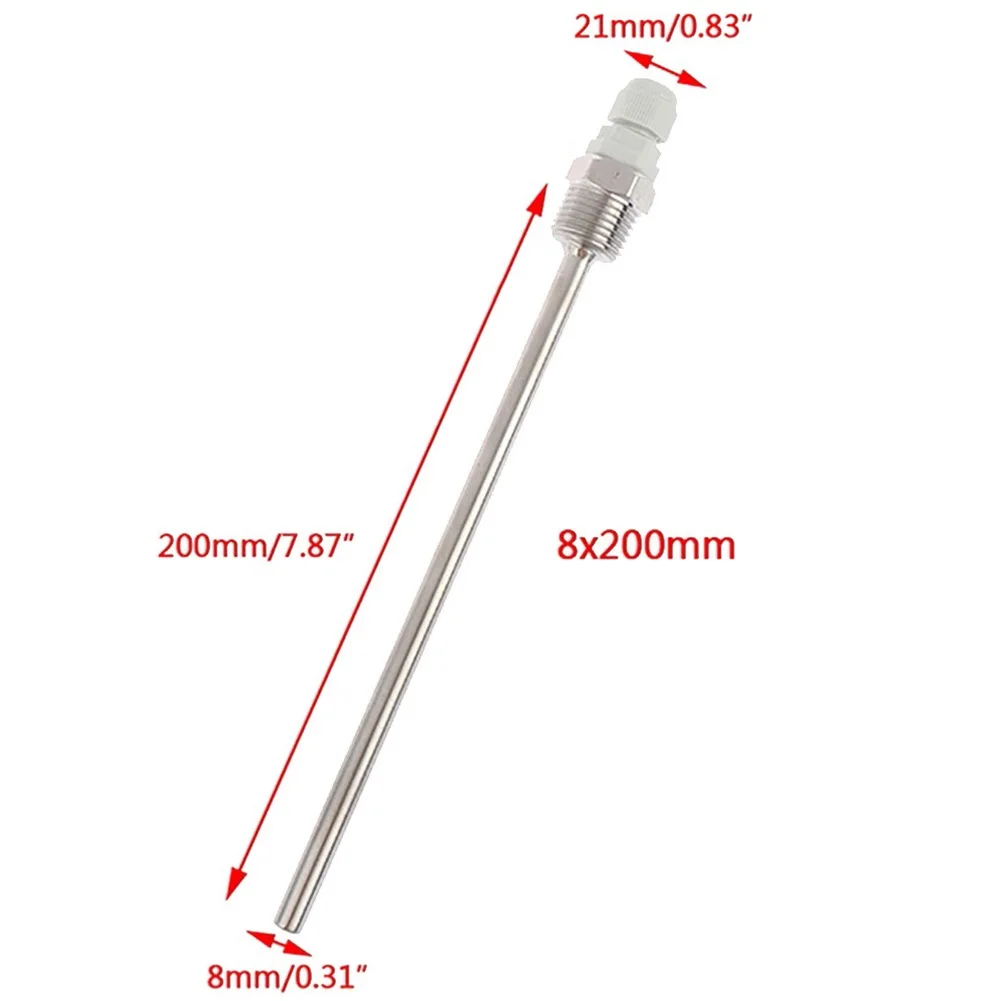

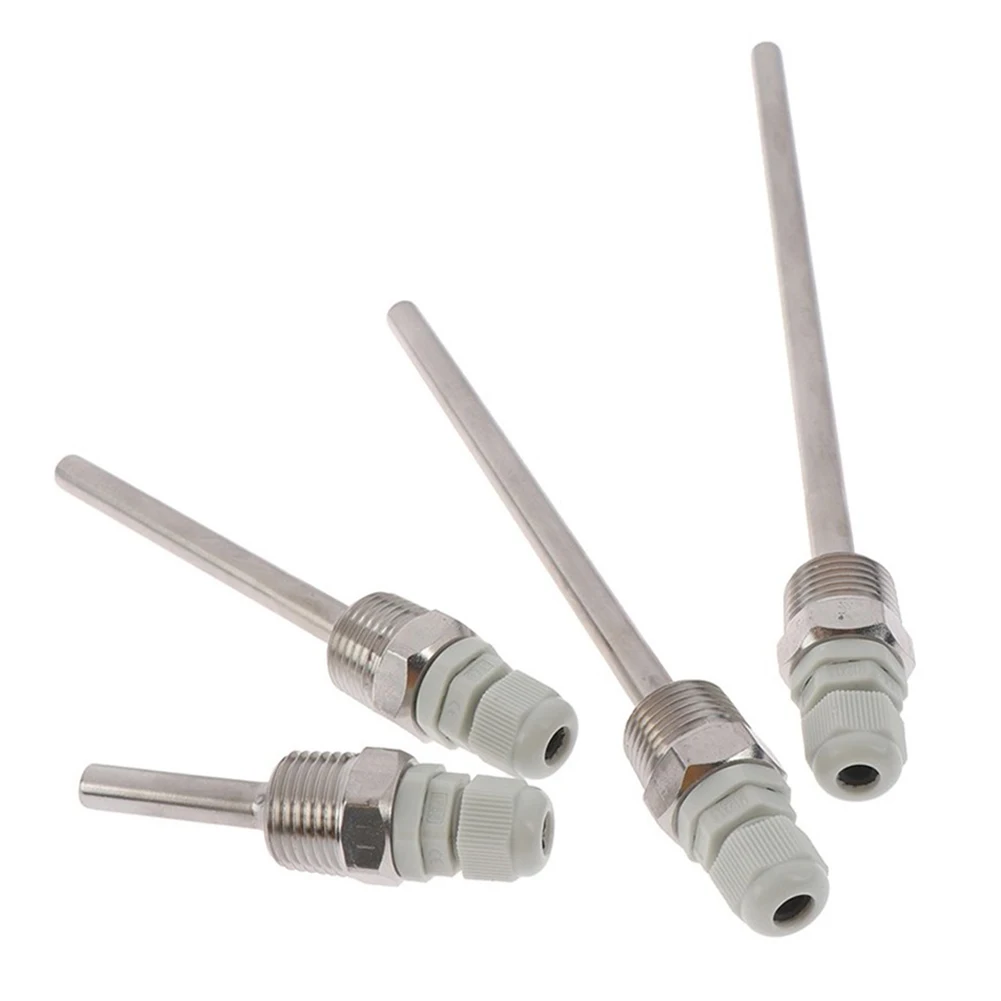

Tube length (L)):30mm / 50mm / 100mm / 150mm / 200mm
Material: SUS304

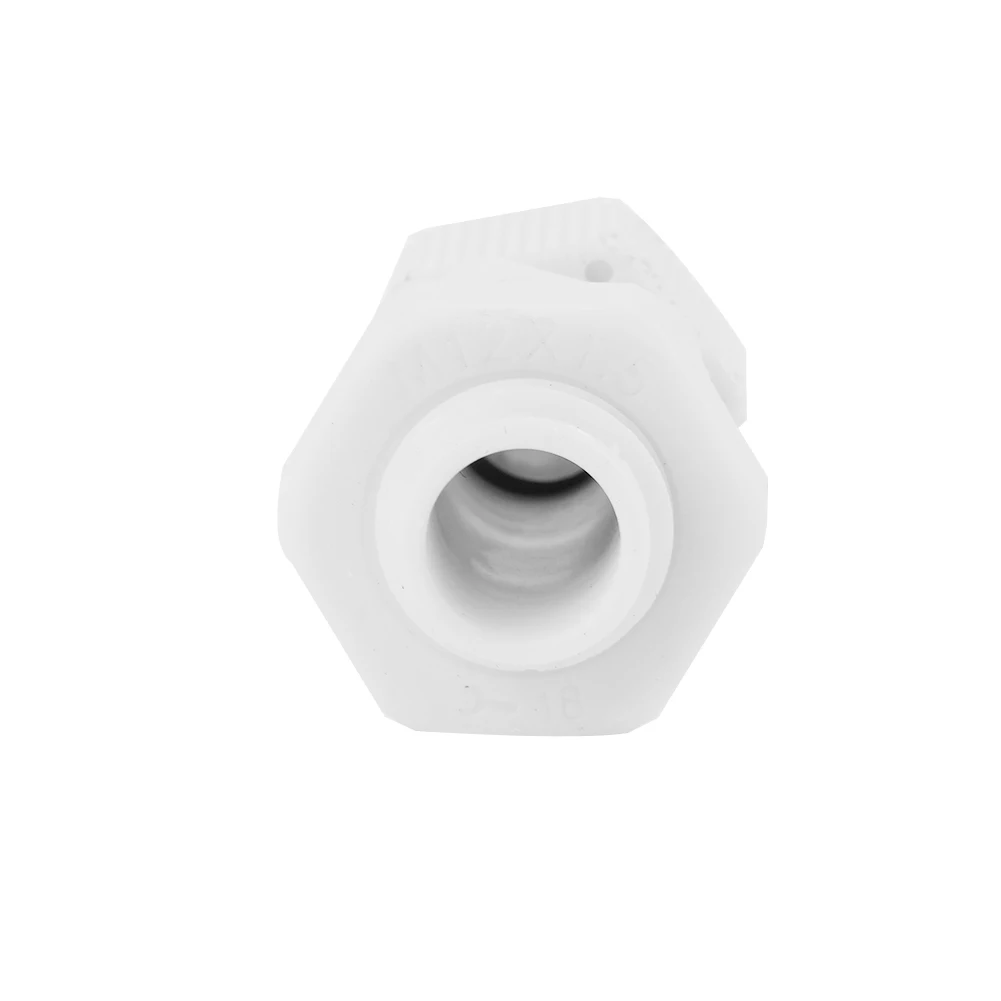

Max Temperature of Nylon part: 80 centigrade, short time 100 centigrade

Package Contents:
1 * Thermowell

Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
