433 МГц радиочастотный релейный модуль приемника беспроводной 4-канальный выход с кнопкой обучения и 433 МГц радиочастотный пульт дистанционного управления

433mhz RF Relay Receiver Module Wireless 4 CH Output With Learning Button and 433 Mhz RF Remote Controls Transmitter Diy

Description:

This Product includs two small gadgets, including a Remote Control Transmitter and Remote Control Relay Receiver Module, which is a entire transmitting and receiving remote control system. And comes with ultra-strong function and bring you much convenience in your daily life. It support remotely and wirelessly control your Garage Door, Electronic Gates, Electrical Appliances and other telecommand equipments within 50m (free space). Bringing you brand new experience of remote control, you can not miss it.

Features:

*The transmitter supports Learning Code(1527) Common Chip, such as, PT1527, EV1527, etc. Compatible with the most of 1527 Remote Control Relay Receiver Panel.

*Stable circuit, high accurate and high-effective, individuation and humanization design, bringing you much convenient.

*Adopts imported high-frequency triode, owning 10mW Transmitting Power.

*Easy to use: Easy to install and use, the 4 channel remote control system lets you take control of your gadgets, car and home or garage.

*Widely Use: Perfect Suitable for controlling electrically operated gate, retractable door, garage door, electric curtain automobile, motorcycle and other telecommand equipments.

Note:

1.This remote control only support the learning code (1527) of the receiver

2.This remote can not be programmed.

3.We don't offer retail package, but we will pack it well before shipped out.

Specifications:

Product Type: 4-CH Remote Control Transmitter + Receiver Module

RF Frequency: 433 MHz

Encoding Type: Learning Code(1527), Fixed Code(2262).

Modulation System: ASK

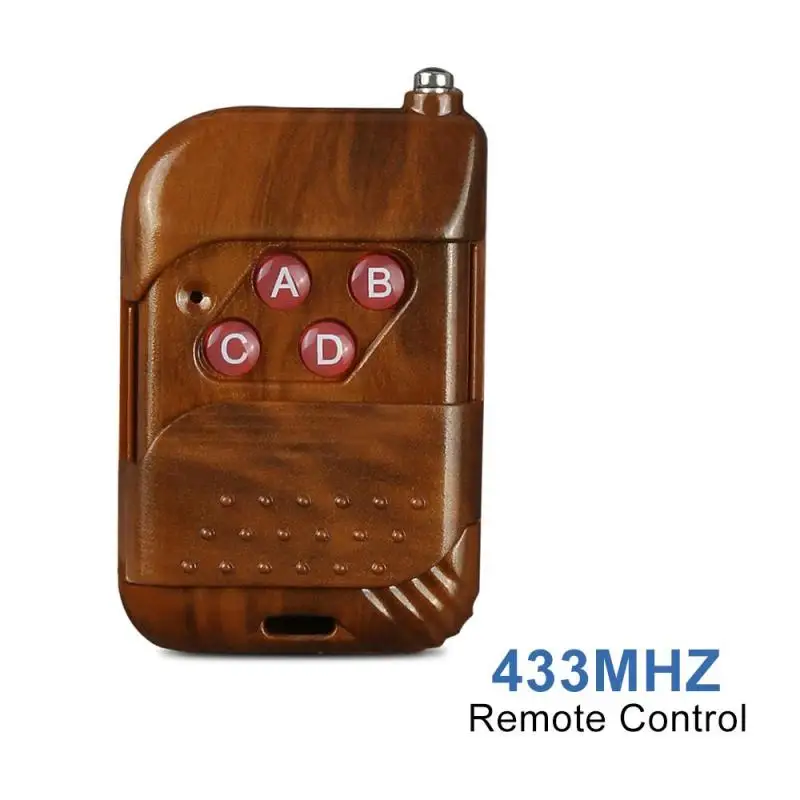

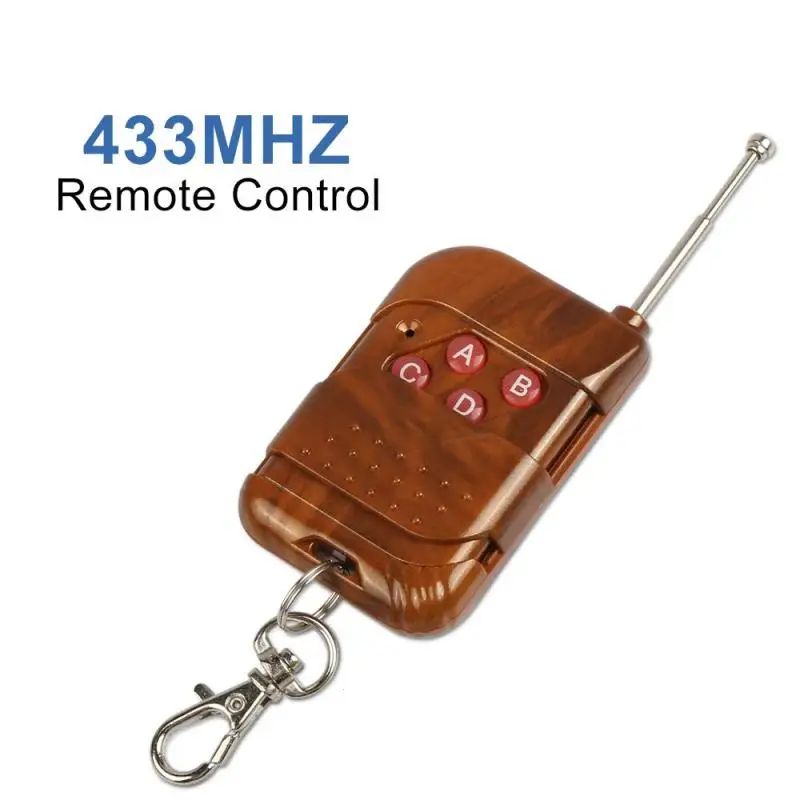

For Transmitter:

Buttons: Four Buttons

Power by 27A 12V battery

Operating Voltage:DC12V

Operating Current:12mA

Transmitting Power: 10mW

Transmission Distance: 50m(free space).

Color: Brown

Main Item Size: 6.5 * 3.2 * 1.2cm / 2.55 * 1.25 * 0.47in

Main Item Weight: 26g/o.9oz

Package Size: 6.8 * 3.5 * 1.5cm / 2.67 * 1.37 * 0.59in

Package Weight: 28g/1.0oz

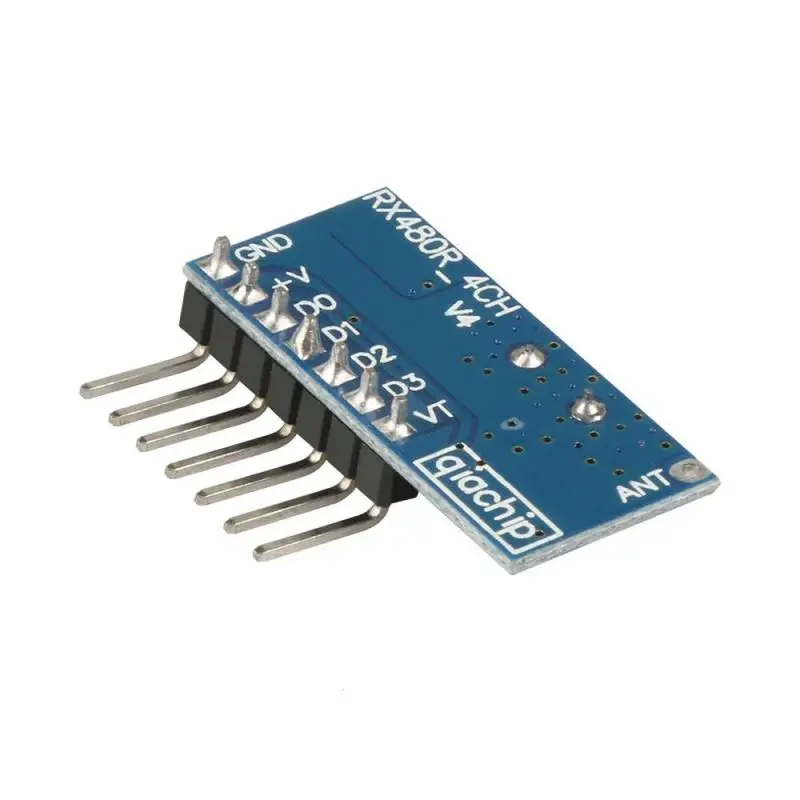

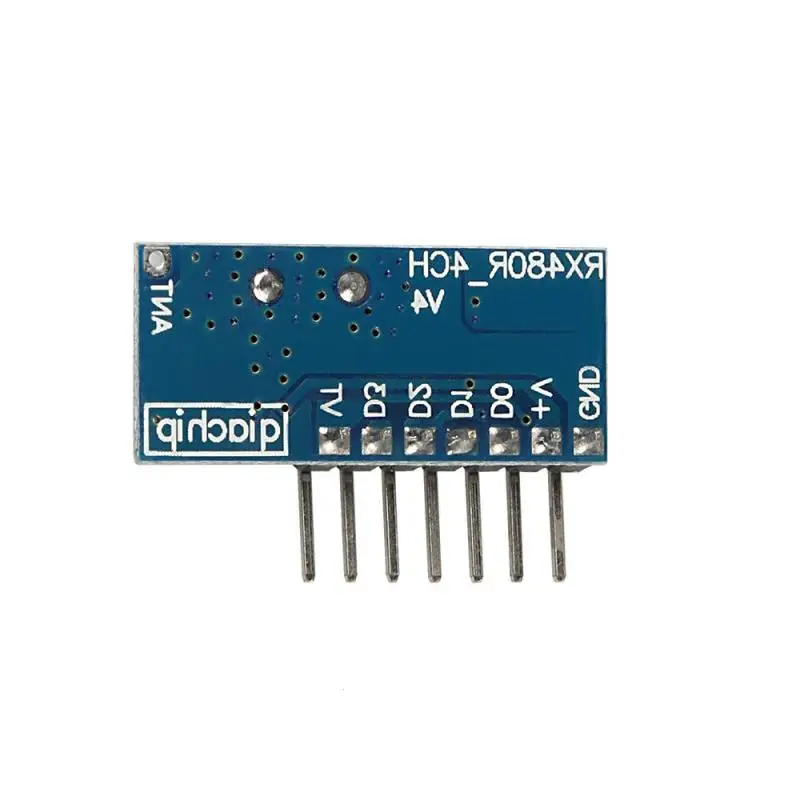

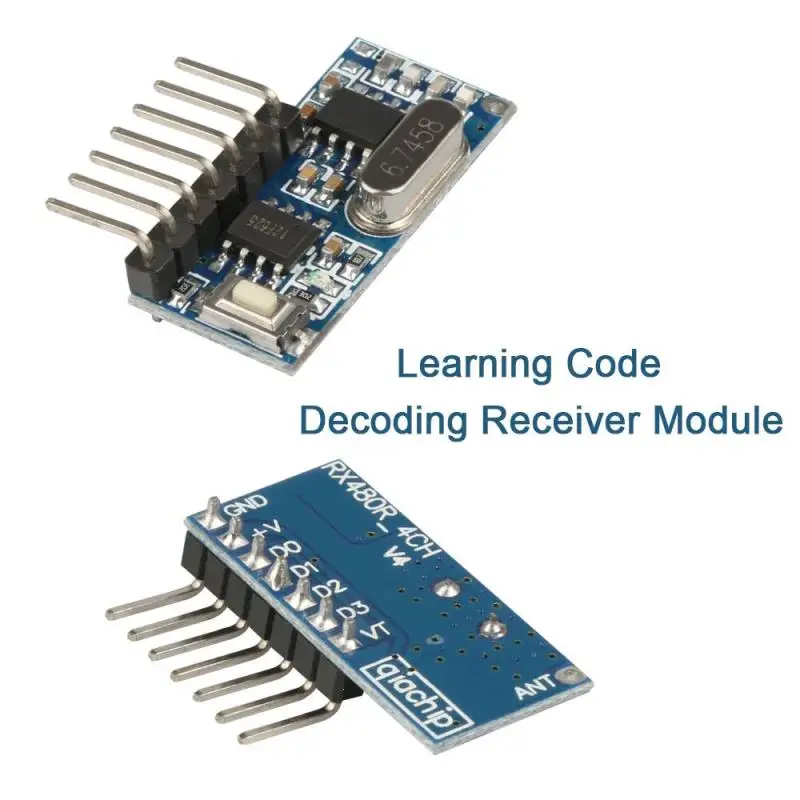

For Receiver Module:

Model:RX480-E4

Attention Please:

Compatible transmitter encoding type: EV1527

If you are not using the transmitter encoding EV1527 will not be applied to the receiver.

Working Voltage : DC3.3~5V

Quiescent Current : ≤5mA

Working Frequency: 315MHz / 433MHz( Others can be customized )

Receive Sensitivity: -108dB

Receive Distance:  15 meters above

Frequency band: ±0.2MHz

Working Temperature : -25~75

Working mode:Point move, self-locking, interlocking

The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons.

Package List:

1 * 433MHz RF Remote Control Transmitter (Battery is Included)

1 * Receiver module 433Mhz(RX480-E4)

Note:

The Package Included different Products Because you choose a different Package
