Автомагнитола JUNDOF, мультимедийный плеер на Android, с GPS, 4G, Wi-Fi, DSP, Carplay, для VW/Volkswagen, Skoda Octavia, Golf 5, 6, Touran, Passat B6, Polo, Jetta, типоразмер 2 Din

If you can not sure whether fit your car, Please provide us below information, we can help you to check it:

1. Please give us your original car dashboard picture.

2. Please make a picture to us show your original car's connector picture.

For Seat

For Altea ab 05/2004

For Toledo ab 12/2004

For Leon ab 09/2005

For Altea XL ab 04/2007Alhambra ab 2010

For VW

For VW/SAGITAR/JATTA/JETTA

For VW/MAGOTAN/MAGOTAN V6

For VW/PASSAT B6

For VW/PASSAT V6

For VW/MAGOTAN VARIANT

For VW/PASSAT B7

For VW/PASSAT NMS

For VW/PASSAT Variant

For VW/PASSAT CC

For VW/PASSAT TSI

For VW/TOURAN

For VW/GOLF V

For VW/GOLF VI

For VW/GOLF VARIANT

For VW/TIGUAN / TIGUAN GP

For VW/SHARAN

For VW/CADDY

For VW/POLO

For VW/EOS

For VW/SCIROCCO

For A part of VW/T5/TRANSPORTER

For VW/R36 VARIANT

For VW/BEETLE

For VW/MULTZVAN

For VW/GOLF CROSS

For VW/GOLF BLUE MOTION

For VW/SPORTLINE

For VW/BORA

For VW/AMAROK

For Skoda

For Fabia Limousine ab 02/2007 bis 2012

For Fabia Combi ab 04/2007 bis 2012

For Praktic ab 04/2007 bis 2012

For Roomster ab 04/2006 bis 2012

For Octavia Combi 06/2004 bis Facelift

For Octavia Limousine ab 06/2004 bis Facelift

For Octavia II 2& III3

For Yeti ab 2009 bis 2012

For Superb/3 T ab 2008 bis 2012

For
the cars, which produced in 2014/2015/2016/2017, before you purchase,
please contact with us. They may have different connectors and canbus,
we will tell you how to purchase the correct one. If the connectors and
canbus can't work with your car but you haven't contacted with us, we
will not pay the returned shipping fee.

Note: please check the size or contact with us before your order, if you can't make sure the size;

Tip:
Although we have made every effort to ensure this item is compatible
with the listed vehicles, please ensure you have the correct shape /
size OEM unit before purchasing.

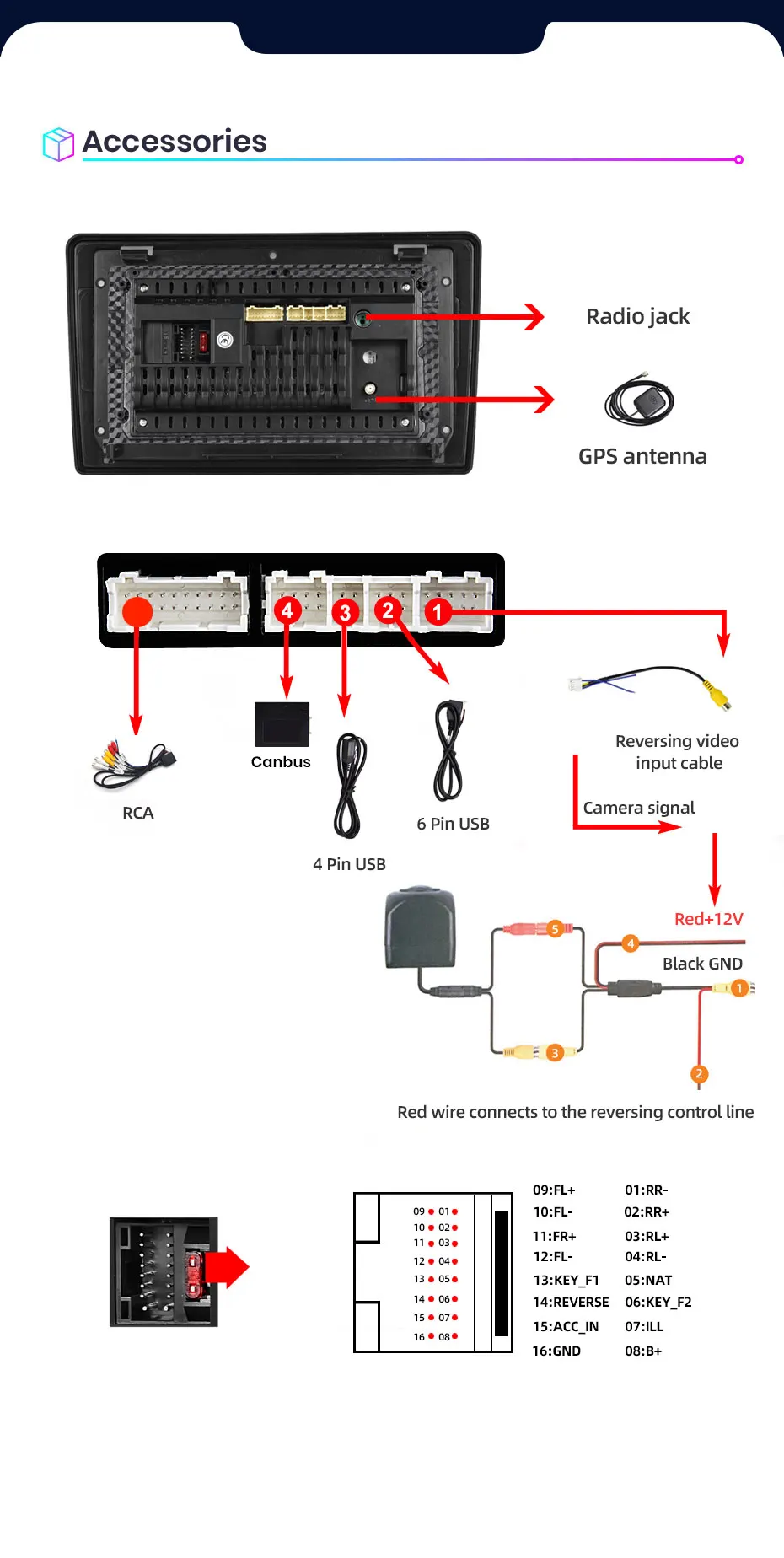

Package List

1 x 7" VW Android MP5 Player

1 x Low allocation vehicle power cable

1 x High allocation vehicle power cable

1 x CANBUS

1 x GPS Antenna

1 x Camera input

1 x RCA input/output (with SIM card slot)

2 x 4G Antenna

2 x USB Data Cable

1 x Radio Antenna

1 x Instruction Manual

FAQ For Android Auto 2din Car Radio Stereo:

1.Why can't turn on the car radio ?

1 ,Please check the Voltage of car radio : 12V

2,When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.

3,Replace the same type of insurance to test the car radio. Note: Please must use power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine.

2.Why the car radio will show "No Signal" when we reversing?

Please
check if the camera's line is properly connected to the car radio.
Note:The video port of rear camera must insert the "CAMIN" port of car
radio.

3.Why does the camera display "!" and "Can't watch video while driving" when I use USB to watch videos?

Please turn off the "Video Warning" function in the settings,then will be OK.

4.Why can't search FM?

1: No radio antenna inserted;

2: Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted;

3: The signal of your location is not good. Please go to a better place to test again

4: The radio antenna on the car is broken/no effect; please replace the radio antenna and test again.

5.Why can't connect the Bluetooth of car radio?

1.Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, find the player's Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try
1234 or 123456

2.Please try to use another mobile phone to test this function. Please check if the Bluetooth receiving antenna is properly connected All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minutes.

6: Bluetooth signal is weak or WiFi signal is weak?

Please check and reconnect the Yellow rear Camera input connector, there are 2 short cables, they are the extension cords of the Bluetooth antenna and the WiFi antenna, or you can extend them to enhance the signal.

7: The navigation map does not work?

Please check whether the GPS has a signal, click GPS signal detection,

if there is a signal, then reinstall a new map or open the mobile WiFi hotspot.

If there is no GPS signal, leave the garage and test the GPS interface voltage on the road.

The voltage must be 3.3V, otherwise the GPS antenna should be replaced.

8: The screen display is abnormal?

Please click the one-key recovery button, if it can't be solved, remove the screw on the back, check whether the screen cable is loose, and reconnect the screen cable.

9: Abnormal sound:

1)Check whether the original car cable has been modified by another car
owner. If so, please check the speaker cable and reconnect it.

2) Check whether there is an original car or a modif

10:The radio cannot be turned on?

1.The condition for the radio to turn on is that ACC (G3) and 12V (G2) are connected to the positive pole of the car's 12V power supply, and G1 is connected to the negative pole of the power supply. There may be a
very small probability that the power cord does not match your car. You can directly connect these 3 power cords Connect the power cord of the car without the radio,

2.It may be that the connecting wire of the radio came off during transportation, just open the back cover to check and reconnect the connecting wire inside the radio

3.If you can't turn on after checking the above steps, please send a video to us for confirmation. The video needs to show that the power cord is normally connected, and test the connection cord with an electric meter to be 12V.
