T-Display-S3 Introduction

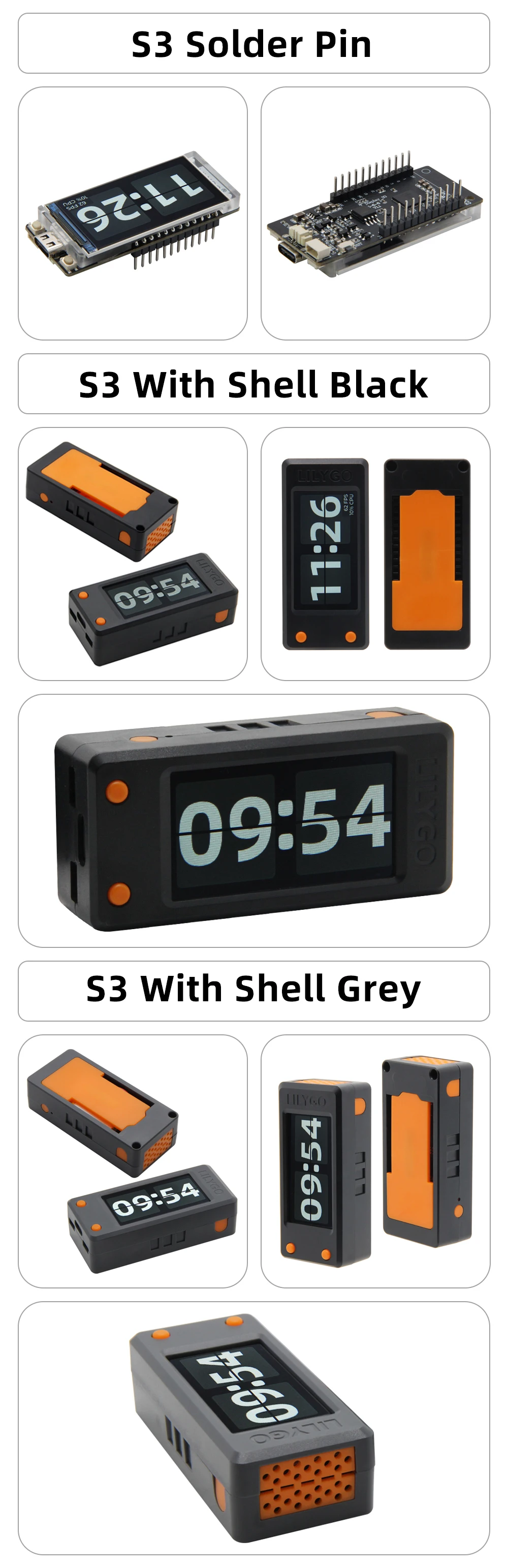

• Introducing the latest addition to the T-Display series - the T-Display-S3. Equipped with the latest ESP32-S3 and Bluetooth 5.0, this model boasts a larger 1.9 inch screen and features an acrylic plate for added stability. The T-Display-S3 maintains the sleek and modern design of the T-Display series.

The board uses USB as the JTAG upload port. When printing serial port information on USB, CDC_ON_BOOT configuration needs to be turned on. If the port cannot be found when uploading the program or the USB has been used for other functions, the port does not appear. Please enter the upload mode manually.

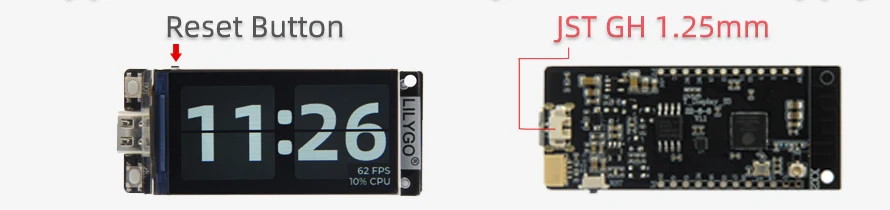

• Press and hold the BOOT button when the power is off, the button is located behind the RST button.

• When the USB is connected, first press and hold the BOOT button, then click reset and then release the BOOT button

Please refer to the diagram for further instructions. Check

More Information

• Github:

  https://github.com/Xinyuan-LilyGO/T-Display-S3

• From YouTube's "Useful Electronics" presentation:

  https://www.youtube.com/watch?v=88MwR-4Dy0Q

• T-Display-S3 Touch Edition:

  https://www.aliexpress.com/item/1005004928000937.html

• Contribution from "У Павла!"

  https://www.youtube.com/watch?v=UABtfKg0ATY
