Цифровой мегаомметр BM500A

Код товара: A4001059233017

Кешбек: 15%

Магазин: АлиКэшбэк20

Пройдите простую регистрацию, чтобы делать покупки выгодно.

Описание:

Features:

1.An accurate,reliable and easy to measure insulation resistance,voltage.

2.Wide measuring range,voltage:250V/500V/1000V, resistance:0.001～1999MΩ.

3.Large LCD display,convenient to read data,max display counts 1999.

4.Stable performance,LED light indicator,data hold and auto range.

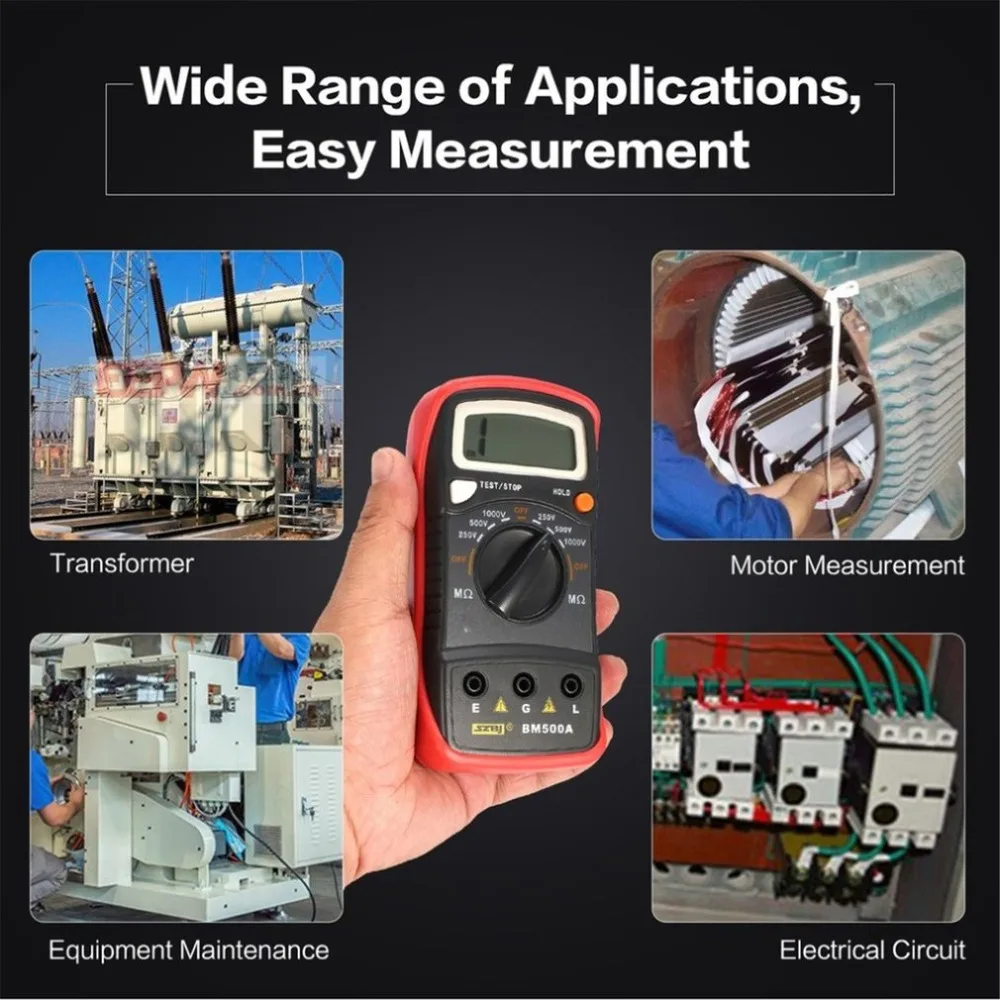

5.Wide range of applications:Such as transformer,motor,cable,switch and electric appliances.

Description:

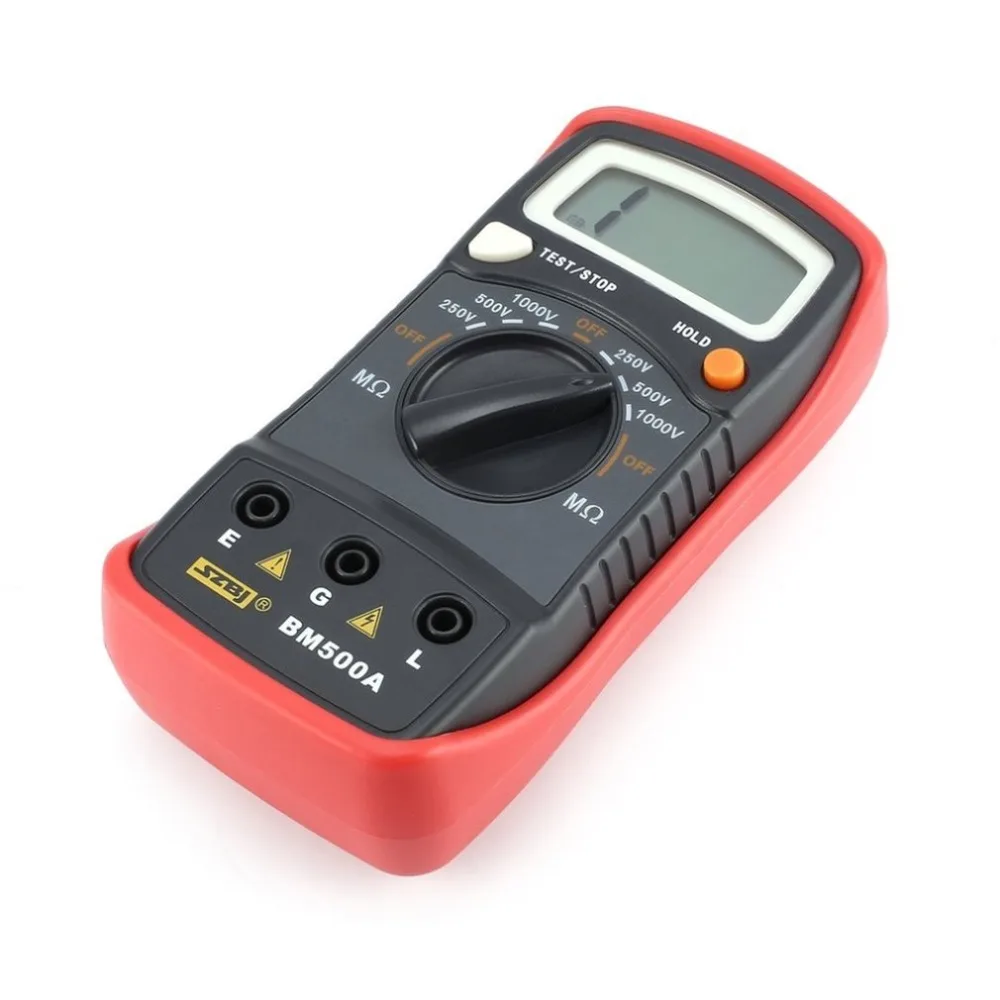

1.BM500A is a digital insulation resistance tester,output test voltage can be switched among 250V/500V/1000V.

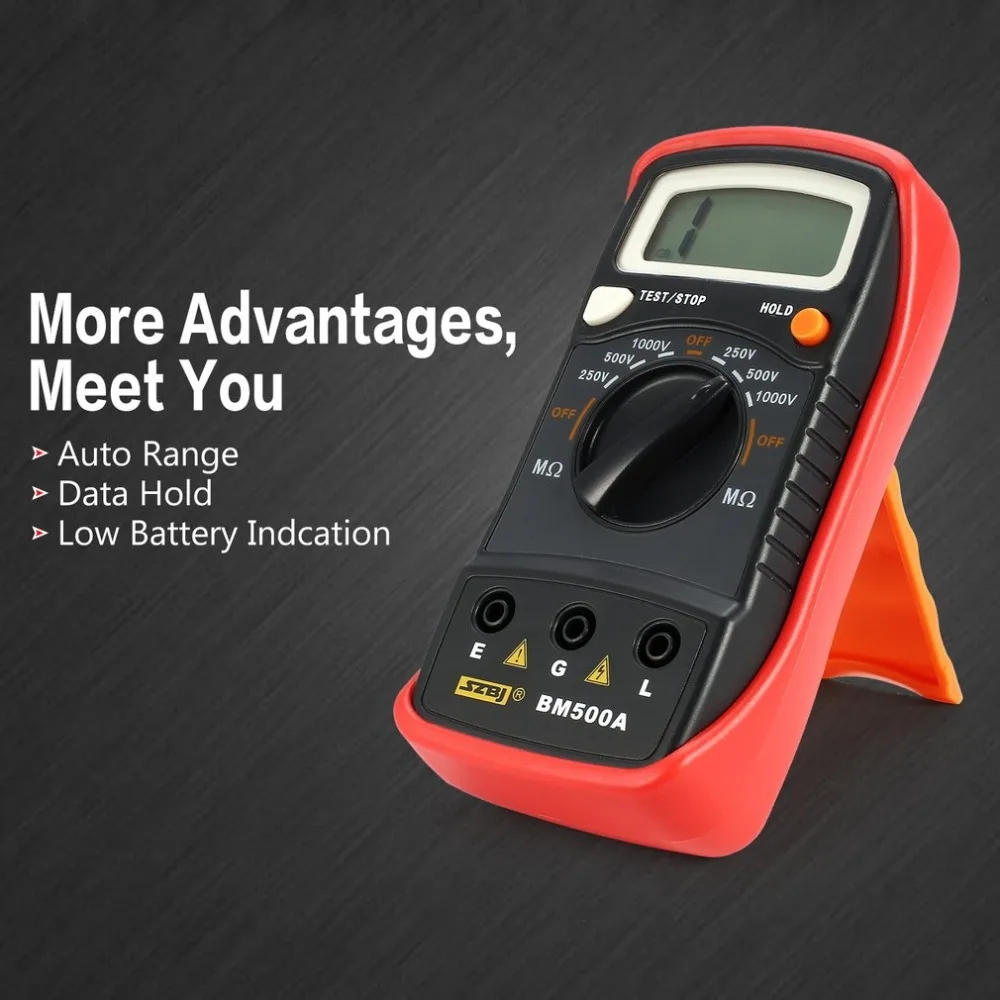

2.More advantages,such as stable performance,high accuracy,auto range and data hold.

3.A ideal tool for electric equipment maintenance,testing and inspection.

Specifications:

Model: BM500A

Color: Black&Red

Display Count: 1999

Auto range: Yes

Data hold: Yes

High Voltage Indication: Yes

Low battery Indication: Yes

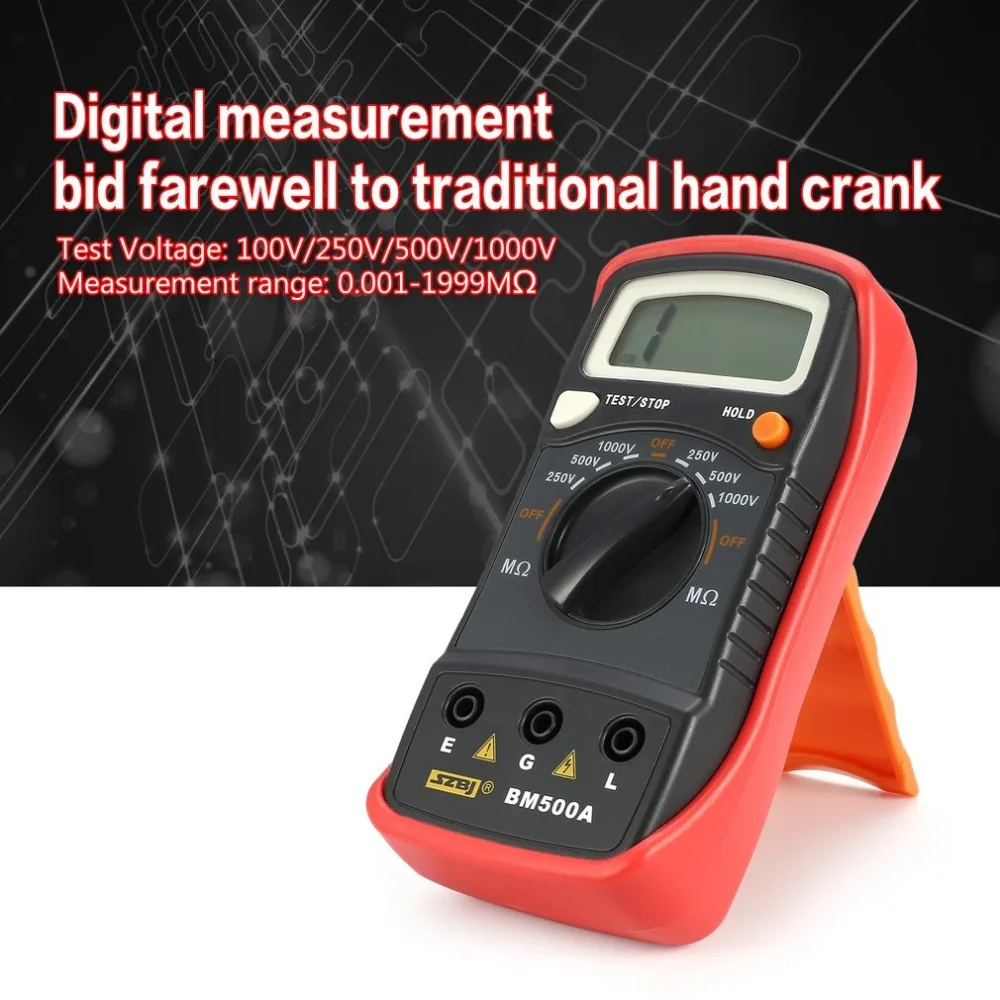

Rated voltage: 250V/500V/1000V

Measurement range:0.001-1999MΩ

Minimun resolution: 0.001MΩ

Accuracy: ±(5%RDG+5)

250V: about 500kΩ

500V: about 1.5MΩ

1000V: about 5MΩ

Short circuit current: Not less than 1.5mA

Power: 9V 6F22 battery (Not included)

Open circuit voltage: 90%-110% of the rated voltage

Insulation Resistance(Ω): Test Voltage: 100V/250V/500V/1000V

Product Size: 138mm/5.38in x 69mm/2.69in x 39mm/1.52in

Product Net Weight: 207g

Package Included:

1 x Test Leads

1 x Pair Alligator cable

1 x User Manual

1 x BM500A Insulation Resistance Meter

Notes:

1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2. Please allow slight dimension difference due to different manual measurement.

Характеристики:

<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Название бренда</span>	OUTAD
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Происхождение</span>	Китай
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Сертификация</span>	NONE
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Товары для ремонта</span>	Электрический
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Единица измерения</span>	штука/штуки
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Количество</span>	1
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Display Count</span>	1999
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Rated voltage</span>	250V/500V/1000V
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Measurement range</span>	0.001-1999MΩ
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Название бренда</span>	OUTAD
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Происхождение</span>	Китай
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Сертификация</span>	NONE
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Товары для ремонта</span>	Электрический
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Единица измерения</span>	штука/штуки
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Количество</span>	1
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Display Count</span>	1999
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Rated voltage</span>	250V/500V/1000V
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Measurement range</span>	0.001-1999MΩ
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Minimun resolution</span>	0.001MΩ
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Accuracy</span>	±(5%RDG+5)
