Lepmerk DSO-TC3 is an upgraded version of DSO-TC2. On the basis of DSO-TC2, it has upgraded capacitance ESR detection, function signal generator output, oscilloscope bandwidth and sampling rate improvement, input voltage and diode detection range increase and so on. The improvement in performance and function of DSO-TC3 makes the device more stable and accurate in the detection process.

Features:

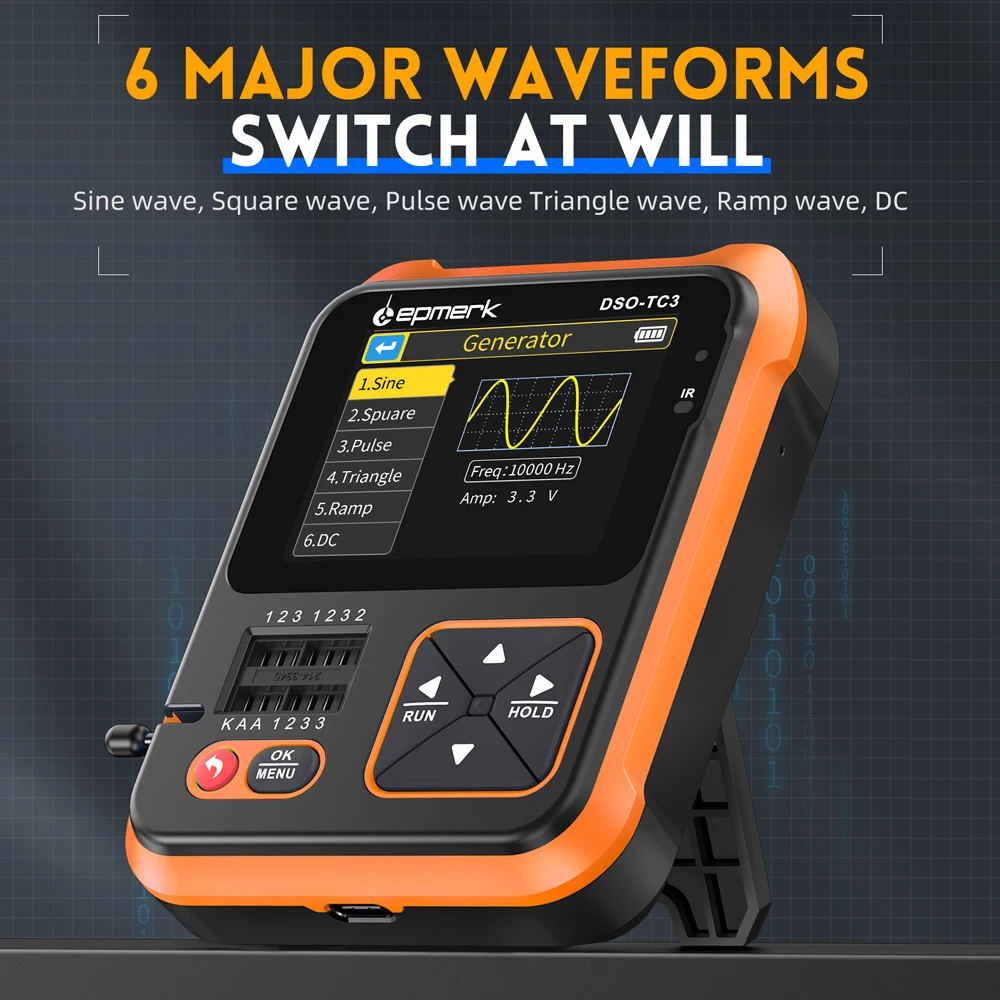

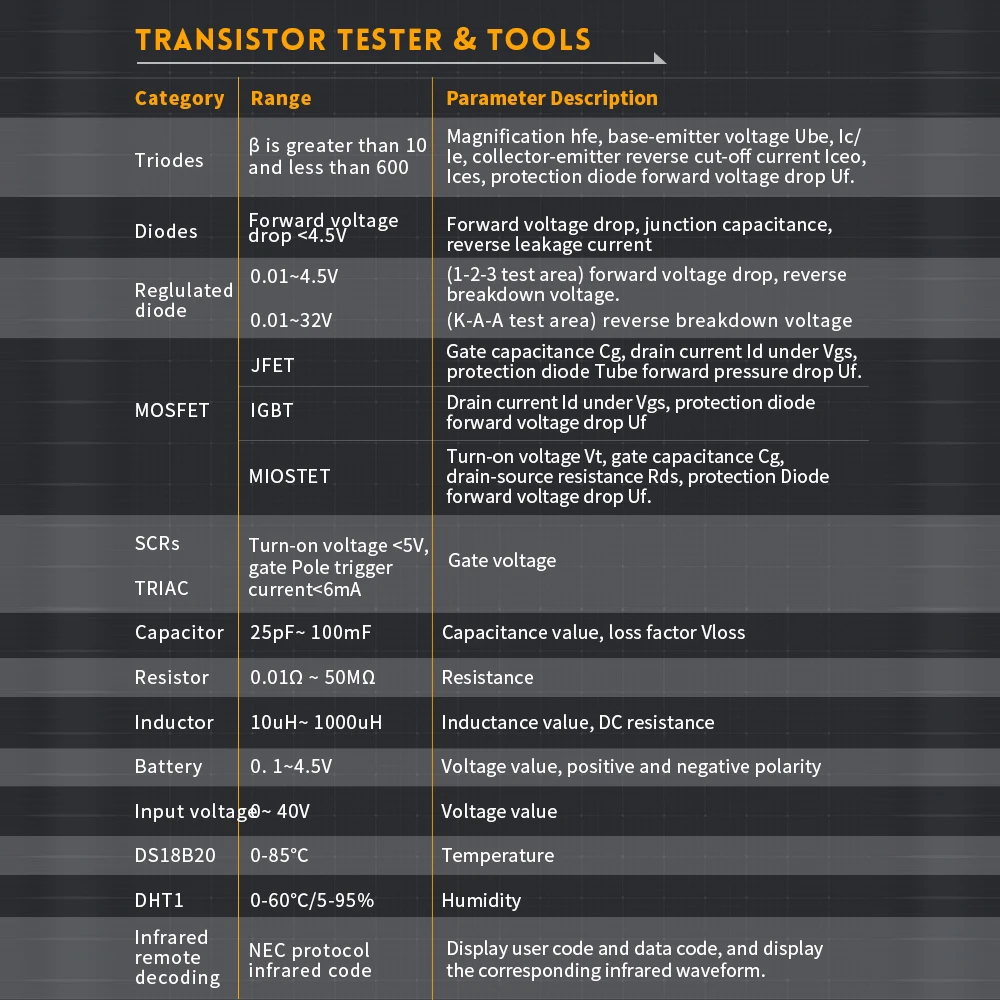

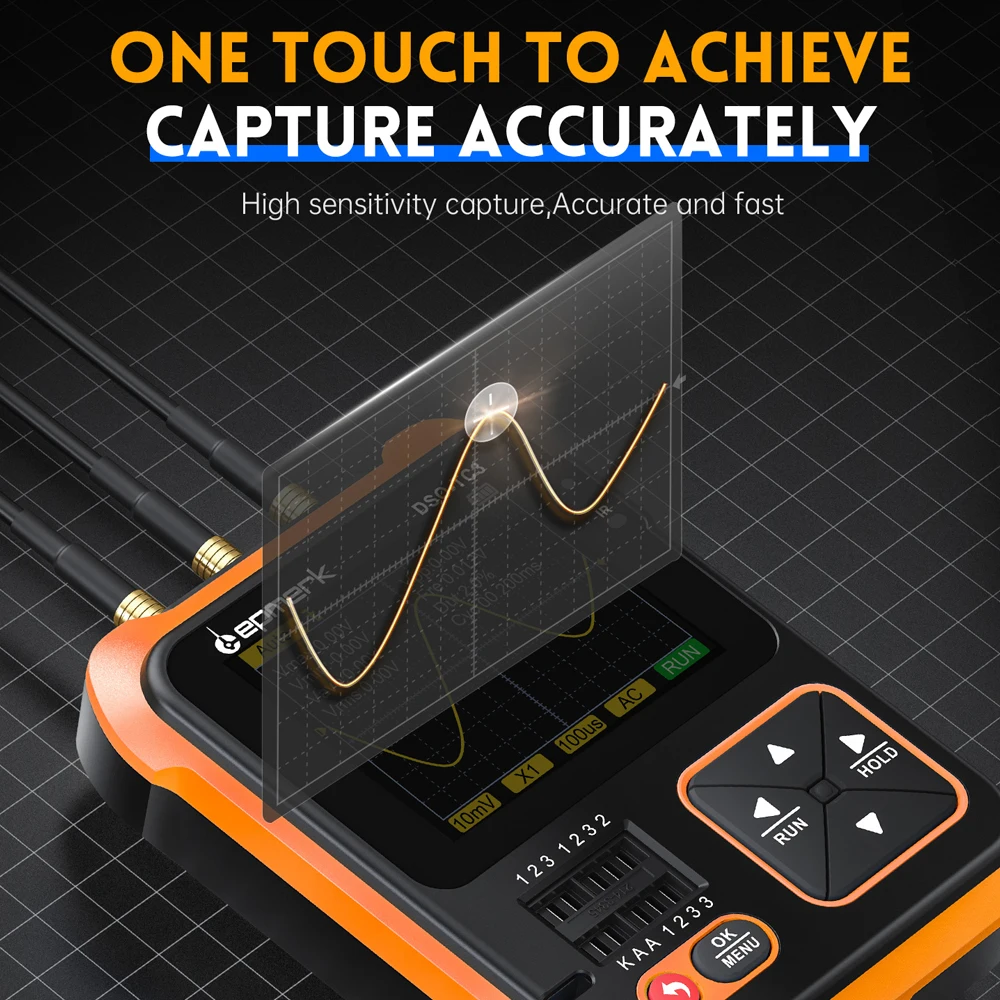

3 In 1 Function: This product ingeniously integrates digital oscilloscope, transistor tester and signal generator functions into one machine. With the real-time sampling rate of 10MS/s and bandwidth of 500Khz. Support maximum measurement of 400V voltage signal. With complete trigger function (automatic, single, regular). Equipped with an efficient button AUTO, the measured waveform can be displayed without cumbersome adjustments.

2.4inch Digital TFT Display: Anti-erspective color screen, high resolution display with LED backlight, with bright colors and high contrast, you can see the data clearly in bright light. Infrared decoding design, quick response, accurate capture of highly sensitive response signal, fast and accurate measurement with small error. Built-in 1500mAh high-capacity rechargeable polymer lithium battery, long lasting lifespan, Type-C interface, continuous power supplys without isolation transformer, safer to use.

Specifications:

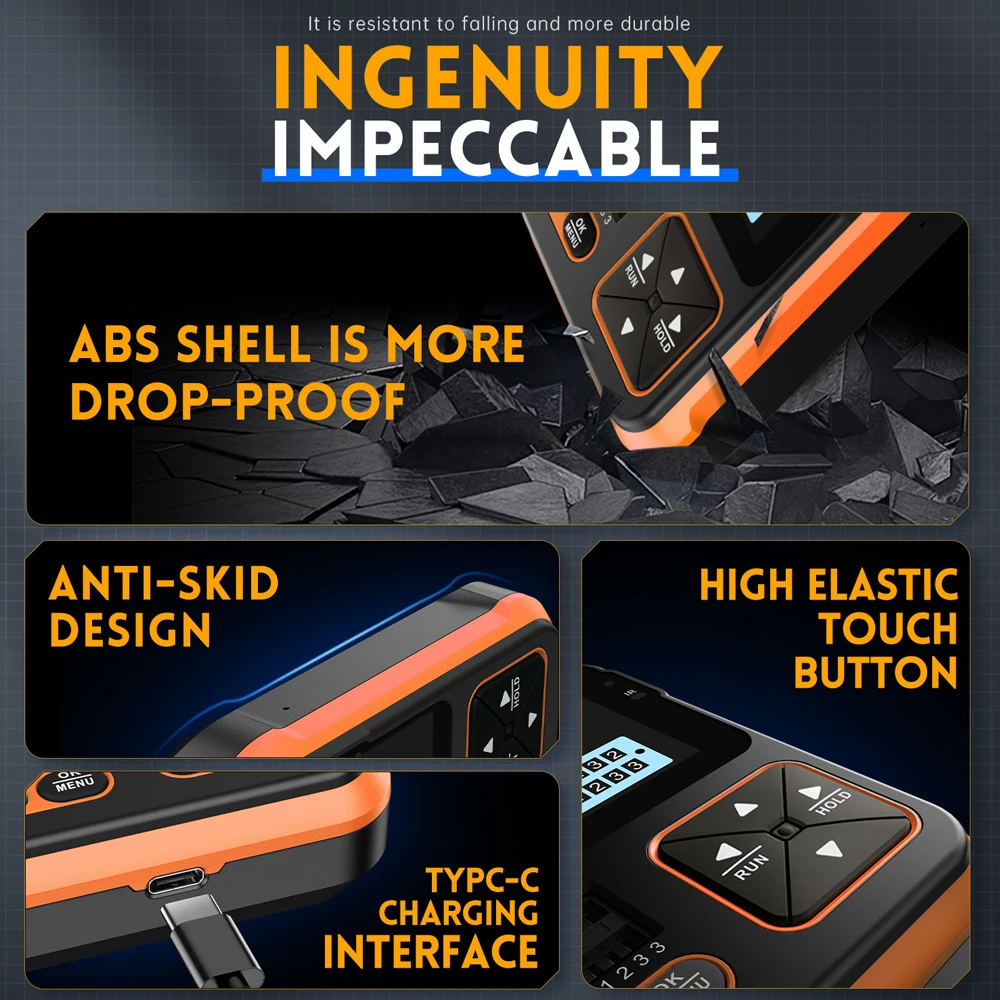

Material: ABS

Display: 2.4 inches TFT color screen

Battery: 1500mah rechargeable lithium battery

Charging interface: USB Type-C, +5V

Digital Oscilloscope: 10MSa/s

Real-time sample rate: 500Khz

Analog Bandwidth: 1ΜΩ

Input resistance: AC/DC

Coupling method: 400V

Test voltage ranges: 10mV-10V

Vertical Sensitivity (x1): 1us-10s

Item size: 110 * 76 * 30mm / 4.33 * 2.99 * 1.18in

Package size: 140 * 125 * 55mm / 5.51 * 4.92 * 2.17in

Package weight:

Standard configuration: 300g / 10.58ounce

High configuration: 345g / 12.17ounce

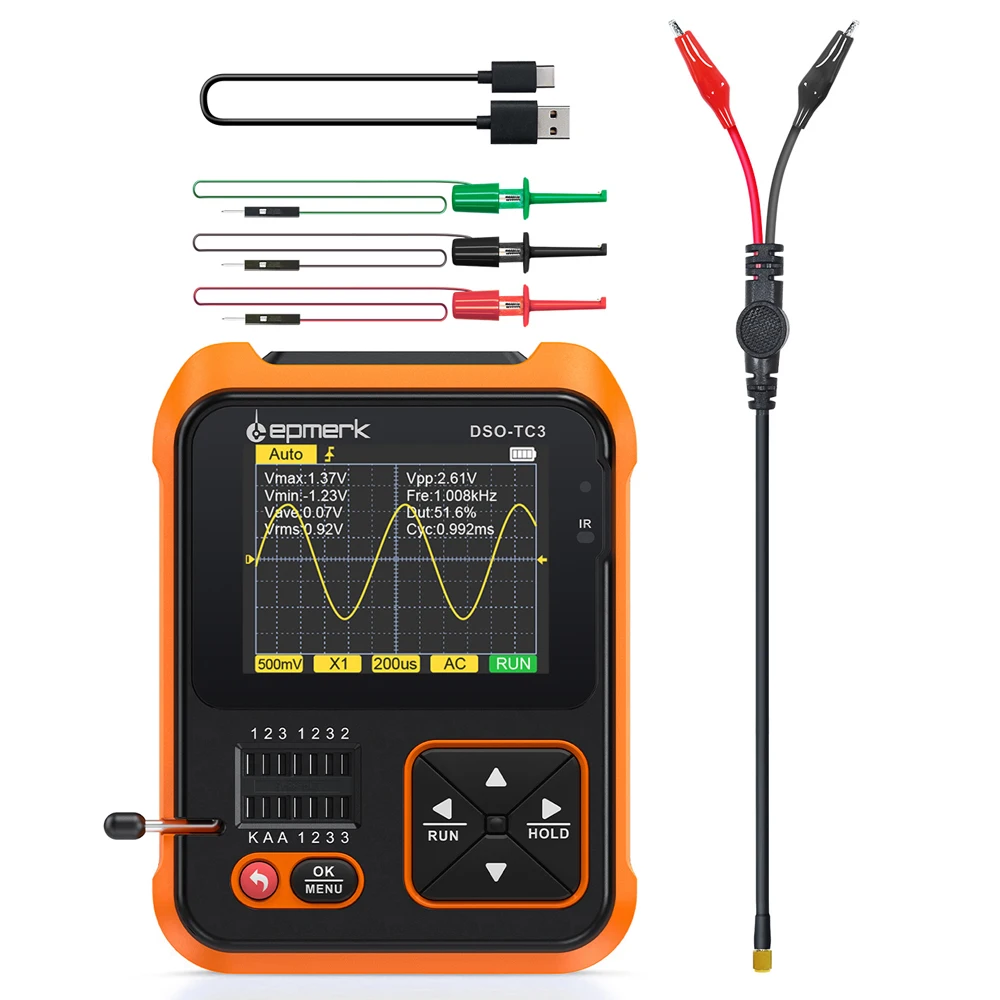

Packing List (Standard Configuration):

1 * 3in1 Digital Oscilloscope

3 * Test Hook

1 * Probe

1 * Type-C Cable

1 * Manual

Packing List (High Configuration):

1 * 3in1 Digital Oscilloscope

1 * Adaptor

1 * Probe

1 * High Pressure Probe

3 * Test Hook

1 * Type-C Cable

1 * Manual
