Датчик давления 0-10bar 9-32VDC G1/4 4-20mA 0.5% A0KF

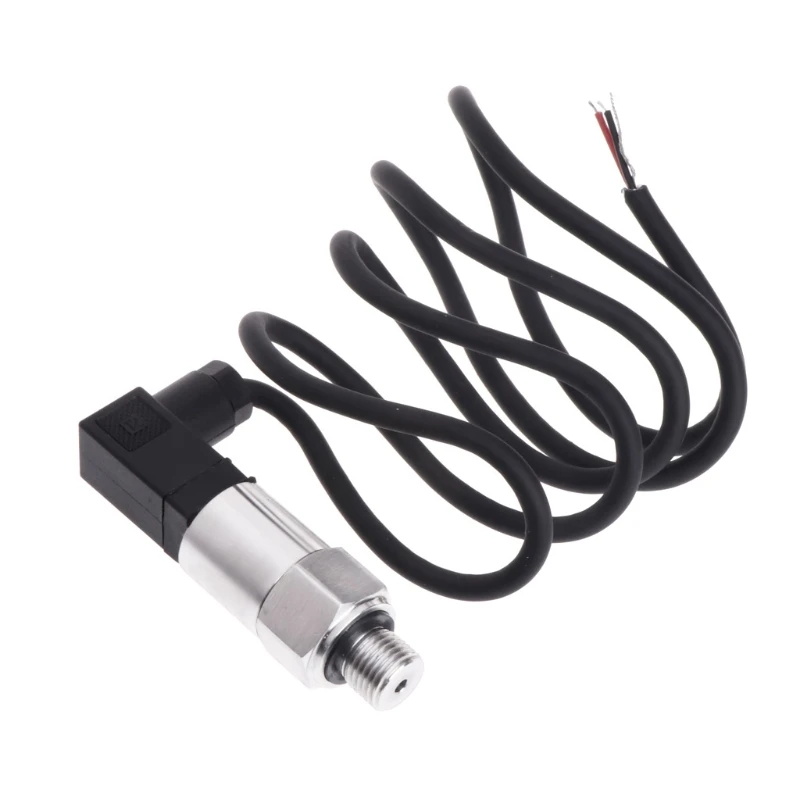

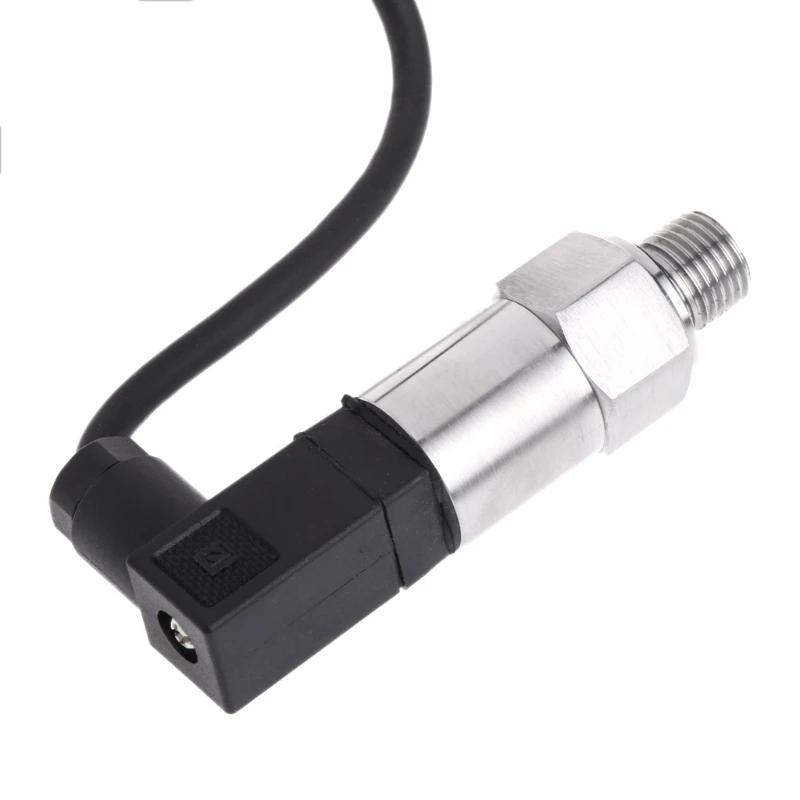

Pressure Transmitter Transducer Detect Oil Fuel Gas Water Pressure 0-10bar 9-32VDC G1/4 4-20mA 0.5% Easy to Install A0KF

Features:
Applications: compressor and pump;
Liquid pressure and pressure system;
Energy resources and water treatment system;
Refrigerating equipment;
Automatic detection system;
Locomotive brake;
Environmental protection field;
Agriculture application and mechanical automation-.

Specifications:
Max pressure: 435PSI
Capacity Range:0-10bar(gauge pressure);
Comprehensive Precision:0.5%FS;
Output Signal:4-20mA;
Overload Capacity:2-4 times
Using Temperature Range:-40 to 110℃;
Power Supply:9-32VDC;
Pressure Medium:Non-corrosive liquid or ;
Temperature Effect on Zero:Typical:0.02%FS/C;Maximal:0.05%FS/C;
Temperature Drift on Sensitivity:Typical:0.02%FS/C;Maximal:0.05%FS/C;
Shock- Resistance:1000g;
Housing Material:Stainless Steel;
Pressure Connection:DIN type;
Blast Proof Class:ExiaIICT6;
Long-term Stability:less than 0.1%FS/year;
Defend Grade:IP68;
Pressure Connection:G1/4;
Cable Connection:Red(IN+); Black(IN -)
Cable Length: 1M

Package Includes:
1x Pressure Transmitter

Note:
Please allow 1-3cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
