Датчик температуры NTC, модели в ассортименте

Our company specializes in the production of temperature sensors, which can be customized and processed. The larger the quantity, the greater the discount. If you need it, please feel free to contact me.

Specifications

Remarks: Length and resistance can be customized

product name:

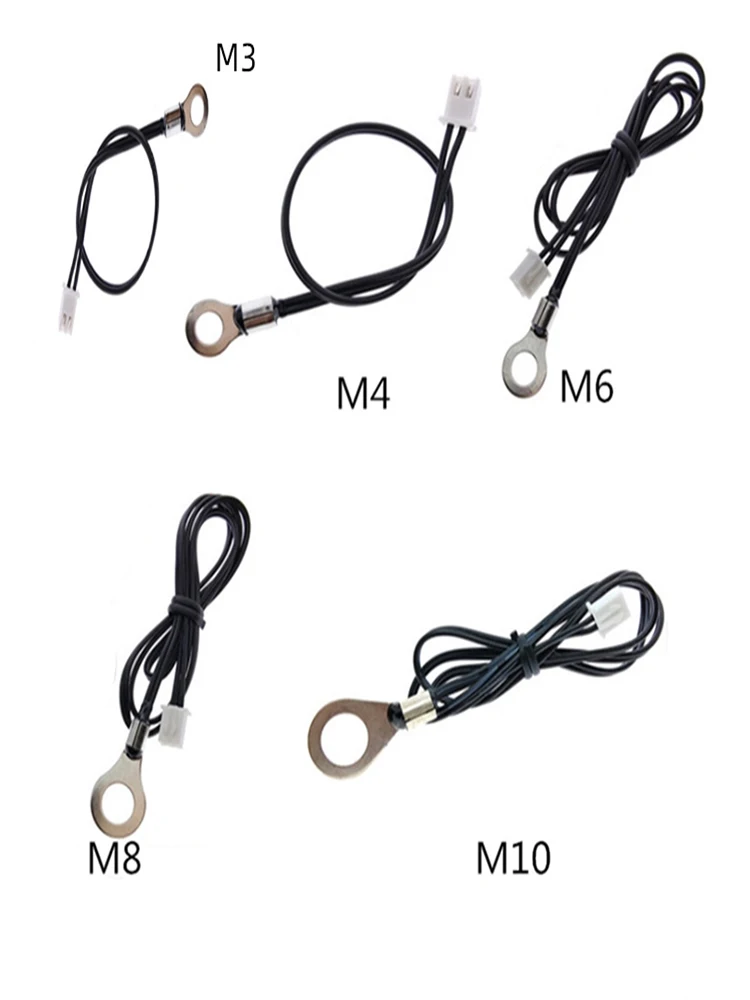

Wire ear temperature sensor, wire nose temperature sensor, surface mount temperature probe

Shell material:

(Stainless Steel: M3 M4) (Brass Nickel Plated: M5 M6 M8 M10)

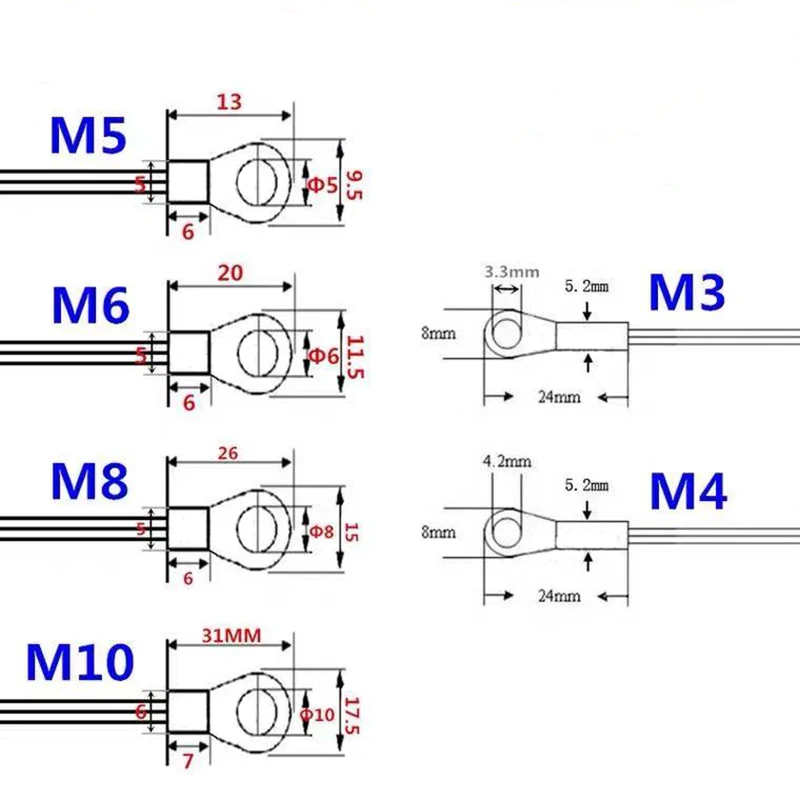

Mounting hole size:M3 M4 M5 M6 M8 M10

【Optional】

Resistance value:10K

Resistance accuracy:±1%

Resistor B value:3950±1%

Temperature measurement range:-30℃-125℃

Wire Model:2651 26AWG PVC black double parallel wire resistance 105℃

(Note: M10 is paralleled with 24AWG)

Wire tail:Tin plating/Immersion Tin/with XH2.54-2P plug

【Scope of application】

It is used in inverters, household air conditioners, automotive air conditioners, refrigerators, freezers, water heaters, water dispensers, air heaters, dishwashers, disinfection cabinets, washing machines, dryers, and temperature measurement and temperature measurement in low and medium temperature drying boxes, incubators, etc. control.
