Динамик Vifa P17WJ00-04/08, 6,5 дюйма, Hi-Fi

Код товара: A32808173086

Кешбек: 15%

Магазин: АлиКэшбэк20

Пройдите простую регистрацию, чтобы делать покупки выгодно.

Доступные опции:

Цвет:

4ohm version 8ohm version

Доставка:

Китай экспресс

Описание:

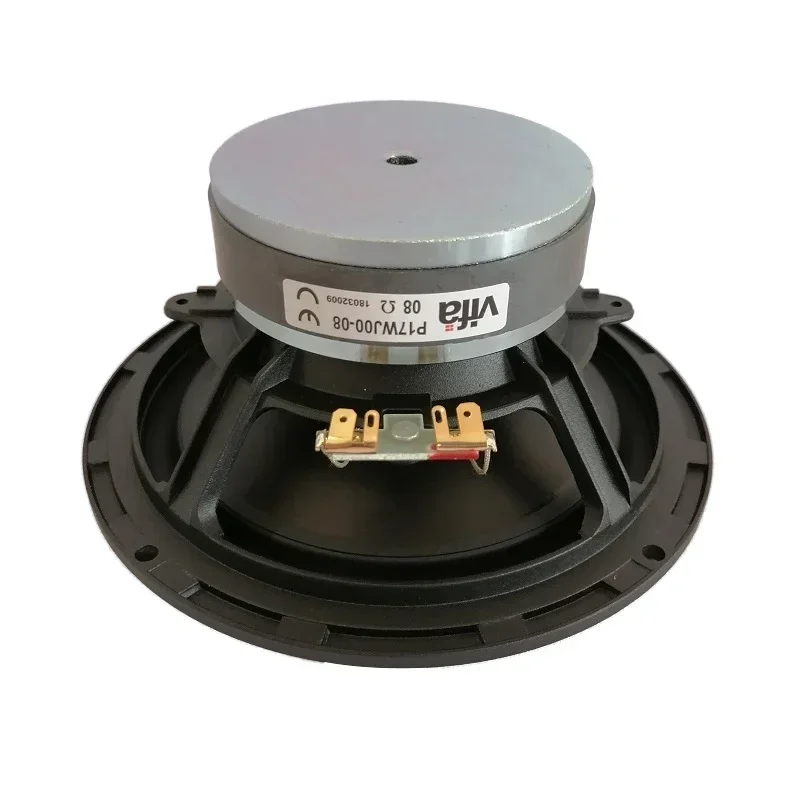

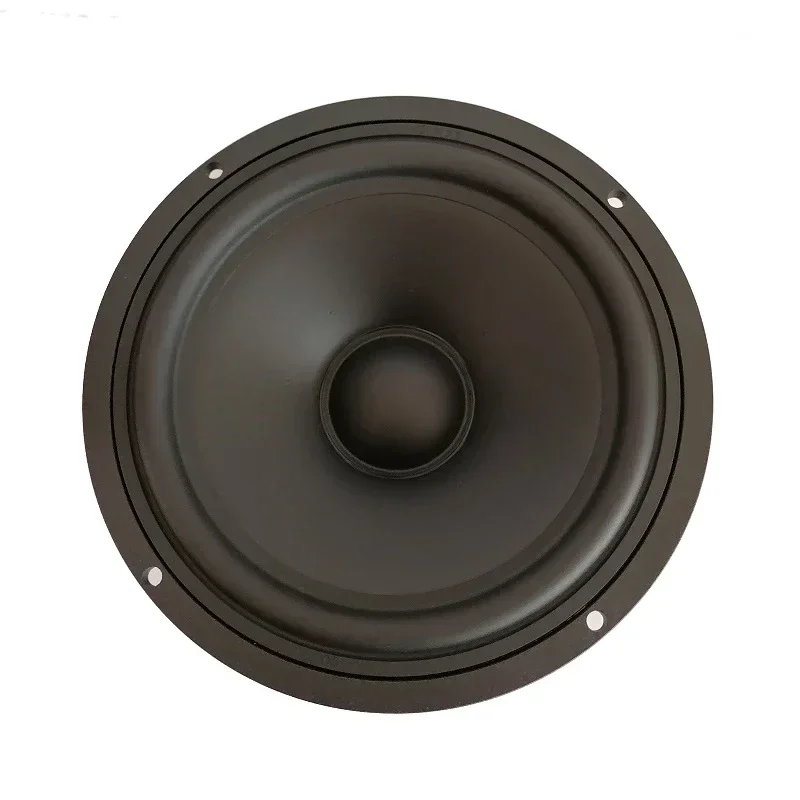

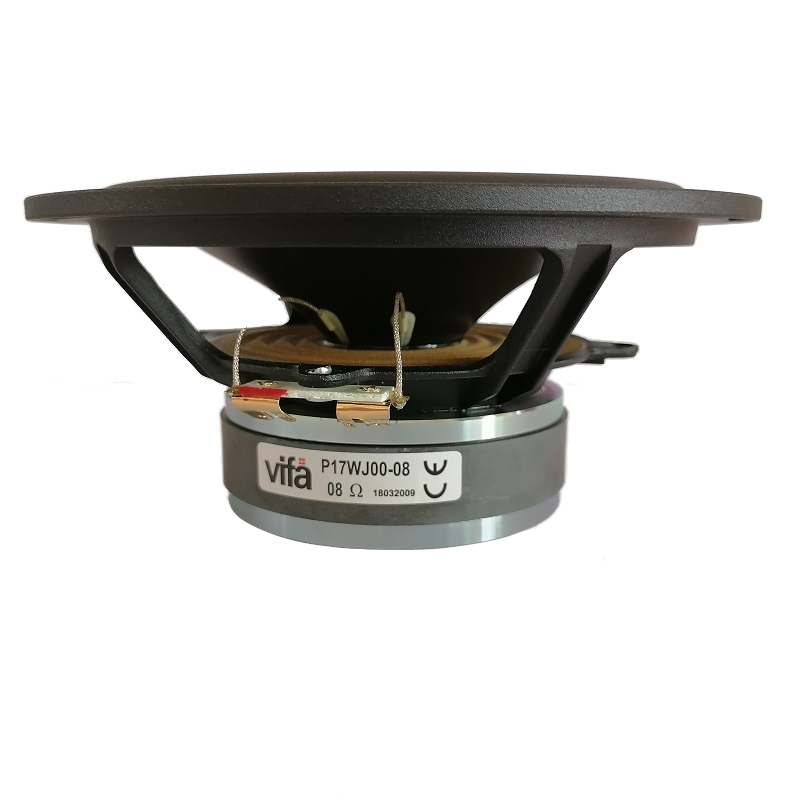

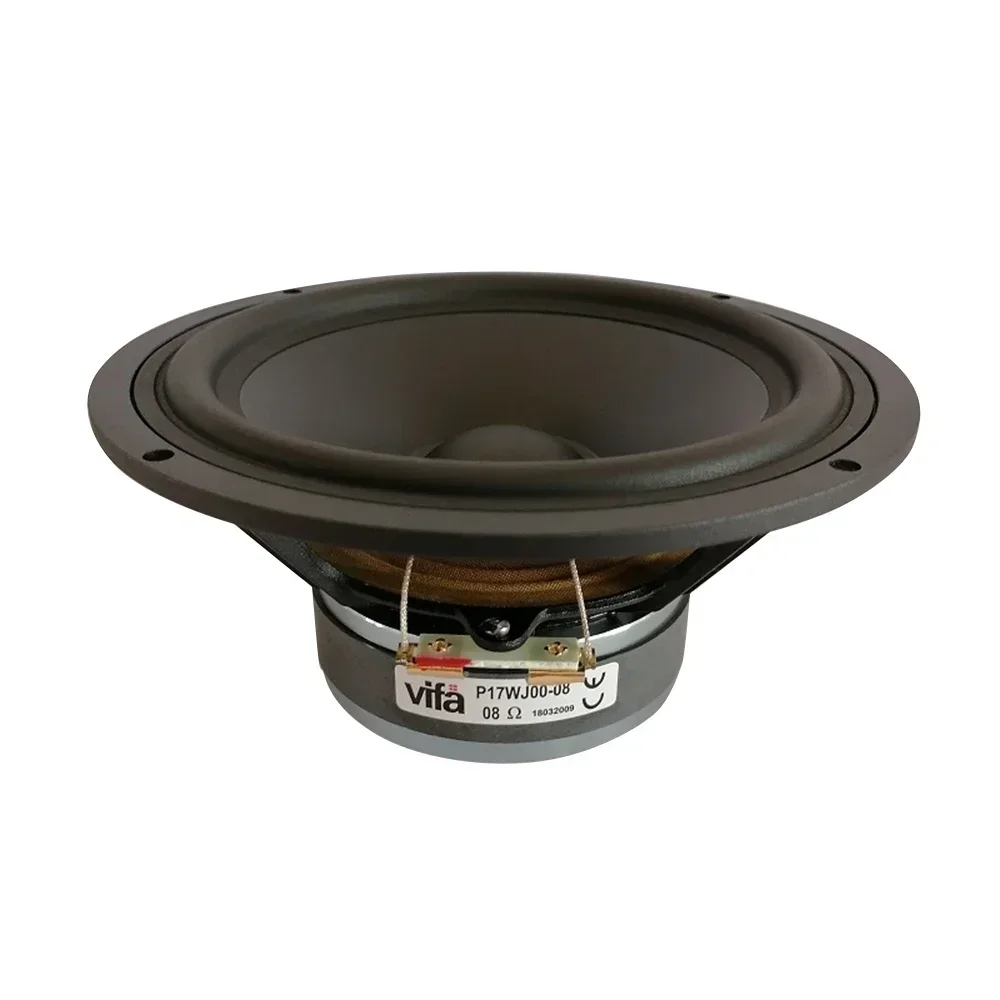

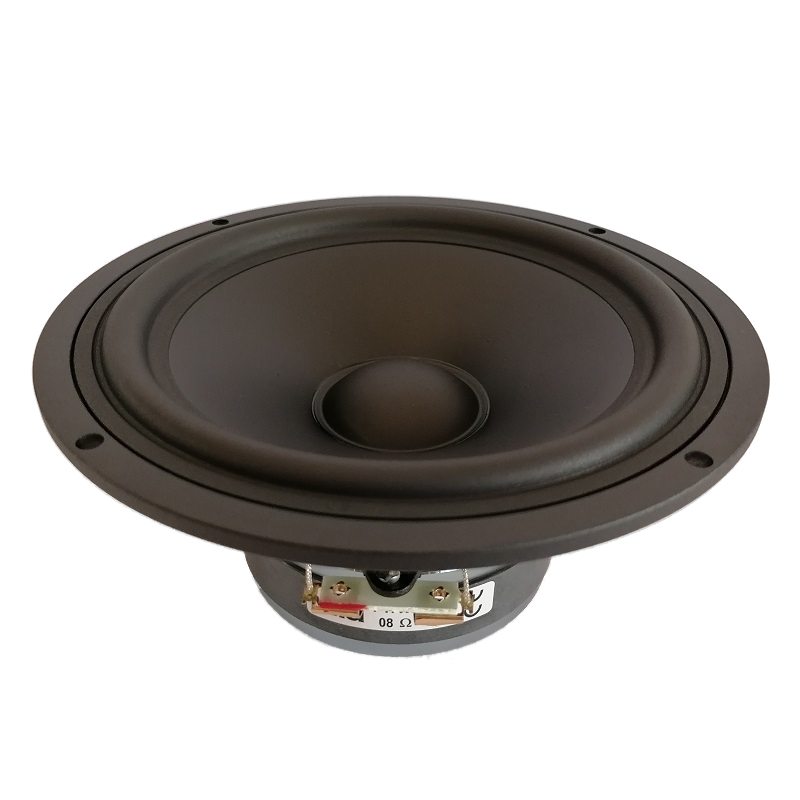

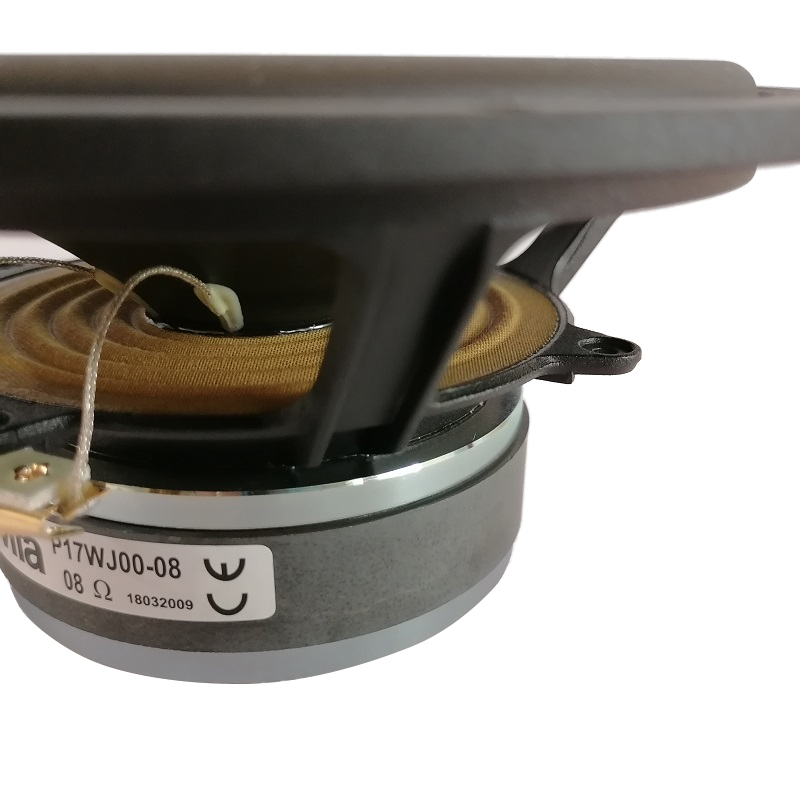

1 Pieces Original Vifa P17WJ00-04/08 6.5'' Hifi Midwoofer Speaker Driver Casting Aluminum Frame PP Cone 4/8ohm 80W

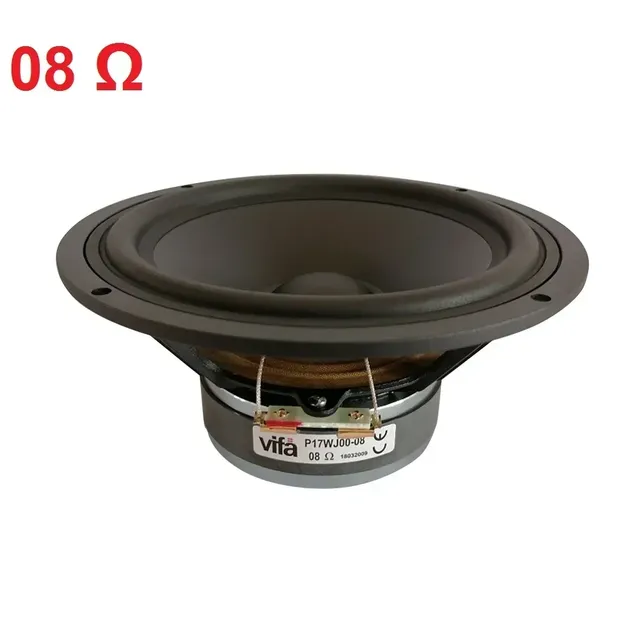

1, Here is the speaker data of 8ohm version, as follows

Impedance: 8ohm(voice coil resistance=5.8ohm)

Power handle=80W(rms power about 40W)

Fs=37Hz

Frequency range=37-5000Hz

Sensitivity=88db/2V1m

Qts=0.35

Mms=14g

Vas=34.7Ltr

Voice coil OD=32mm

Voice coil height=14mm

Voice coil material: Copper clad aluminum

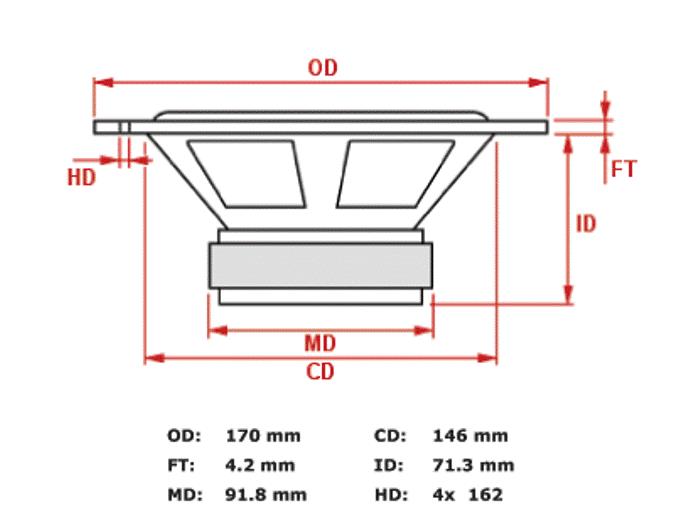

Outer diameter=170mm

Wood box opening=146mm, depth=71.3mm

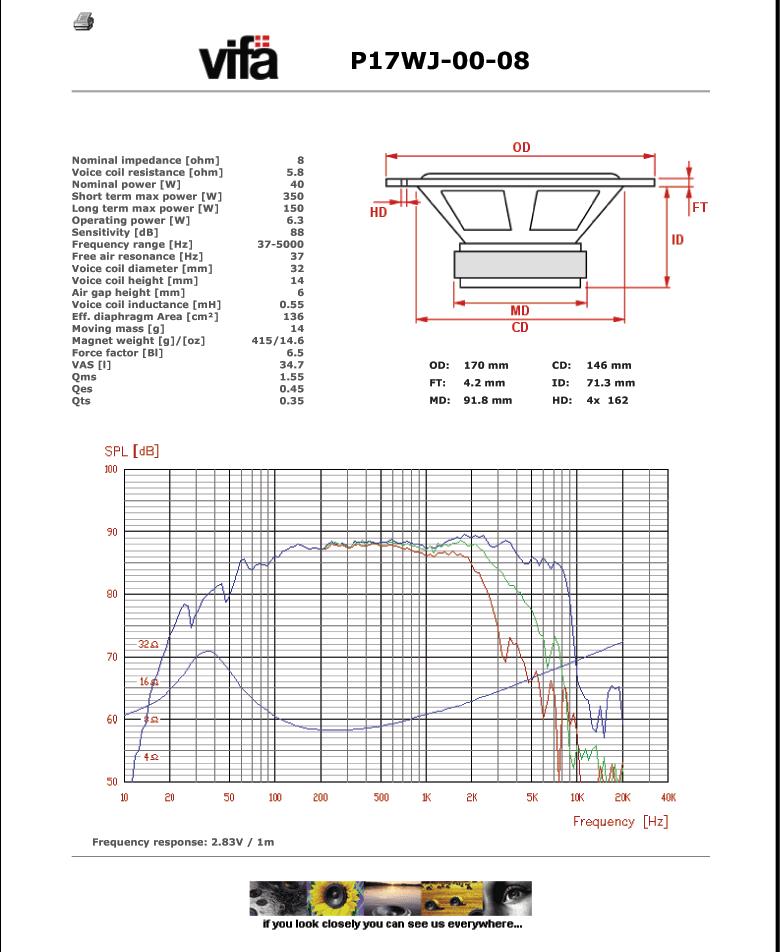

Detailed parameters as shown below

2, Here is the speaker data of 4ohm version as following

Impedance: 4ohm

Power handle=80W

Fs=42.59Hz

Sensitivity=88db/2V1m

Qts=0.35

Mms=13.44g

Vas=26.48Ltr

Outer diameter=170mm

Wood box opening 146mm, height 71.3mm

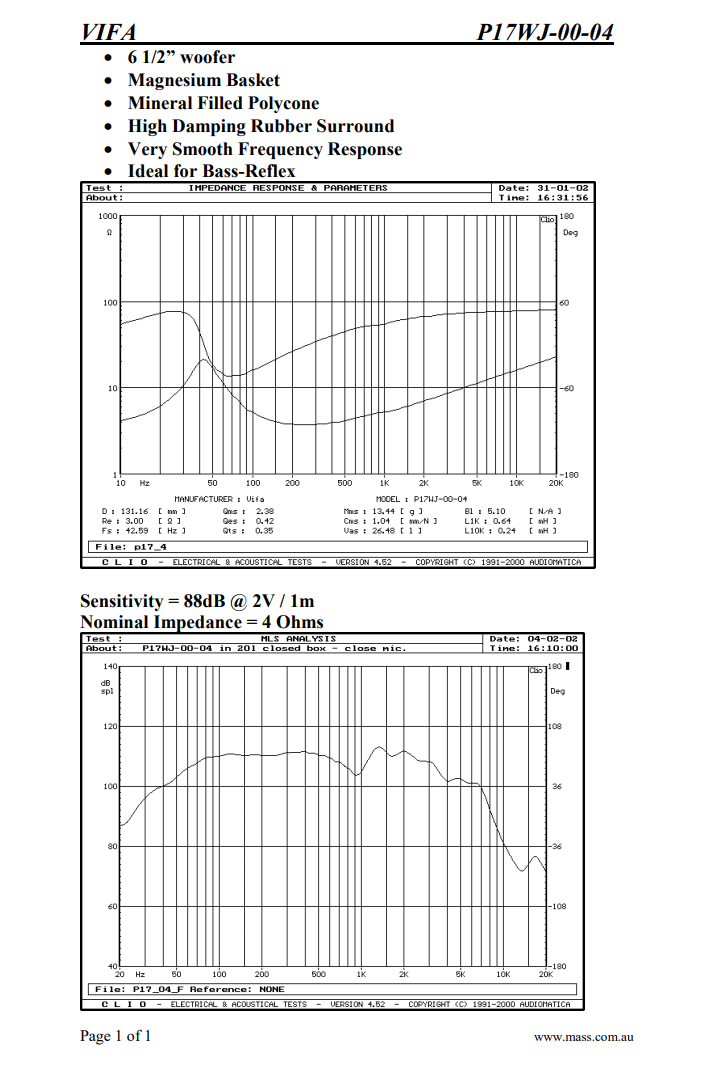

Detailed parameters as shown below

Характеристики:

<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Название бренда</span>	NoEnName_Null
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Номер модели</span>	P17WJ00-04/08
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Происхождение</span>	Китай
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Материал</span>	Алюминий
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Тип товара</span>	Колонка
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Упаковка</span>	Да
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Единица измерения</span>	штука/штуки
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Количество</span>	1
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Название бренда</span>	NoEnName_Null
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Номер модели</span>	P17WJ00-04/08
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Происхождение</span>	Китай
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Материал</span>	Алюминий
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Тип товара</span>	Колонка
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Упаковка</span>	Да
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Единица измерения</span>	штука/штуки
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Количество</span>	1
