DRV8833 Dual Direct Current Stepper Motor Control Drive Expansion Shield Board Module For Microcontroller Better Than L298N

DRV8833 Dual Direct Current Stepper Motor Control Drive Expansion Shield Board Module For Microcontroller Better Than L298N

Features:

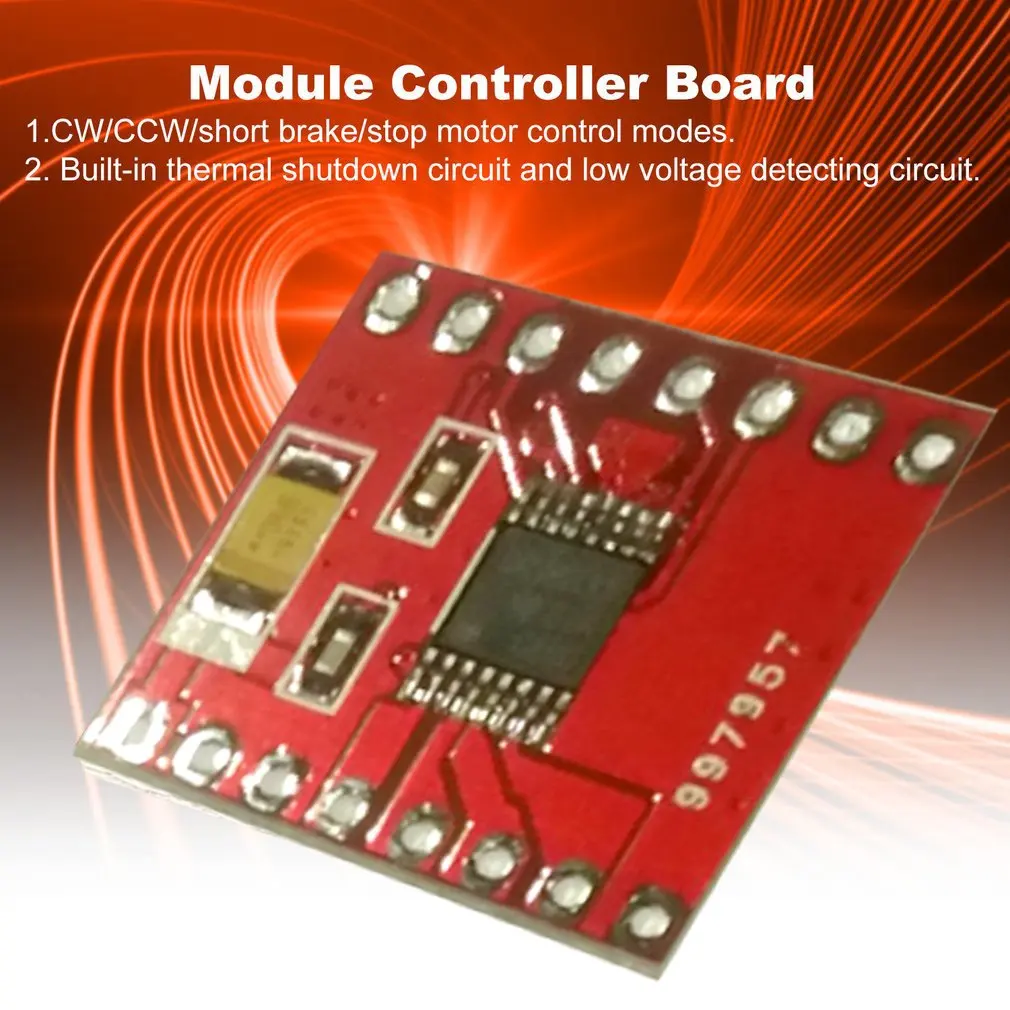

1.CW/CCW/short brake/stop motor control modes.

2. Built-in thermal shutdown circuit and low voltage detecting circuit.

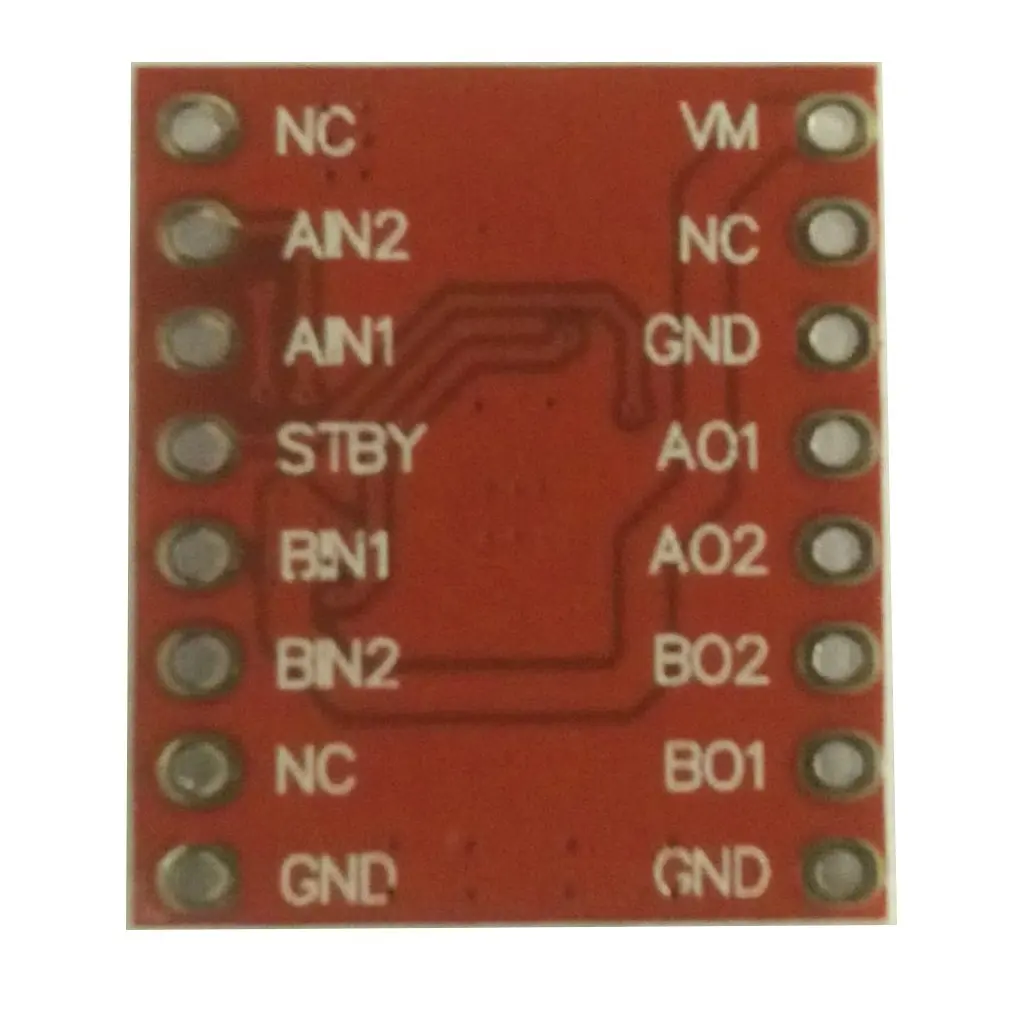

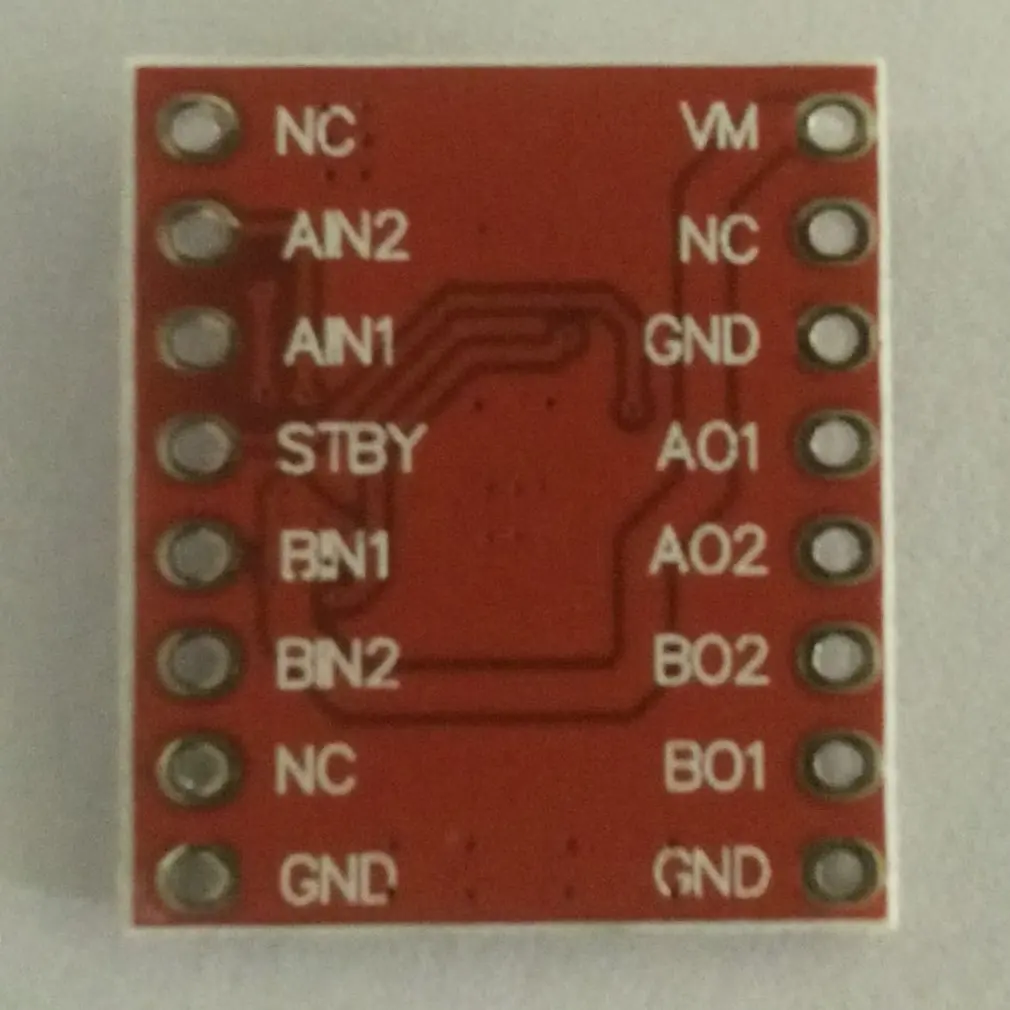

3. All pins of the DRV8833 broken out to 0.1"" spaced pins,input pins are on one side and output pins are on the other.

4. Filtering capacitors on both supply lines.

5. Widely used in experiment,industry,robot, electronic DIY etc.

Description:

1. The DRV8833 motor driver can control up to two direct current motors at a constant current of 1.2A (3.2A peak).

2. Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes - CW, CCW, short-brake, and stop.

3. Widely used in experiment,industry,robot, electronic DIY etc.

Specifications:

Color:red

Model: DRV8833 Power supply voltage: VM=15V Maximum, VCC=2.7-5.5V

Output current: Iout=1.2A(average) / 3.2A (peak)

Application: experiment,industry,robot, electronic DIY etc

Size: 20 x 20mm

Weight:1g

Package Information:

Package size:70 x 50 x 10mm/2.76 x 3.15 x 0.98in

Package Weight:3g/0.10oz

Poly Bag Package

Package Included:

1 x DRV8833 Module

Notes:

1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.

2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
