Электрический замок для шкафов с питанием от постоянного тока

Description:

The electric lock applicable for delivery locks, refrigerated cabinet, mail or newspaper box, self-service lock, book counter, changing clothes cabinet etc. Adopted steel plate for shell and carbon steel for inner material. Strong and safe to use.

Features:

The electric lock is mainly adopted carbon steel for inner material. Strong and safe to use.

Security: latch hook can bear 150kg traction, won't obvious permanent deform permanently, shockproof, anti prying.Compact, easy to install, no left, right, front, reverse side limitation, and allowing mechanical lash-up unlocking position.

Self Elastic Design: Elasticity adjustable, suitable for weight 0.5~3kg door.

Application: Delivery Lockers, refrigerated cabinet, mail or newspaper box, Self-Service Locker, Book Counter, Changing Clothes Cabinet etc.

Feedback signal line description: this is a short circuit signal switch. It is disconnected when unlocked and connected when locked

Specifications:

Condition: 100% Brand New

Main Material: Carbon Steel

Surface Treatment: Plated Electrophoretic Paint (neutral frog experiment over 500hours)

Work Mode: Independent type (Power off and close the door-Locked; Power on-Unlocked)

Electrical Parameters: DC5V1.5A/DC12V2.4A/DC24V1.2A

Mechanical Life: In Designing Load Condition, about 500 000 times

Electromagnet Life: In Rated Working Condition, more than 1 000 000 times

Strength of Lock Hook: 150kg force (no permanent deformation)

Ambient Temperature: -20℃~60℃

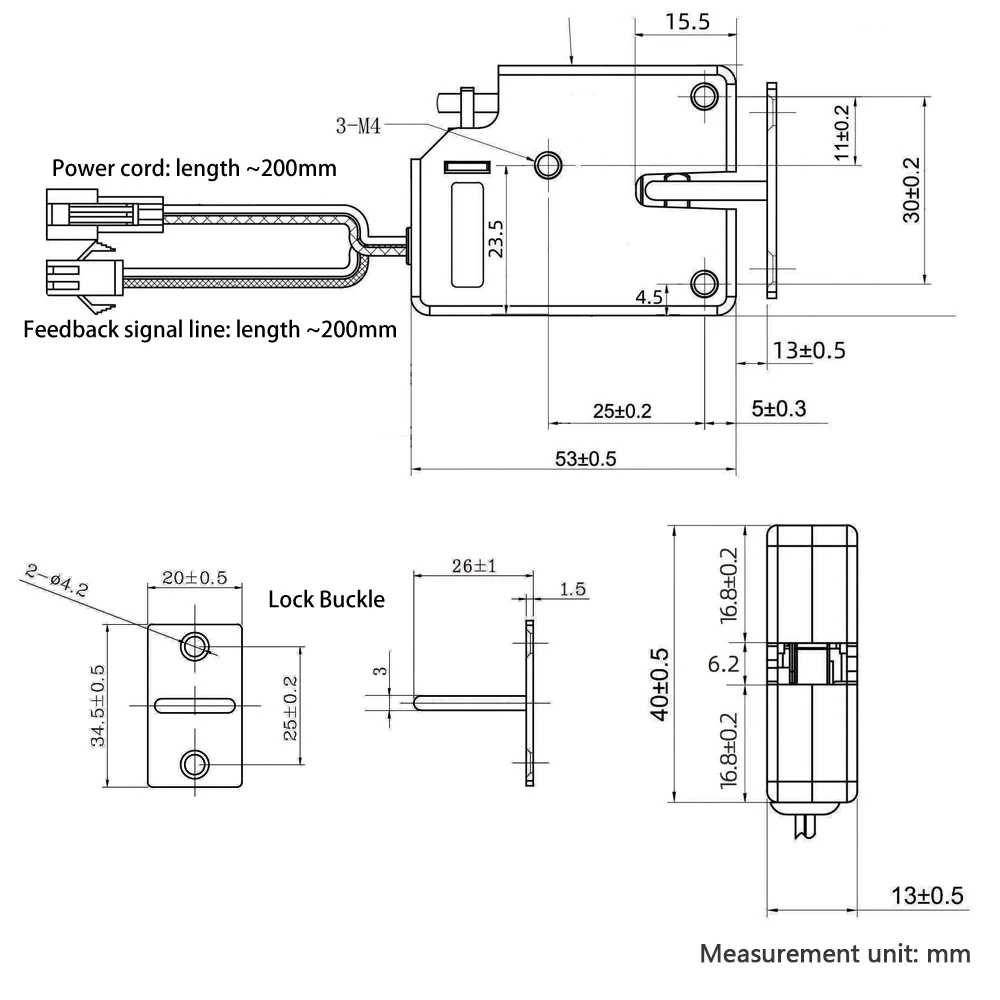

Size: Approx. 53 x 40 x 13mm

Product weight: 100g

Package Included:

1 x Electric Lock ( With detection switch)
