FM стерео радио модуль приемника DIY комплект регулируемый 76-108 МГц беспроводной приемник DIY электронное производство обучение сварка навыки

Features:
1. With a digital automatic gain control (AGC) circuit, the received signal is more stable.

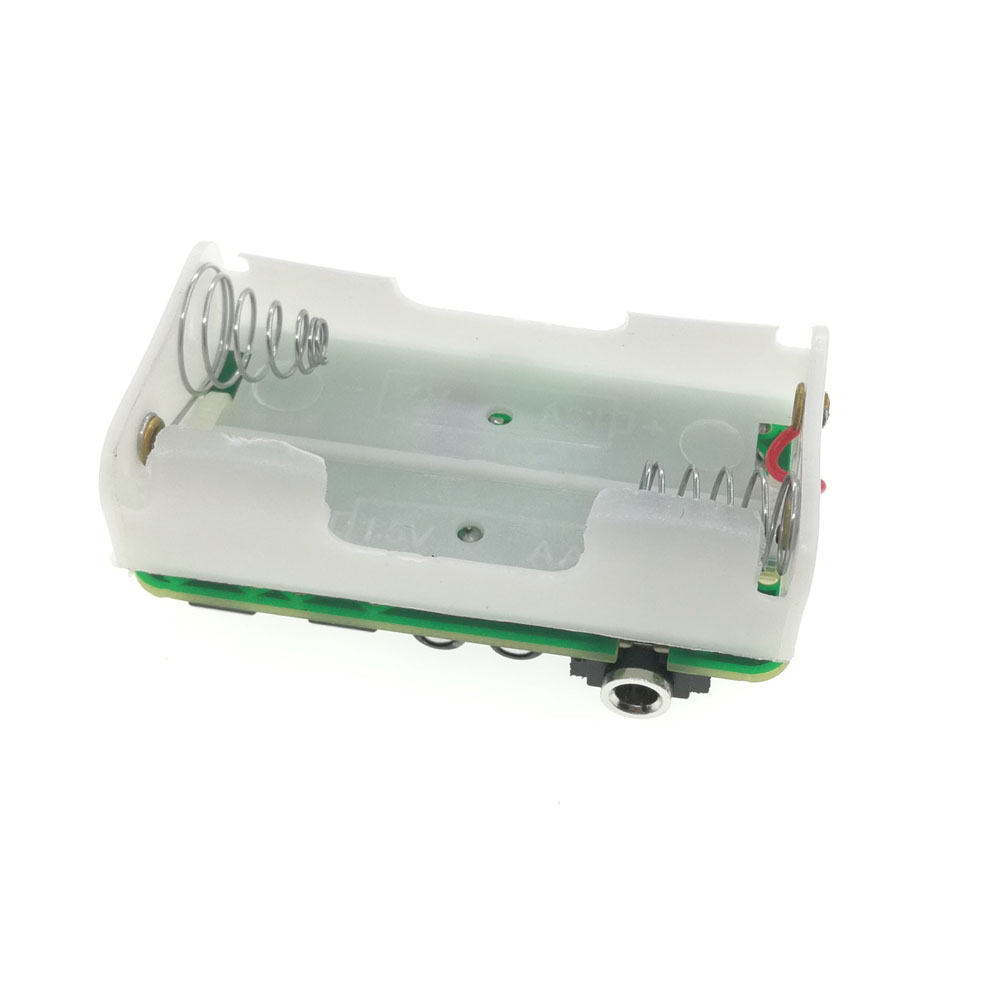

2. Low power consumption, when powered by two AA batteries, the total current is about 19mA.
3. Support global frequency band 76-108Mhz.
4. Supports the radio station memory function, the next time the machine is turned on, it will automatically return to the station and volume of the last time it was turned off.
5. The circuit is simple, the production is easy, and it can work normally without debugging.

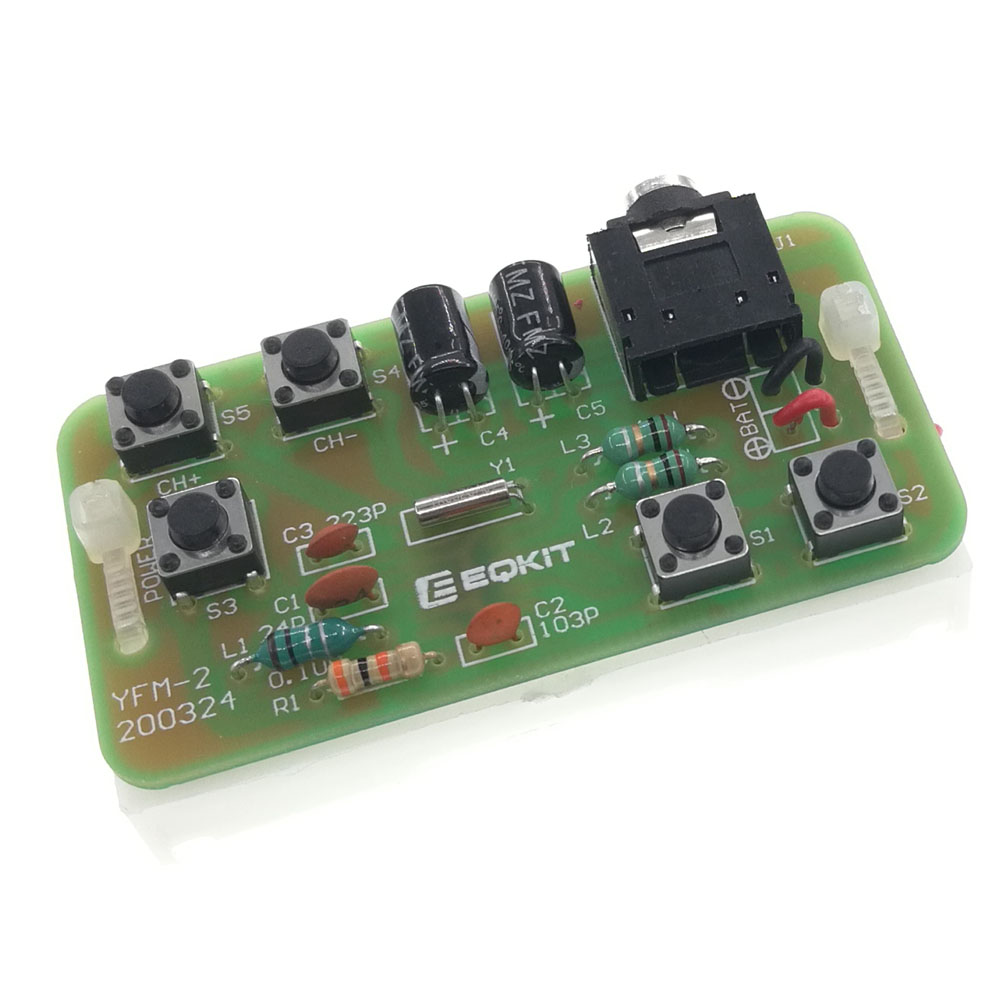

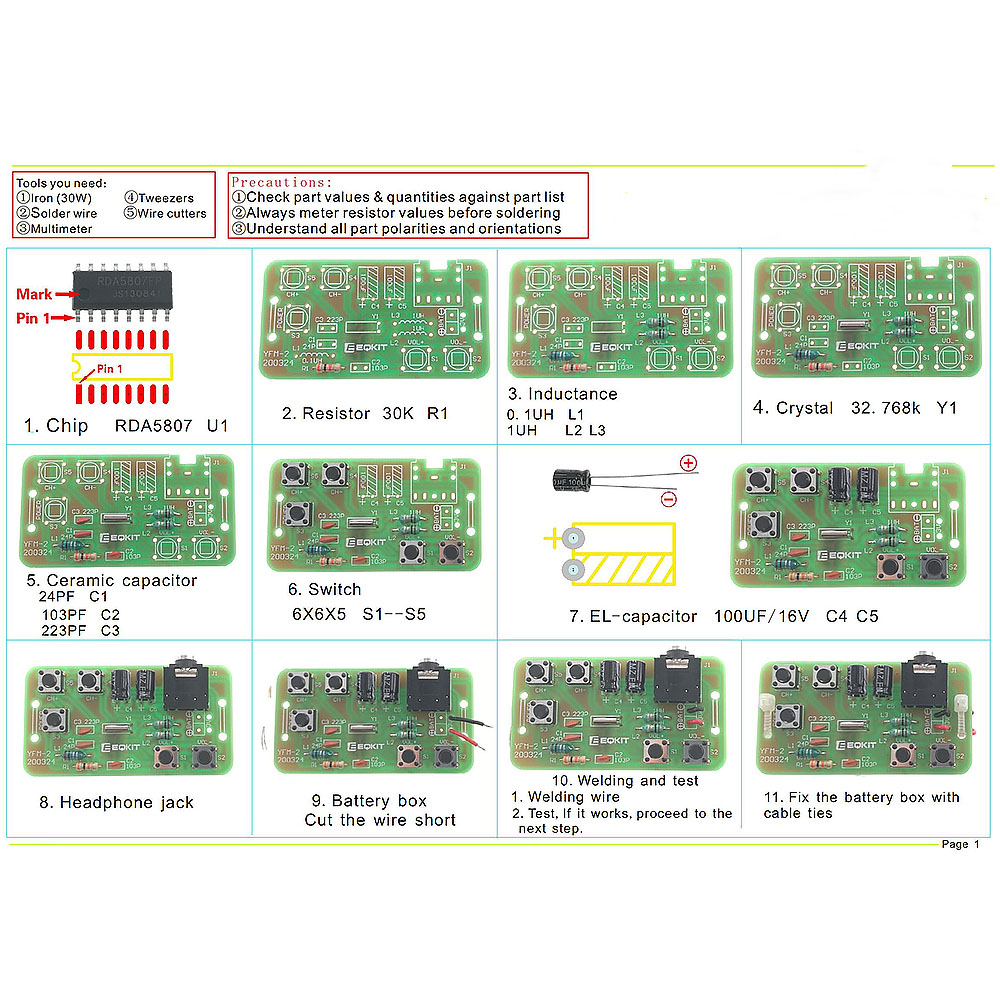

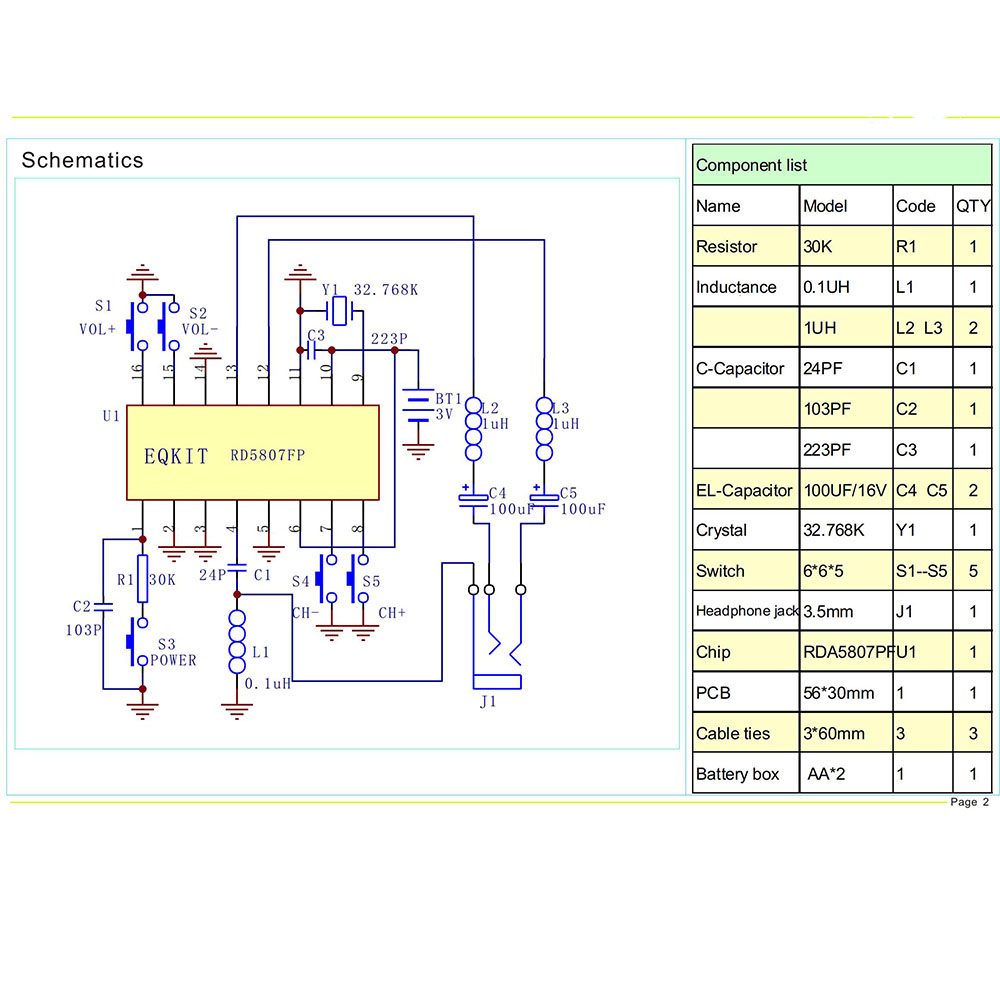

The FM radio circuit is very simple, the total number of components does not exceed 19, although the number of components is small, it includes two types of components: patch and plug-in, which is very suitable for novices and small partners who want to practice patch component welding.

Specification:
Kit Name: FM Radio
Working voltage: 2.7--3.3V
Working current: 19mA
Radio frequency: 76--108MHz
Headphone Impedance: 32 Ω

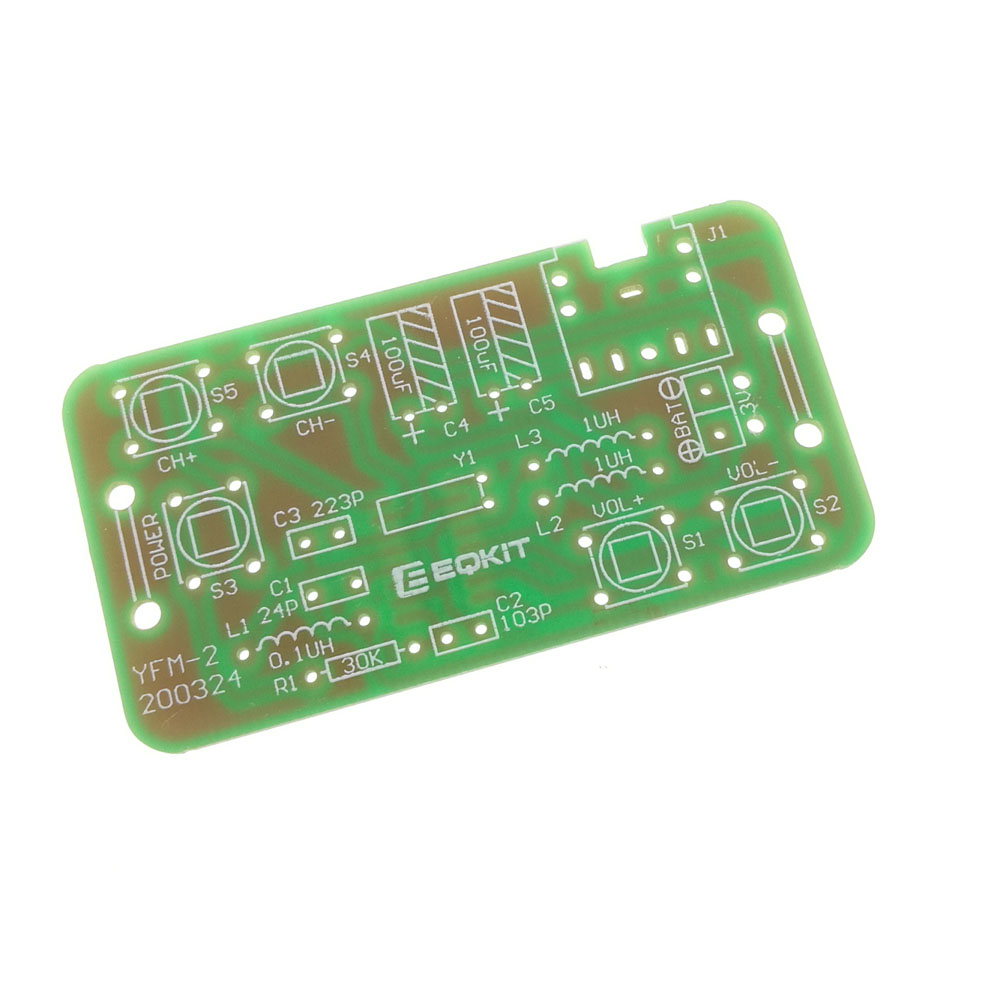

PCB size: 56.2*30mm
Kit Weight: 13g

Package includes:
Kit X1
