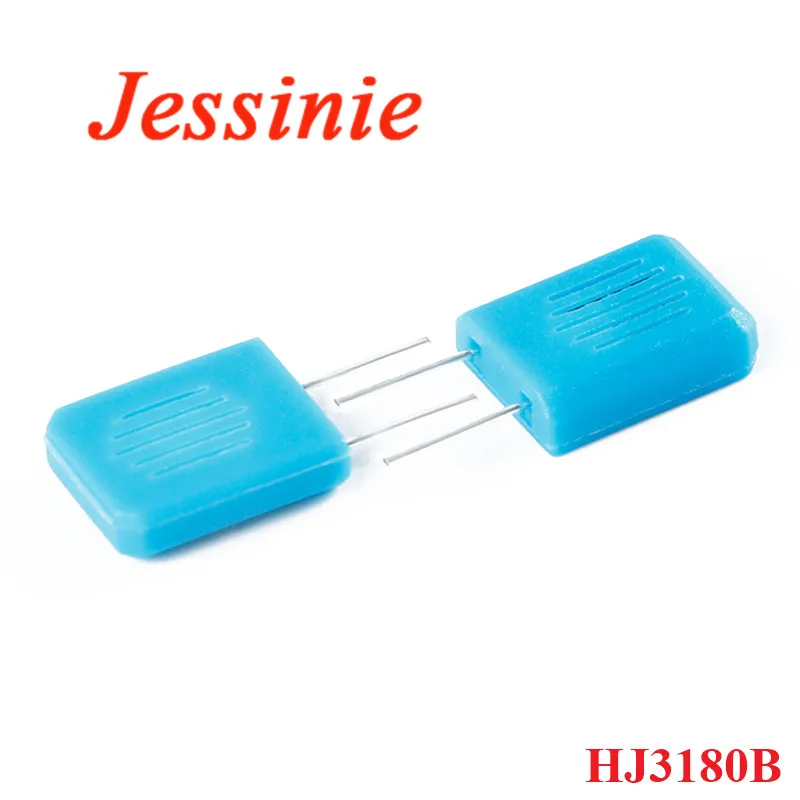

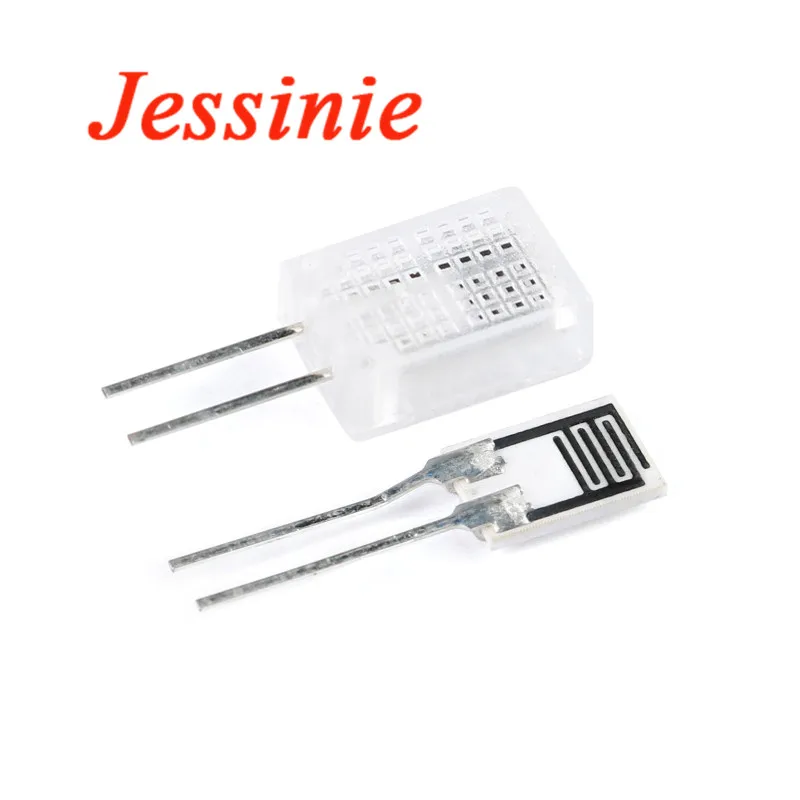

Гигрометр HR31 HR31D, HR202, HR202L, HJ3180B, чувствительный к влажности резистор, сенсорный элемент, модуль датчика влажности с чехлом, 2 шт.

Номинальное напряжение: 1,5 В переменного тока (макс. Xuanbo)

Fixed power: 0.2mW (Max is Xuanbo)

Operating frequency: 500Hz-2kHz

Use temperature: 0-60 ℃

Use humidity:> 95% RH

Wet lag hysteresis: ≤2% RH

Response time: moisture, ≤ 20S; dehumidification, ≤ 40S

Stability: ≤1% RH / year

Humidity detection accuracy: ≤ ± 5% RH

Condition: at25 ℃ 1kHz 1V AC is Xuanbo

Humidity: 60% RH

Center value: 31k ohm

Impedance range: 19.8-50.2 k ohm

Humidity detection accuracy: ± 5% RH

• Working range: 20...95%RH 0...60°C

• Supply voltage: 1.5V AC (Max sine wave)

• Working frequency: 500Hz...2kHz

• Rated power: 0.2mW (Max sine wave)

• Center value: (at25°C 1kHz 1V AC 60%RH sine wave) 31.0kΩ

• Impedance range: (at25°C 1kHz 1V AC 60%RH sine wave) 19.8...50.2kΩ

• Humidity detection Accuracy: ±5%RH

• Characteristic parameters: (at 1kHz) Unit: ohm
