HIFI Power IRS2092 500 Вт одноканальный цифровой усилитель мощности плата класса D сценический усилитель мощности I3-007

Код товара: A4000594571877

Кешбек: 15%

Магазин: АлиКэшбэк20

Пройдите простую регистрацию, чтобы делать покупки выгодно.

Доступные опции:

Цвет:

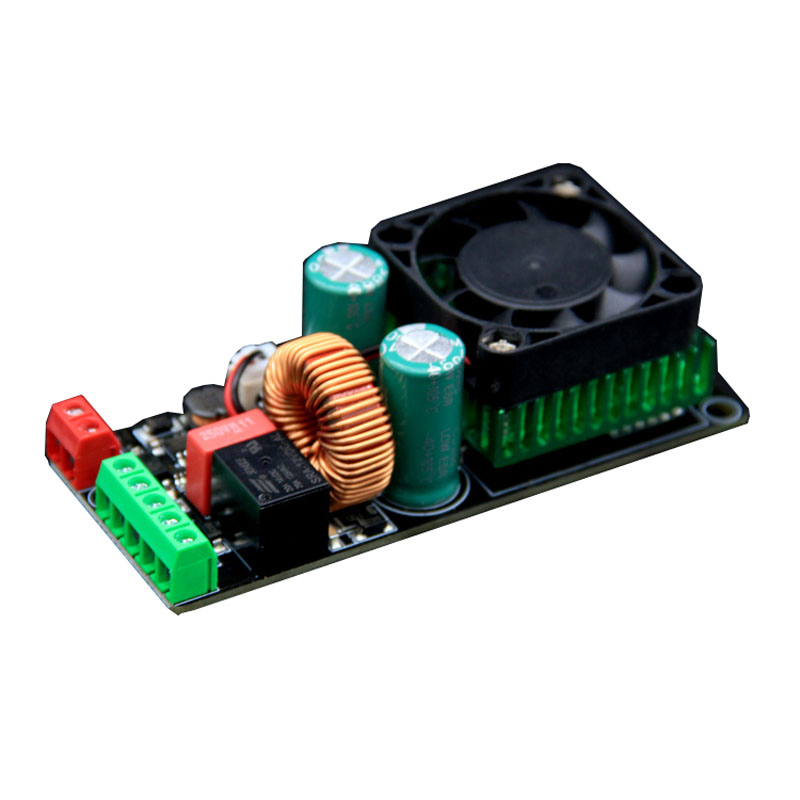

without relay with relay

Описание:

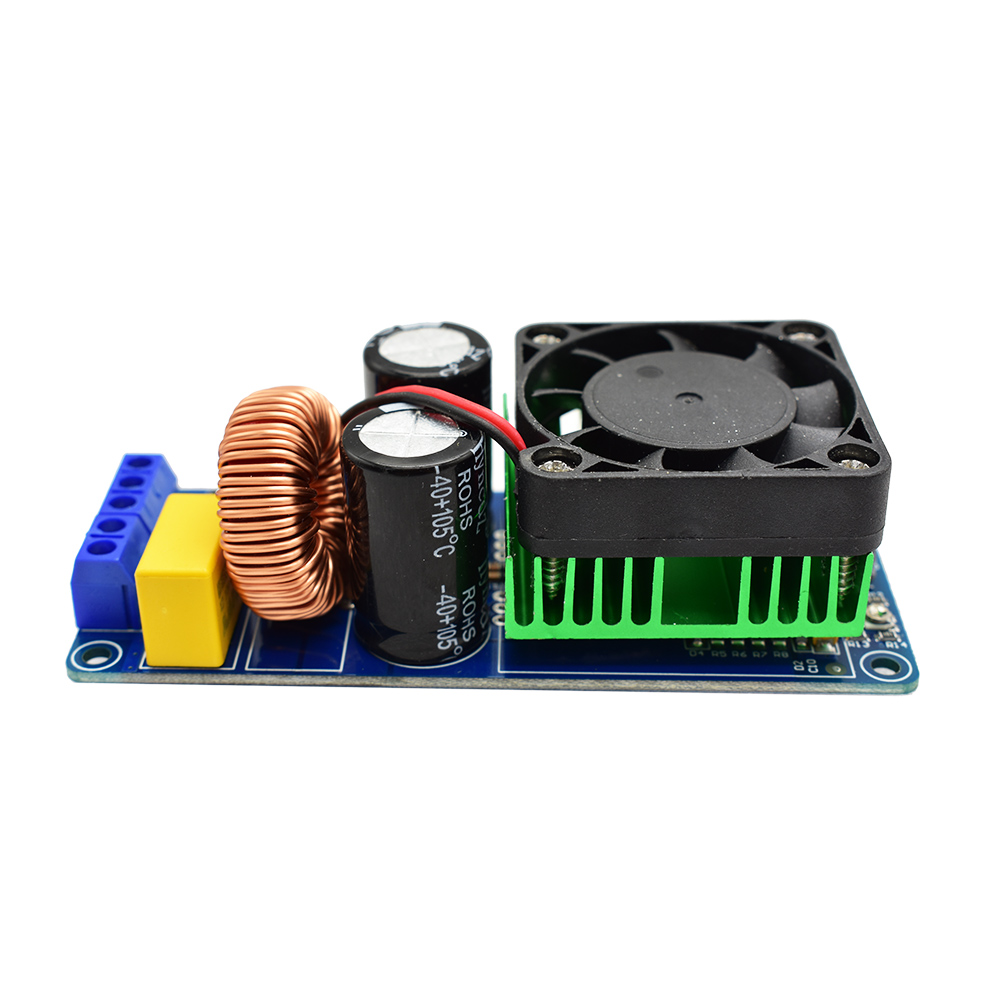

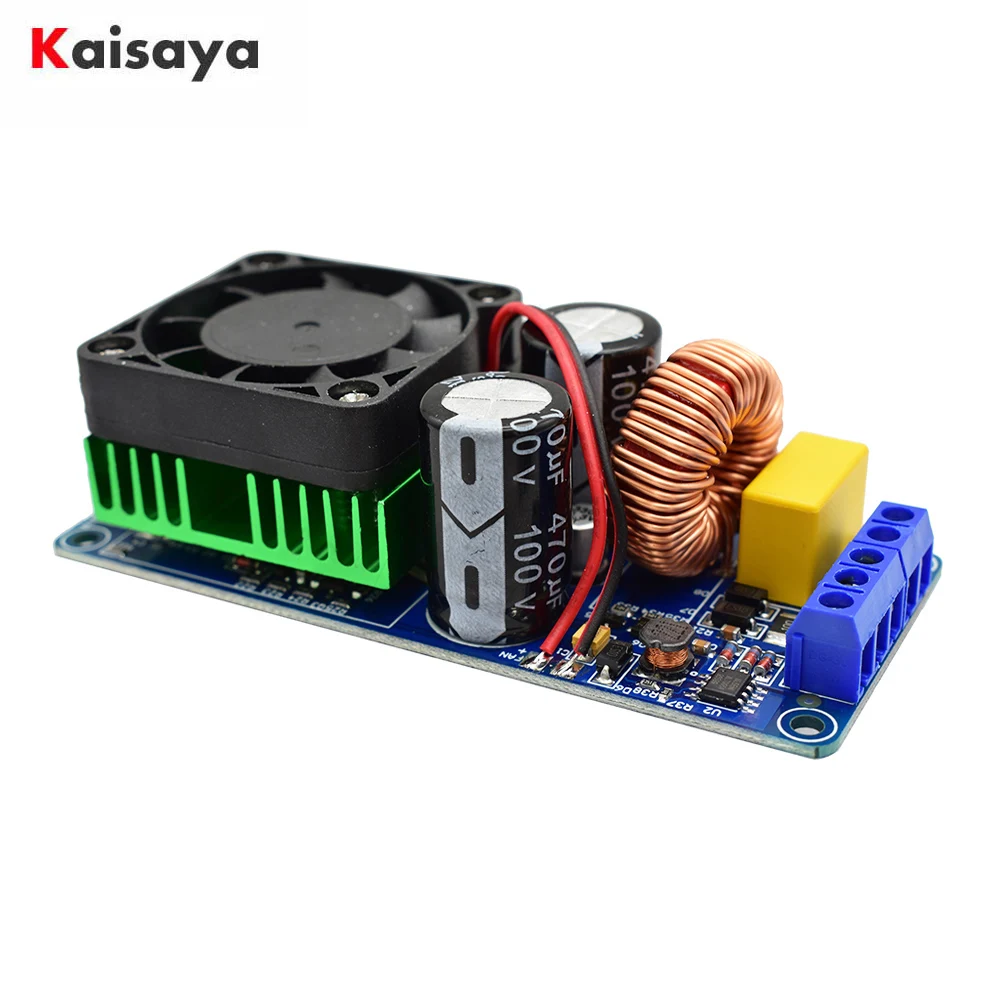

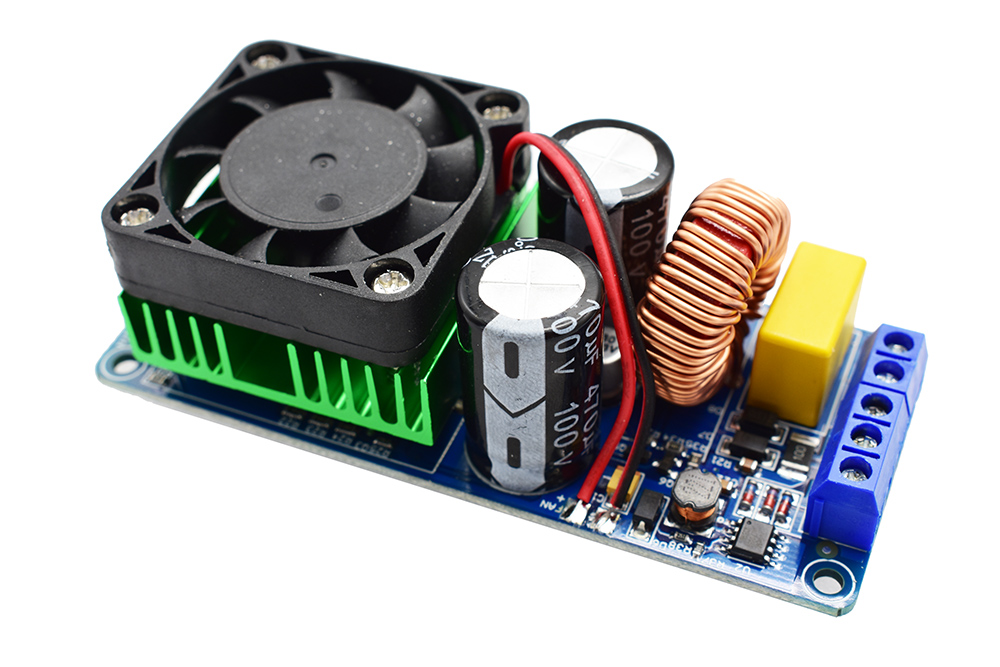

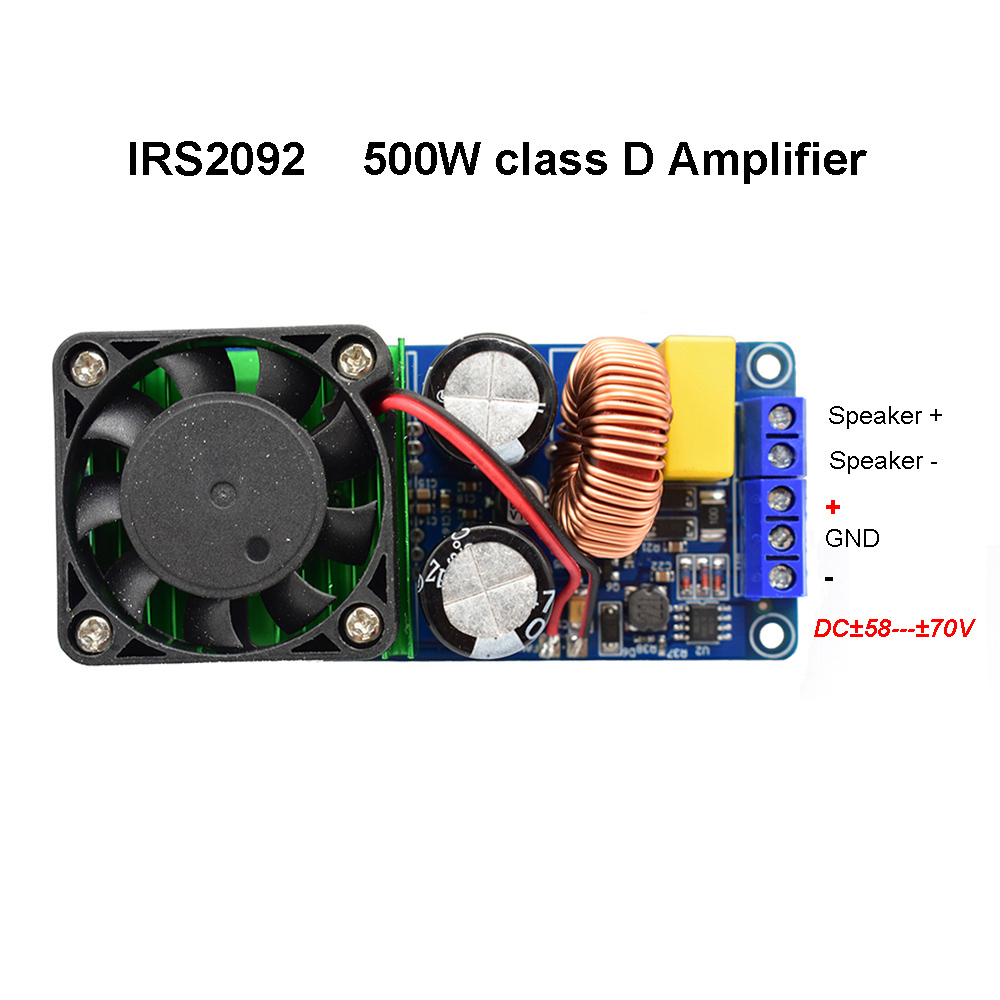

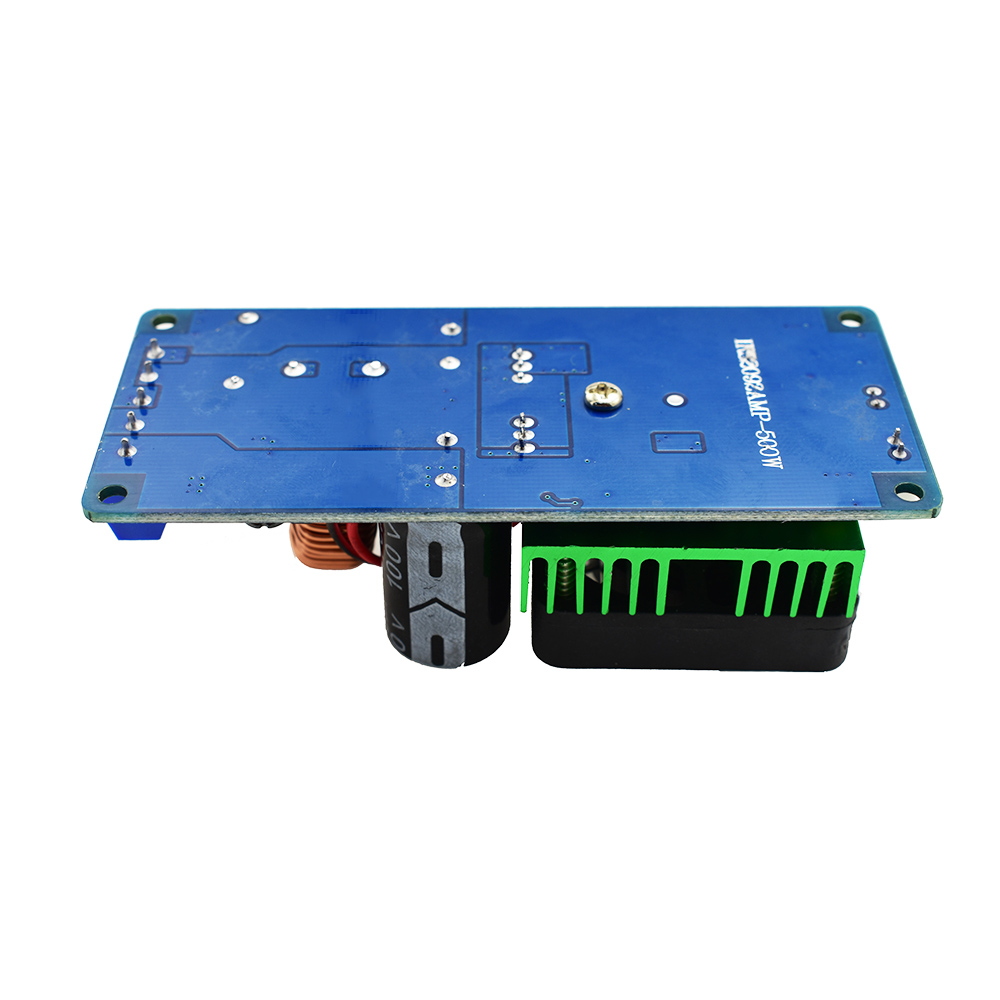

500W HIFI High Power IRS2092 Class D Mono Digital power amplifier board

Parameters:

1. Power supply: dual DC power supply ± 58 --- ± 70V

2. The rated output power: 500W (± 65V power supply, 4 ohm load, distortion 10%)

3. Efficiency:> = 90%

4. SNR: 90dB

5. The total harmonic distortion:

380W (± 65 power 4 ohm speaker, distortion <0.1%)

280W (± 65 power 8 ohm speaker, distortion <0.1%)

6. Frequency range: 20Hz-20KHz

7. Speaker: 4-8Ω

8. Voltage Magnification: 36 times

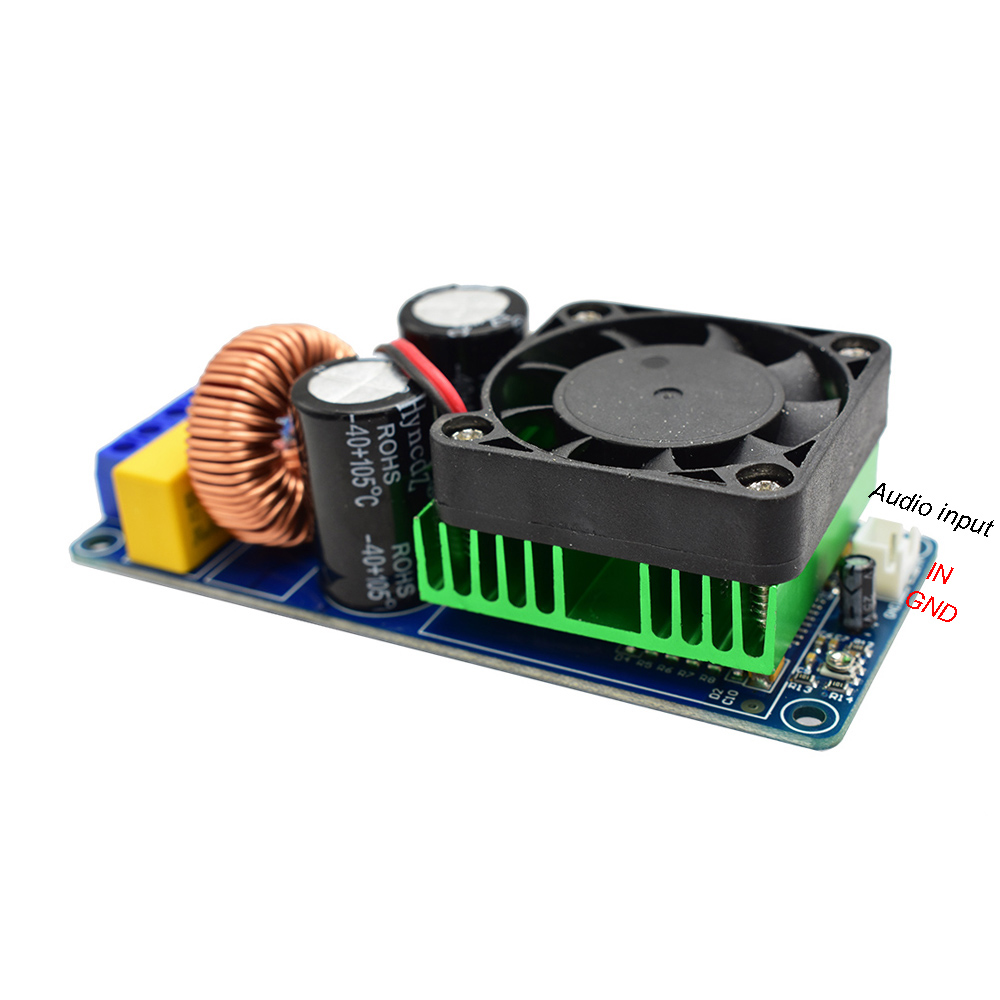

9. Input sensitivity 1.5V (RMS)

10. Output short circuit protection: Yes

11. That output DC bias protection speaker protection: Yes

12. Over-temperature protection: Yes, radiator FET temperature higher than 100 ° C, turn off the output!

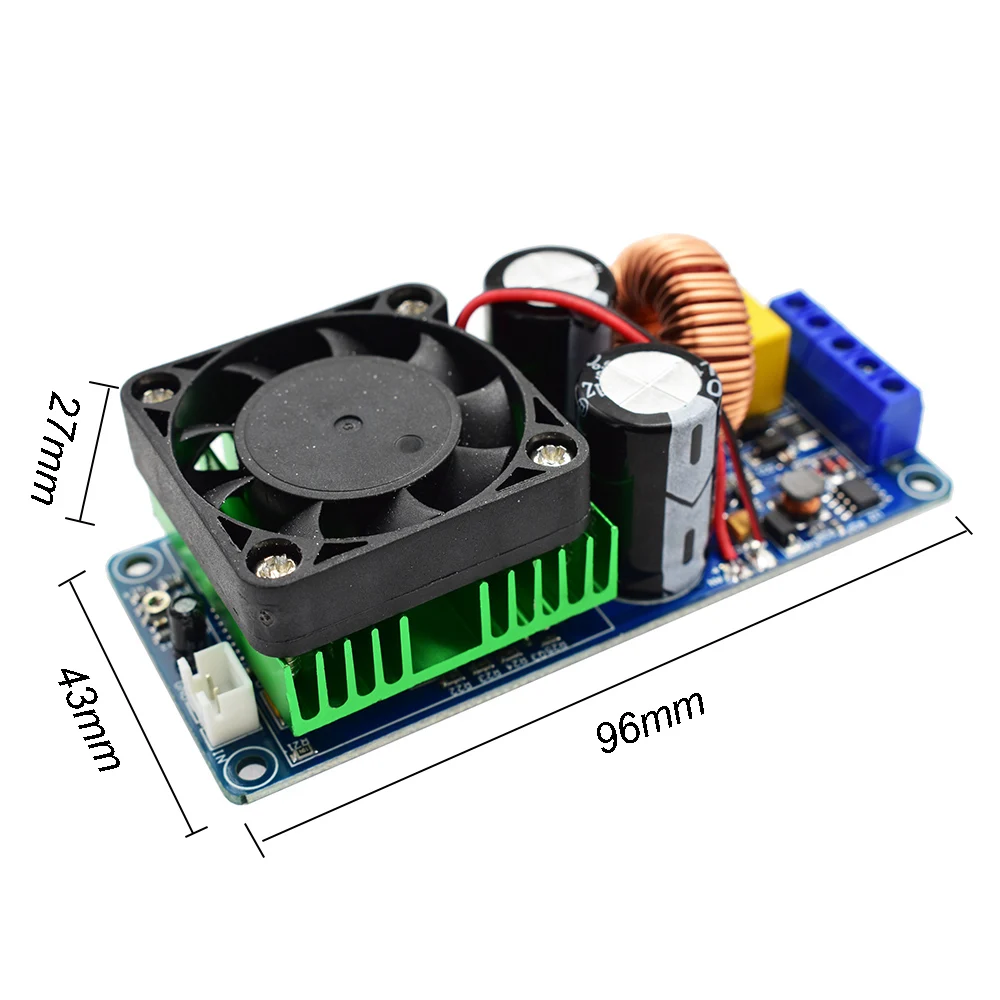

13. Amplifier board size: length x width x height = 96x43x27mm

Use precautions:

1. Rated supply voltage is ±65V, ±58---±70V range, do not over 70V! positive and negative do not pick wrong

2. Recommended power supply ±65V

3. Recommended 4-8Ω / 10-18inch speaker

4. Carefully check before electricity, ensure the wiring is correct.

Package included:

1 Pc 500W Mono Digital power amplifier board

Характеристики:

<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Название бренда</span>	Kaisaya
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Номер модели</span>	IRS2092
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Происхождение</span>	Китай
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Тип товара</span>	Цепи
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Единица измерения</span>	штука/штуки
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Количество</span>	1
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">output power</span>	500w
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Type2</span>	digital power amplifier board
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Speaker</span>	4-8ohm
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Название бренда</span>	Kaisaya
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Номер модели</span>	IRS2092
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Происхождение</span>	Китай
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Тип товара</span>	Цепи
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Единица измерения</span>	штука/штуки
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Количество</span>	1
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">output power</span>	500w
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Type2</span>	digital power amplifier board
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Speaker</span>	4-8ohm
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Supply voltage</span>	58V-70V
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Size</span>	964327mm
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">SNR</span>	90dB
