HTD 3M 15 зубчатый Натяжной элемент 3/4/5/6/7/8/9 мм, подходит для ремня шириной 6/10/15 мм, направляющая подшипника, регулирующее синхронное колесо

Код товара: A1005004845456683
Кешбек: 15%
Магазин: АлиКэшбэк20
Пройдите простую регистрацию, чтобы делать покупки выгодно.
Доступные опции:
Количество штук:
Ширина:
Диаметр отверстия:
Описание:

Specifications

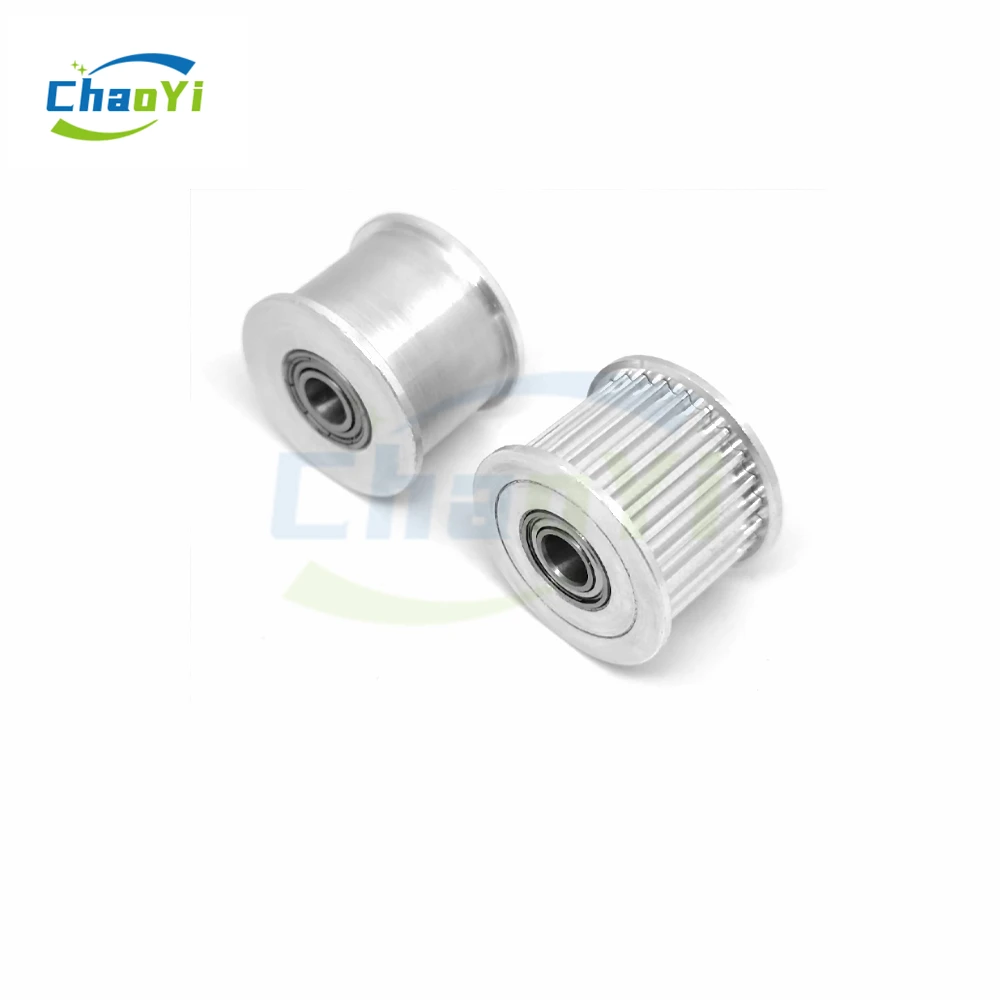

HTD 3M 15Teeth Tensioner idler pulley
Bearing Bore:3/4/5/6/7/8/9mm
Applicable belt width:6/10/15mm
Material:Aluminum alloy
HTD 3M Type Teeth Pitch:3mm
If you need HTD 3M Tensioner idler pulley with different numbers of teeth, different bores or widths, and different shapes, please contact us, we can customize the specifications you are satisfied with!


Idler pulley example diagram

B:Bearing Bore
W:Applicable belt width
T:Numbers of teeth
P:Tooth pitch

Installation Diagram of Tensioner Idler Pulley

01:When the synchronous belt center distance cannot be adjusted. The Tensioner idler pulley can be used for fastening to achieve the best position
02:Idler gear is divided into two types: toothed (with teeth) and smooth (no teeth)
Toothed (with teeth):Generally, it is installed outside the loose part. To achieve appropriate initial tightening force, avoid reducing the contact between the synchronous belt and the belt pulley, It is better to install it close to the big belt pulley。

Smooth (no teeth):Generally installed on the outside of the loose part, to achieve the appropriate initial tightening force, to avoid increasing the bending degree of the belt, the best installation close to the small belt pulley.



Customization and Service

We sell synchronous pulleys with different numbers of teeth, different types, different bores and widths, and all products will be tested for quality before they are sold, so you can buy with confidence.
Products of different specifications in the store have corresponding categories, so that you can find the products you need more quickly, and you can also directly search for the products you want. If you don't find what you need or you want to customize non-standard timing pulleys, please contact us, we can process non-standard timing pulleys according to your requirements.
For your pre-sales and after-sales problems and other problems encountered when purchasing, please feel free to contact us, I will reply to your questions as soon as possible, and provide you with professional suggestions and solutions, thank you!

Shipping

All items we send have a tracking number so you can check the status of your package in a timely manner. We have a variety of logistics methods for delivery. If you need other shipping methods, please contact us.
We do our best to provide you with the most reliable and affordable way of shipping. But sometimes international delivery depends heavily on the courier company and local customs/duties. If you do not receive your item on time, please contact us immediately for further assistance. Thanks for your understanding.

After-sales feedback

Your satisfaction and positive feedback is very important to us. if you are satisfied with our items and services. Please leave positive feedback and 5 stars
Your satisfaction is our biggest goal,Try your best to solve the problems for you.If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback.We will do our best to solve any problems and provide you with the best customer services.

3D Printer Parts,polea,poleas,prusa,pulley,Synchronous Wheel,Polleys for rope,Polleys for gym,pulley wheel,kayak



Характеристики:
Название бренда Нет
Номер модели 3M
Происхождение Китай
Тип Измерение времени
Материал Сплав
Индивидуальное изготовление YES
Сертификация Евротест (СЕ)
Количество зубьев 15
Единица измерения штука/штуки
Количество 1
Outside Diameter (OD) 13.56mm and 13.5mm and 16mm
Number Of Teeth 15T
Bore 3/4/5/6/7/8/9mm
Fit belt width 6mm/10mm/15mm
Pitch of teeth 3mm
Type Idler Pulley Tensioner
Color Silver
Material Aluminum Alloy
Flange Double flange
