Infrared Temperature Sensor Digital Handheld Thermal Imager LCD Display 1.8 Inch 160*120 Pixel for Household/industrial Use
Feature:
1.High Refresh Rate: The thermal image has a market leading refresh rate of up to 8Hz, and can quickly and accurately read the emperature.
2.Wide Temperature Range: The measurement range of the infrared temperature sensor is - 40~+300 ℃, suitable for various environments and applications.

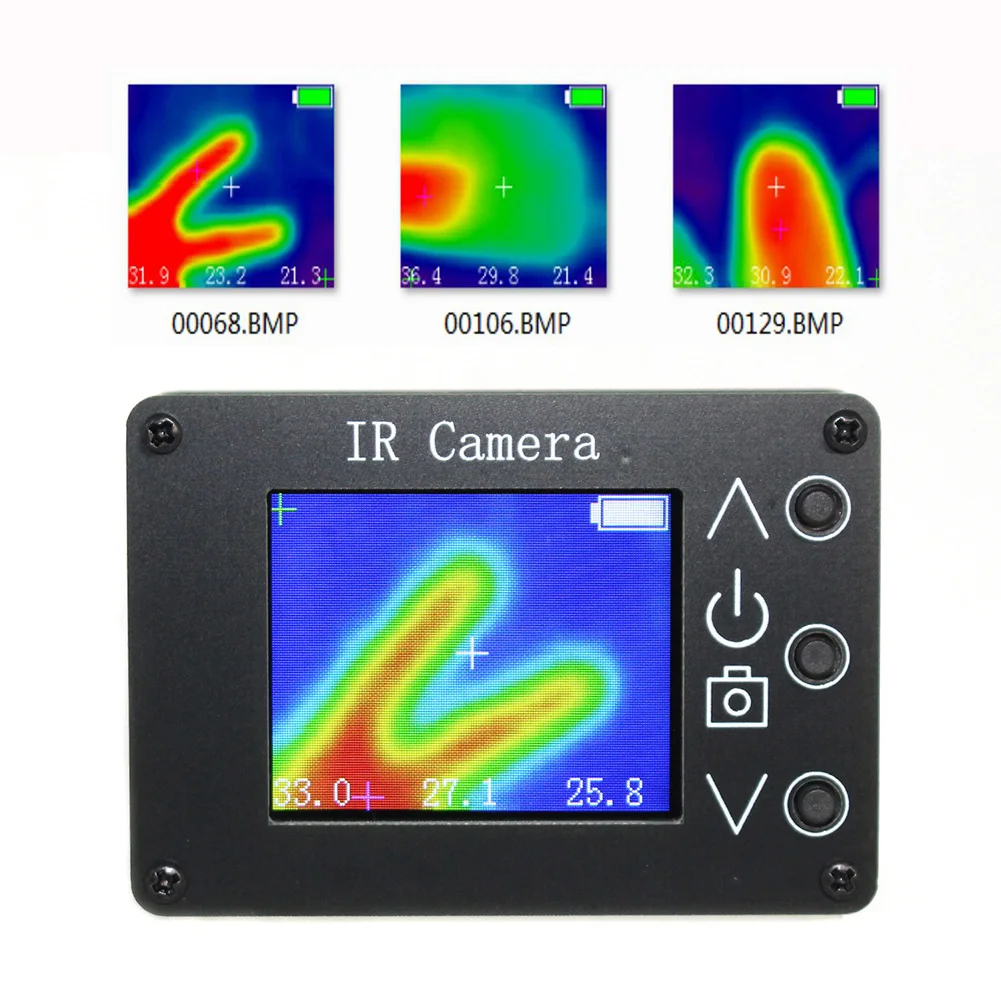

3.High Resolution Display: The infrared thermal image is a 1.8 inch TFT screen with a resolution of 160 * 120, providing clear and detailed readings of the highest, lowest, and center temperatures.
4. Portable: The infrared thermal imager uses an acrylic shell, which effectively protects the camera from damage and makes it durable. In addition, its compact size makes it easy to transport and use in various locations.
5. Convenient Power Supply: The thermal image does not have a built-in battery, and can be powered through a USB connection. It is convenient to use and does not require waiting time.

Specification:
Certification: NONE
Origin: Mainland China
Style: Handheld
Display Size: 1.9 Inches & Unde
Material: acrylic acid+printed circuit board
Module: MLX90640
Infrared sensor: MLX90640ESF-CSB
Resolution: 32x 24
Temperature measurement range: -40 ℃-300 ℃
Measurement accuracy: ± 2 ℃ (center point, 20 ~50 ℃)
Working temperature: 10 ℃~50 ℃
Operating humidity: ≤ 70%
Refresh rate: 8Hz
Field of view: 55 ° x35 °
TFT size: 1.8 inches (display resolution: 160x128)
Emissivity: 0.95
Power port: Micro USB 5V
Battery specification: 210MAH
Shell material: ABS

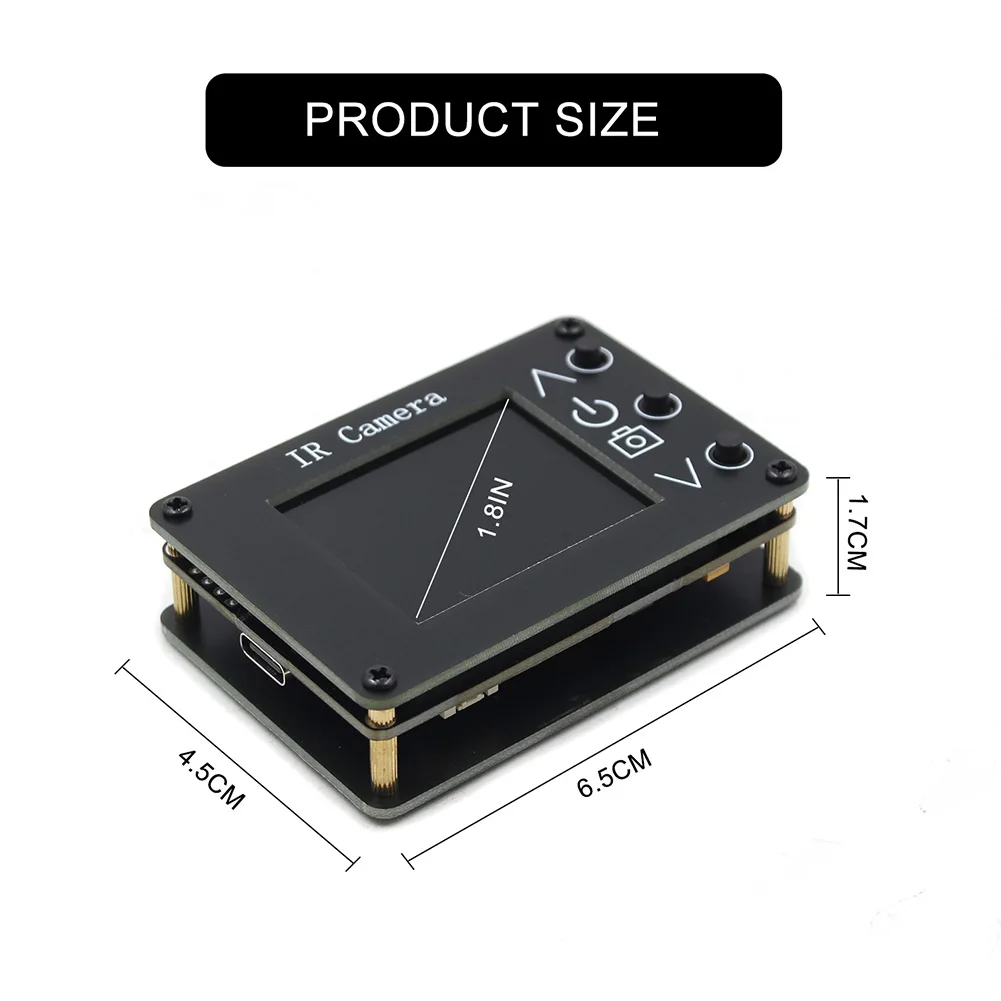

Size: 66X46X20mm/2.59X1.81X0.78inch
Operating instructions:
1. Charging: Use USB Type-C cable, 5V/1A
2. Open/Close: Long press the middle key
4. Take a picture: Press the middle key
5. Review photos: Press the up or down button
6. Exit photo: Long press the up or down button
7. Copy photos: Connect the computer with a USB cable, and the computer will receive a disk.
Note: You cannot change photos on disk or place other files on disk. Please fully charge and turn off the computer before connecting it

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.




1 x Thermal Imager
