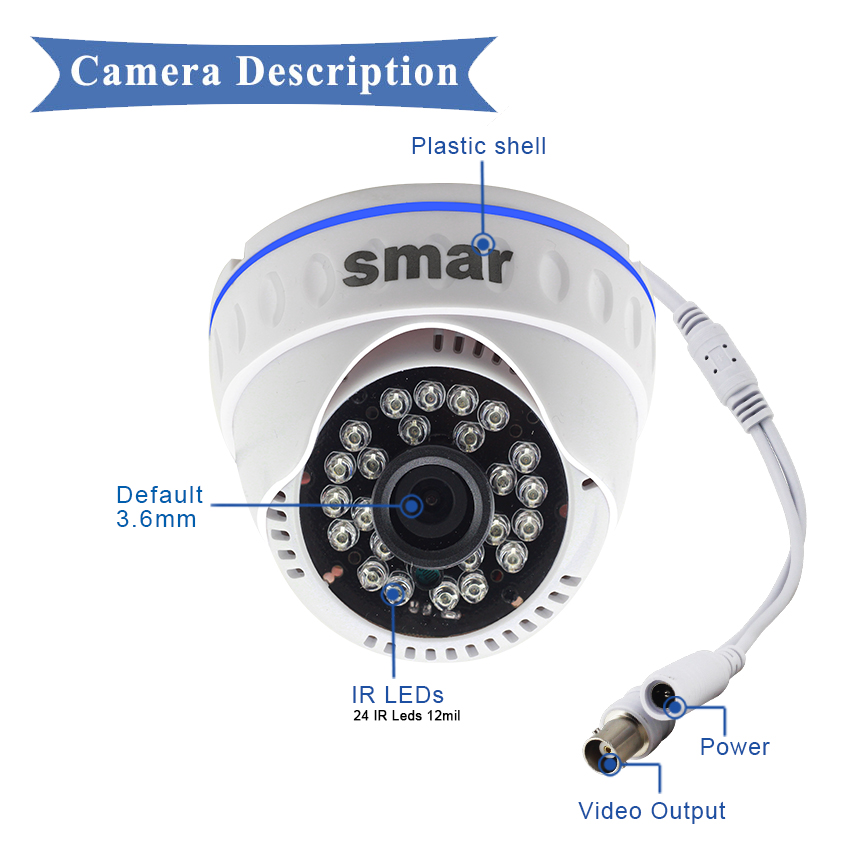

IP-камера Smar Full HD 720P 1080P, 24 инфракрасных светодиода, разрешение 3,6 МП с HD-объективом мм, CCTV

PAY ATTENTION:

1. This item is the AHD1080P camera, AHD single is not the analog single.AHD 1080P camera must work with the AHDNH or the AHDH single. Your DVR must have the local AHD 1080P single, Then will work.

2. AHD 1080P is not means the NVR 1080P, NVR 1080P is only for the IP camera 1080P. AHD 1080P is for the AHD 1080P.

3. This camera can't work with the TV or other monitor. If you use the AHD tester, please make sure your tester have the AHD1080 single.

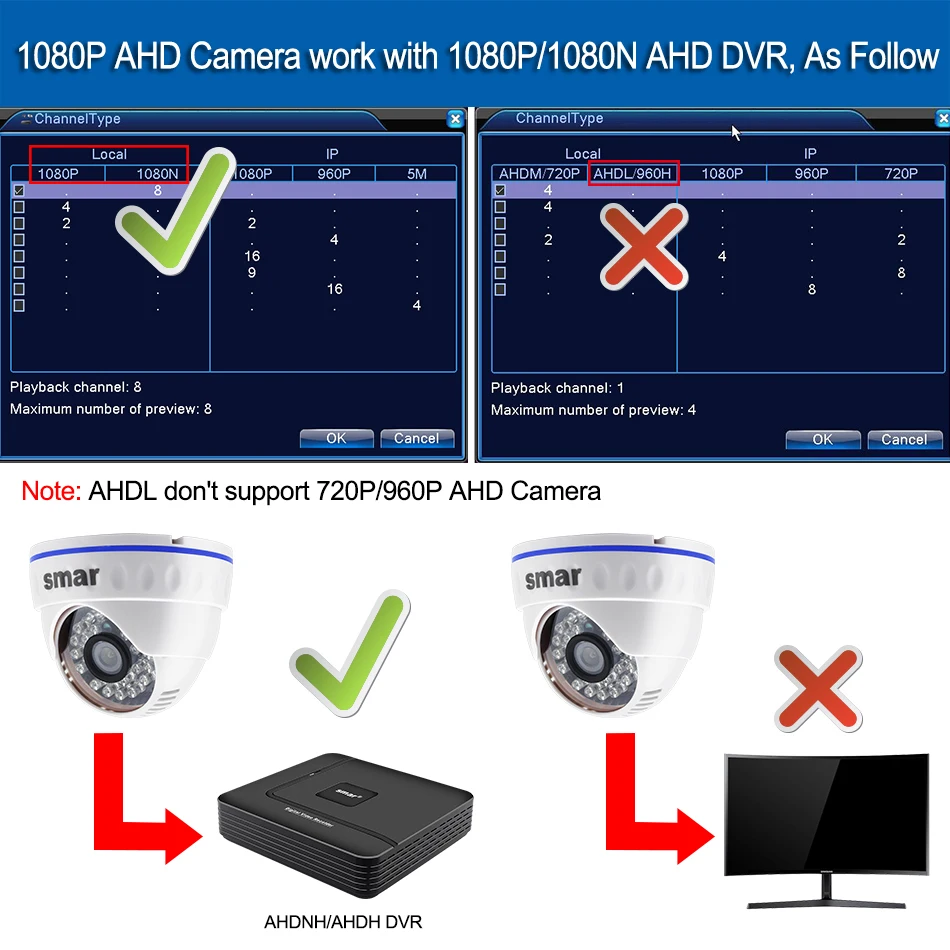

4. If you don't know which is AHD 1080P, please check into your DVR Menu to check the option "Digital" weather have the same image as my photo, if have it, it will work; Otherwise, it will not work. Under the "local" have 1080P or 1080N all can work. Please note.

Recommend

If your DVR have no same display as our photo, the camera will not show any image, Please check carefully when you buying this item before;

We can recommend High Order, High Evaluation, Good Price 4CH/8CH AHD DVR for 720P/960P/1080P AHD Camera for you, Please click below the photo, then add it to your Shopping List:

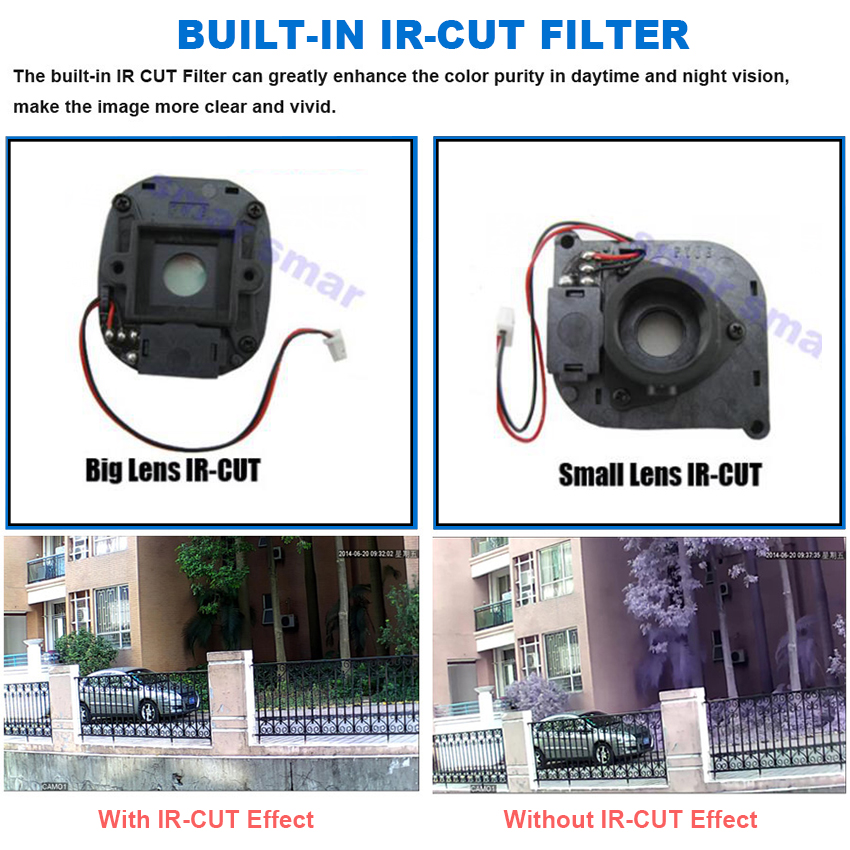

All of Our’sAHDCamera Built-in IR CUT Filter, What’sIR-Cut Filter?

The camera has a built-in mechanical IR-cut filter placed in front of the image sensor to filter out infrared light in the daytime, producing better color reproduction. At nighttime or when the built-in light sensor detects low-light conditions, the IR Cut Filter moves away from the lens to let in100% of the infrared light for maximum night vision performance. This results in the camera image changing to Black and White for better image quality.

What is AHD?

AHD is a newly developed solution for transmitting full HD digital video in a surveillance system. The core concept of AHD is to deliver high definition video using digital TV (DTV) transmission. With AHD, high definition digital video can be transmitted easily over coaxial cables, twisted pairs, or simply over the air. Multiple 1080p30 and 1080p60 video streams can be easily transmitted using AHD over a single 5C2V/RG6 cable up to a length of 1000 meters without any repeater ( Up to 500 meters in case of 3C2V/RG59 ).

In the world of analog TV, The composite video baseband signal (CVBS) is the most commonly used signal format. Its popularity, ease of use, and robustness have made it an integral part of our lives. CVBS is in fact a de facto signal standard for analog video surveillance systems. As we bid farewell to analog TV with worldwide analog switch-off (ASO) and move on to the age of digital TV, digital technologies, such as DVB-T, ISDB-T, and ATSC, became popular and indispensable much like CVBS in the analog age. AHD leverages the extremely robust AV transmission capability of DTV to easily and seamlessly upgrade an analog cctv surveillance system to digital full HD. It is expected AHD to become a de facto standard for digital video surveillance systems in the future.

AHD is a novel technique pioneered These products and applications enable seamless and friendly transition of video surveillance systems from analog to digital, be it all-new digital installations or upgrades from existing analog installations.

AHD Cameras Image Quality

High image quality at the resolution of 720P/960P

The technology uses a progressive scan while forming a signal and division of brightness and color components of an analog signal: that allows eliminating a blur and blinking, improving a color reproduction.
