Кабель LAN для модуля платы IP-камеры видеонаблюдения, дополнительные провода для POE среднего разветвительного типа 4/5(+) 7/8(-), источник питания, система видеонаблюдения

Код товара: A1005001587517281

Кешбек: 15%

Магазин: АлиКэшбэк20

Пройдите простую регистрацию, чтобы делать покупки выгодно.

Доступные опции:

Длина кабеля:

white black

Описание:

LAN Cable for CCTV IP Camera Board Module Extra Wires for POE Mid-Span Type 4/5(+) 7/8(-) Power Supply Video Surveillance System

* 4PIN wires (green / green-white / blue / blue-white) for LAN / network at 1 / 2 / 3 / 6 PINs of RJ45

* 1PIN wires (purple) for 1x status LED positive PIN, share GND.

* 2PIN wires (red / black) power supply direct from DC jack.

* 2PIN extra wires (red / black) with bigger connector, direct from DC jack, for IR LED power supply.

* extra 2 wires ( white / yellow ) from LAN 4 / 5 (+) , 7 / 8 (-) power supply for POE Mid-Span type input.

* Special Note : DC jack is for input voltage DC12V only, if input voltage higher than DC12V, may damage status LED, OR damage the camera.

* Important Note : DC jack not has water-proof connector, should be well isolated for water-proof while installation.

Packing List / Item Included

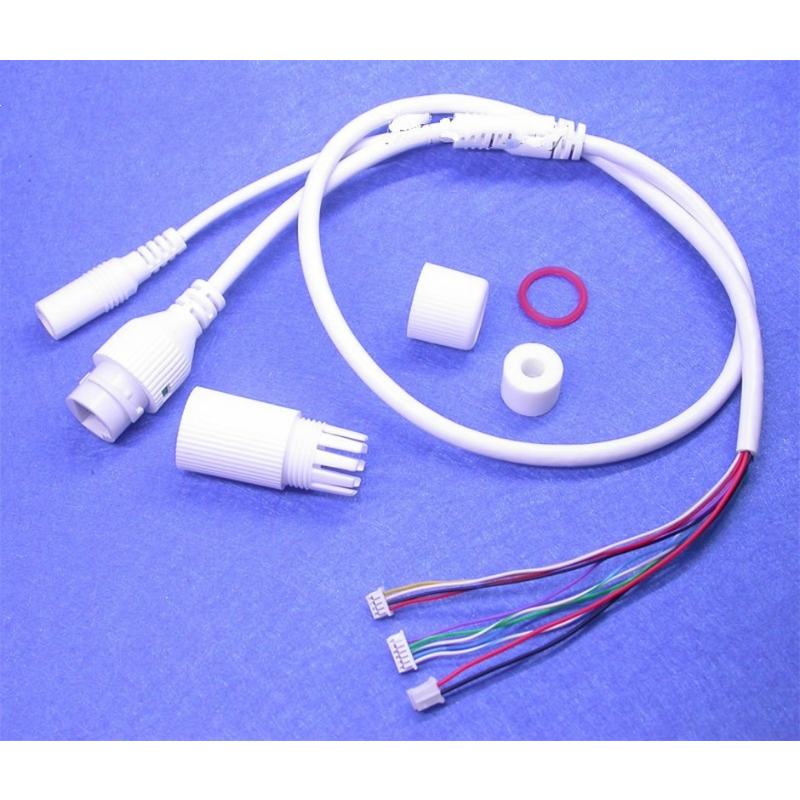

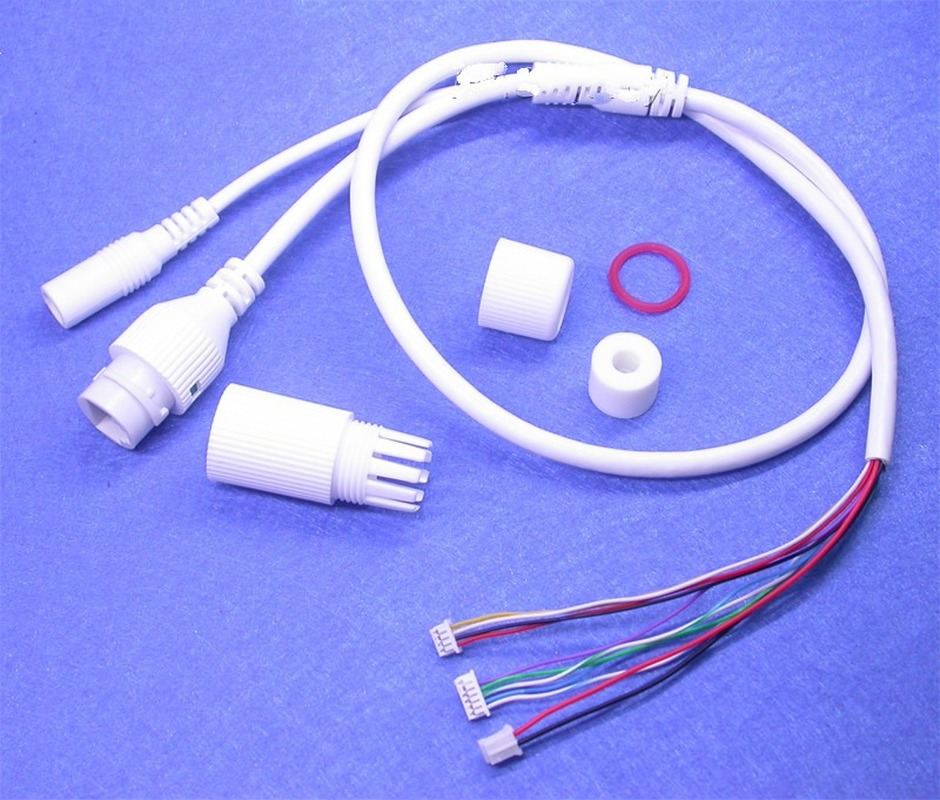

1pcs LAN cable with connectors.

Характеристики:

<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Название бренда</span>	Нет
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Номер модели</span>	AAA
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Происхождение</span>	Китай
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Размер</span>	AAA
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Сертификация</span>	NONE
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Тип вилки</span>	Нет
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Тип товара</span>	Кабели
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Единица измерения</span>	штука/штуки
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Количество</span>	1
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Название бренда</span>	Нет
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Номер модели</span>	AAA
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Происхождение</span>	Китай
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Размер</span>	AAA
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Сертификация</span>	NONE
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Тип вилки</span>	Нет
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Тип товара</span>	Кабели
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Единица измерения</span>	штука/штуки
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Количество</span>	1
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">style 4</span>	Video surveillance
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">style 5</span>	switch poe
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">style 6</span>	poe
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">style 7</span>	video surveillance system
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Model Number</span>	cable
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Size</span>	Length 60cm (approxmate)
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Length</span>	60cm (approxmate)

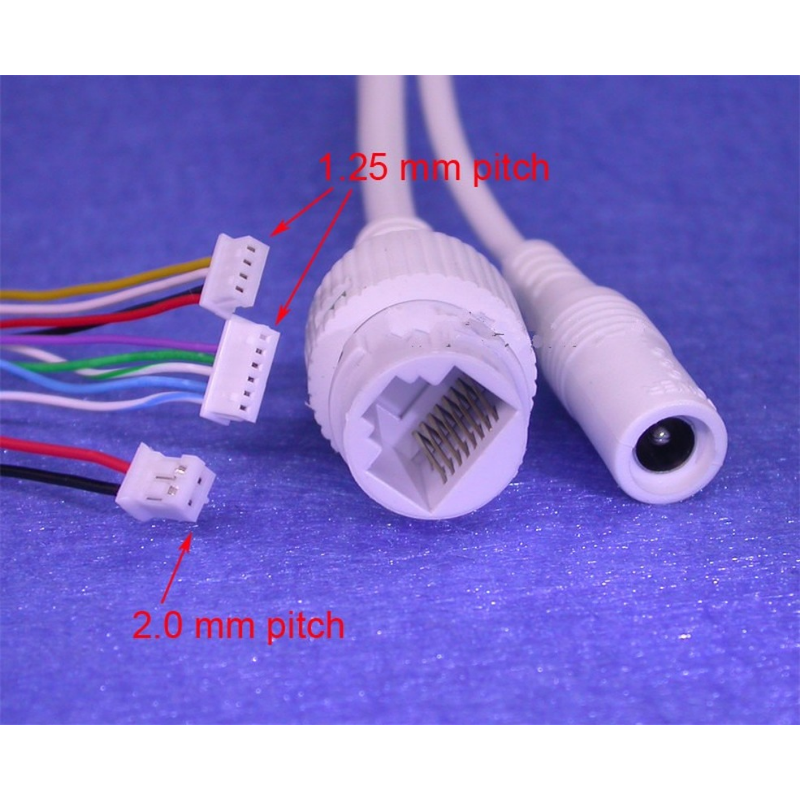

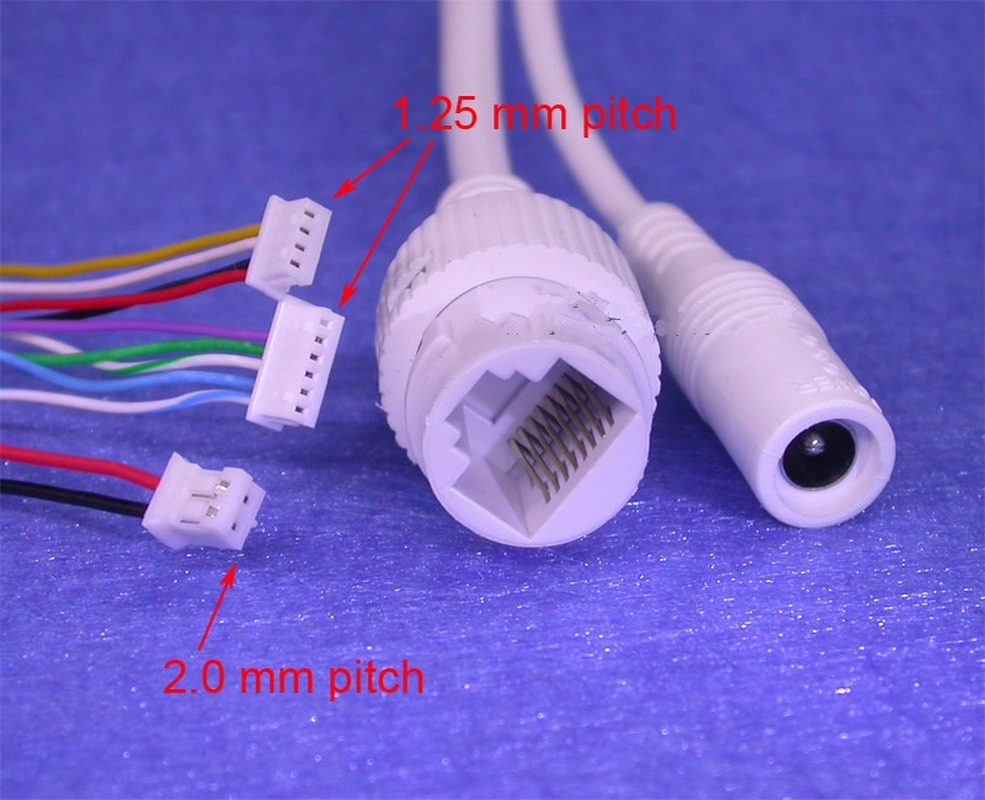

<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">5PINs</span>	1 / 2 / 3 / 6 / 1x LED (1.25mm pitch)
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">2PINs</span>	DC power / GND (1.25mm pitch)
