LED-разветвитель для антенны, 450-1000 МГц

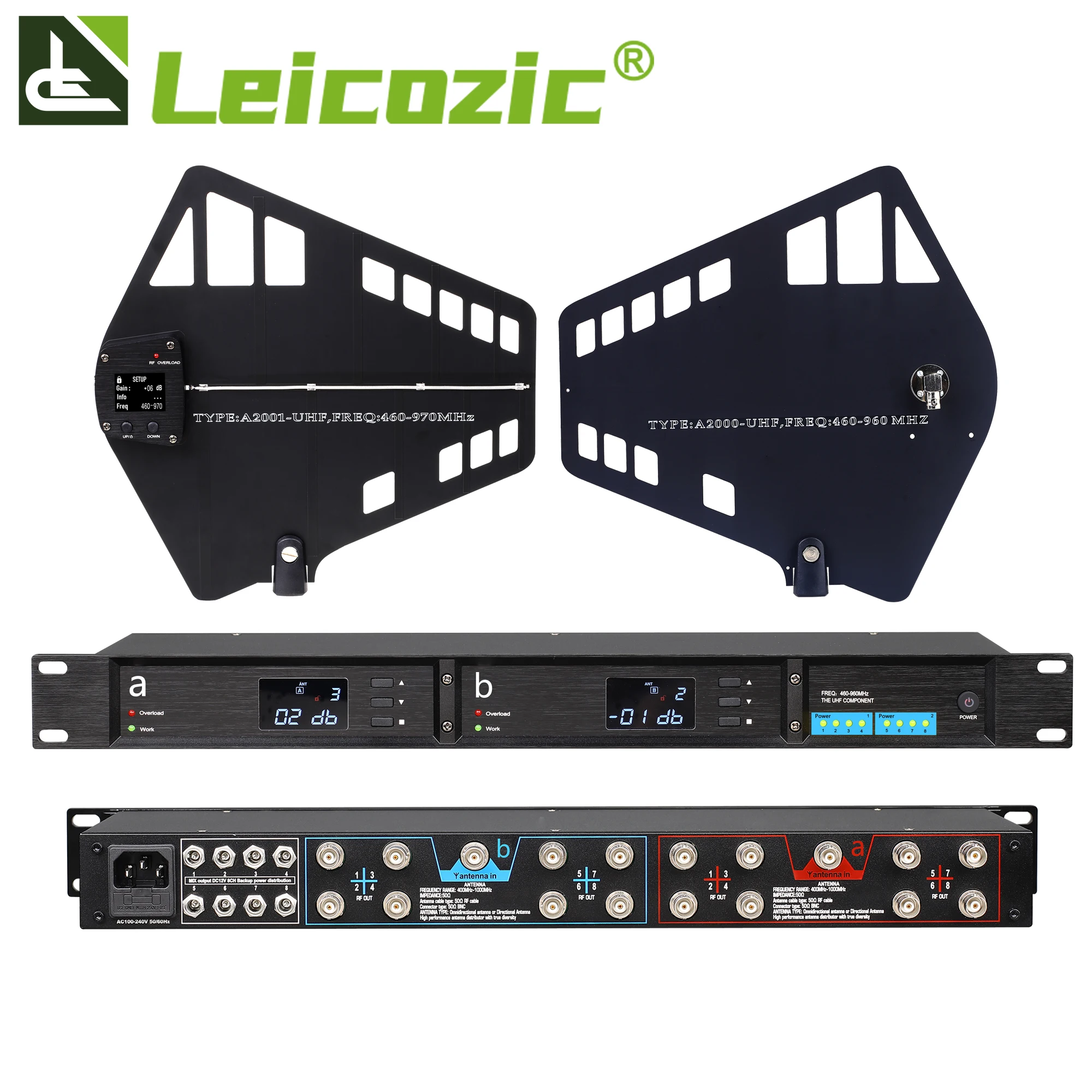

Leicozic UA90-A2021UHF WidebandAntenna Splitter 450-1000MHZRF Signal AntenaDirectional BNC-BNC CoaxialCables 16Grounps

UA90-A2001 UHF Wideband 1 to 8Antenna Splitter 450-1000MHZ

Powerful distribution:

UA90 is an active wideband UHF antenna splitter, using a pair of RF signal antennas, can connect up to 8 wireless receivers, or use the cascade method to cascade up to 8 antenna splitters for 56 sets of wireless receivers , And power the active antenna through the BNC cable. Ultra-wide working frequency band 450-1000MHz. LCD high-definition display, 32-level RF level adjustment can most effectively ensure the best signal needs of the wireless receiver, ensuring that the maximum working distance can be achieved even if different lengths and different types of cables are used. RF signal overload indicator always monitors the quality of radio waves.

Main feature:

♦Ultra-wide working frequency

450-1000MHz to ensure the maximum flexibility of the system

♦ 32-level adjustable RF signal level for optimizing the receiving efficiency of different cables

♦Link output

8 wireless receivers can be linked to form a large-scale system

♦ RF level overload LED

Timely monitor the quality of the RF signal

♦High-definition LCD display

HD LCD display

♦The machine code record is adjustable

Machine number record is adjustable

♦Panel lock function

Prevent misuse of the show

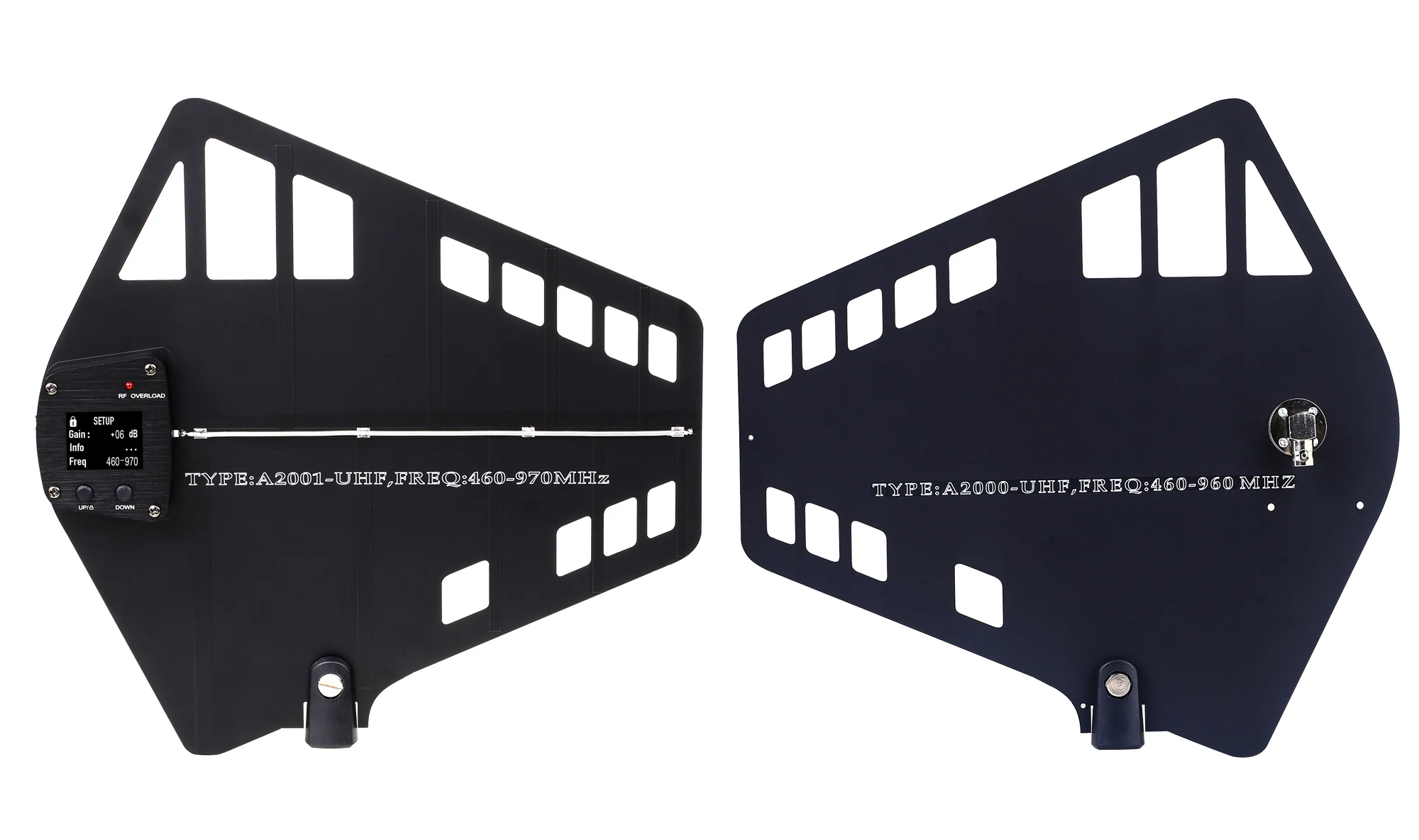

MODEL: A2021 Antenna

Suitable for outdoor or indoor long-distance wiring applications

Using specially designed antenna components, it can support up to 300 meters.

Main feature:

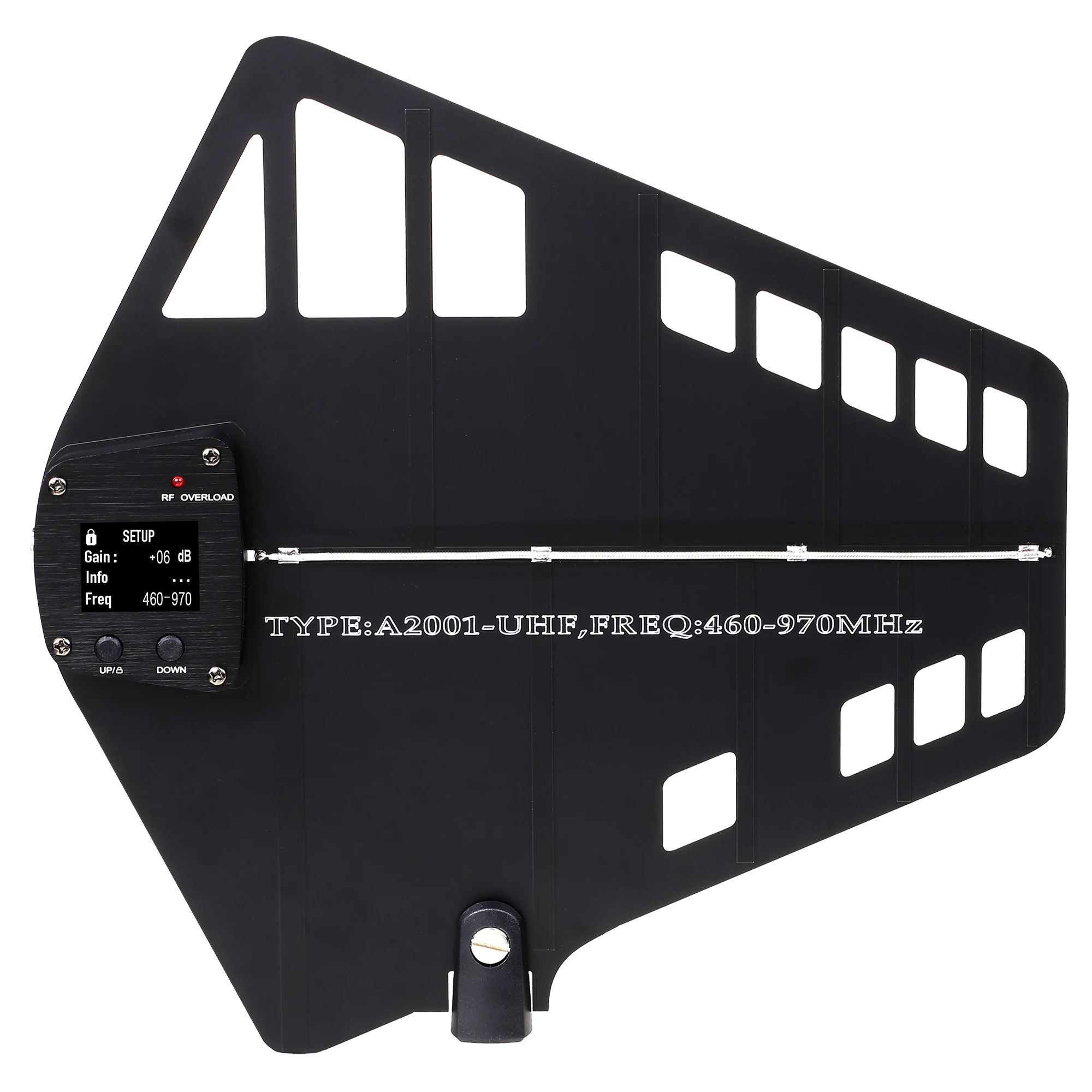

♦A2001 is a broadband U-segment LPDA antenna

♦Enhance signal reception by 12dB, radiation angle 90 degrees

♦Integrated CNC adjustable 12dB gain amplifier

♦HD parameter display

♦Antenna size: 274mmX275mmX40mm

♦Structure: epoxy glass fiber

♦Surface: black matte

Gain amplifier technical index:

♦Frequency: U section 460-970MHz

♦Input/output impedance: 50 ohms

(SWR<=1:1.5;Typical=1:1.4)

♦Interface: B-type female

♦Gain (maximum): -6  12dB (typical)

♦3rd order intermodulation intercept point: +45dBm (typical)

♦Gain flatness: +1dB, full frequency band

♦Power supply: +9Vto 12V (typical), 150mA

Features

A2021 is an active directional broadband receiving antenna suitable for wireless microphones, which can compensate for signal loss caused by too long cable.

Using specially designed antenna components, it can support up to 300 meters.
