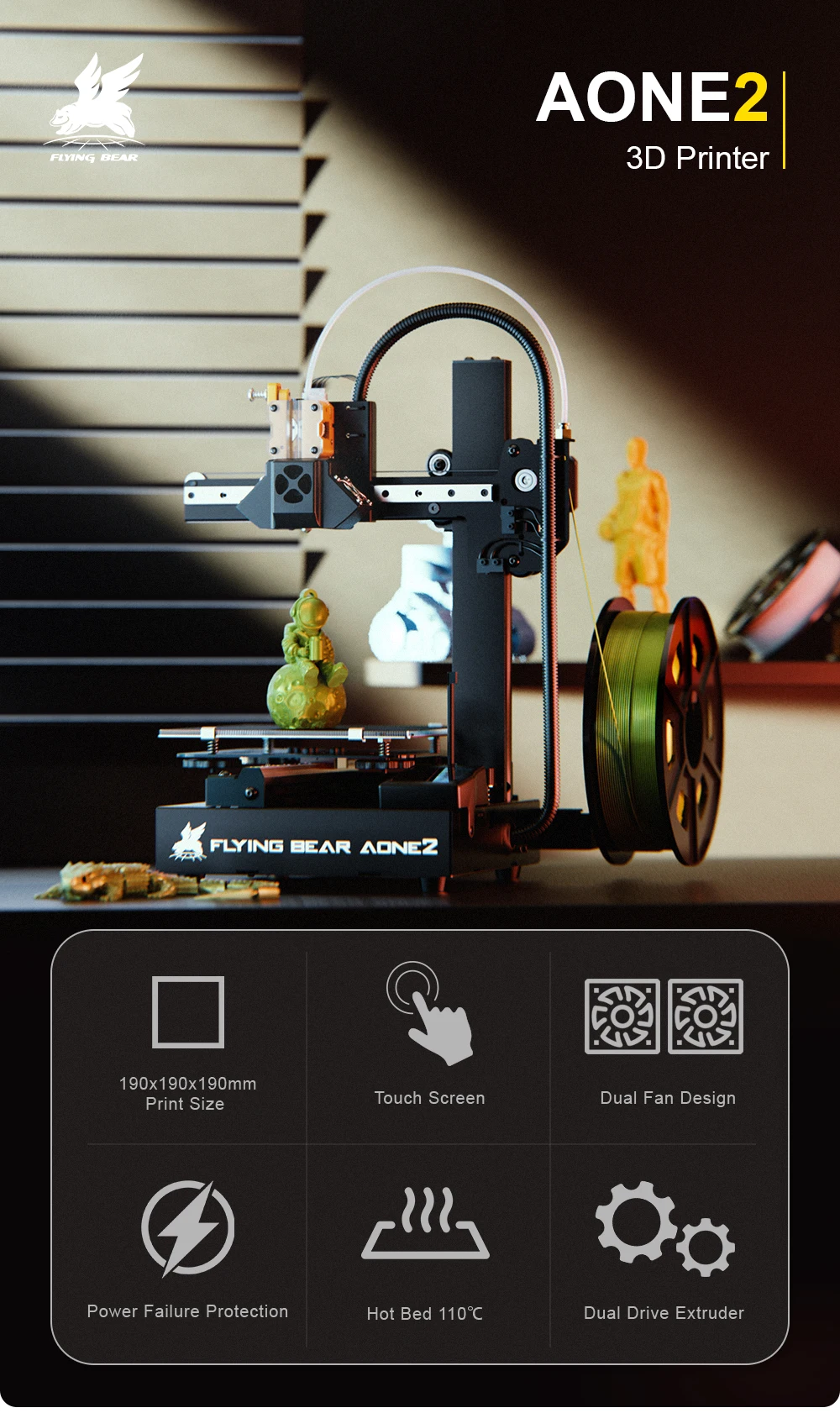

Летающий медведь, 3D принтер Aone 2, новый дизайн, экструдер, портативная машина, размер печати 190*190*190 мм

Gross Weight: 7.4kg

1. All printers have 12 months warranty, buy it with confidence.

2.The Printers and Laser engraving machine all Very quickly Organization, and start to use easily, after sale team will support if you meet any problem.

Machine Features:

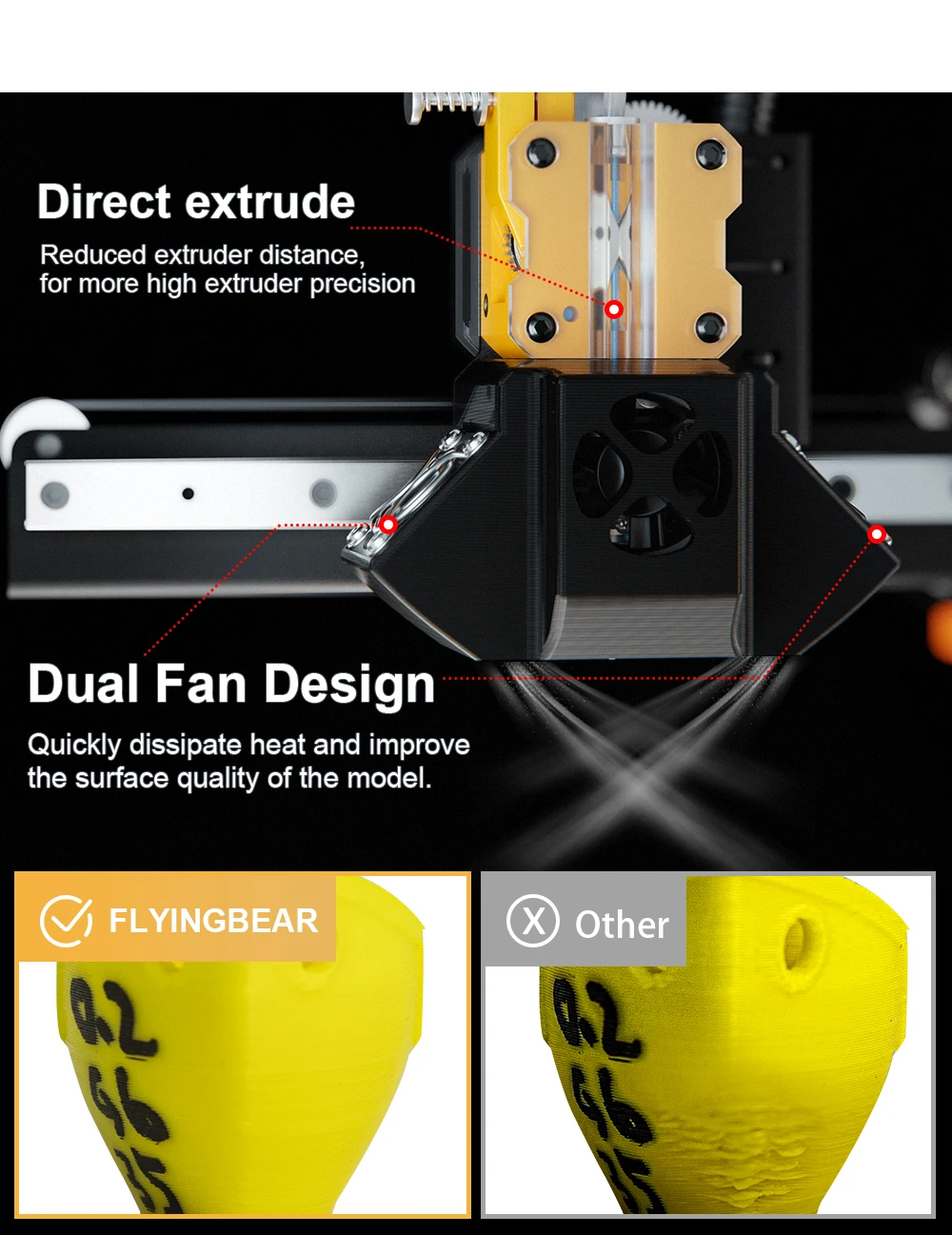

1.Dual fan design:

Quickly dissipate.Heat and improve the surface quality of the model.

2.Direct extruder：

Reduced extruder distance, for more high extruder precision.

3.The Newest Design Extruder

* Cleaning filament Easily, Removable
Feeding hole clean the blocked filament inside easily.

* More High Extruder Reduction Ratio
The Ratio keeps to 1:7.5, More fast and stable extruder results.

* Real-time observation

Transparent extruder，watching and checking the extrusion status directly.

4.Linear guide design：

X-axis and Y-axis adopt linear guides, which have simple structure and stable operation.

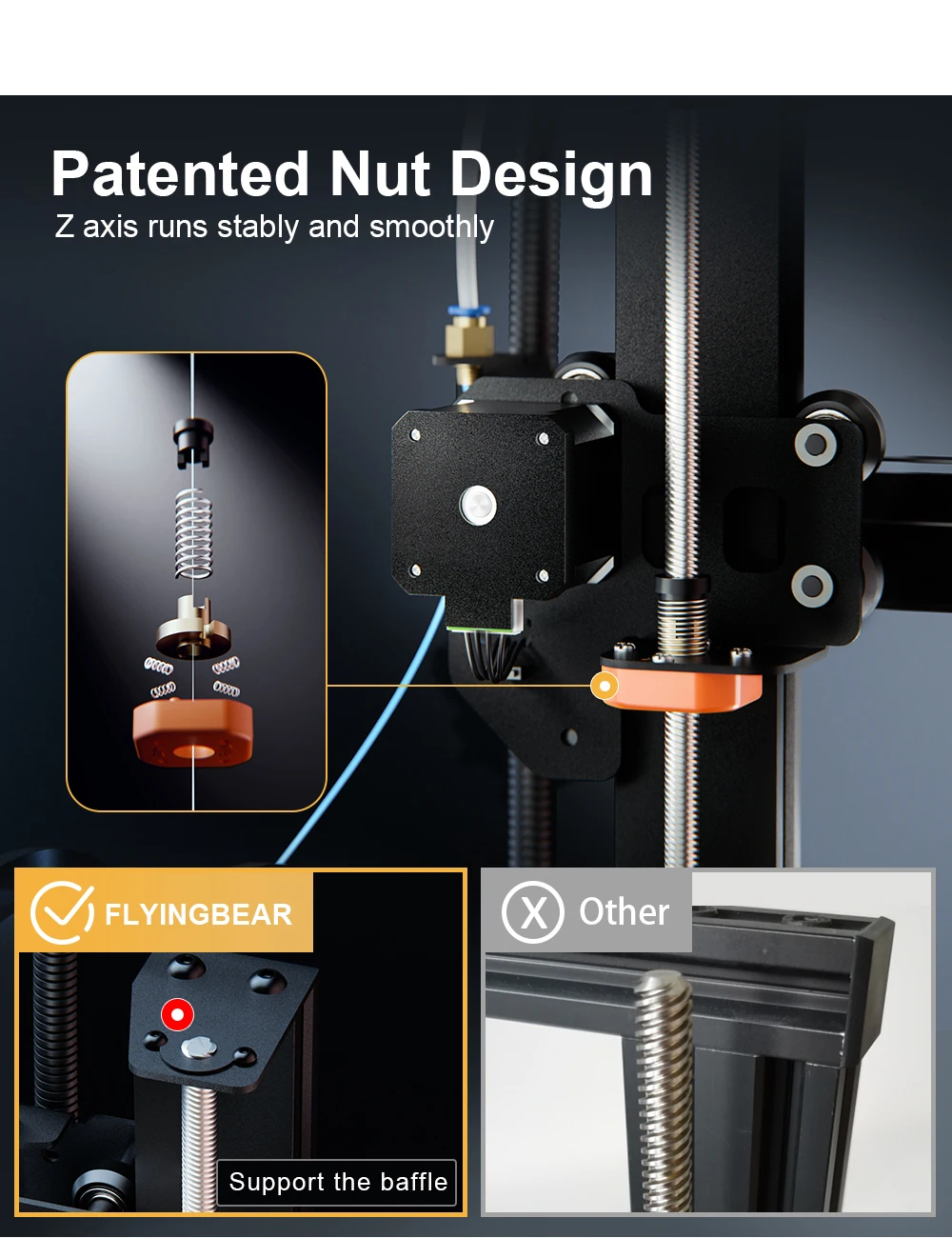

5.Patented nut design:

Z axis runs stably and smoothly

6.4 pulley design:

Increase the rigidity of the z-axis and improve the printing accuracy.

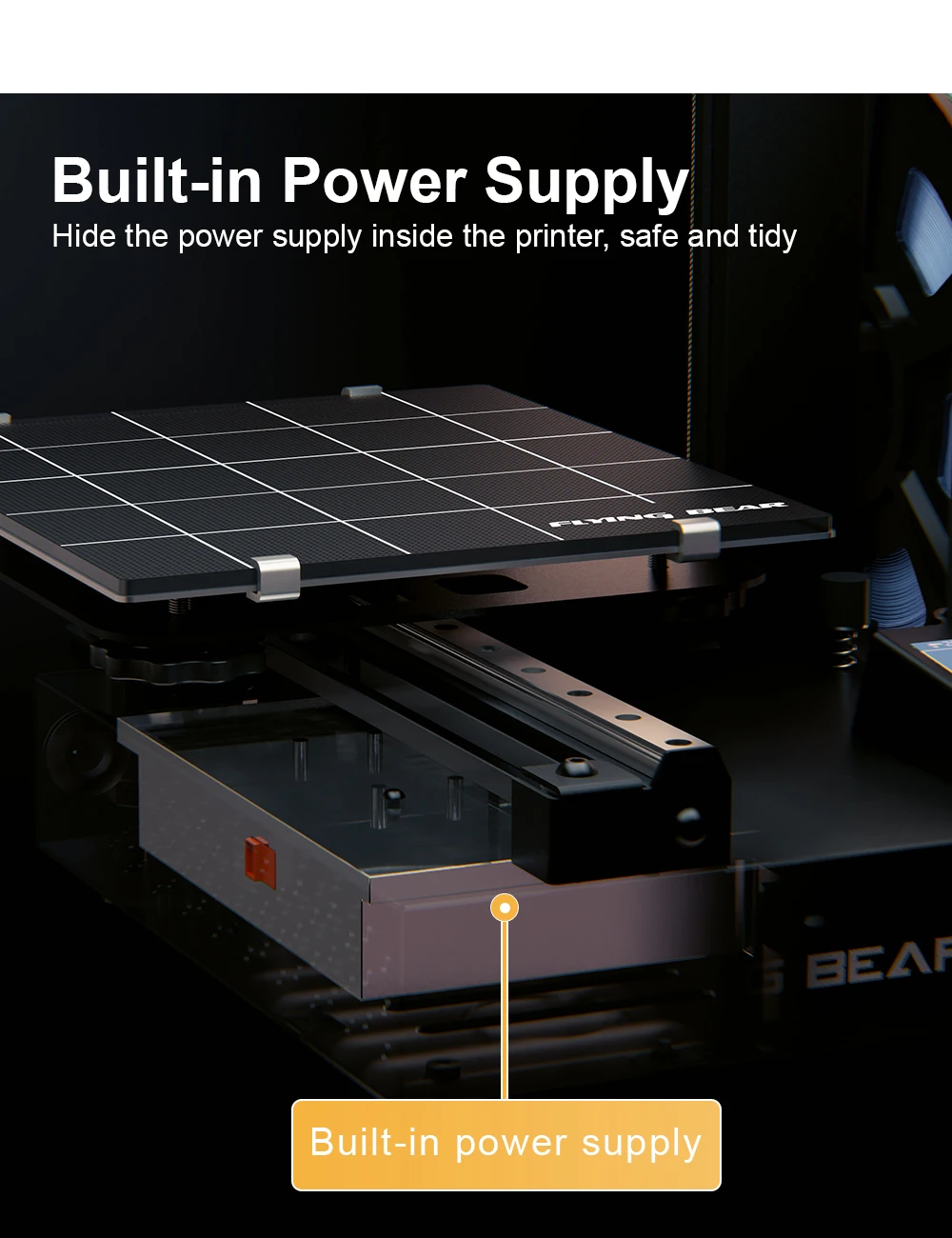

7.Built-in power supply:

Hide the power supply inside the printer, safe and tidy.

8.TMC2225 driver:

Low noise and high precision.

9.Color touch screen:

New UI design, simple and intuitive operation.

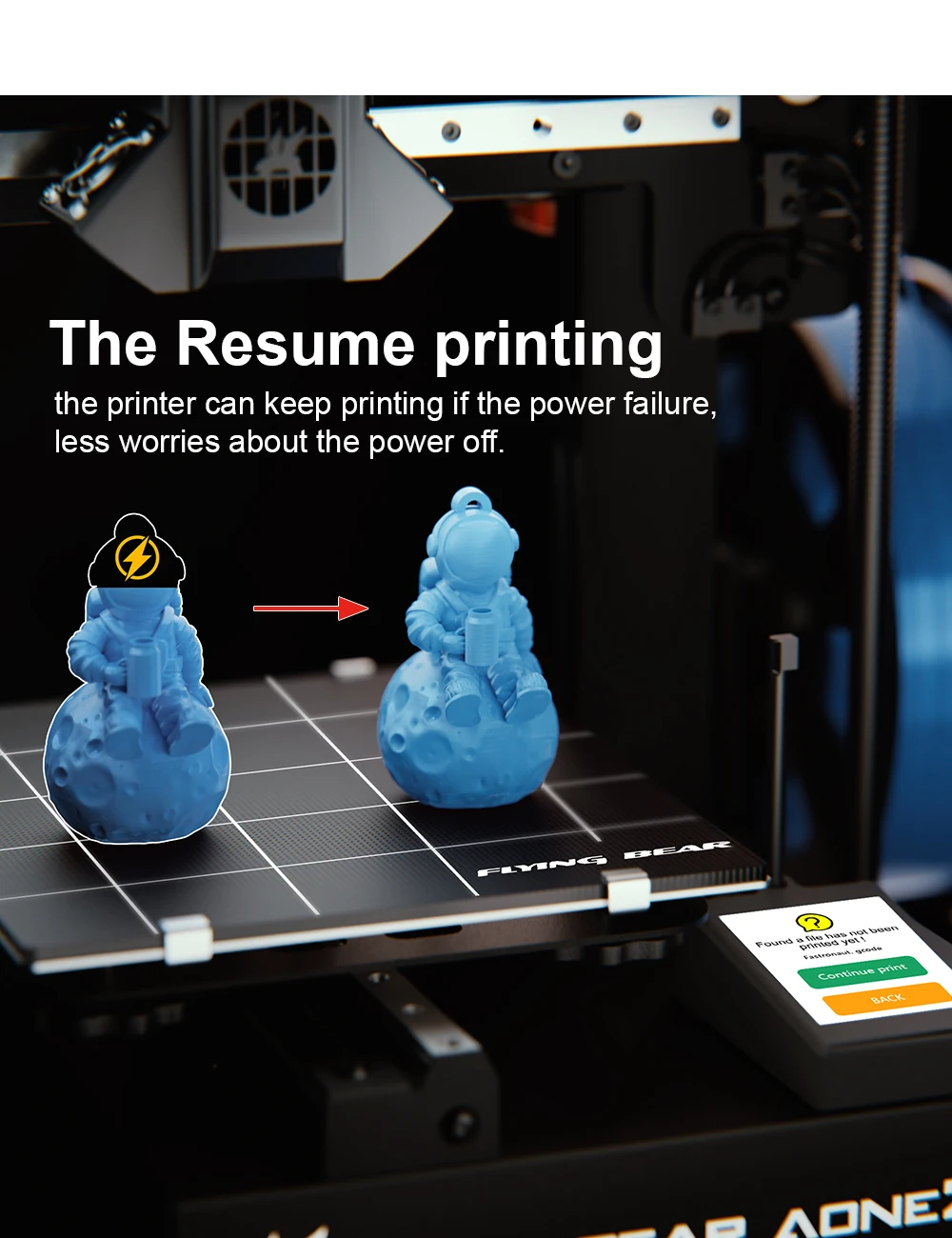

10.Power loss resume function:

The printer does not have to worry about sudden power failure.

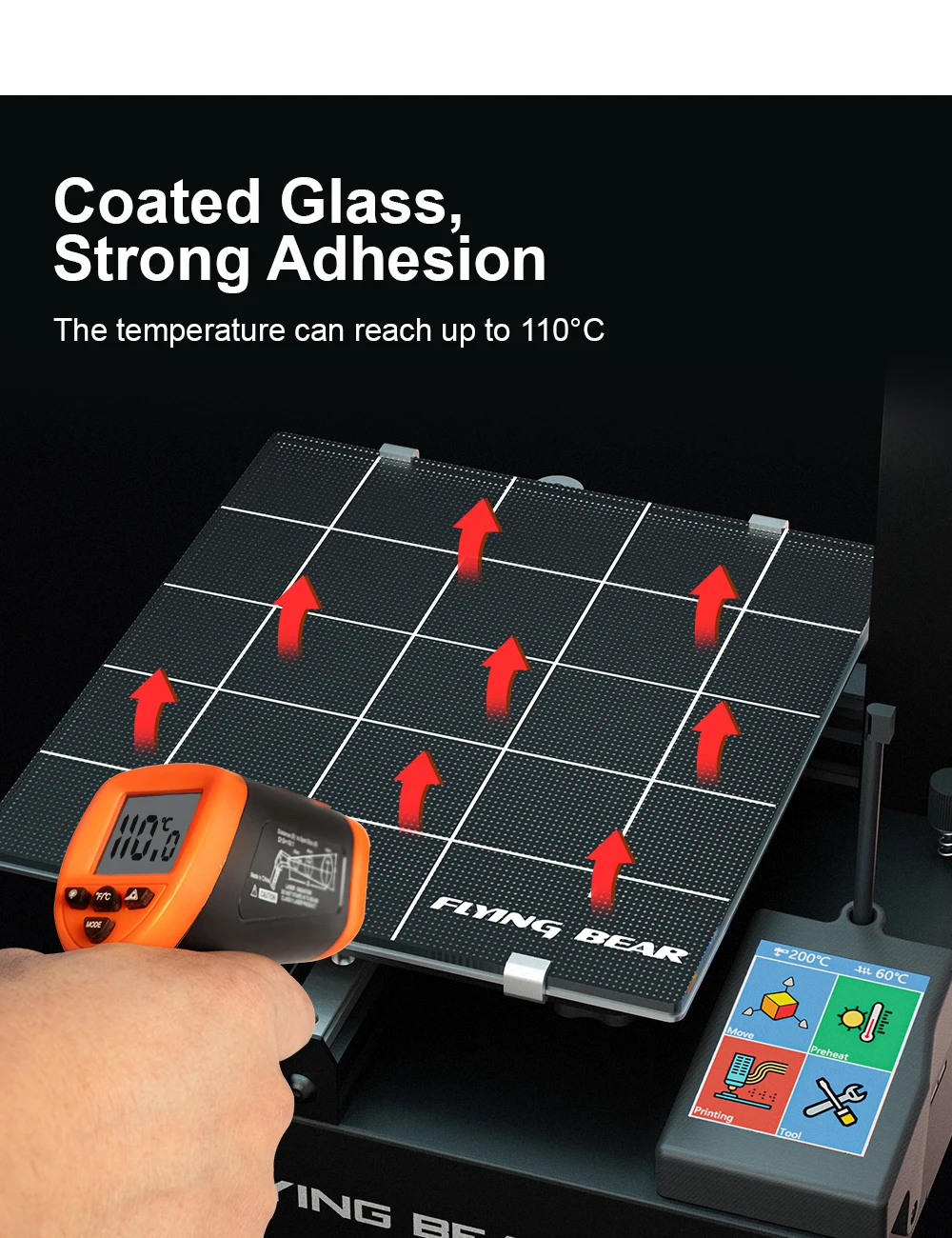

11.Coated glass hot bed:

Strong adhesion, the temperature can reach up to 110°C.

Machine Parameters:

Printer Model: FlyingBear Aone2

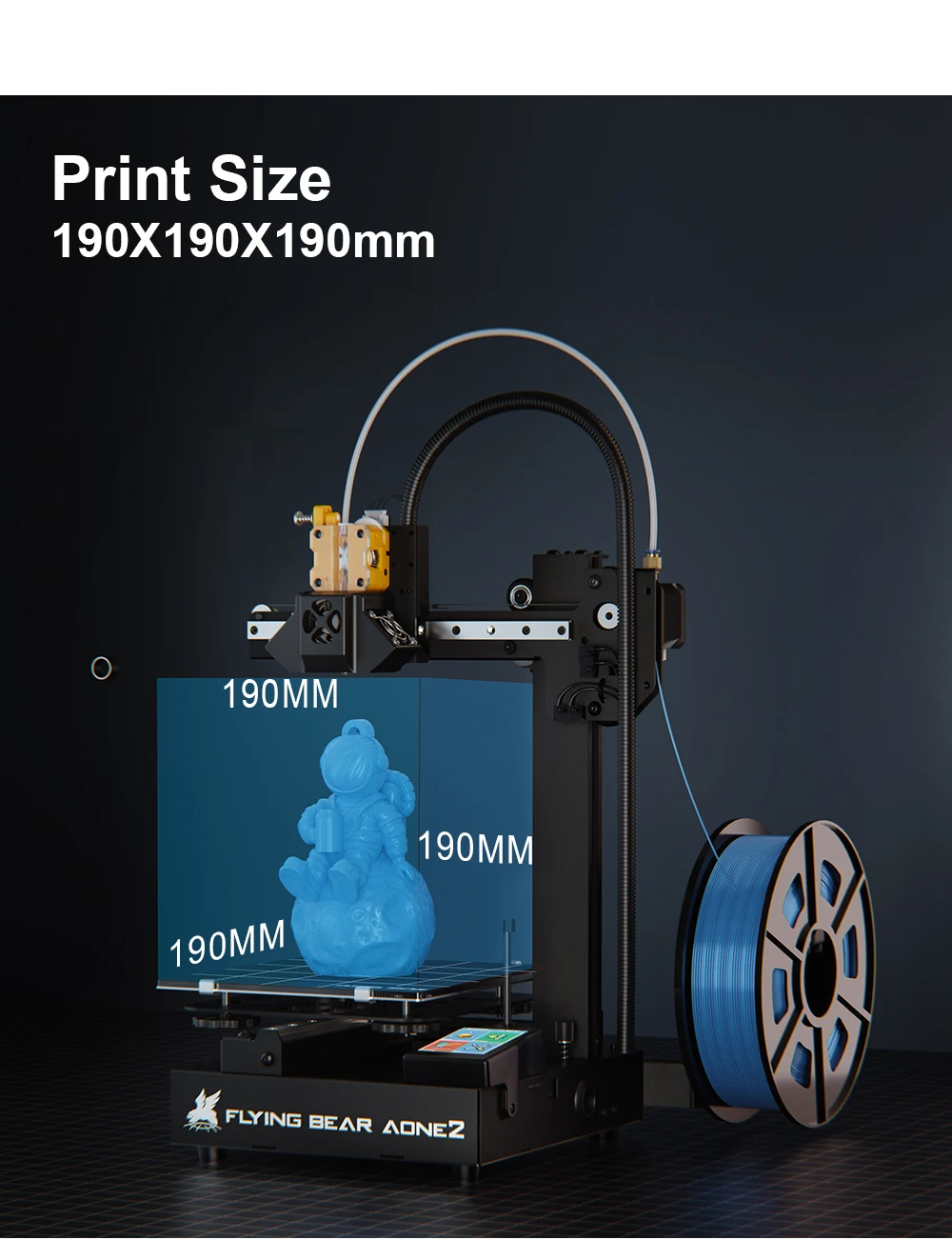

Print size:190*190*190mm

Layer thickness precision: 0.05-0.3

MAX printing speed: 100 mm/s.

Material type: PLA, TPU,Wood

Material specifications :1.75mm in diameter.

Positioning accuracy: Z 0.002mm, XY 0.01mm.

Nozzle diameter: 0.4mm

Recommended extruder temperature:210℃ (the max 260℃).

Hot bed temperature: 60-110℃ .

Extruder number: 1

Power requirements: 24V, 300W

Printing method: TF card, USB

Input file format:  STL , OBJ , DAE ,AMF

Output file format : GCode

Compatibility: Windows, Mac.

Control software: Repetier-host, Cura.

Net Weight：6kg

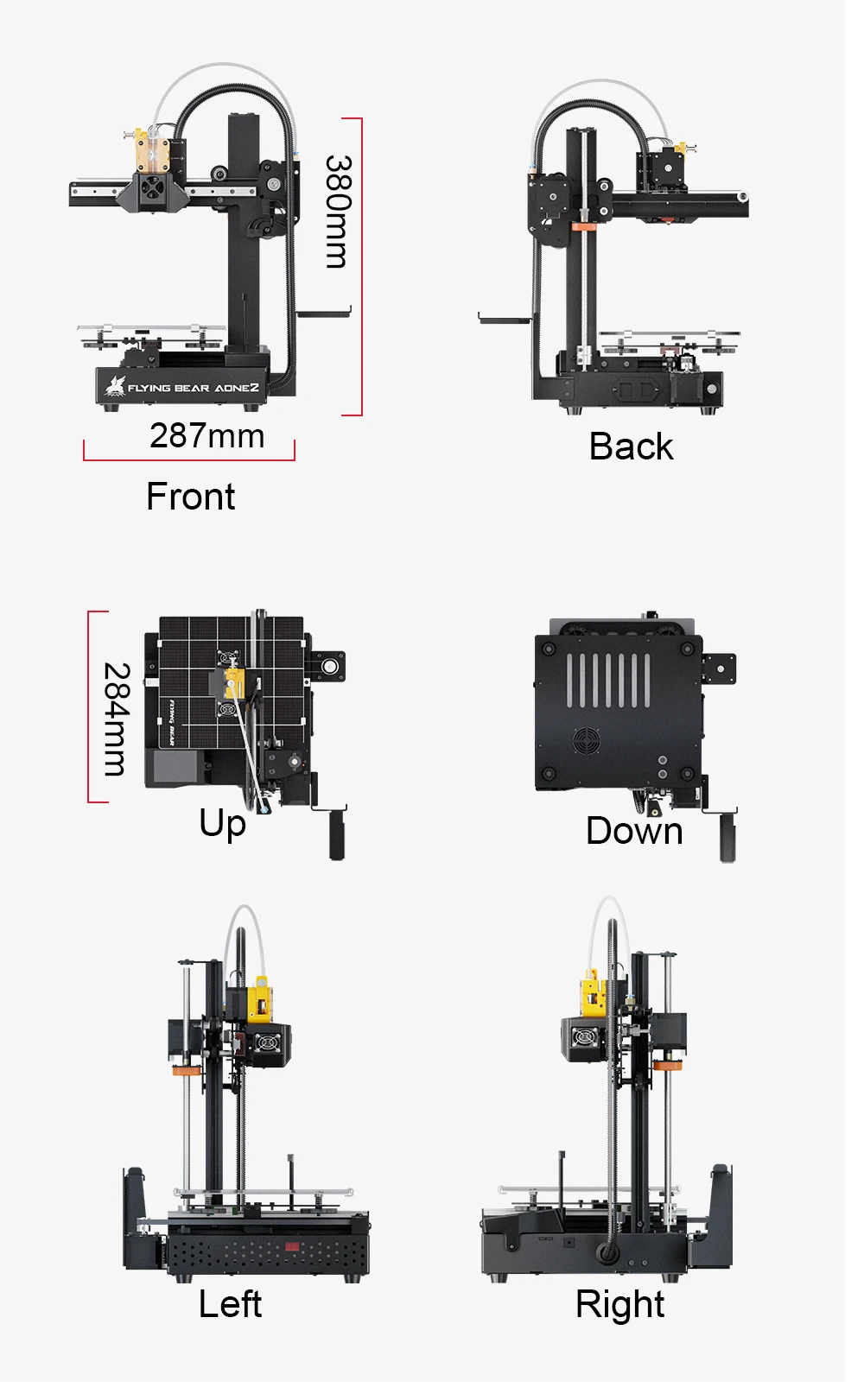

Machine Size：287x284x380mm

Packing Size：450x420x210mm

Gross Weight: 7.4kg
