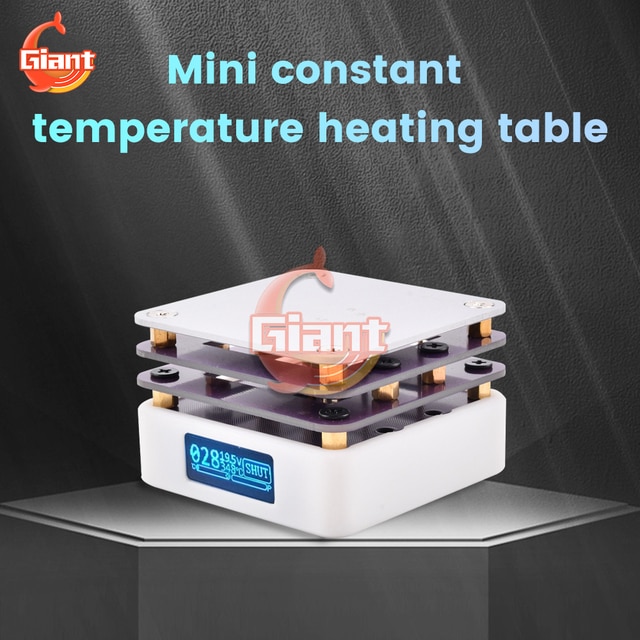

Мини-нагреватель MHP30, паяльный инструмент для печатных плат и светодиодов, с OLED-дисплеем

Код товара: A1005005424633746

Кешбек: 15%

Магазин: АлиКэшбэк20

Пройдите простую регистрацию, чтобы делать покупки выгодно.

Доступные опции:

Цвет:

White

Описание:

Heating table X1

Product features:
Ultra mini sized intelligent constant temperature heating table
Eliminate redundancy and retain sufficient effective heating area, greatly saving energy consumption and heating time
Efficient heating area, reduced energy consumption, widely applicable fields, screen display and temperature control
Concentrate preheating of operating parts to reduce damage to nearby components
USB Type-C interface+PD protocol for faster heating

Product parameters:
Input interface: Type-C
Power supply: PD 65w 20v 3.25A (recommended for PD65w)
Temperature range: 0 ° C~350 ° C (the lowest temperature is the ambient temperature, which can only be raised but not lowered)
Shell: High quality 3D printing shell, no layering
Product size: length: 5.6cm, width: 5.6cm, height: 3.5cm

Operating instructions:
Double button simultaneous pressing: heating or stopping heating
Double key long press to enter the menu interface or exit
Double key press to confirm
Attention: It is recommended that the temperature not exceed 250 ℃

common problem:
Q: How many volts does the power supply require?
Answer: A charger that supports the PD protocol with a voltage of 20V 3.25A is required, and theoretically it can support the PD protocol with a voltage of 20V
Q: Why does the heating start with a black screen and restart?
Answer: This issue triggered the charger protection and requires replacement with another charger or data cable, most of which caused the charger model to be recorded

Shipping list:
Heating table X1

Характеристики:

Название бренда	Нет
Номер модели	MHP30 Mini Hot Plate SMD
Происхождение	Китай
Индивидуальное изготовление	Да
Сертификация	Евротест (СЕ)
Единица измерения	штука/штуки
Количество	1
GYCA0031-001	GYCA0031-001
tools	tools
Soldering iron	Soldering iron
Soldering and rework station	Soldering and rework station
Moudle	mhp30
Feature 1	Hot plate
Feature 2	preheater
Feature 3	pcb hot plate
Feature 4	hot plate solder
Feature 5	Station solder
