Мобильный телефон SW3518

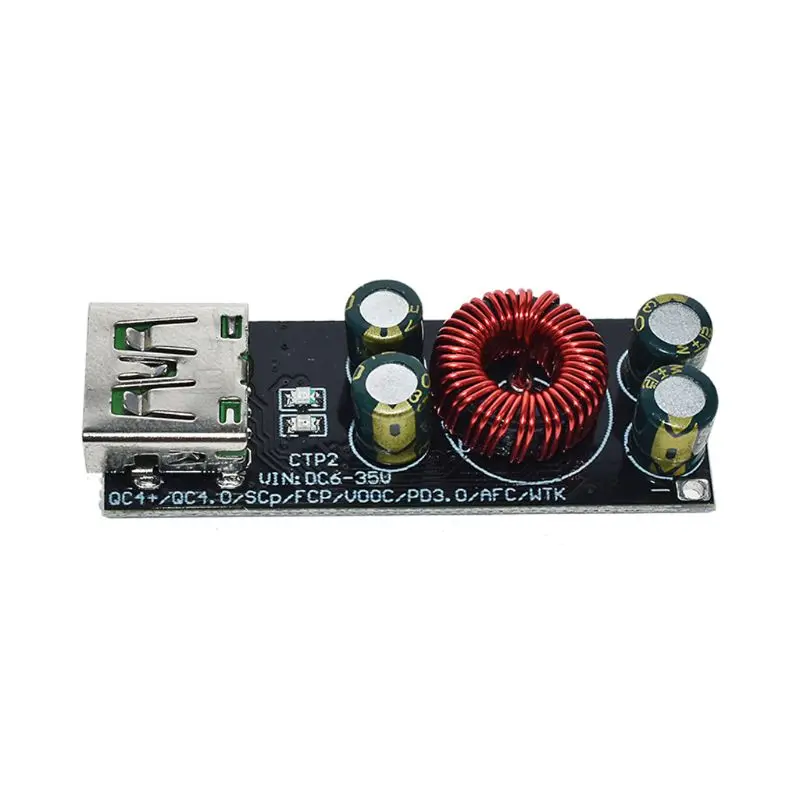

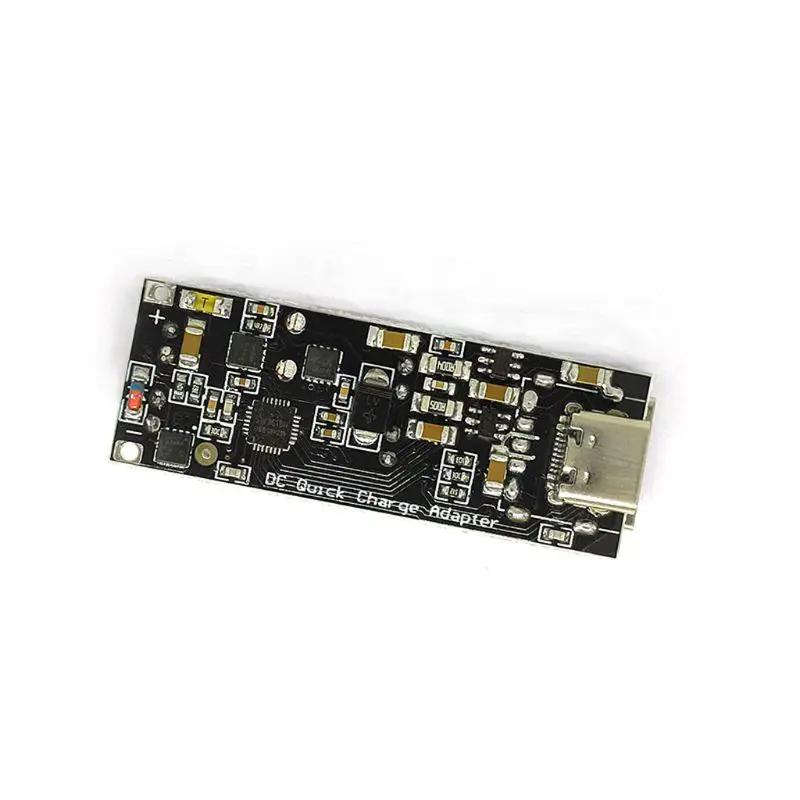

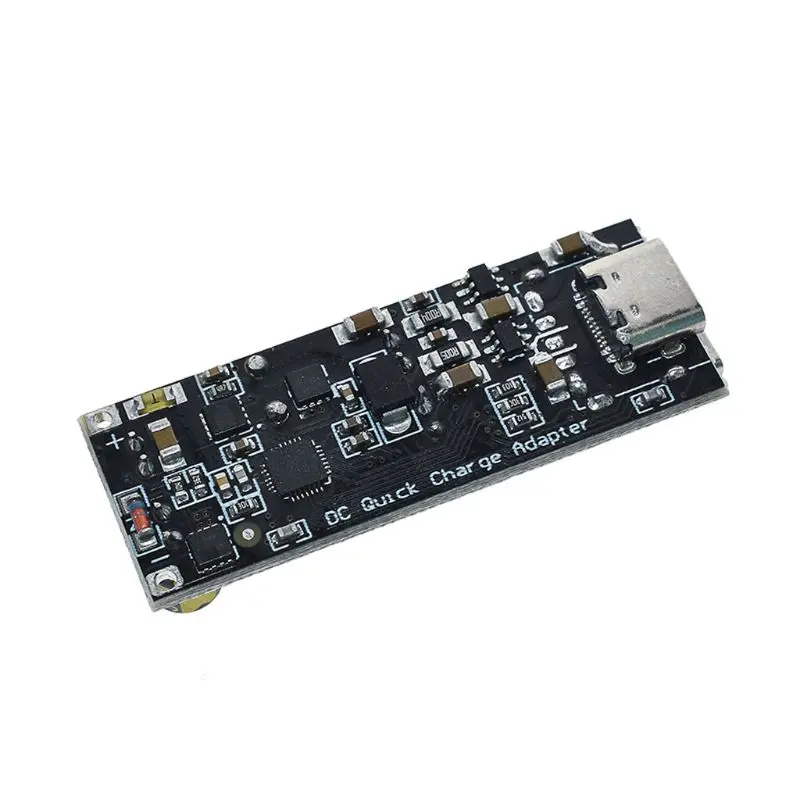

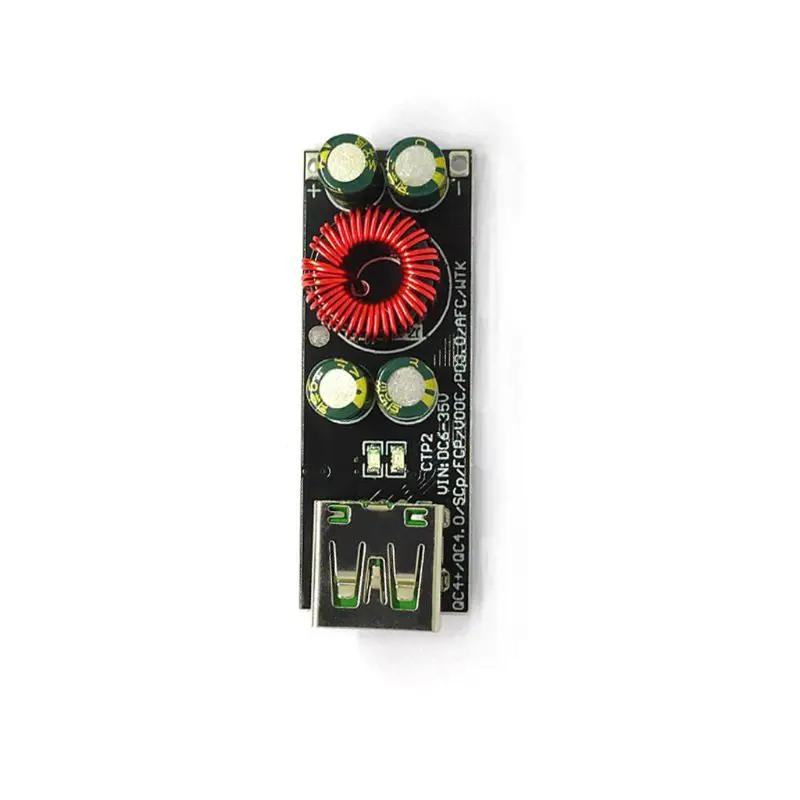

G8DF Mobile Phone SW3518 Quick Charger Adapter Module 6-35V QC4.0 PD3.0 USB Type-C Cellphone Fast Charge Board Support VOOC for
OOTDTY

Description:

Features:
brand new and high quality
This product has a small size, which is suitable for DIY users.
If combined with a 12 volt power adapter, it can be used for fast daily charging.
And storage at the same time batteries, solar panels, dc generators and another power supply!
Outdoor/car/power failure and other occasions under the good helper!
Wide supply voltage: 6 to 35 v.
High performance input anti-reverse connection: a special tube mos to make anti-reverse connection. The effect is far beyond the diode, not hot!
Fast charge status indicator: blue light is output indicator, red light is fast charge status indicator!
Adopt the external MOS tube, double wire and iron, silicone and aluminum magnetic ring, high efficiency, less heating under the same charging power.
Low resistance double parallel electrolytic capacitor, plus 6 pcs 1206 ceramic capacitors! Increased performance.

SW3518 loading protocol fast compatibility:
USB PD3.0(PPS) Support
for Qualcomm QC4+/QC3.0 Support
for SCP/FCP Support
for Apple 2.4A Support
for AFC Support
for VIVO 9V2A twin engine Support
for Mediatek PE2.0 Support

Attention:
1. For fast charging with low voltage and large current, please use the original data cable. If you want to measure the charging voltage and current, please use the usb meter with low internal resistance! otherwise, affect the charging current!
2. The type-C port is used to load the output; use the c-to-c / type-c dual head data cable to charge your cell phone or laptop!
3. QC4 +/ QC4.0/ PD3.0 and other protocols use ype the port!
4. When the power supply voltage is greater than 21V, the maximum support of the c pd port protocol is 20V3A output. The volume of the module is small.
5. When the usb port and the type-c port are connected at the same time, both ports are output 5V.

Specification:
Chip: SW3518
A+A/A+C port
External MOS
Support VOOC
Color: As pictures shown.
Size: app. 49x18mm(1.93x0.71in)
Material: Electronic component
Quantity: 1 pc

Note:
Transition: 1cm=10mm=0.39inch
With retail package.
Please allow 1-3cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Charger Adapter Module(other accessories demo in the picture is not included.)
