Mp3-плеер с цветным экраном DC 5в-26в

kebidu Newest Call Recording 80W Amplifier MP3 Player Decoder Board DC 5V-26V Bluetooth5.0 Car FM Radio Module Support TF USB AUX 3.5 WAV Support Dropship/Wholesale

Type:Big remote control/Small remote control

Model: JQ-D009BT (Power amplifier 2*40W)

Main control IC: Zhongke Nanxun AB5362B

Bluetooth IC: Zhongke Nanxun AB5362B Bluetooth version 5.0

Power amplifier ICCS8673E, power: 2*40W (80W requires voltage value: DC25V)

Bluetooth call function

Recording function

Music format: MP3 / WMA / WAV / FLAC / APE lossless format music

Radio FM frequency: 87.5-107.5 MHZ

Folder switching function

Support function introduction: support MP3 / USB / TF/ LINE IN / FM / BLUETOOTH/remote control connection/DC 5V-26V

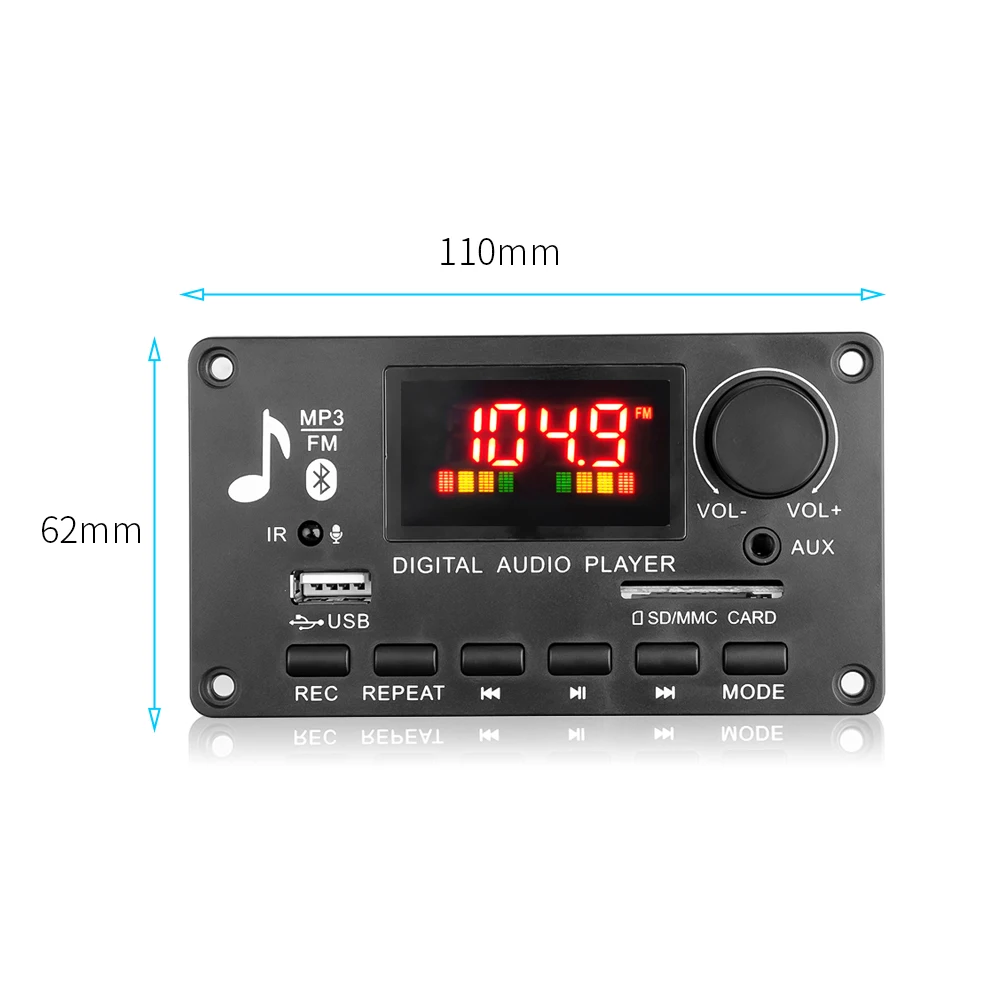

About the structure: Panel size: length 112 * width 62 MM, the panel is surrounded by screw holes, the depth of the board is 22MM

1. Description of recording function

1. Long press the MODE button to start recording, long press the MODE button again to cancel the recording function and play the recording file;

2. When recording, you need to connect a storage device, such as U disk or TF card;

Under storage devices, such as U disk or TF card, long press the PLAY/PAUSE button (play/pause) to enter the recording folder and play the recording file.

Note: The minimum current is 2A, the maximum is not required
