Peacefair PZEM-008 Din Rail Цифровой измеритель мощности электроэнергии Вт кВтч ваттметр монитор Амперметр Вольтметр AC 50-300 в A

Peacefair PZEM-008 Din Rail Power Energy Meter Electronic Kwh Meter Wattmeter Multi Digital Ammeter Voltmeter AC 50-300V 100A

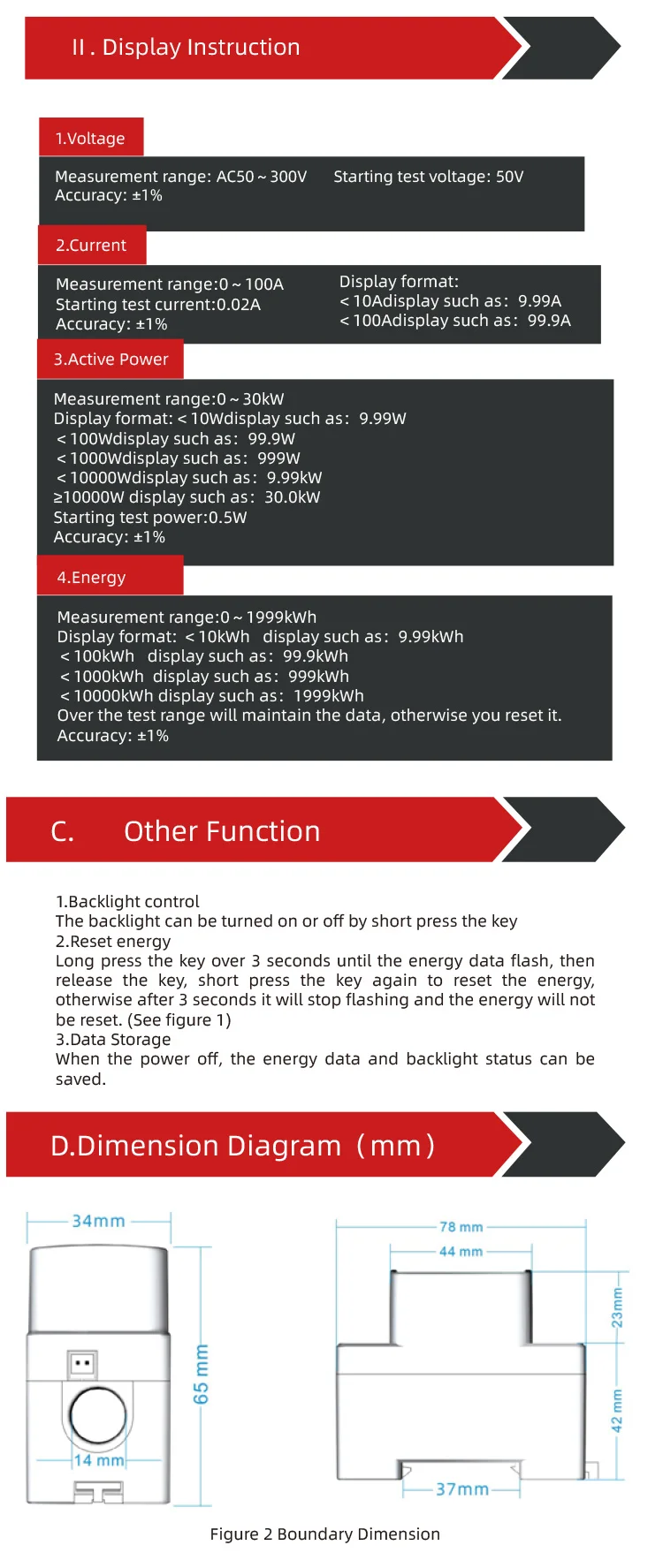

Funtion

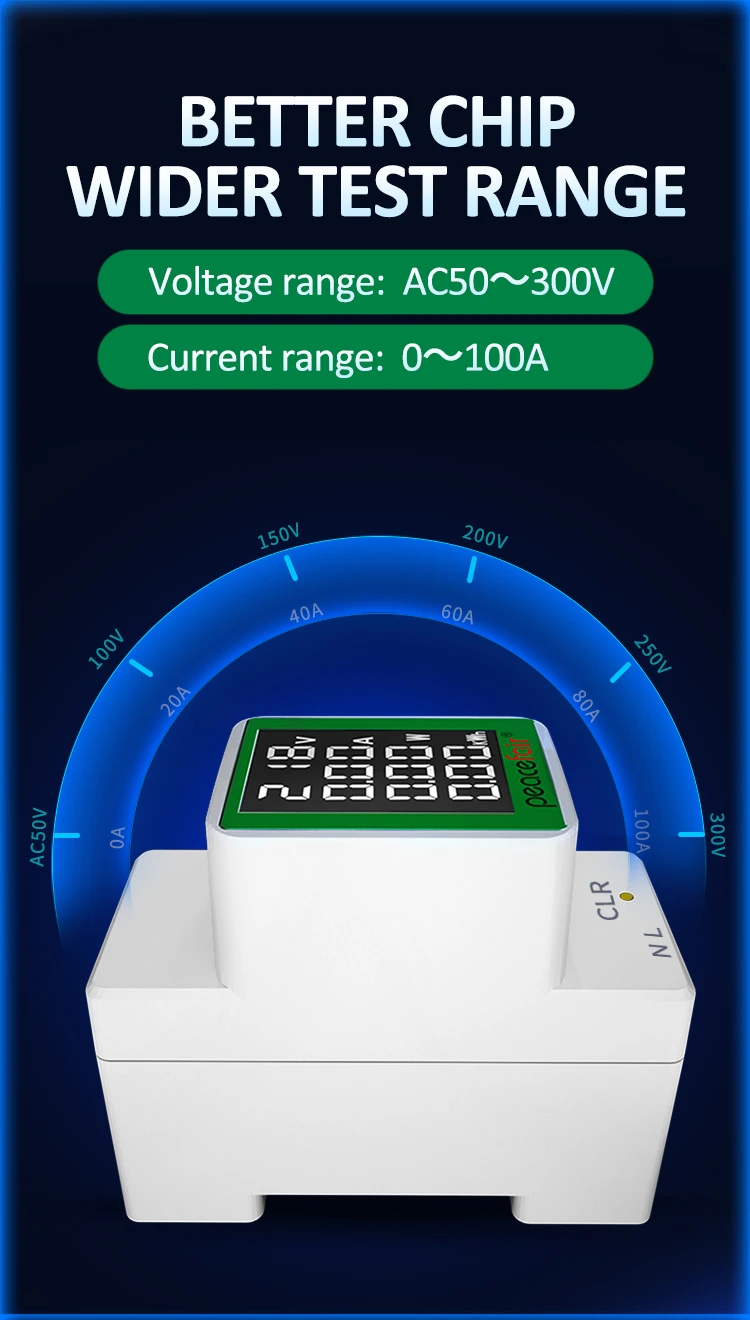

1.Voltage

Measurement range: AC50～300V

Starting test voltage: 50V

Accuracy: ±1%

2.Current

Measurement range:0～100A

Display format:

＜10A display such as：9.99A

＜100A display such as：99.9A

Starting test current:0.02A

Accuracy: ±1%

3.Active Power

Measurement range:0～30kW

Display format:

＜10W display such as：9.99W

＜100W display such as：99.9W

＜1000W display such as：999W

＜10000W display such as：9.99kW

≥10000W display such as：30.0kW

Starting test power:0.5W

Accuracy: ±1%

4.Energy

Measurement range:0～1999kWh

Display format:

＜10kWhdisplay such as：9.99kWh

＜100kWhdisplay such as：99.9kWh

＜1000kWhdisplay such as：999kWh

＜10000kWh display such as：1999kWh

Over the test range will maintain the data, otherwise you reset it.

Accuracy: ±1%

Other Function

1.Backlight control

The backlight can be turned on or off by short press the key

2.Reset energy

Long press the key over 3 seconds until the energy data flash, then release the key, short press the key again to reset the energy, otherwise after 3 seconds it will stop flashing and the energy will not
be reset.

3.Data Storage When the power off, the energy data and backlight status can be saved.
