Плата Bluetooth-декодера AIYIMA, 12 В, ЖК-дисплей, WMA WAV FLAC APE FM

Код товара: A1005005269597494

Кешбек: 15%

Магазин: АлиКэшбэк20

Пройдите простую регистрацию, чтобы делать покупки выгодно.

Описание:

Product model: LCD bluetooth decoder board U disk playback audio amplifier board usb lossless hifi radio module

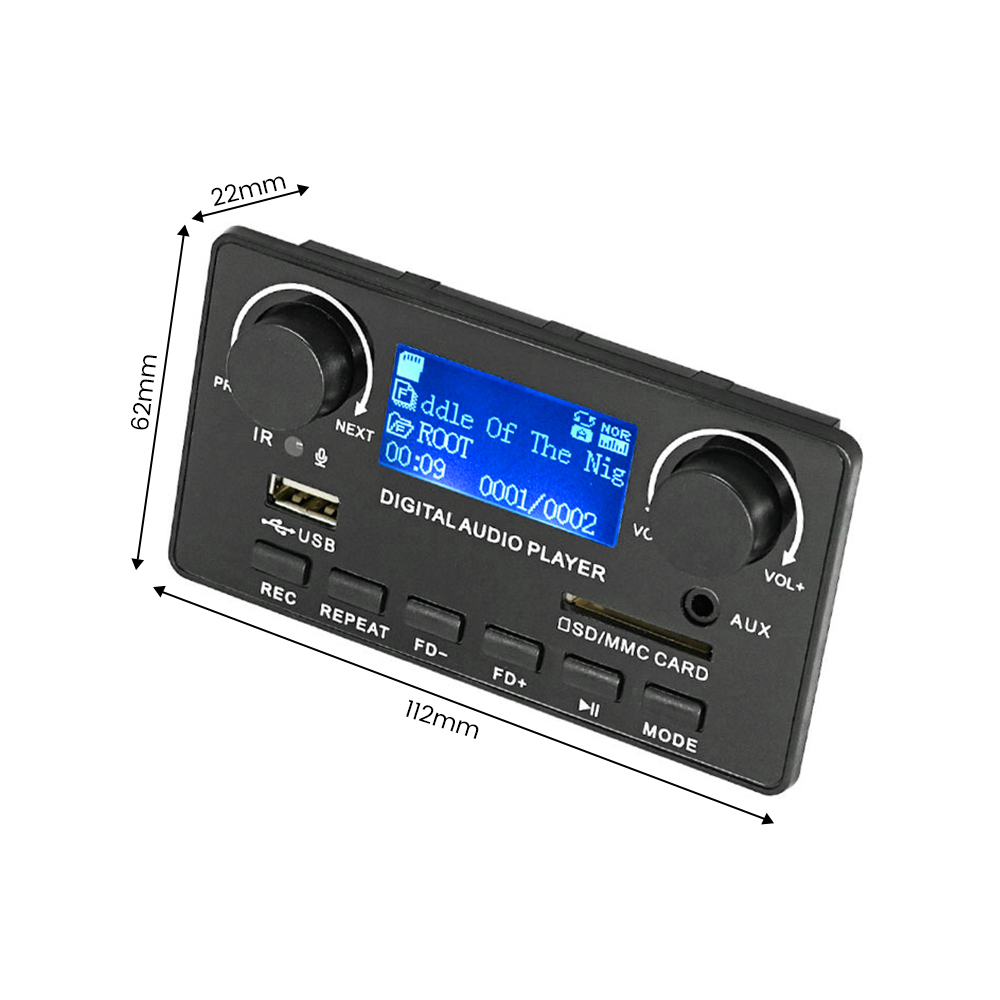

Shell size: 112*62MM, depth is 22MM

Decoding format: MP3/WMA/WAV/FLAC/APE

Radio FM frequency band: 87.5MHZ---108.0MHZ

Bluetooth version: Bluetooth version 5.0

Folder: support folder switching

Power supply: DC12V, 1-3A

The main function

1. Decoding supports MP3, WMA, WAV, FLAC, APE lossless format music;

2. LCD screen display, lyrics display synchronously;

3. Support Bluetooth call function, Bluetooth version 5.0;

4. Support recording function;

5. Support folder switching function;

6. Support SD interface;

7. Support USB interface (U disk);

8. Power-off memory function;

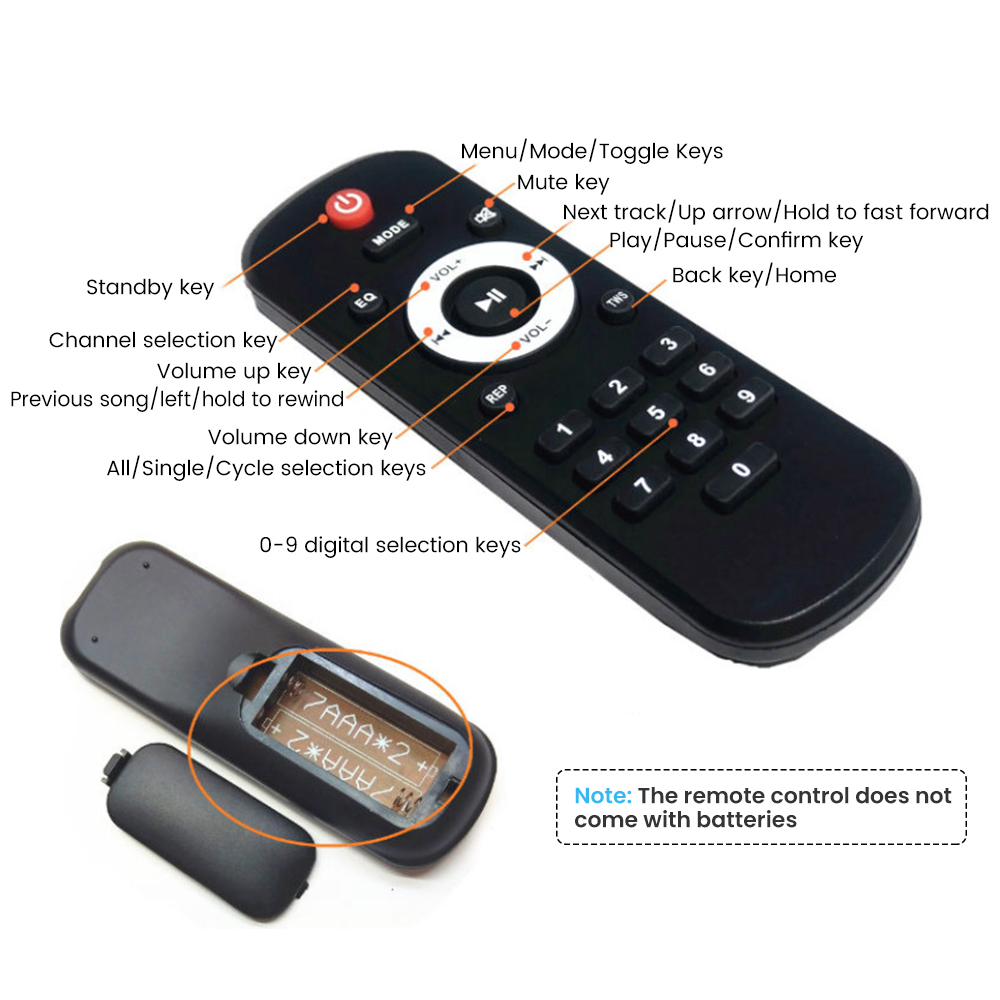

9. Support infrared remote control operation at a distance of 10 meters; the remote control does not have a battery.

10. Support external audio source input LINE IN;

11. Support radio FM, search frequency band (87.5MHZ-108.0MHZ);

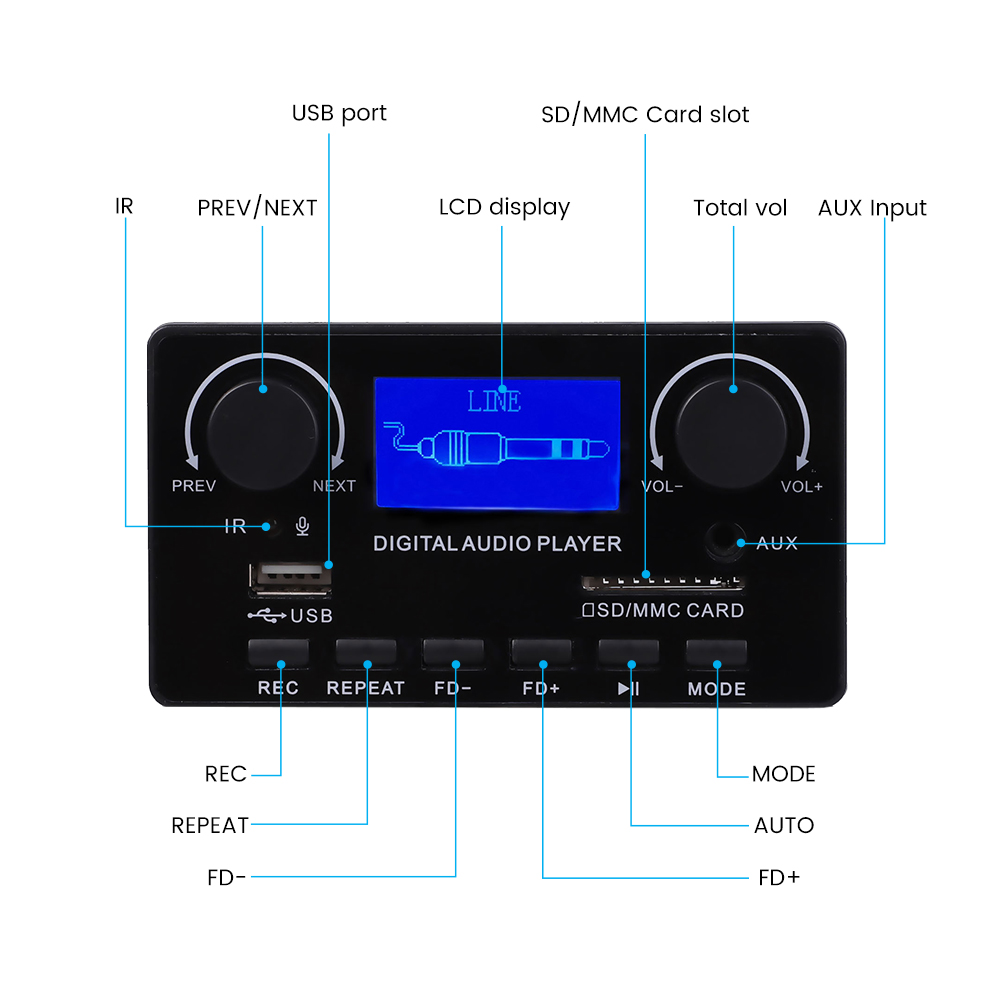

12. Buttons: six-button multi-directional control, REC / REPEAT / FD- / FD+ / AUTO / MODE;

Key operation details

1. REC: Press the REC button to start recording, press the REC button again to cancel the recording function and play the recorded file; when recording, it is necessary to connect a storage device, such as: U disk or TF card;

2. REPEAT: Press the single loop function once, press it again to cancel the single loop, and play it in sequence;

3. FD-: switch to the previous folder, long press to rewind;

4. FD+: switch to the next folder, long press to fast forward;

5. AUTO button (play/pause): in MP3 state, short press AUTO to play/pause; in FM state, short press to play/pause, long press to automatically close and save the station; short press to play in Bluetooth function /pause.

6. MODE button: switch between USB / SD card / FM / audio input / Bluetooth function in turn.

Recording function description

When recording, it is necessary to connect a storage device, such as: U disk or TF card;

Package included:

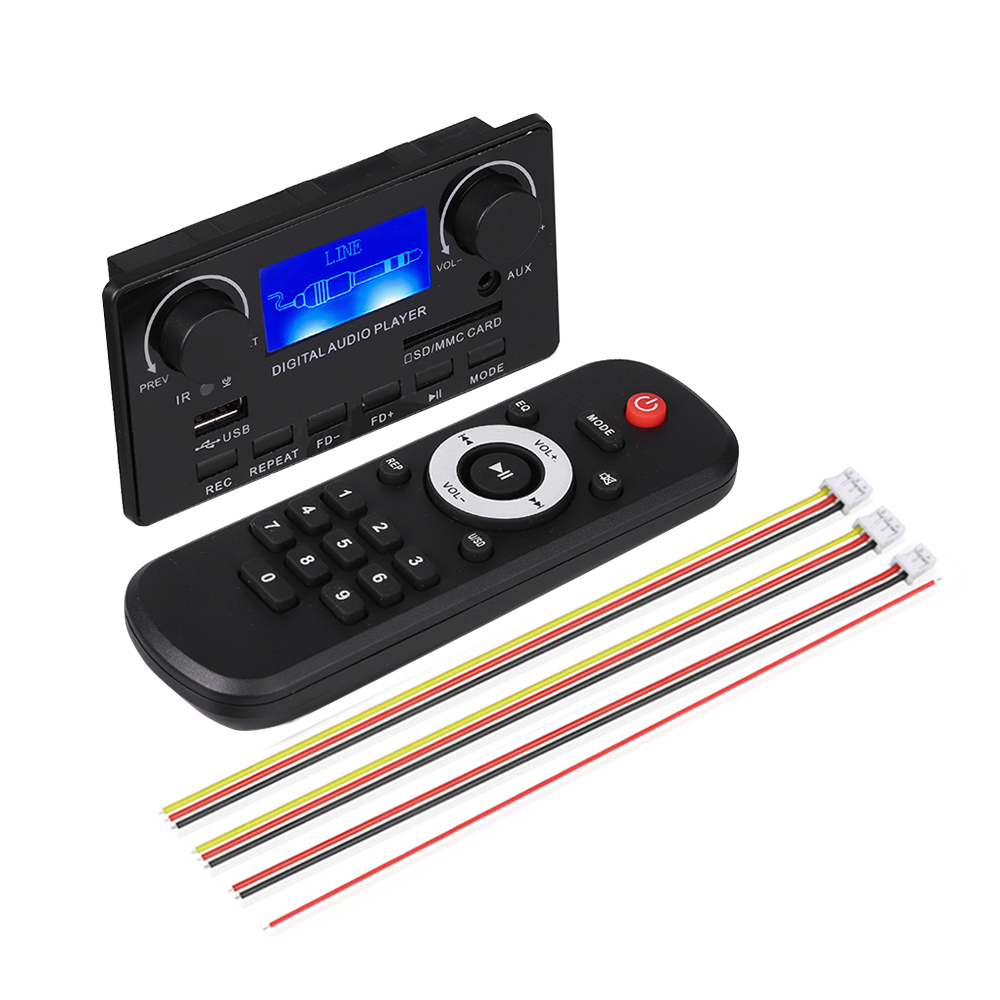

1Pcs MP3 decoder +1Pcs Remote Control (without battery)
