Портативный цифровой осциллограф, USB, 500 МГц

Features:

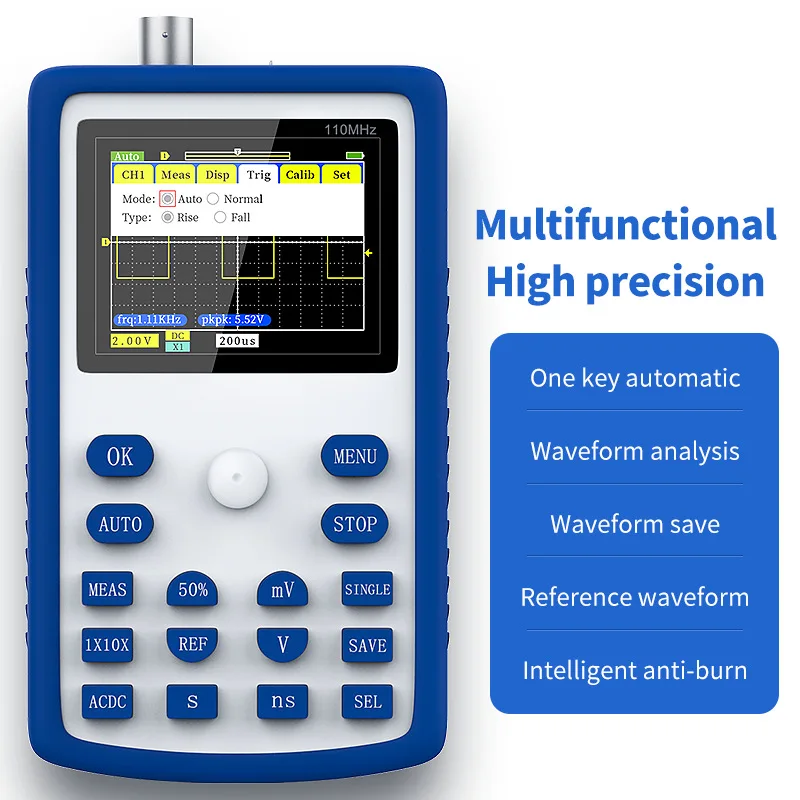

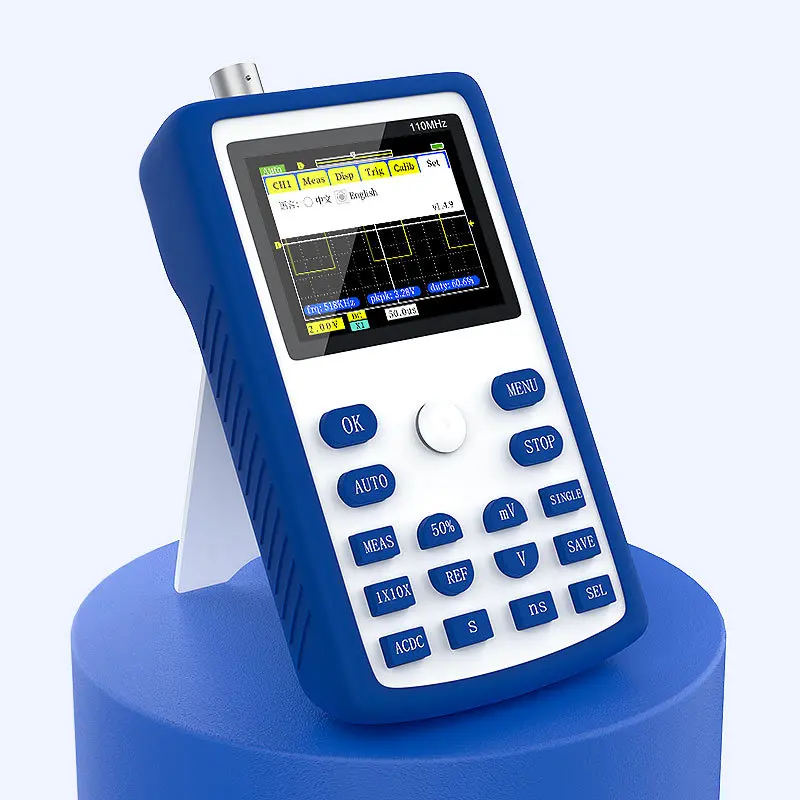

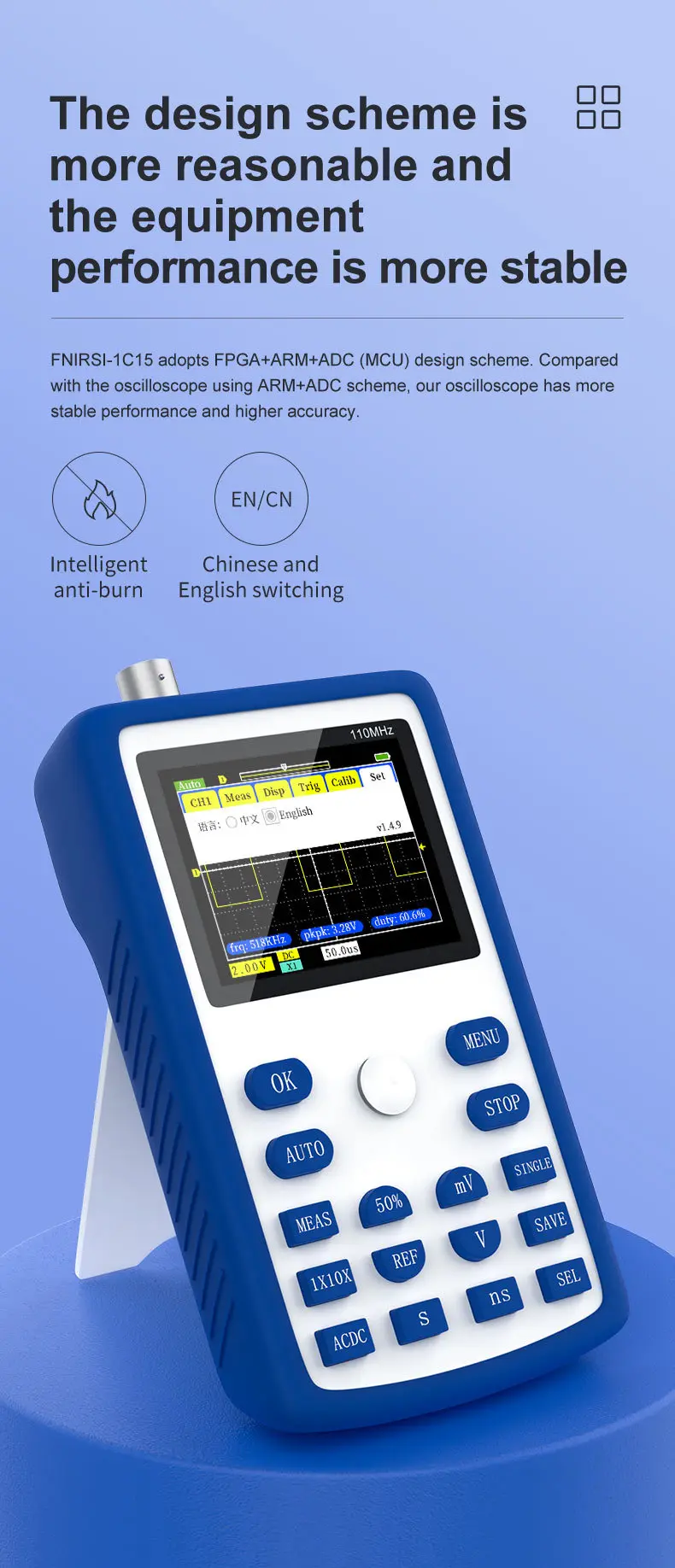

FNIRSI-1C15 is a fully functional, practical and cost-effective

handheld oscilloscope newly launched by FNIRSI. The real-time

sampling rate is 500M, and the analog bandwidth is 110MHz. In

addition to all the functions of a conventional handheld

oscilloscope, we also added a one-key quick auto function on this

basis, so you can easily grasp the waveform like a desktop

computer. We have added 1k Hz self-test square wave for FNIRSI-

1C15, and the storage depth has been upgraded to 12kpts. With

reference to the waveform, you can pause at any time to save the

previous frame waveform to the screen, and you can compare it with

the currently refreshed waveform. Afterglow and scroll modes make

it easier to detect and record waveforms. Built-in 3000mAH

rechargeable battery, it can work continuously for more than 10

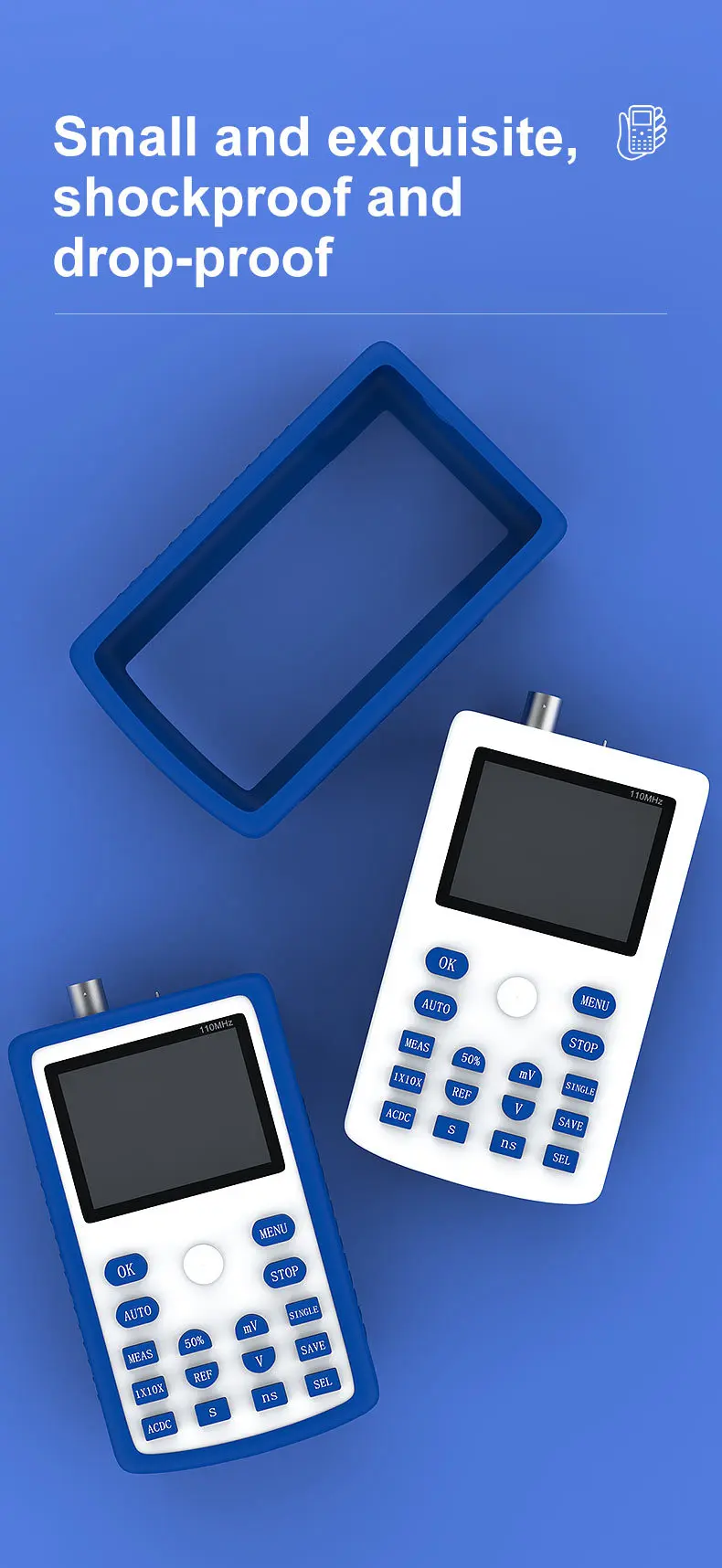

hours after fully charged. The body is equipped with a high-

quality silicone sleeve, which is non-slip and anti-drop. The

joystick replaces the original arrow keys, making the operation

simpler and more effective.

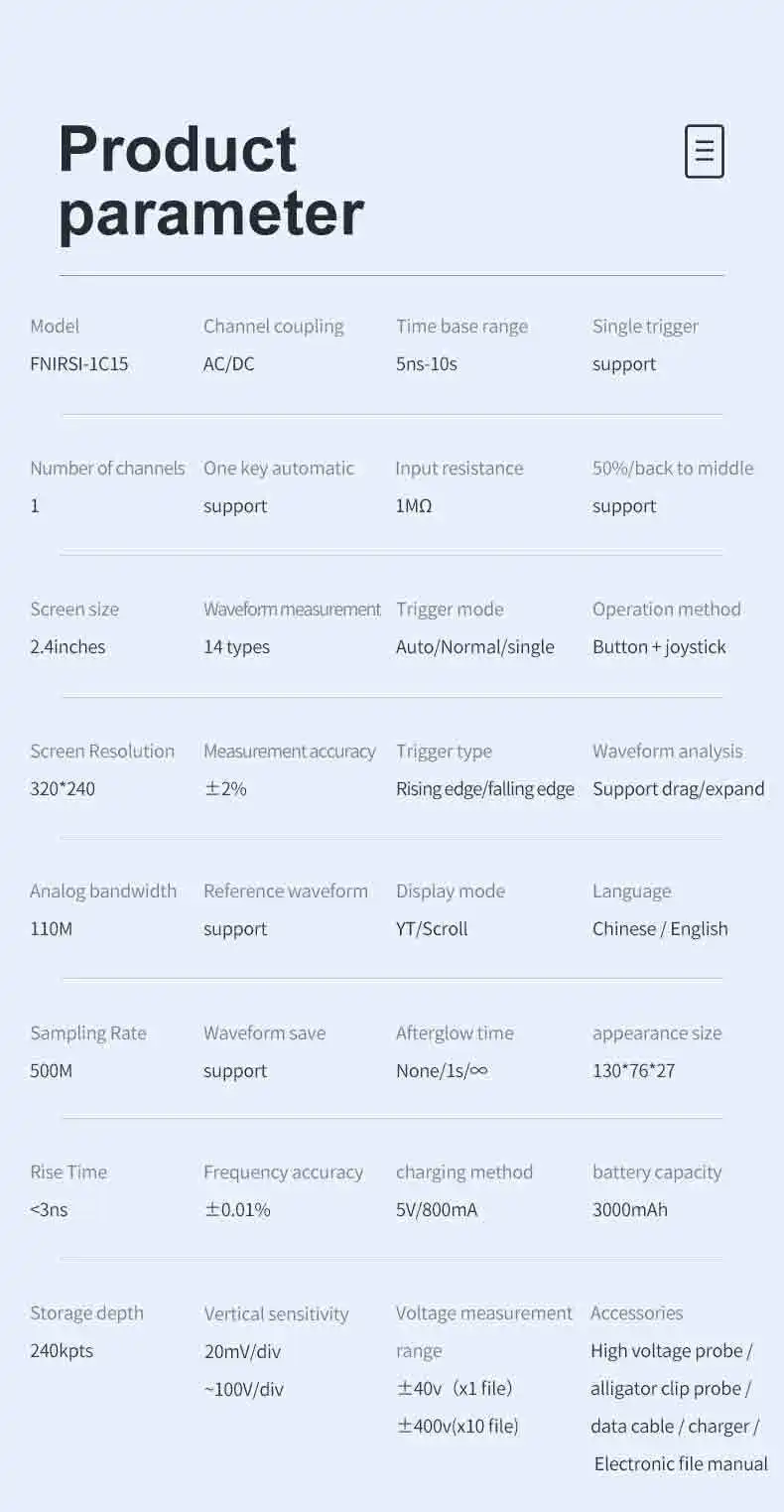

Specifications:

Model : FNIRSI-1C15

Number of channels : 1

Screen size : 2.4 inches

Item size : 130*76*27（mm）

Screen Resolution : 320*240

Analog bandwidth : 110M

Sampling Rate : 500M

1k Hz self-checking square wave：Stand by

Rise Time : <3ns

Storage depth : 12 Kpts

Time base range : 5ns-10s

Vertical sensitivity : 20mv/div-100v/div

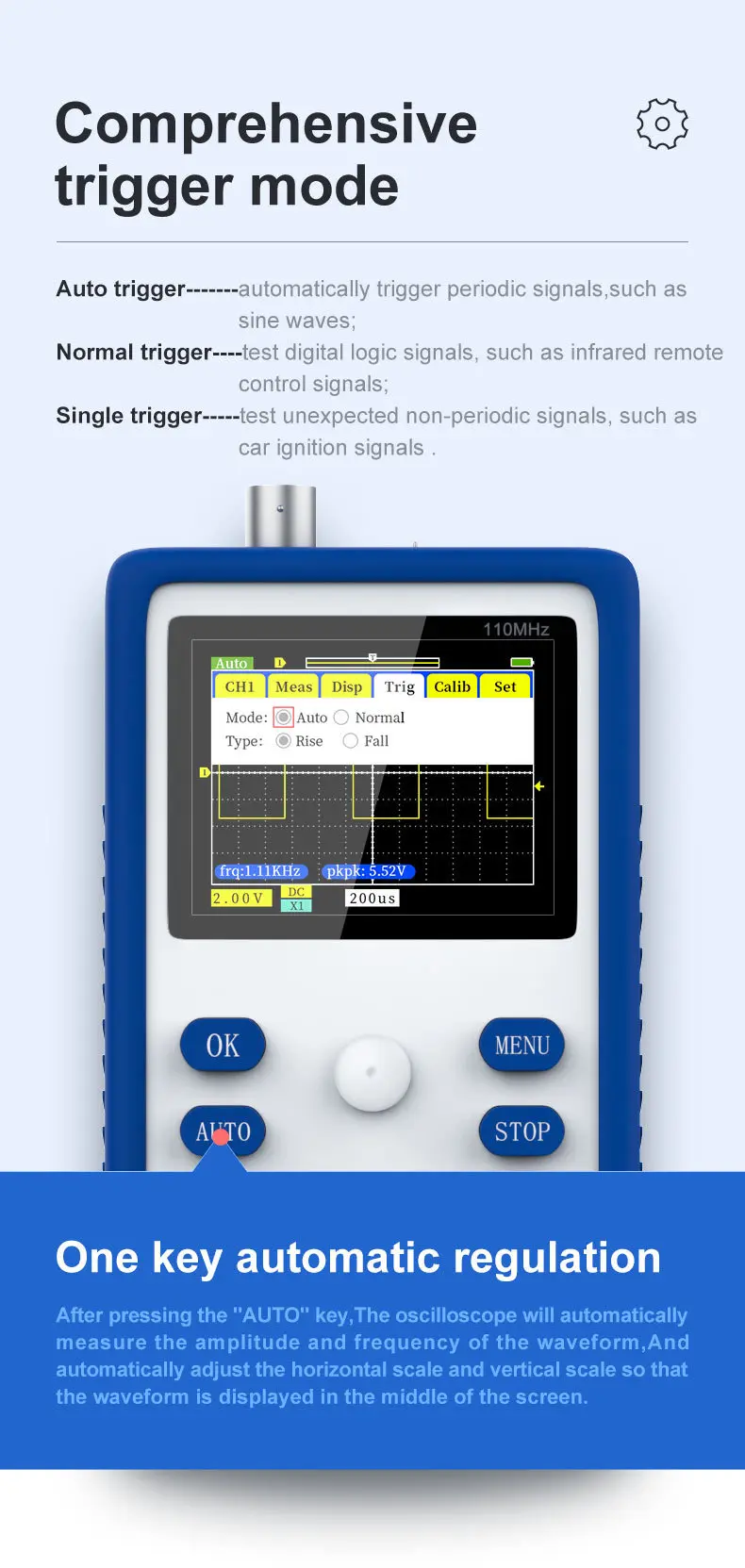

Trigger mode : Auto/Normal

Trigger type : Rising/Falling

Display mode : YT/scroll

Afterglow time : None/1s/∞

Charging method : 5V/800mA

Voltage measurement range : ± 40v (x1 file);± 400v (x10 file)

Channel coupling : AC-DC

One-button automatic : Stand by

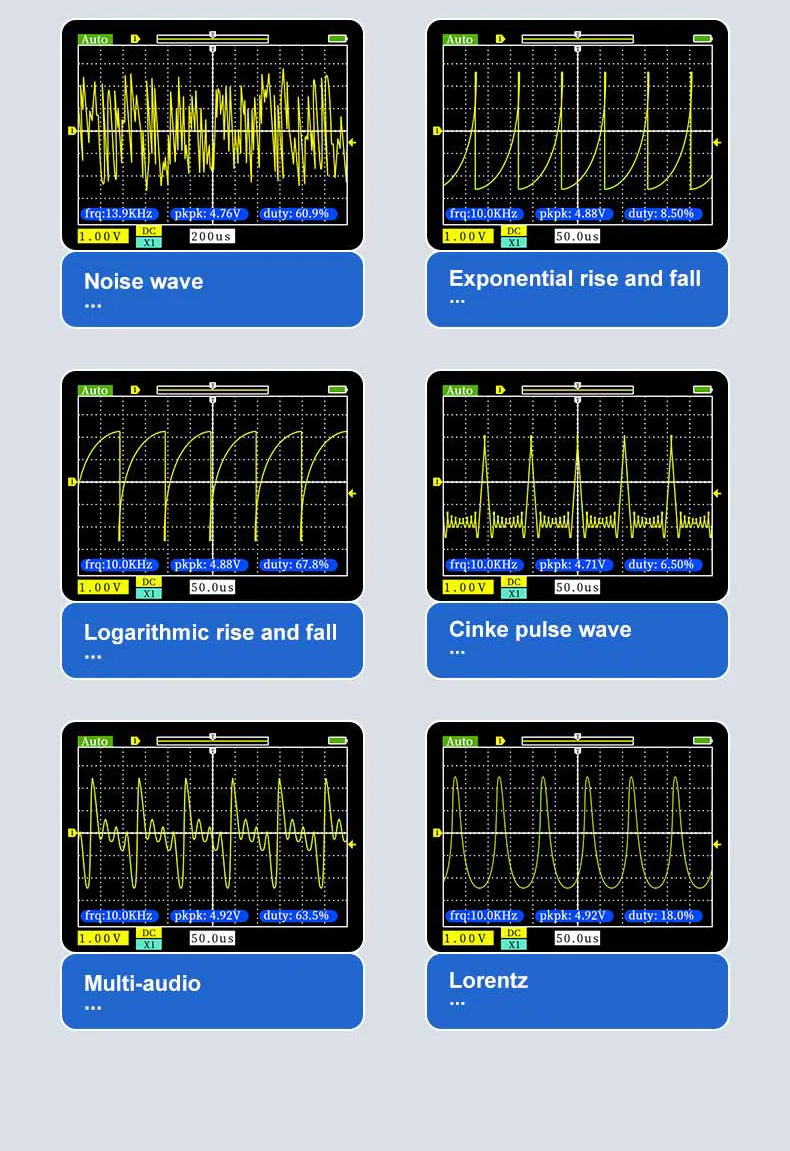

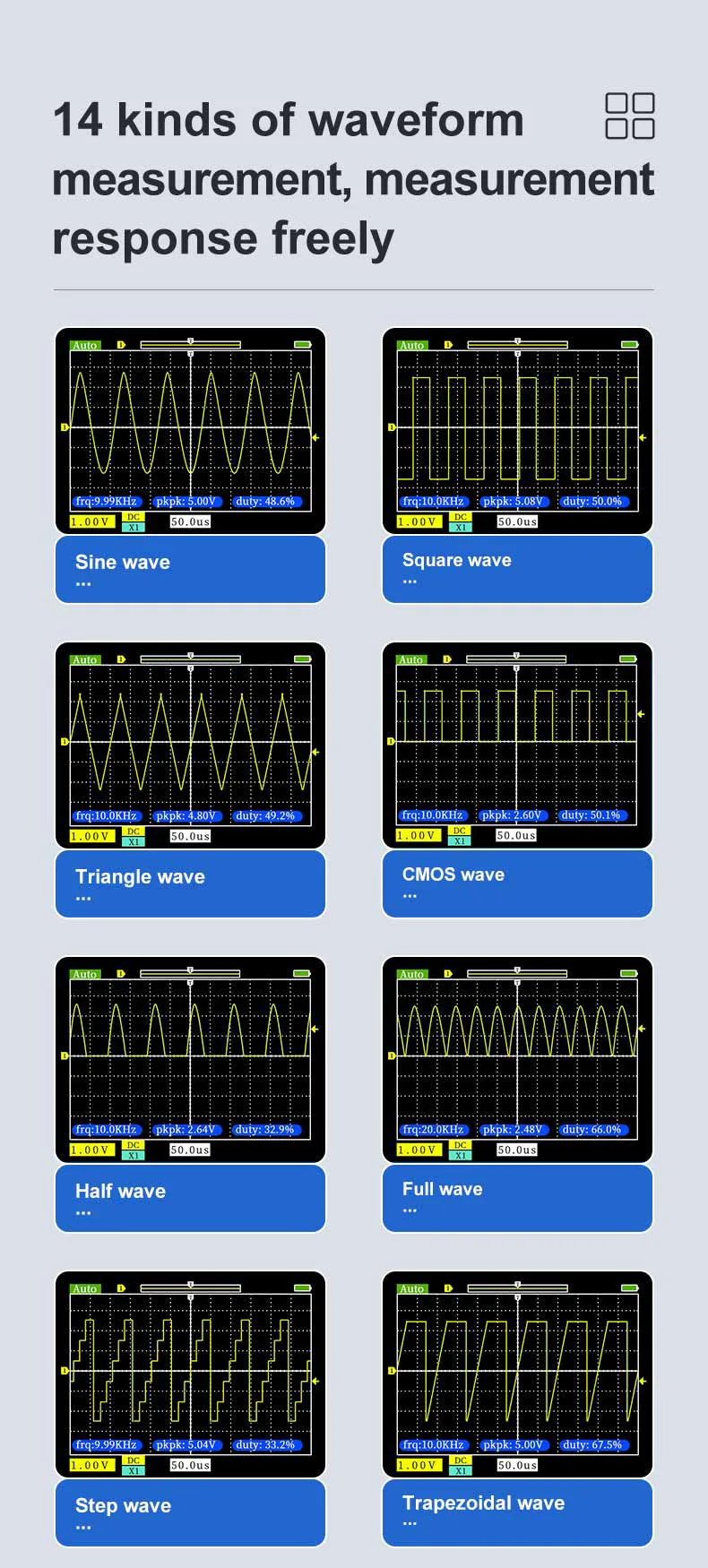

Waveform measurement : 14 types

Measurement accuracy : ±2%

Reference waveform : Stand by

Waveform save : Stand by

Frequency accuracy : ±0.01%

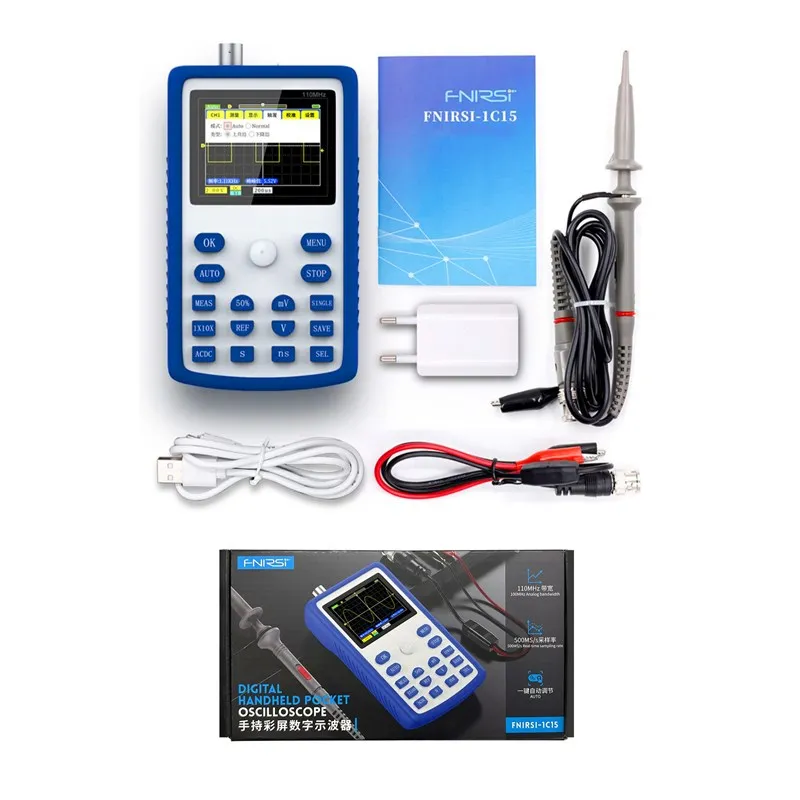

Packing list:

1 * FNIRSI 1C15 oscilloscope

1 * P6100 High Voltage Probe

1 * Allgator Clip Probe

1 * Micro USB charging cable

1 * English User Manual

1 * Cloth bag

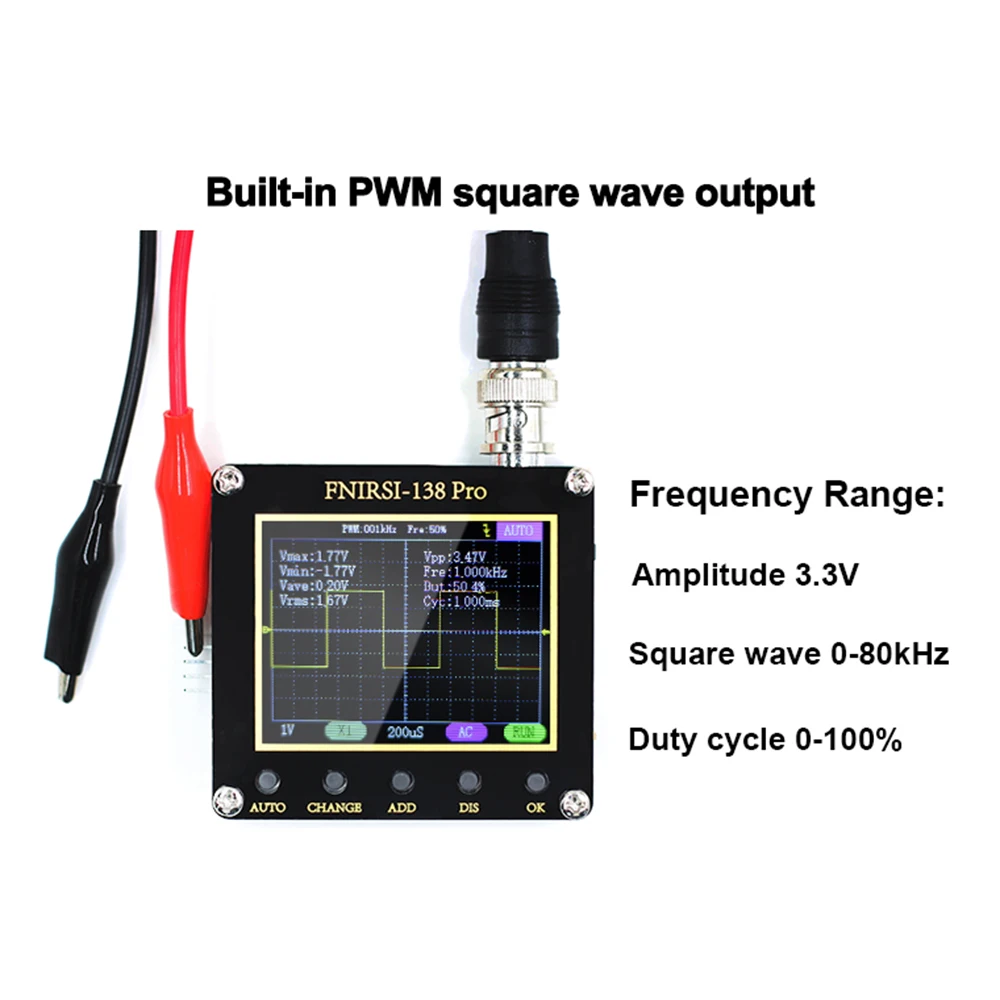

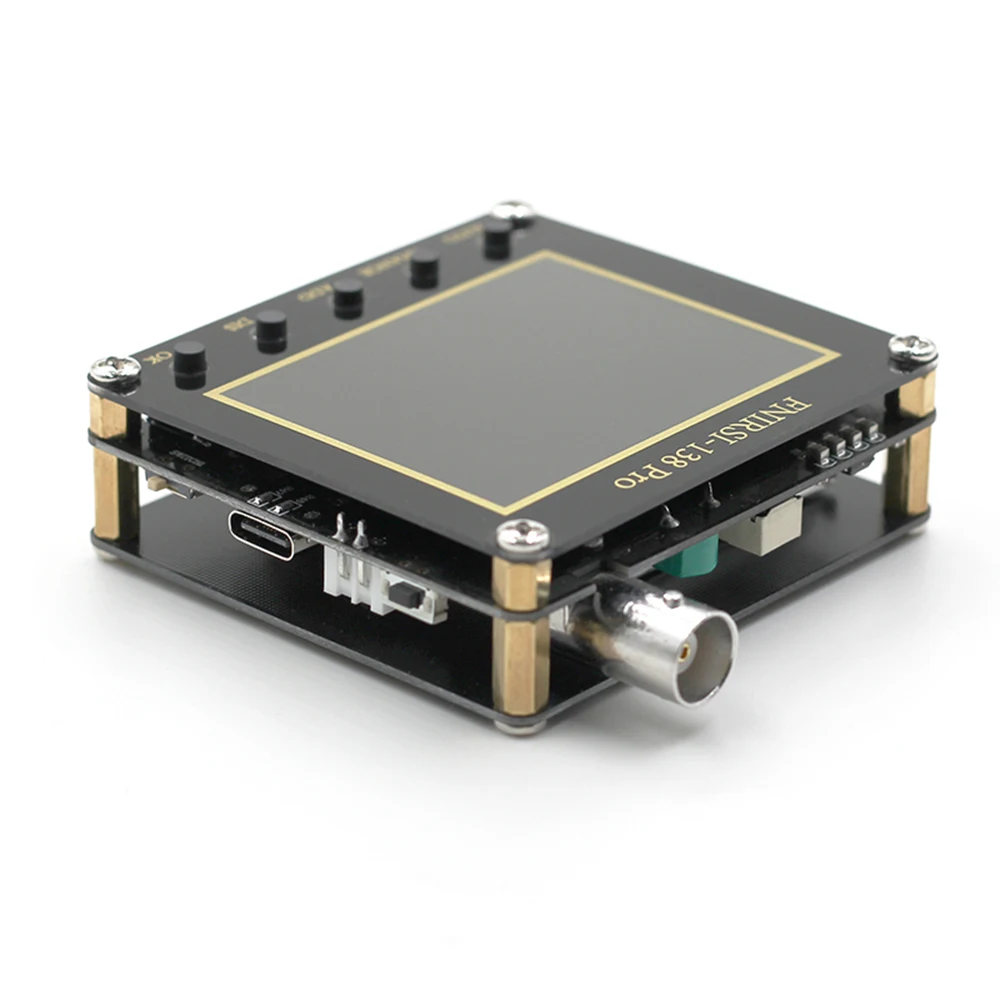

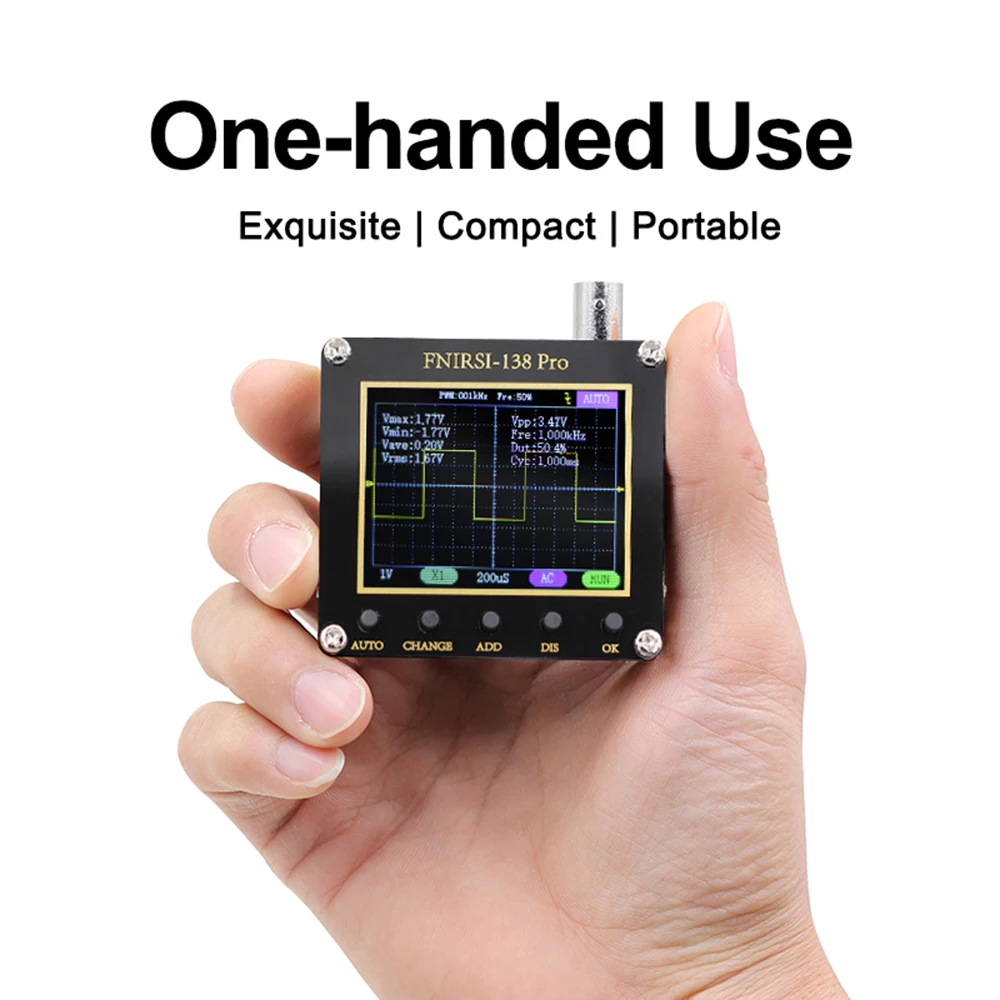

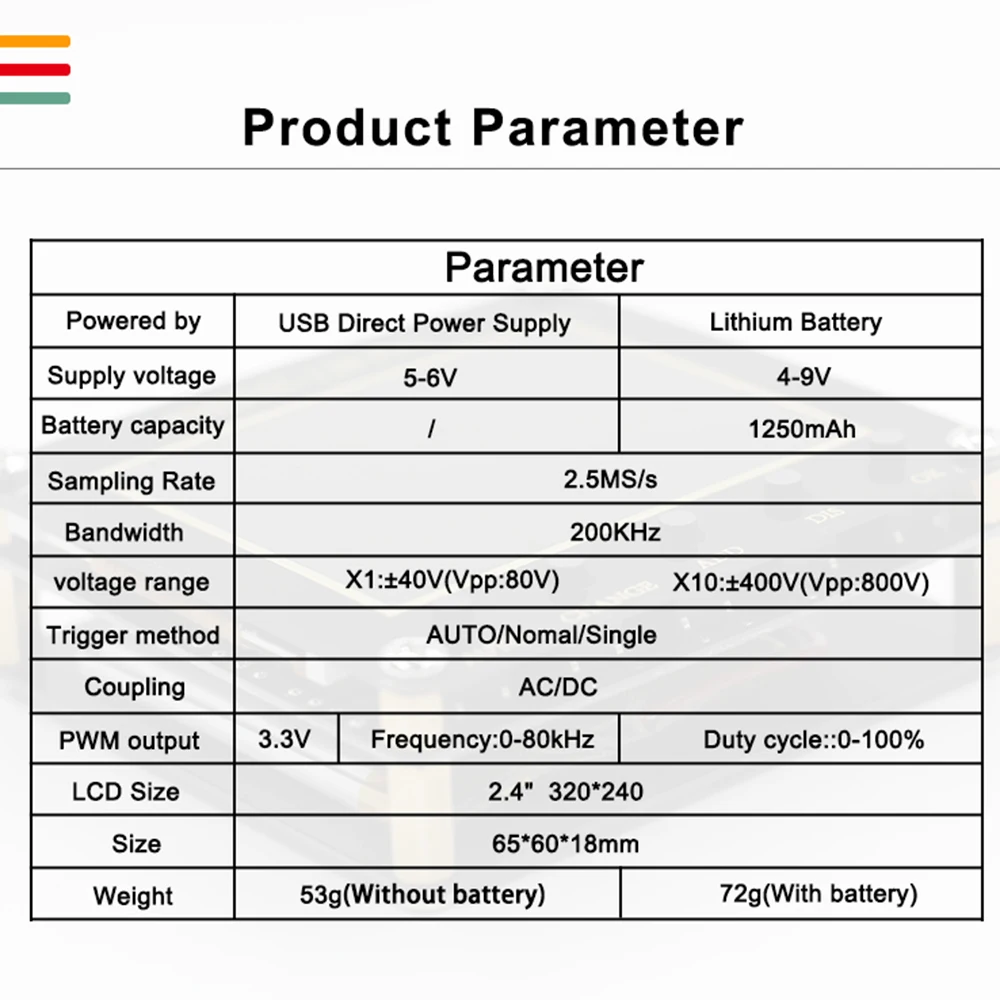

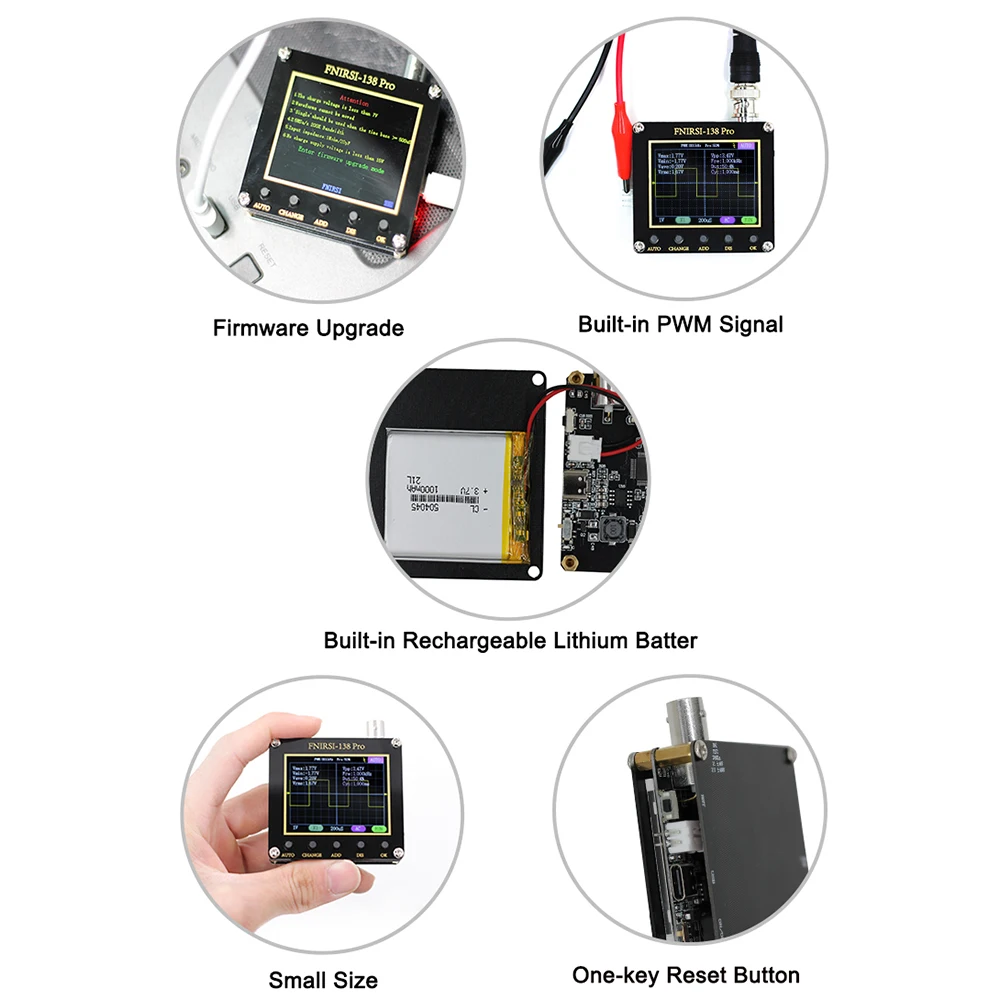

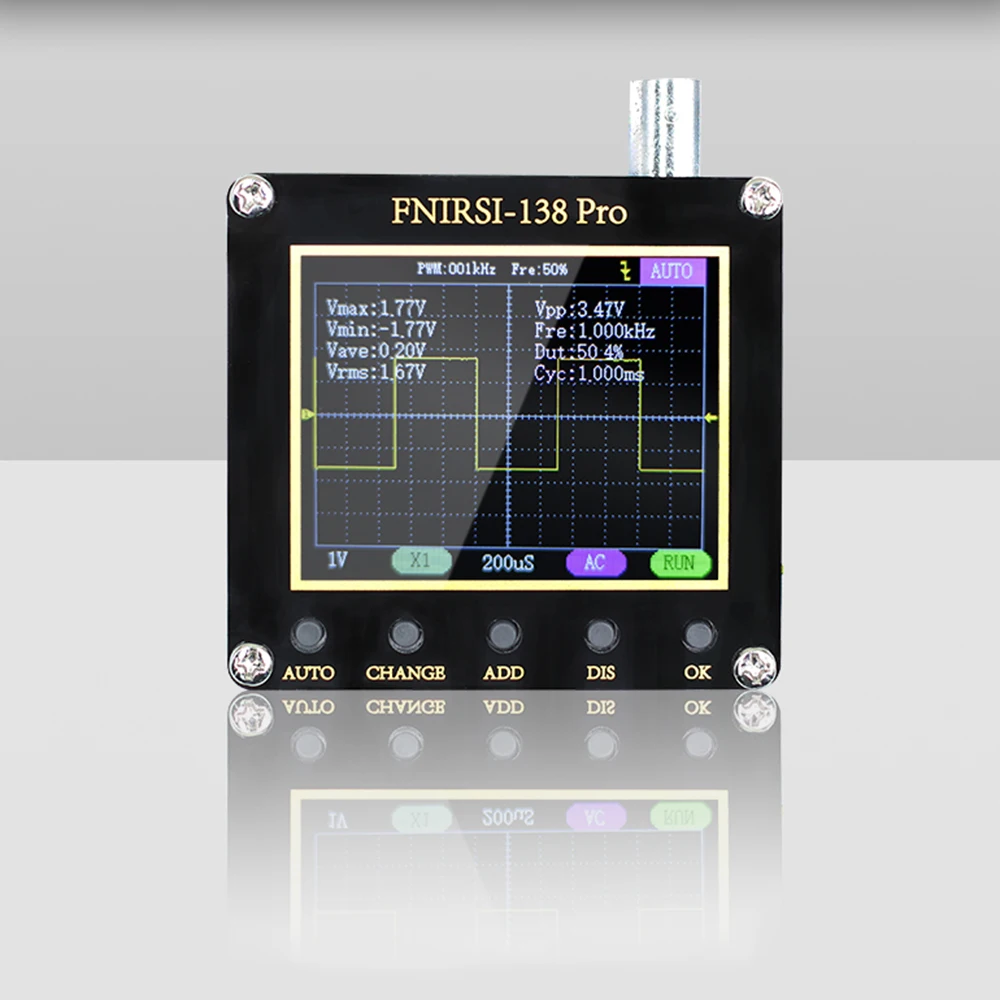

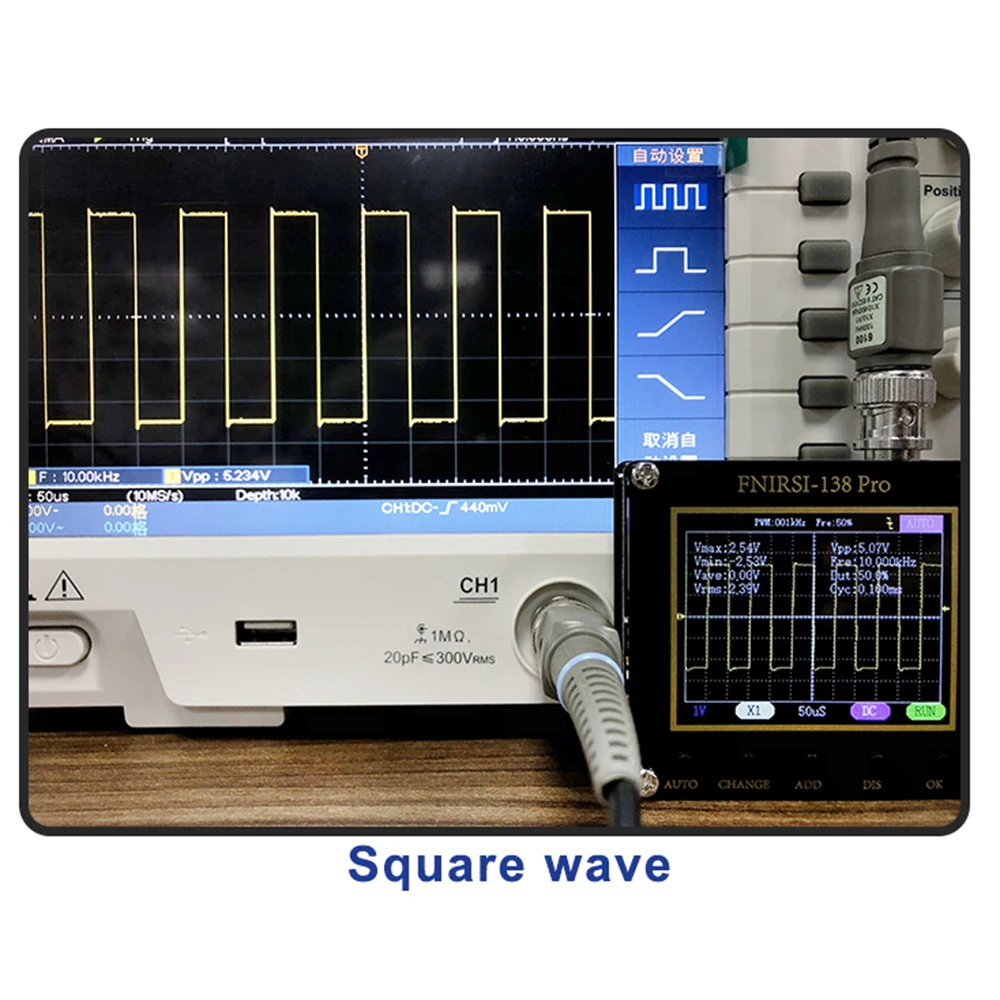

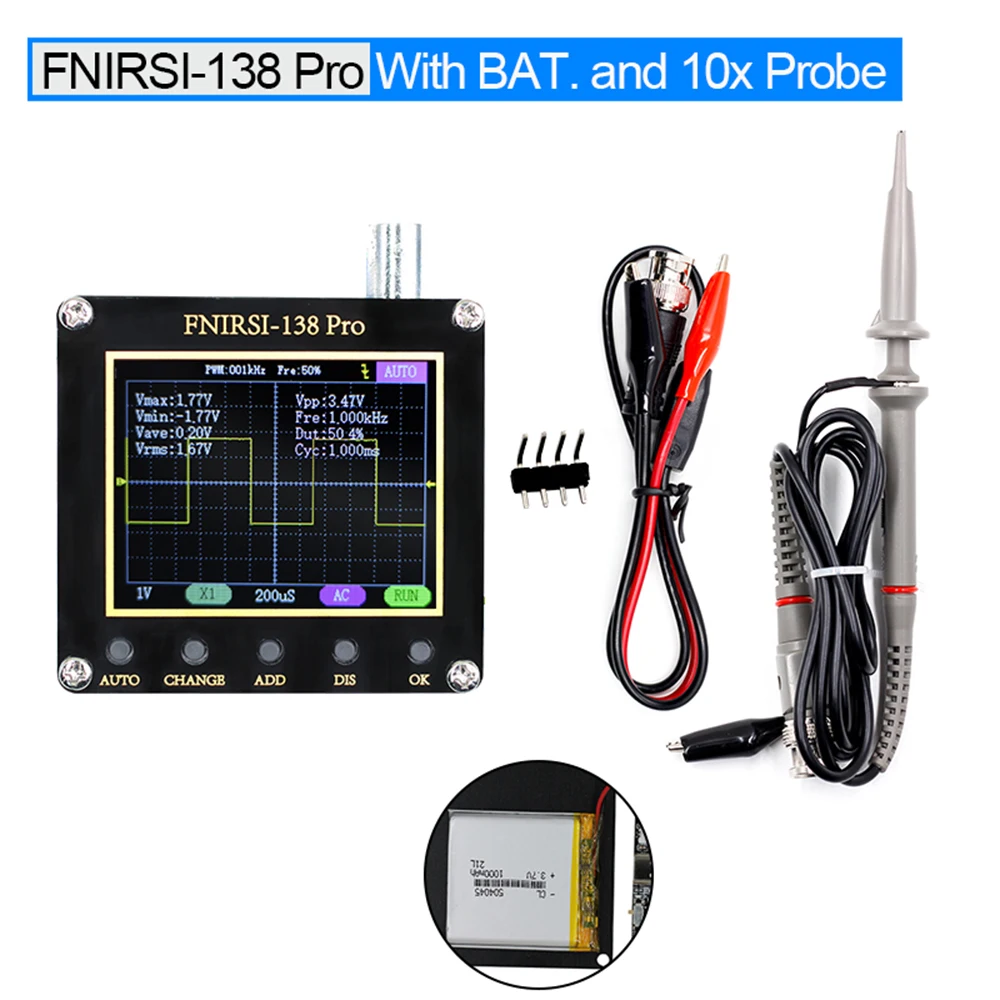

138 PRO Digital Handheld Pocket Oscilloscope

138 PRO is a highly practical and cost-effective MINI handheld oscilloscope, which is aimed at the maintenance industry and the R&D education industry.

The oscilloscope has a real-time sampling rate of 2.5MS/s and a 200KHz bandwidth.

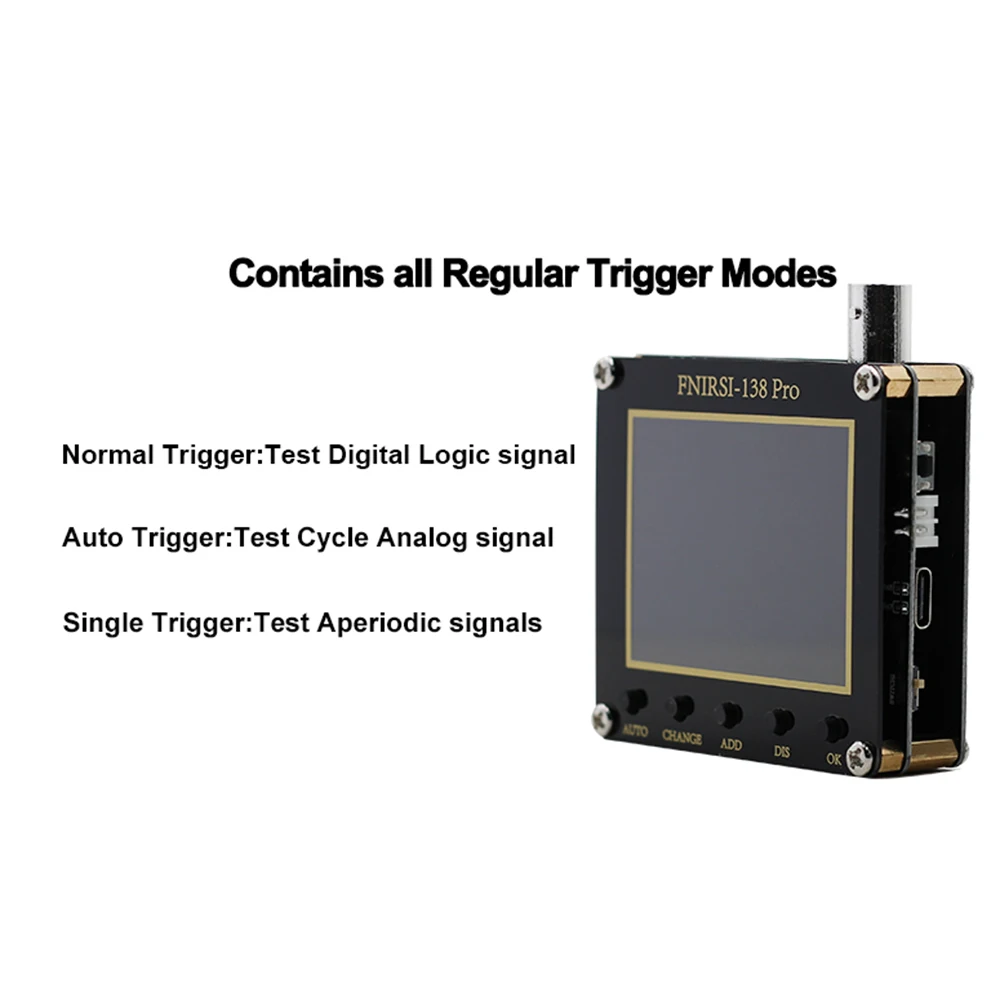

With full trigger function (single, normal, automatic),

Works perfectly for both periodic analog signals and aperiodic digital signals.

Voltages up to ±400V can be measured.

Equipped with efficient one-key AUTO, the measured waveform can be displayed without cumbersome adjustment.

The display is equipped with a 2.4-inch high-definition LCD screen with a resolution of 320*240.

Built-in 1250mah high-quality lithium battery, a full charge can be used continuously for about 5 hours.
