Сканер штрих-кода GM67

Код товара: A4000873144062

Кешбек: 15%

Магазин: АлиКэшбэк20

Пройдите простую регистрацию, чтобы делать покупки выгодно.

Описание:

GM67 Features:

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with USB and UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

Parameter:

Scanning Performance	Scan Mode		640*480 CMOS
	Lighting		White LED
	Collimate		Red LED
	Read Code Type	2D	QR Code, Data Matrix, PDF417,Aztec,Micro QR,Micro PDF417
		1D	EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,
			Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey
			GS1 Databar ,Code 11,Industrial 25,
			Standard 25,Plessey, Matrix 2 of 5
	Accuracy of reading		≥5mil
	Depth of Field	EAN-13	60mm-220mm (13mil)
		Code 39	40mm-90mm (5mil 10 byte)
		QR Code	30mm-220mm (20mil 16 byte)
		Data Marix	40mm-110mm (10mil 20 byte)
		PDF417	30mm-130mm (6.67mil 7 byte)
	Contrast		≥25%
	Scanning angle		Intersection angle 360°,Elevation ± 55° Deflection angle ± 55°
	Viewing Angle		D:42° H:34° V:26°
Mechanical/ Electrical Parameters	Interface		TTL-232 , USB (HID-KBW, Virtual serial port)

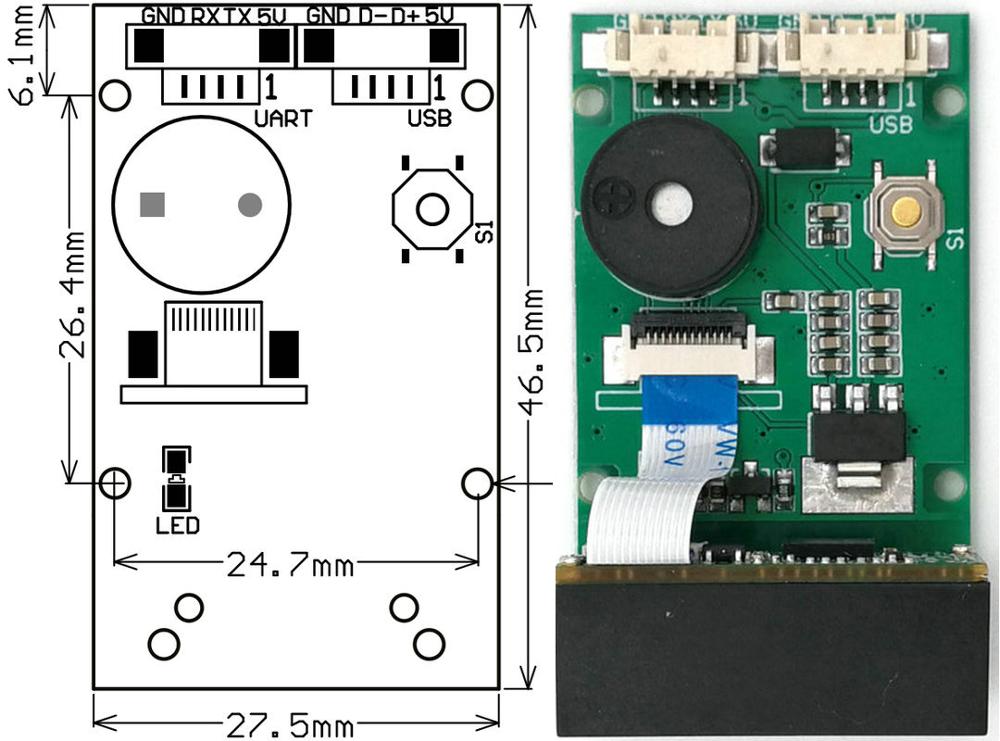

	Dimension		27.5(W)46.5(D)14(H)mm
	Operating Voltage		DC 5 V
	Operating Current		180mA
	Standby Current		USB:25mA; TTL:10mA
Environmental Parameters	Operating Temperature		-20℃~+50℃
	Storage Temperature		-40℃~+70℃
	Operating Humidity		5%~95%（Non-Condensing）
	Environmental Light		0~100000LUX

You can dowload GM67 user manual from the following website:

https://www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0

GM67 Operation Video on Youtube: https://youtu.be/nlZAcnFSypo

GM65 Operation Video on Youtube: https://youtu.be/8S2HvjtlIe4

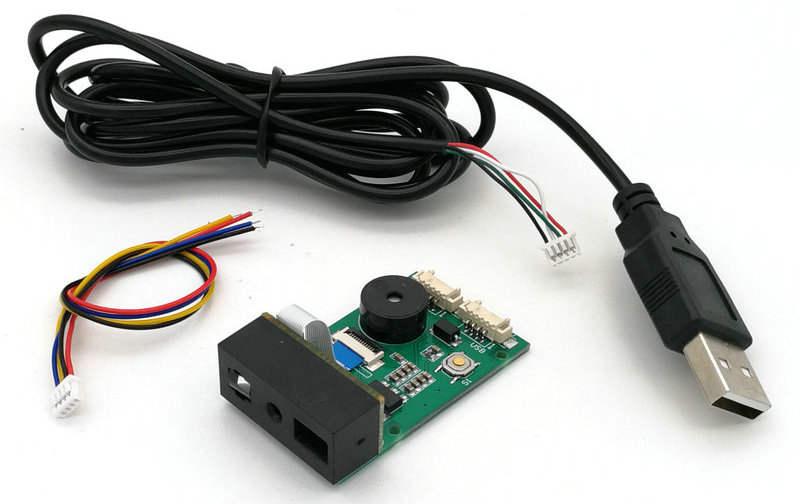

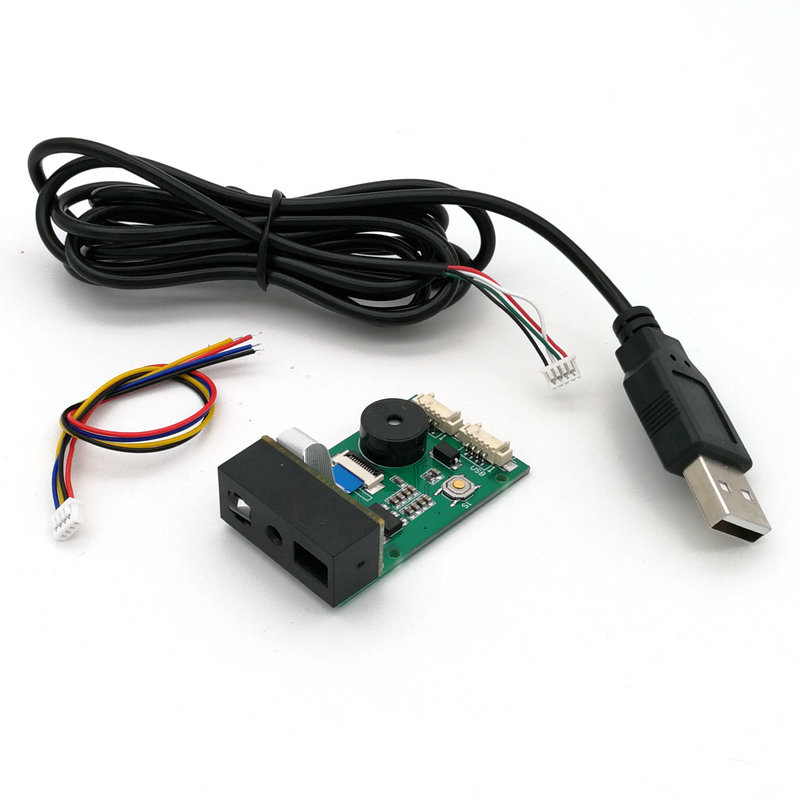

For shipment list, please see the following photo:

Характеристики:

<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Название бренда</span>	grow
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Номер модели</span>	GM67
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Происхождение</span>	Китай
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Режимы работы</span>	Сканер штрихкодов
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Сертификация</span>	Евротест (СЕ)
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Тип интерфейса</span>	USB, RS232
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Тип продукта</span>	Устройство считывания штрих-кодов
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Тип сканирующего элемента</span>	CMOS
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Оптическое разрешение</span>	640*480dpi
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Название бренда</span>	grow
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Номер модели</span>	GM67
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Происхождение</span>	Китай
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Режимы работы</span>	Сканер штрихкодов
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Сертификация</span>	Евротест (СЕ)
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Тип интерфейса</span>	USB, RS232
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Тип продукта</span>	Устройство считывания штрих-кодов
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Тип сканирующего элемента</span>	CMOS
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Оптическое разрешение</span>	640*480dpi
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Скорость сканирования</span>	4mill
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Ширина сканирования</span>	A4
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Единица измерения</span>	штука/штуки
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Количество</span>	1
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Interface</span>	USB2.0\UART
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Operating Voltage</span>	5V
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Operating Current</span>	120mA
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Resolution</span>	0.10mm (4mil)
