Cross-border e-commerce 30W solar panel mobile phone car fan solar charging panel

Features:

solar panel:

1. Light weight, easy to carry, complete with accessories, and versatile.

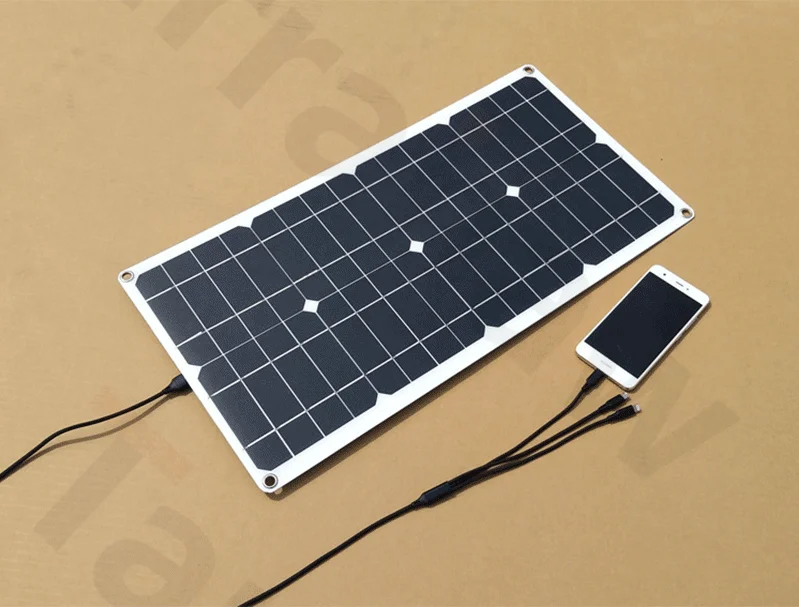

2. For charging mobile phones, MP3, ipad or other USB charging devices.

3. You can put the battery panel in the sun to charge your device directly.

4.Suitable for outdoor cycling, climbing, hiking, camping, traveling, etc.

Solar panel parameters:

Maximum current: 1.66A

Maximum voltage: 18V

Peak power: 30W

Output: 5V/12V-18V

Waterproof grade: IP65

Conversion rate: 19.6-21%

Material: Monocrystalline silicon battery

Product net weight: about 550g

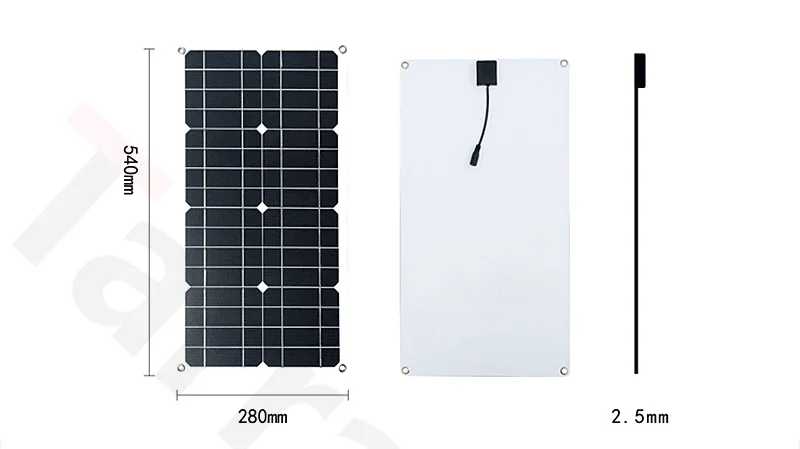

Product size: 540*280*2.5mm

Process: EVA+PET+high temperature lamination

Buckle: metal ring

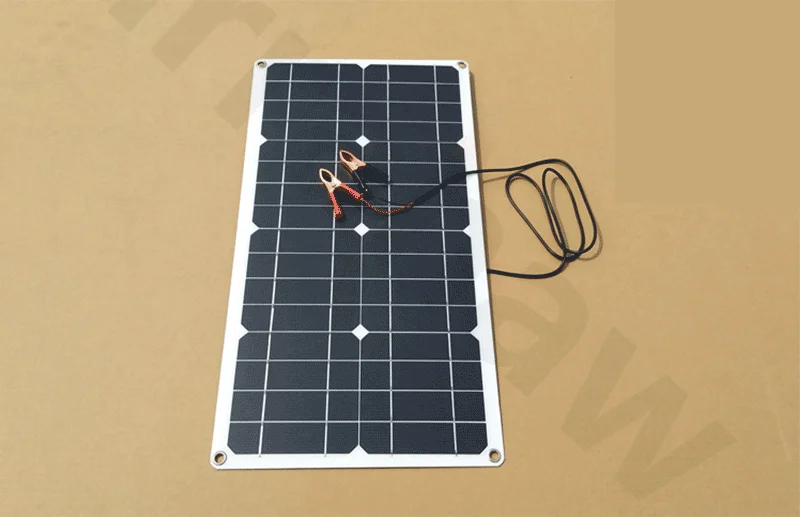

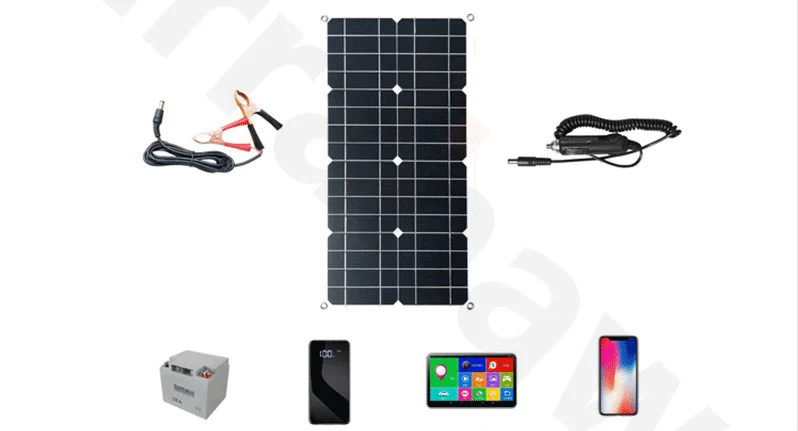

Output accessories: DC line + DC alligator clip

All technical data at STC AM=1.5 Irradiance=1000W/m T=25℃

Controller:

Model: PWM

Charging: 28.8V

Float charge: 27.4V

USB output: 5V/1.5A

Self-consumption: <10mA

Stop Discharge: 21.4V

Voltage: DC 12V/24V

Maximum solar input: <50V

Current: 10A-50A (optional, default 50A remarks)

Rated working current: ≤2A

Discharge reconnect: 25.2V

Working temperature: -35℃~60℃

Output voltage: 12V/24V automatic voltage divider

" target="_self" class="">Click to learn about the controller-->

safety instructions:

1. Before installing for the first time, make sure your battery has enough voltage for the controller to recognize the battery type.

2. The battery cable should be as short as possible to minimize losses.

3. The regulator is only suitable for lead-acid batteries, not for NiMH, Li-ion or other batteries.

4. The charge regulator is only suitable for regulating solar modules. Never connect other charging power sources to the charging regulator.

System connection:

1. First connect the controller to the battery, if it detects a 12V battery, it will display 1; if it detects a 24V battery, it will display 2.

2. Connect the PV module to the positive and negative poles of the regulator.

3. Connect the consumptive solar panel to the charge regulator - positive and negative.

5v 12v USB & DC output

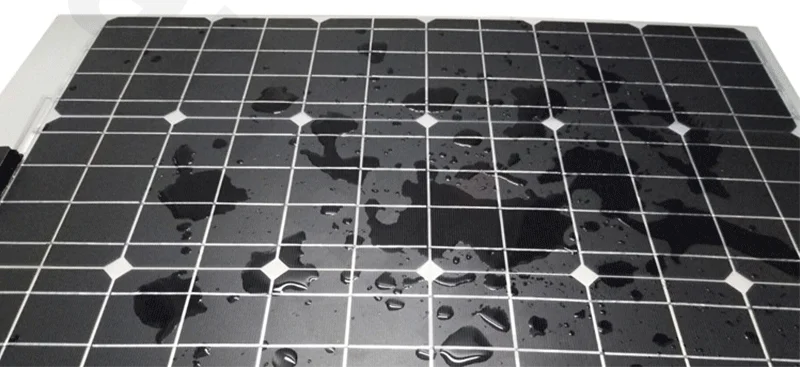

All-in-one waterproof
