Трубчатый усилитель AIYIMA 6K4

Код товара: A32953213295

Кешбек: 15%

Магазин: АлиКэшбэк20

Пройдите простую регистрацию, чтобы делать покупки выгодно.

Доступные опции:

Цвет:

A3 Tube Preamp US A3 Tube Preamp EU Only A3 A3 Tube Preamp AU A3 Tube Preamp UK

Доставка из:

CHINA Российская Федерация

Описание:

Product description:

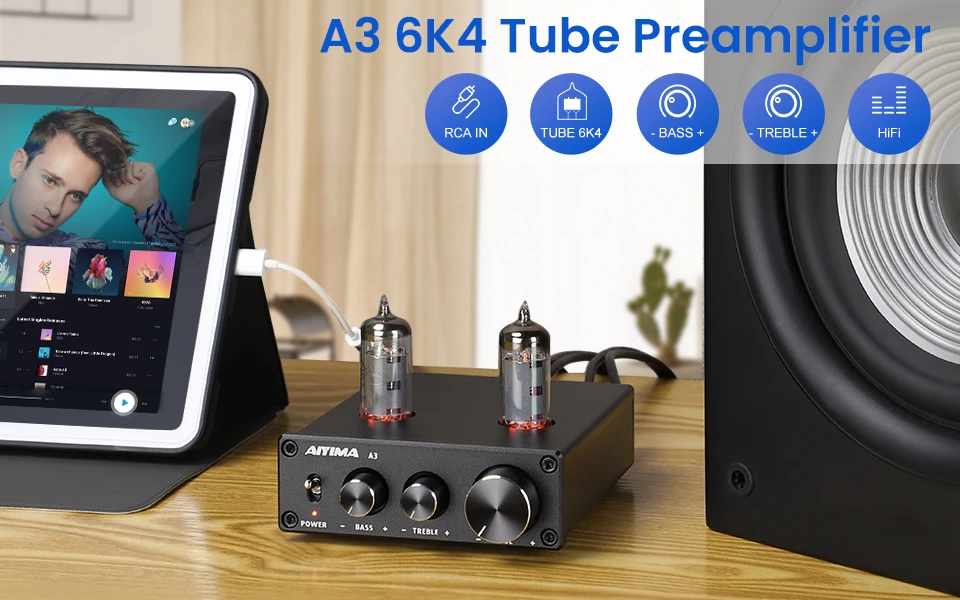

Model: A3

Tube model: 6K4

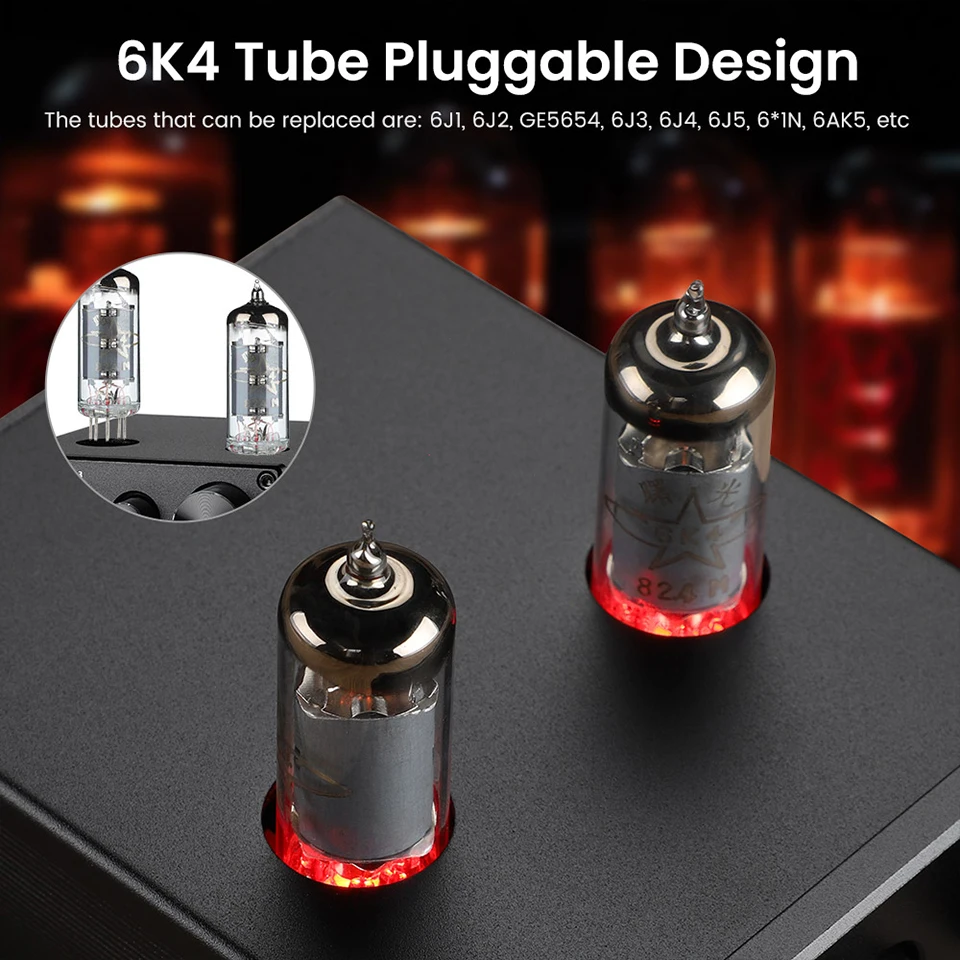

The pipes that can be replaced are: 6J1, 6J2, GE5654, 6J3, 6J4, 6J5, 6*1N, 6AK5, etc.

OP AMP chip: NE5532

Replaceable OP amp chips: OPA2604, OPA2134, LM4562, JRC5532, etc.

Capacitance: Use 4 Philips CBB coupling capacitors

Distortion: ≤3%

Frequency response range: 20hz-20khz (±3db)

Input sensitivity:0.2mV

TND:0.1%

Signal-to-noise ratio: ≥98db

Tweeter adjustment range: ±6db

Bass adjustment range: ±10db

Input mode: RCA

Supported devices: mobile phones, tablets, computers, MP3, TVs, etc., The pre-stage of this game does not support singing and playback.

Output mode: 1. Active speaker 2. Power amplifier + passive speaker

Power supply: DC12V, 1A or more ，more than 12V will burn out the tube.

Preamp gain:5 times

Size: 118*95*30mm

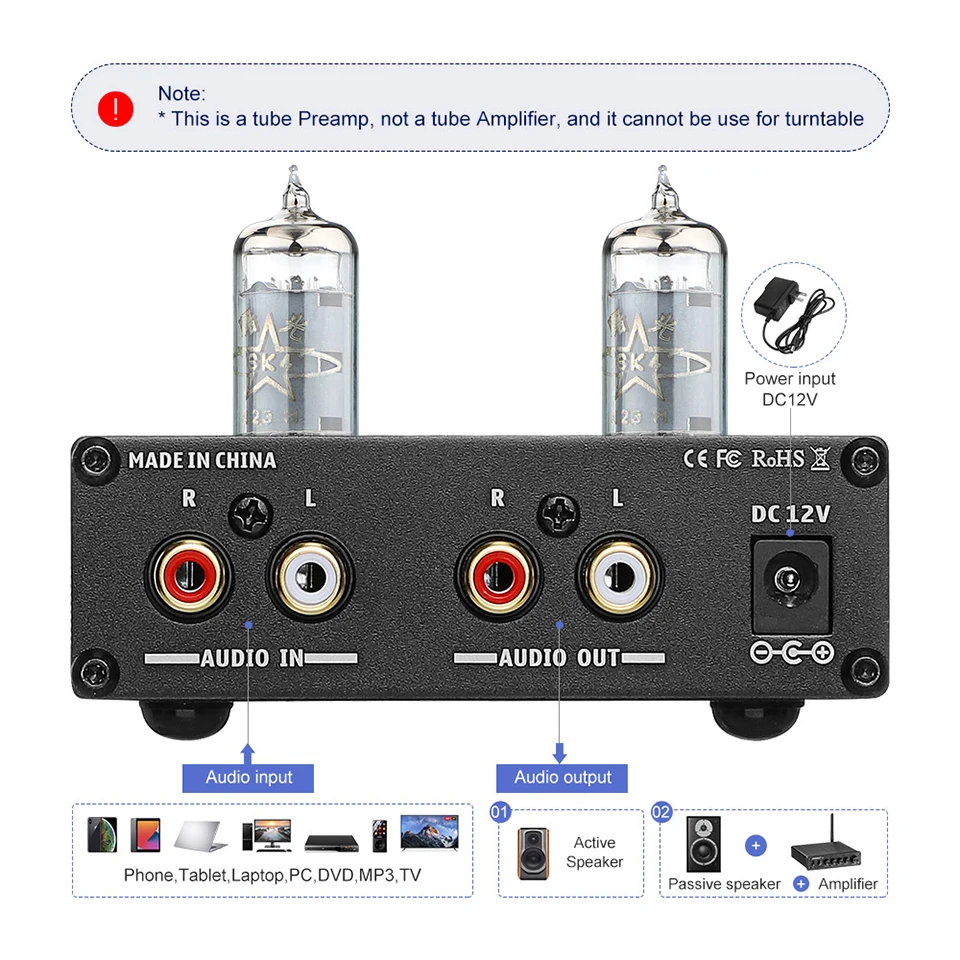

This product is a tube pre-amplifier and needs to be connected to an active speaker or power amplifier.

It cannot directly connect speakers and passive speakers, headphones, phono amplifiers, cars.

Product questions:

1. All the lines are connected, but there is no sound output?

1. Check if the POWER indicator is on. If it is not lit, turn the switch on. After pressing the power button, the indicator light still does not light up. At this time, you can find an equivalent voltage output (must be 12V) and test again.

2. If the indicator light is on, check if the VOL knob is in the minimum state, such as clockwise rotation in the minimum state.

3. If both of the above are normal, check if the playback device of the input source is paused, muted, or the volume is at its minimum.

2.Why is the sound broken?

A: This product is a pre-stage product, and it also has amplifying effect. If the volume of the rear-end device is adjusted to the maximum and the pre-stage is also adjusted to the maximum, it is easy to be distorted. At this time, you only need to move the pre- or post-level. The volume can be adjusted smaller.

3.Why is the volume of the machine unchanged, and the sound source is different when accessing different audio sources (such as connecting the CD first and then changing to the mobile phone)?

A: The amplitude of the output signal of different playback devices is different. For example, the mobile phone is usually 0.35MV, and the CD is 1V. The natural sound size is different.

4.Why does the speaker have a large current sound?

A: If you are not using the original standard power supply, please replace the power supply before testing. Many power supplies in the market have a large interference coefficient, which will cause a large current sound.

5.Why do I not play the sound source after I plug in the input cable, and the speaker will have a loud beep?

Answer: When the unshielded signal line is used, the interference signal will enter the amplifier for amplification. If you hate this sound, you are advised to replace the shielded signal line or unplug the signal line.

6.Why did the pre-biliary level buy back and start listening to the sound is very hard, the tri-band is not very clear, but after 1 day, it is normal?

A: The electron tube is a very sensitive device. The temperature should generally reach a certain level to achieve the best effect. Therefore, the sound is very natural after about half an hour of warming up.

7.Can I replace the tube upgrade?

A: Yes, at present, we have tested and matched 6K4/6J4/GE5654/6AK5/6*1n, which can be directly replaced. Different tube sounds will be very different.

8. Can I replace the tube with the power supply?

A: No, it is very easy to burn out the tube because the inside of the machine is working at high voltage. If the hot-swappable tube is burnt out, it may damage the machine.

9.Can this machine be connected to a phonograph/record player?

A: At present, this does not support the signal input of the phonograph/record player. Because the amplitude of the output signal of the phonograph/recorder is very small, it is necessary to increase the phono amplifier.

Note:

1. Do not open the case privately. Improper handling may result in electric shock.

2. Please use the switching power supply of the regular manufacturer, otherwise the risk of damage to the machine will be damaged.

3. Do not place the machine in a high temperature and high humidity environment.

4. Do not plug or replace the replacement tube while the power is on, otherwise it will burn your tube and machine.

5. Do not replace the tube type that does not match, otherwise it will burn your tube and machine.

When you use it in the car, pay attention to it, and when it starts to fire, it will reach 13.5V. If you want to use it, the fire is activated after the boot.

Package included:

1PCS A2 6K4 Tube preamplifer

Характеристики:

Название бренда	Aiyima
Номер модели	A3
Происхождение	Китай
Сертификация	Евротест (СЕ)
Количество каналов	2 (2.0)
Упаковка	Да
Максимальная мощность на канал	Без питания
Единица измерения	штука/штуки
Количество	1
