USB 2,0 карта видеозахвата 4K HDMI-совместимый видеорегистратор для прямой трансляции для PS4 XBOX Phone Game DVD HD Camera

The video capture can capture both HDMI-compatible video and HDMI-compatible audio, sending audio and

video signals to computers and smart phones for preview and storage. Suitable for high definition

acquisition, teaching recording, medical imaging, etc.

Features:

The video capture can capture both HDMI-compatible video and HDMI-compatible audio, sending audio and

video signals to computers and smart phones for preview and storage. Suitable for high definition

acquisition, teaching recording, medical imaging, etc.

* Support input max resolution 3840×2160@30Hz;

* Support output max resolution 1920×1080@30Hz;

* Support 8/10/12bit deep color;

• Support AWG26 HDMI-compatible standard cable: input up to 15 meters,

(1080P and below resolution);

* Support most acquisition software, such as VLC、OBS 、Amcap, etc;

* Support For Windows、For Android and For MacOS;

* Conform to USB Video and UVC standard;

* Conform to USB Audio UAC standard;

* Without external power supply, compact and portable.

Specifications:

HDMI-compatible resolution : Max input can be 3840×2160@30Hz

Support video format: 8/10/12bit Deep color

Video output format : YUV、JPEG

Video output resolution : Max output can be 1920×1080@30Hz

Support audio format : L-PCM

Input cable distance .: ≤15m,AWG26 HDMI-compatible standard cable

Max working current : 0.4A/5VDC

Operating Temperature range : (-10 to +55℃)

Dimension (L x W x H) : 64x28x13 (mm)

Weight : 21.4g

Note:

Computer hardware configuration requirements

CPU: for PC i5-3400 or above ；NB i7-3537U 2.0GHZ or above

Graphics card: PC NVIDIA GT630 or above；NC NVIDIA GT735M or above

Run memory: 4G RAM

Package included

1* Video capture

1* user manual

Connection and Operation

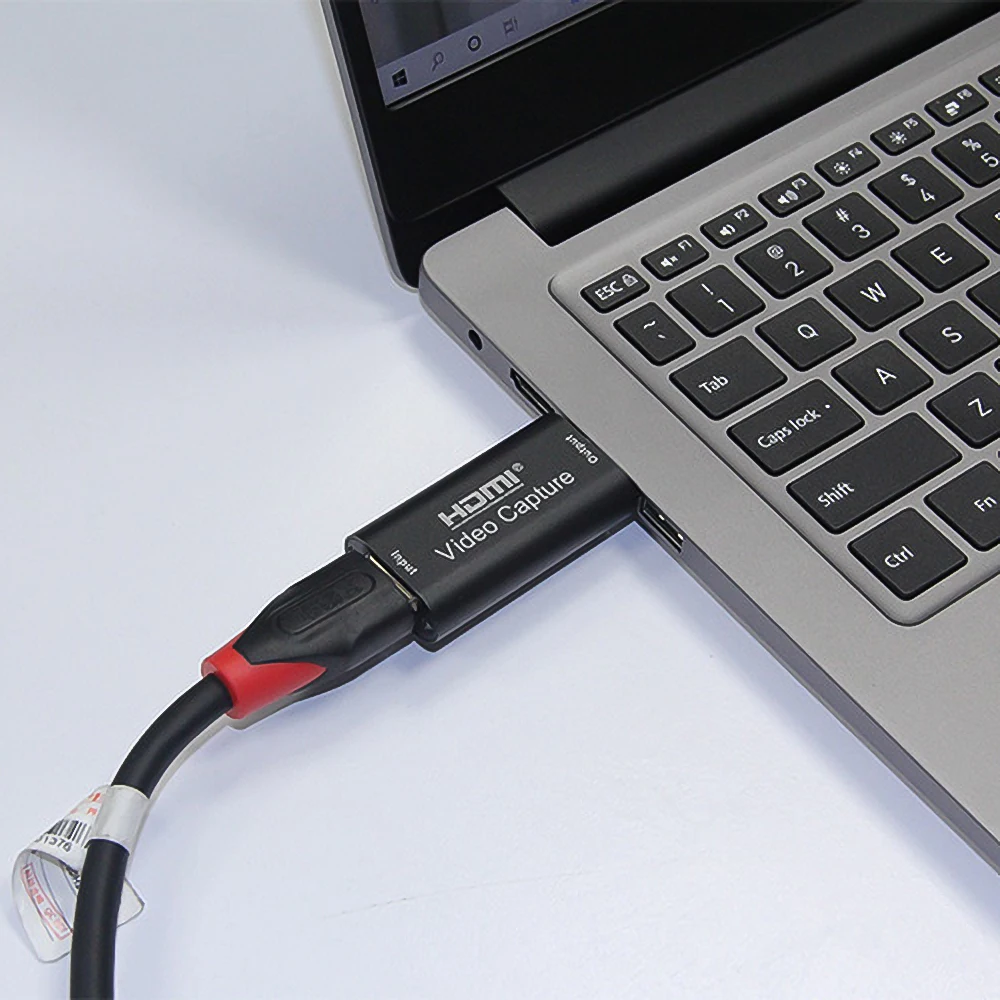

1: Connect the UHD signal source to the HDMI-compatible input of the video capture with

one HDMI-compatible cable.

2: Connect the computer to the usb port of the video capture with usb cable.

3: Operation steps for USB video capture(OBS): Open the software→Choose sources of

“Video capture Device”→Set the size of image→Choose “Studio Mode”(double window)

→Choose “Start Recording”.

Operation Example as below
