Усилитель звука ICAIRN AUDIO Home

Код товара: A4000319634714

Кешбек: 15%

Магазин: АлиКэшбэк20

Пройдите простую регистрацию, чтобы делать покупки выгодно.

Доступные опции:

Цвет:

DIY Kits version Assembled version

Напряжение (В):

230 В 220 В 110 В

Описание:

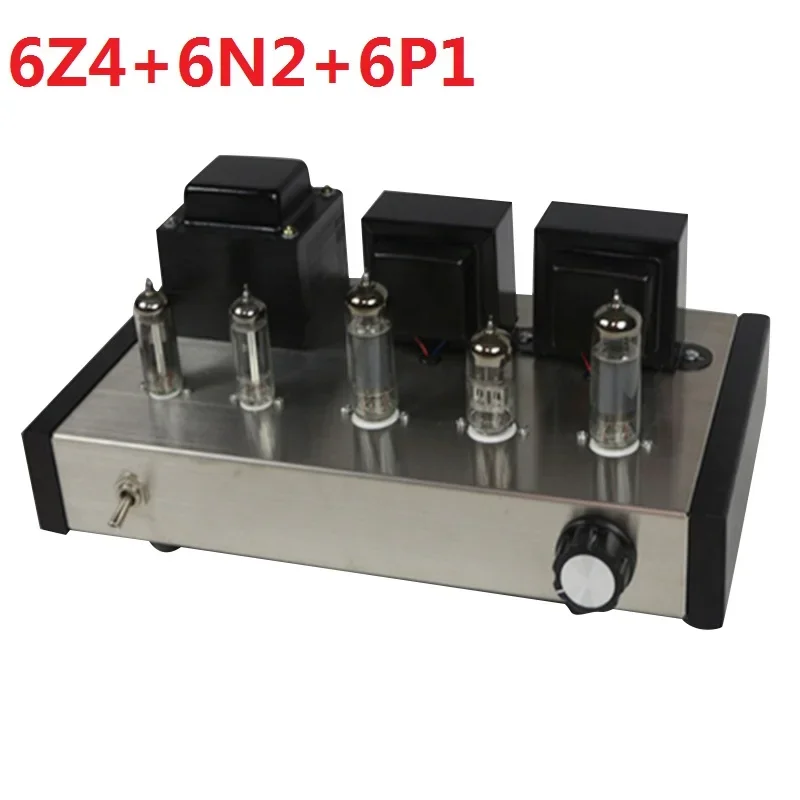

2020 ICAIRN AUDIO Home Audio Tube Amplifier 6Z4 +6N2+6P1 DIY Kits/Assembled Version Power Handle 5W + 5W AC110V/220V Option

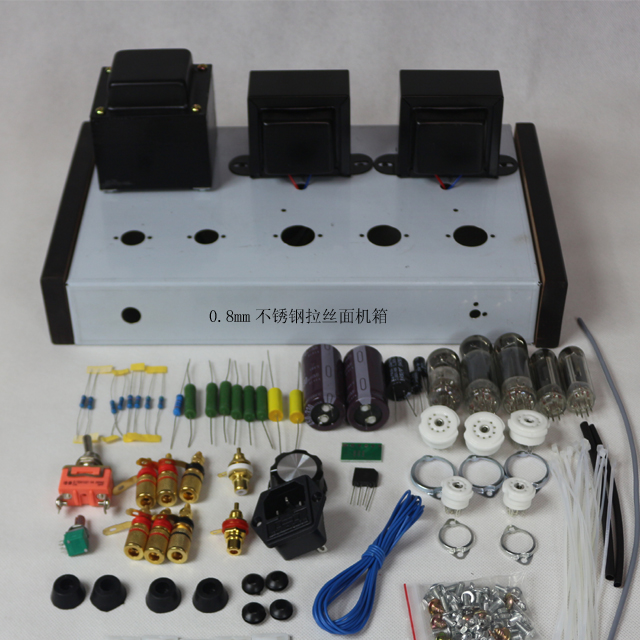

6z4+6n2+6p1 tube amplifier DIY kits component distribution list

Here is the wiring diagram for installation and study firstly

https://www.mediafire.com/file/zzvhacprzce99a1/6z4_6n2_6p1.rar/file

2 wooden side panels

Power transformer one 220v 0-230v 0.15a3.15v 0 3.15v3a 76*40

Output Transformer Two 66*32(22*32) z11 0.35 piece 3 clip 2 winding Primary 5k Secondary 0 4 8

Chassis*1

Chassis foot *4

Signal input socket *2

Output terminal *6

Power socket*1

Power cord Self-provided (that is, the power cord on the computer)

Switch*1

Potentiometer 100K*1

Potentiometer knob*1

6n2 stock gallbladder*1

6p1*2

6z4*2

Small nine-legged socket *3

Rectifier bridge*1

330uf/450v *1

47u/f400v *1

22uf/400v*1

100uf25v*2

0.33uf/630v*2

2k*2

150 k*2

470k*2

75k*2

18k*2

270 *26w

240*1 5w

Double core shielded wire 30cm

Casing 15cm

Welding line 2m

13mm each of 3mm4mm screws

Dimension with tubes height: 32.5*21.5*14cm

Dimension without tubes height: 32.5*21.5*12.5cm

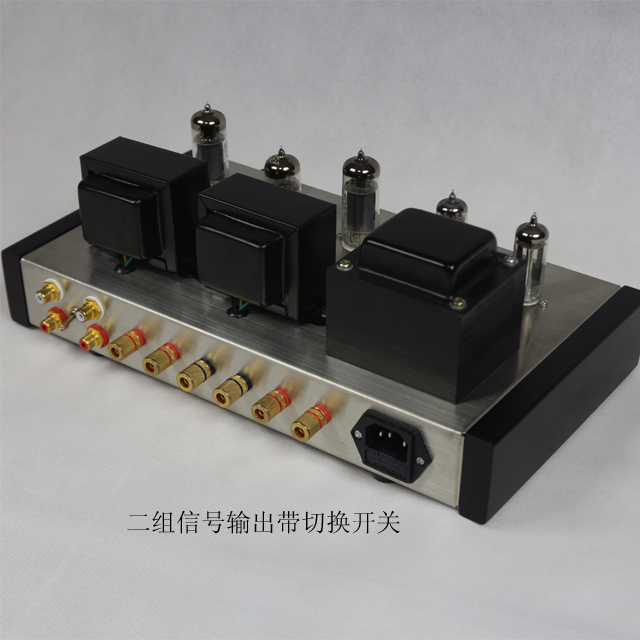

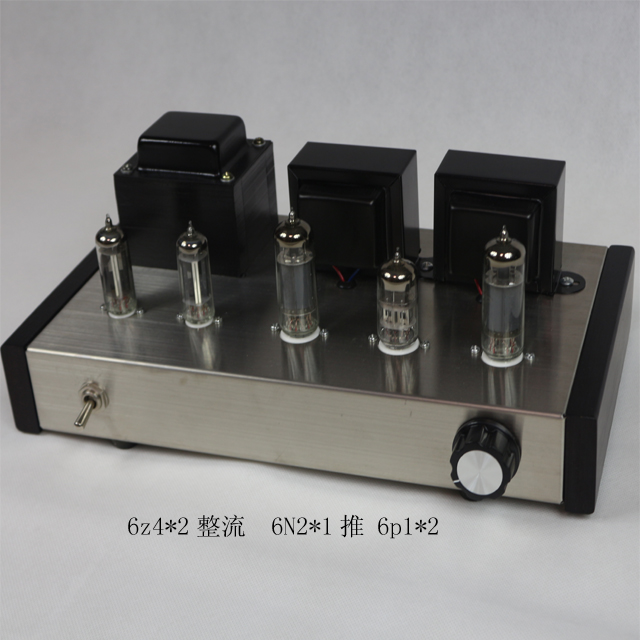

and here is the pictures after the assembly job is finished

Характеристики:

<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Название бренда</span>	ICAIRN AUDIO
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Номер модели</span>	6Z4+6N2+6P1
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Происхождение</span>	Китай
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Сертификация</span>	Евротест (СЕ)
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Сертификация</span>	FCC
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Сертификация</span>	RoHS
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Сертификация</span>	KC
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Сертификация</span>	Отходов электрического и электронного оборудования
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Количество каналов</span>	2 (2.0)
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Название бренда</span>	ICAIRN AUDIO
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Номер модели</span>	6Z4+6N2+6P1
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Происхождение</span>	Китай
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Сертификация</span>	Евротест (СЕ)
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Сертификация</span>	FCC
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Сертификация</span>	RoHS
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Сертификация</span>	KC
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Сертификация</span>	Отходов электрического и электронного оборудования
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Количество каналов</span>	2 (2.0)
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Упаковка</span>	Да
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Максимальная мощность на канал</span>	6 Вт
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Единица измерения</span>	штука/штуки
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Количество</span>	1
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Dimension without tubes height</span>	32.521.512.5cm
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Dimension with tubes height</span>	32.521.514cm
