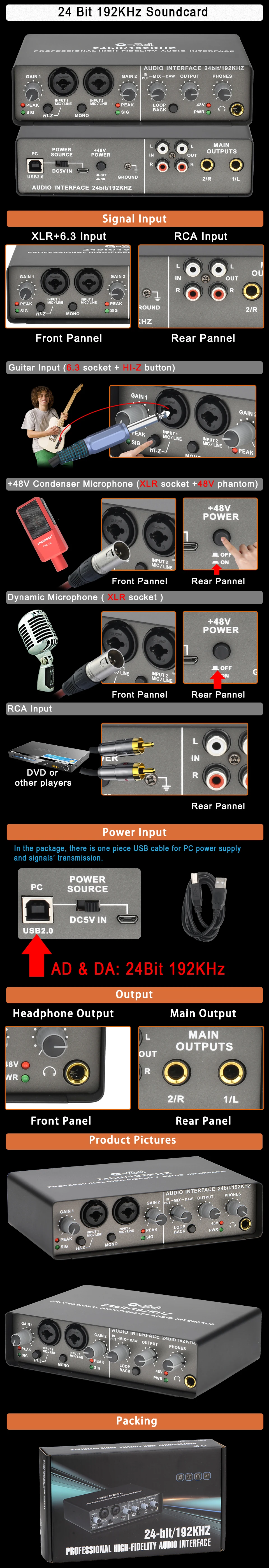

Внешняя студийная звуковая карта 24 бит 192 кГц

1. Power source:

   1) USB 2.0 computer power supply

   2) DC 5V power supply

2. 24 Bit 192KHz recording bit rate

3. INPUT-MIX-DAW Control knob

4. Mono button: Switch between mono and stereo

5. HI-Z button

6. RCA stereo input and output

7. +48V phantom power

8. LOOPBACK button：When recording on a computer, you can record only the sound of the microphone without recording the accompaniment.

9. 6.3 TRS main output and headphone output

【Note】The details are described at the end

【LOOPBACK button】Suitable for computer recording

1. Unpressed state：Only record the sound from the microphone.

2. Pressed state： You can record sound from microphone, RCA input and computer input.

【MONO button】switch between mono and stereo

1. Unpressed state：It is a stereo status, it means that the right and left output signals are difference.

2. Pressed state：It is a mono status, it means that the right and left output signals are the same.

【HI-Z button】Suitable for high impedance instrument inputs

When connect to guitar, please use the 6.3 jack and press down" HI-Z" button.

【48V phantom power】Only for 48V condenser microphone and XLR jack.

1. When you use 48V condenser microphone, please use XLR jack and press down "+48V POWER" button on the rear panel.

2. When you use dynamic microphone, please do not press down "+48V POWER".

【Power supply】DC 5V

1. Computer

2. Adapter

Note：In the package,there is one piece USB cable for PC power supply and signals' transmission, the adapter is not included in the package.
