Водонепроницаемая одноцветная панель дисплея 320 мм x 160 мм модуль светодиодного дисплея 32x16 пикселей

Код товара: A1005002131262508

Кешбек: 15%

Магазин: АлиКэшбэк20

Пройдите простую регистрацию, чтобы делать покупки выгодно.

Доступные опции:

Поддерживаемые языки:

Red Yellow Green White

Описание:

Maybe you need related products

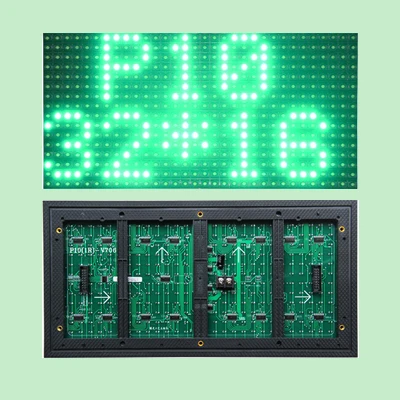

Product Parameter

Model number	Outdoor P10 LED Module
Pixel pitch	10mm
Module resolution	32*16pixels
Module size	320*160mm
Color	Green/Red /White/Yellow/Blue
LED configuration	DIP
Brightness	≥1800cd/m²
Average consumption	450W/m²
View distance	≥10m
View angle	140°
Scanning	1/4scan
Refresh rate	≥1920Hz
Max power consumption	900w/m²
LED Module Voltage	5V
LED Display Voltage	110/220V
Life span	100000h
Working Temperature	−20℃ to +60℃
Pixel Density	10000dots
Display Function	video

Product Details

LAMP BEAD
LED Encapsulation : DIP
P10m outdoor single color LED display screen can display information such as all kinds of graphics and text. Surface smooth, uniform and display, luminous brightness is good, clear display effect is stable, with a dozen cycle changes. Use remote serial communication, can be run offline, with functions of power-fail protection. Are all made of high brightness LED light-emitting diode and imported components assembly production. With high brightness, wide visual, long life, light weight, modular structure, easy installation, easy maintenance, etc.

POWER
Our power sucket ,which is powered by 5V,
oneside connects the power supply,
anther side connect the module,
and it has elegant appearance.
We assure it can fix on the module steadily.

TERMNAL
When assemble it,can avoid the copper wire
leakage,high termnal can avoid the positive
and negative of it to be short circuit

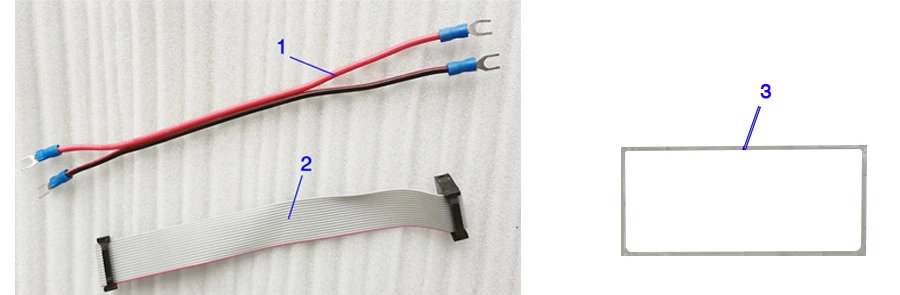

Free part

1. Power cable - 1 for 1 modules 2.Date cable : 1 for 1 module 3.Waterproof ring

Our Factory

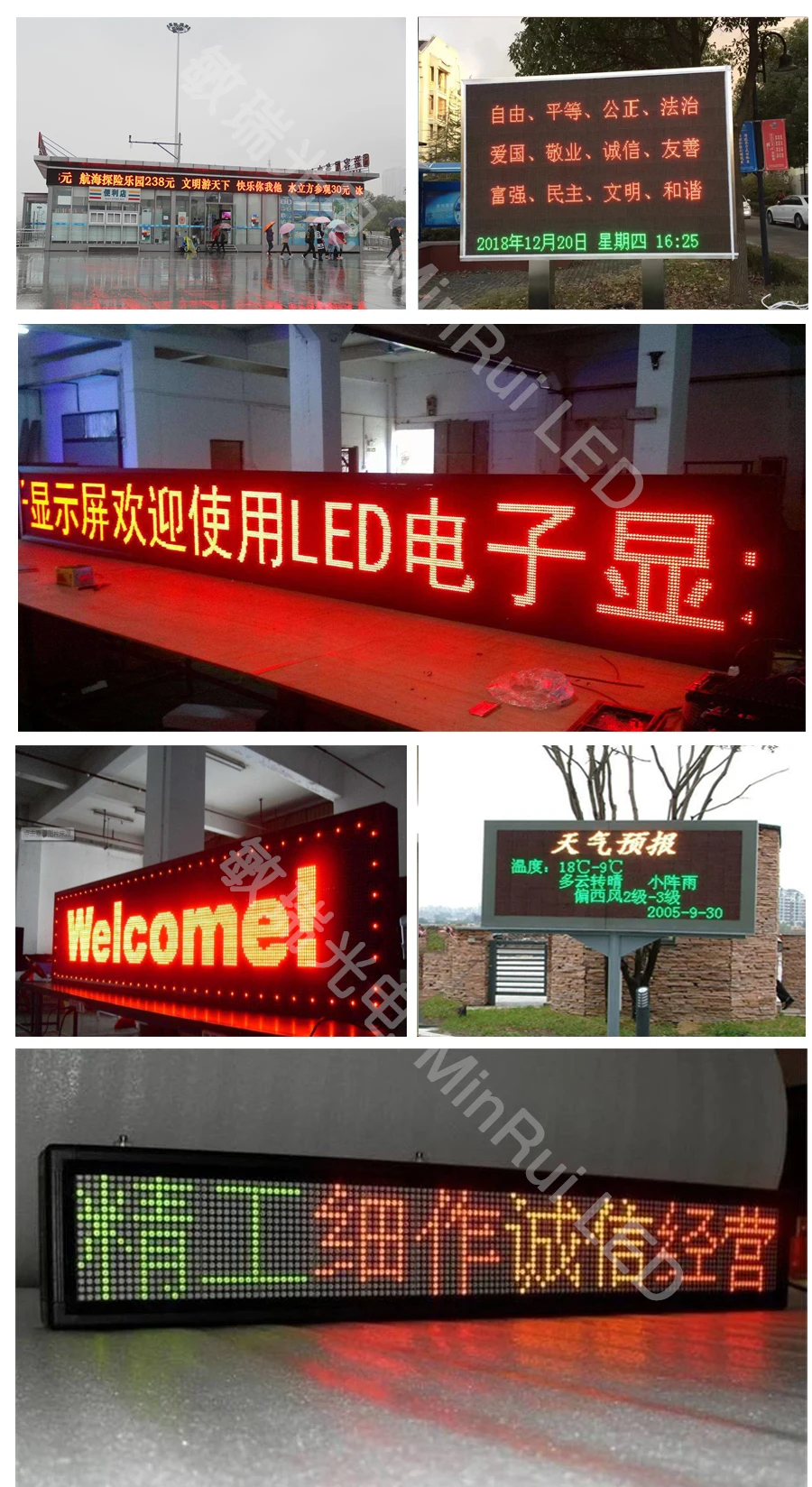

Case Display

Product Packaging

According to the different， packing patternsof different ，carton packing,flight case packing.

Характеристики:

<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Название бренда</span>	Evercollectvision
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Номер модели</span>	P10 Outdoor Single Color LED Module
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Происхождение</span>	Китай
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Индивидуальное изготовление</span>	Да
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Применение</span>	Для улицы
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Функция дисплея</span>	Анимация
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Пиксели</span>	10 мм
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Единица измерения</span>	штука/штуки
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Количество</span>	1
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Название бренда</span>	Evercollectvision
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Номер модели</span>	P10 Outdoor Single Color LED Module
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Происхождение</span>	Китай
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Индивидуальное изготовление</span>	Да
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Применение</span>	Для улицы
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Функция дисплея</span>	Анимация
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Пиксели</span>	10 мм
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Единица измерения</span>	штука/штуки
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Количество</span>	1
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Module size</span>	320*160mm
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Data interface</span>	HUB12
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Power input</span>	DC5V
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Drive mode</span>	1/4 scan constant current
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">LED type</span>	DIP
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Module resolution</span>	32*16pixels
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Waterproof</span>	ip65
<span class="SnowProductCharacteristics_SnowProductCharacteristicsItem__titleContent__534v9">Color</span>	Red.Yellow.Green.White.Blue
