Высококачественный 1 шт. DC 5 В-12 в 15 кВ генератор высокого напряжения шаг вверх инвертор дуговой воспламенитель катушка модуль

Код товара: A1005004380227484

Кешбек: 15%

Магазин: АлиКэшбэк20

Пройдите простую регистрацию, чтобы делать покупки выгодно.

Доступные опции:

Цвет:

1pcs shown 1pcs shown

Описание:

Styles 1

Product Description
100% Brand New and High Quality
Voltage within 9V can work for a long time continuous arcing for 1 day.
When the voltage is longer than 9V, it is necessary to add heat to the fan.
5 ~ 12V power supply, available 2-3 18650 battery series power supply, or ordinary router power supply or 9V/12V power supply.
Power must be supplied within the nominal voltage range for proper operation! If the voltage is too low, the module will undervoltage and stop working. Never reverse, overpressure, otherwise it will damage the module or even cause the capacitor to explode!
This product poses a certain risk to non-professionals and must be operated in strict accordance with the electrical specifications!
Note: This product is a semi-finished product without a shell. It is recommended that it be potted with paraffin or epoxy to improve durability.

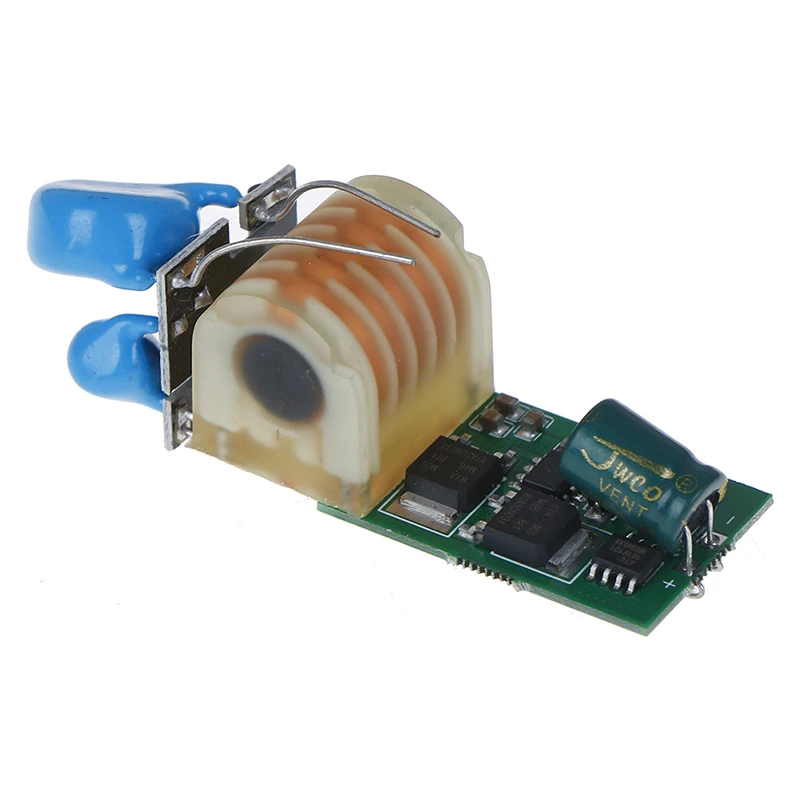

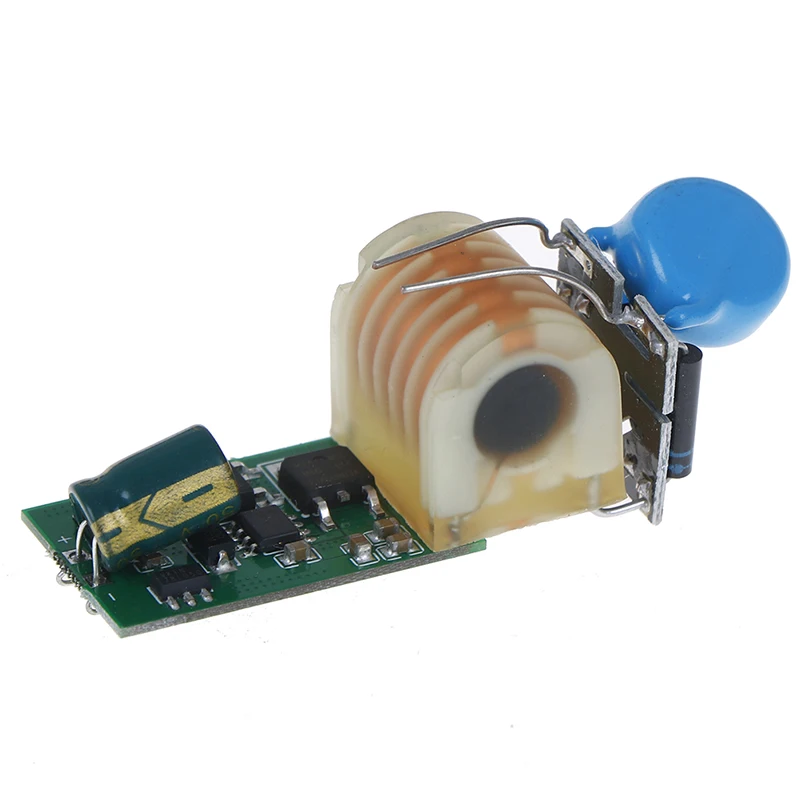

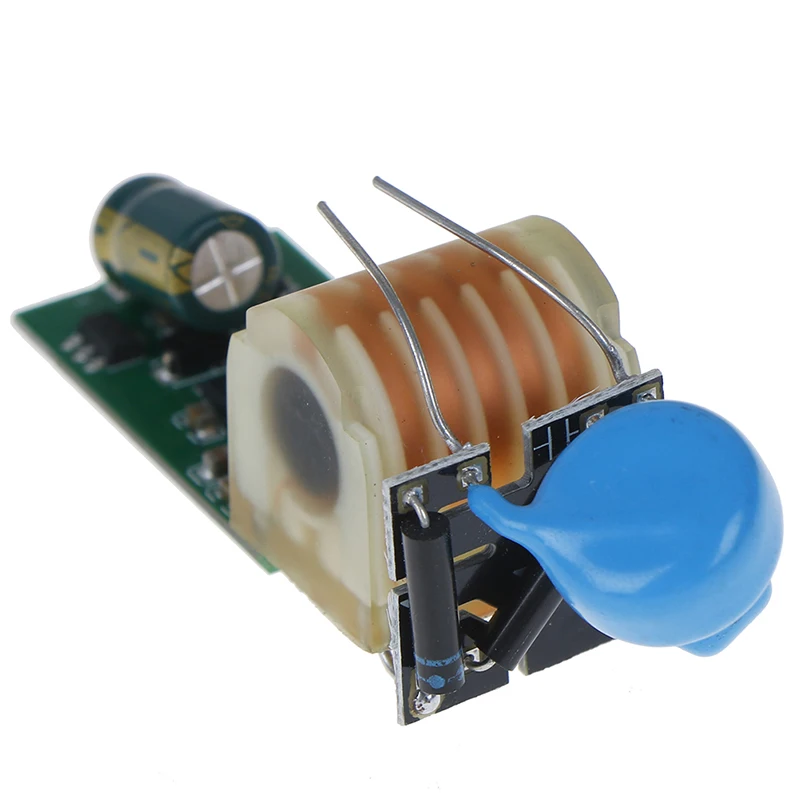

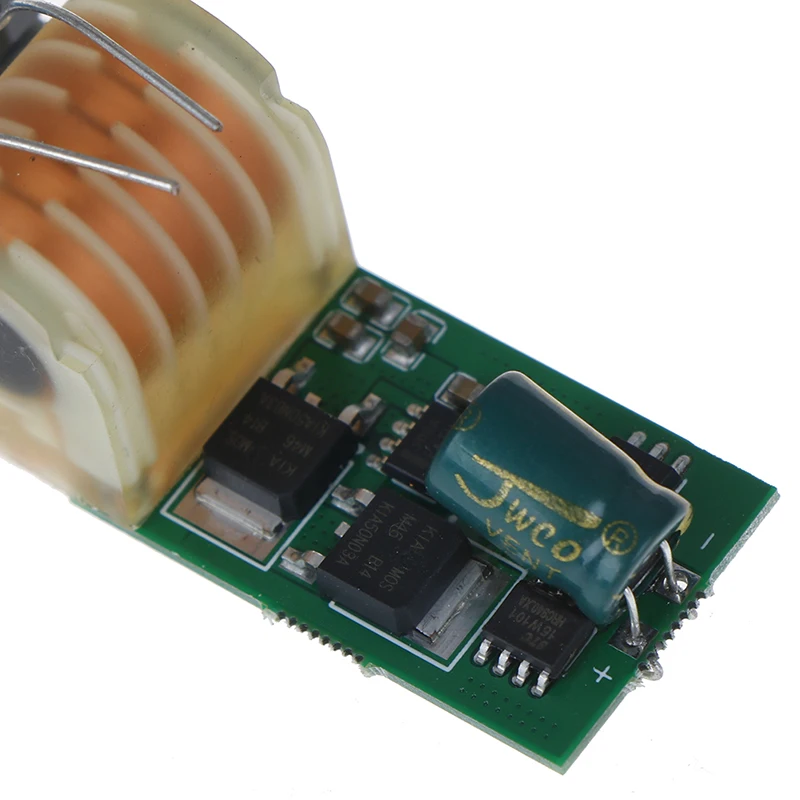

Specifications and parameters:
Input voltage: 5V~12V
Input current: 0.2A~0.5A
Output voltage: 5KV~15KV
Pulse capacitance: default 1000pF ( buyer can choice 100pF)
Pulse frequency: 3~20 times/second
Arc distance: 1cm~1.5cm
Arc characteristics: white, low temperature 24 hours continuous arc, short / no load can be, high efficiency and low heat circuit design, no radiator!
(If the voltage is not enough, up to 4 modules can be connected in parallel, the output terminals can be connected in series, and the arc can be increased by 4 times)

Package Included:
1 x Boost Coil Module

Styles 2

72095

Description:
It is stated that the output power of this module is affected by many factors such as the front power supply and the post load in addition to the load capacity of the module itself. The following data are the result of the professional equipment, regardless of other factors
Power supply module is a kind of electronic components, please no electronic professional knowledge first consult clearly buy.

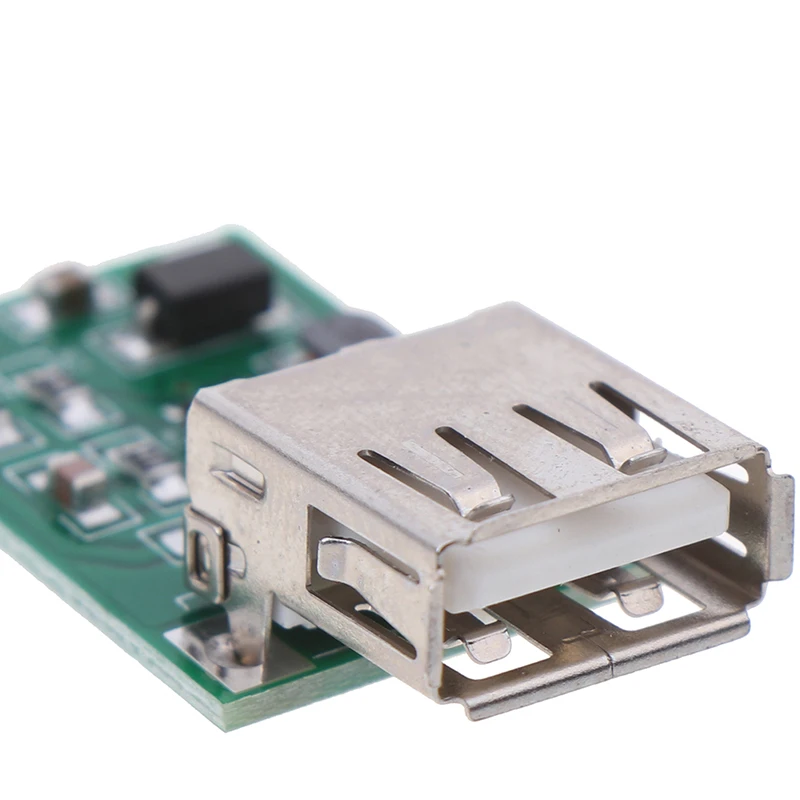

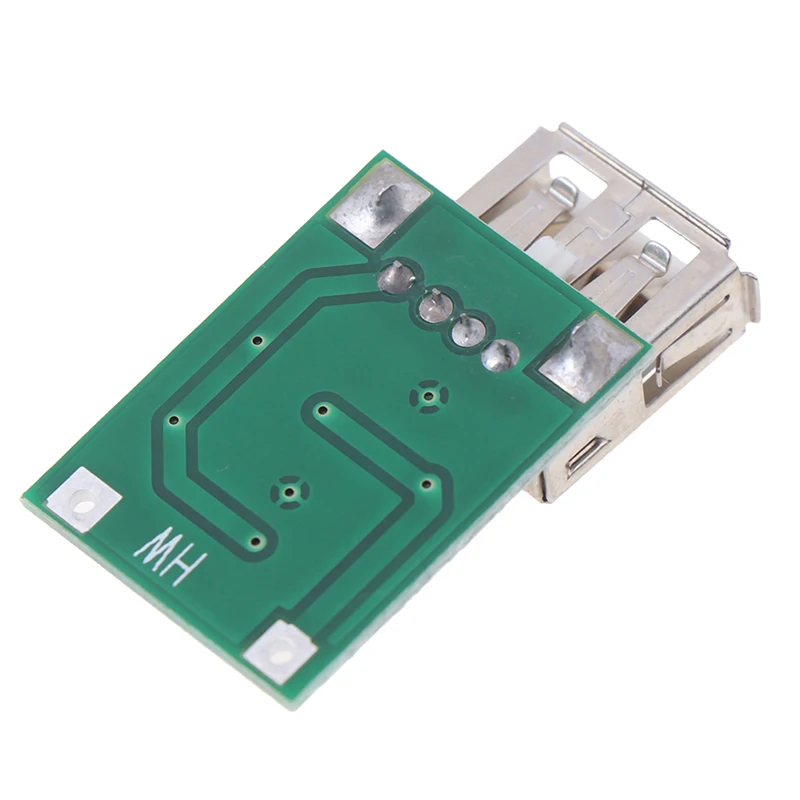

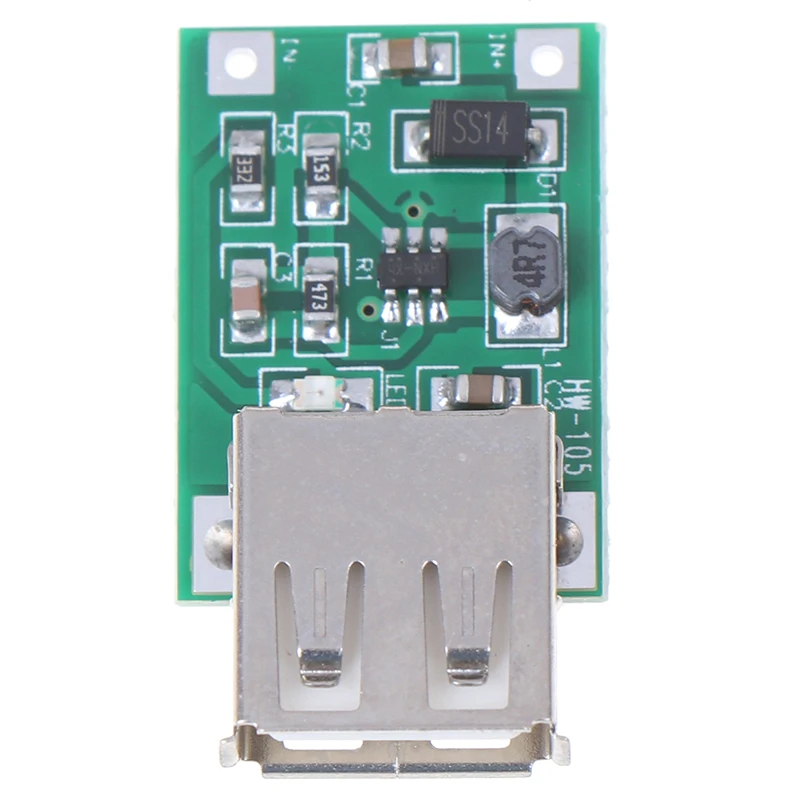

Module introduction:
1. This module uses high-performance imported chip, the performance is better than the general module.
2. Input 0.9V ~ 5V any DC voltage, can be stable output 5V DC voltage, with a single AA battery can output up to 200 ~ 300MA current, two AA batteries can output 500 ~ 600MA current, can Power your phone, camera, microcontroller and digital products
3. Industrial temperature range: -40 ° --- +85 °
4. High conversion efficiency, up to 96%
5. With USB female base, widely used
6. Ultra-small size (PCB board 35mm * 16mm), with a variety of small equipment installed
7. With work light
Package included: 1Pcs
Use:
1.DIY mobile power: when you travel or travel always feel that your phone, MP3, MP4, PDA, PSP is not enough electricity, and you have extra battery, you can consider their own DIY a mobile power; This module with your [a lithium or 2-3 Ni-MH] can output 5V voltage for your mobile phone, MP3, MP4, PDA, PSP charge, very simple and convenient Oh.
2. Adjust the voltage: If you need a different voltage in the product design power supply, the device needs 5V power supply, that use our module will be your best choice.
3. Power supply: When your power supply is very unstable, when the high and low, but when your device needs 5V power supply, that use our module will be your best choice.
4. Does this power module have short circuit protection? I used to accidentally enter the short circuit will burn it?
A: No short circuit protection, if you need short circuit protection, please install the fuse in series at the input.

Характеристики:

Название бренда	Нет
Номер модели	Boost Coil Module
Происхождение	Китай
Единица измерения	штука/штуки
Количество	1
