Зарядное устройство HTRC с 4 слотами

Introduction:

HTRC  CH4 is a smart charger designed by HTRC team, compatible with almost all type of rechargeable batteries like Li-ion/IMR/INR/ICR/Ni-MH/Ni-Cd/LiFePO4 batteries, as well as a high grade performance, With a large digital LCD display, easily to understand battery charging parameters and processes.

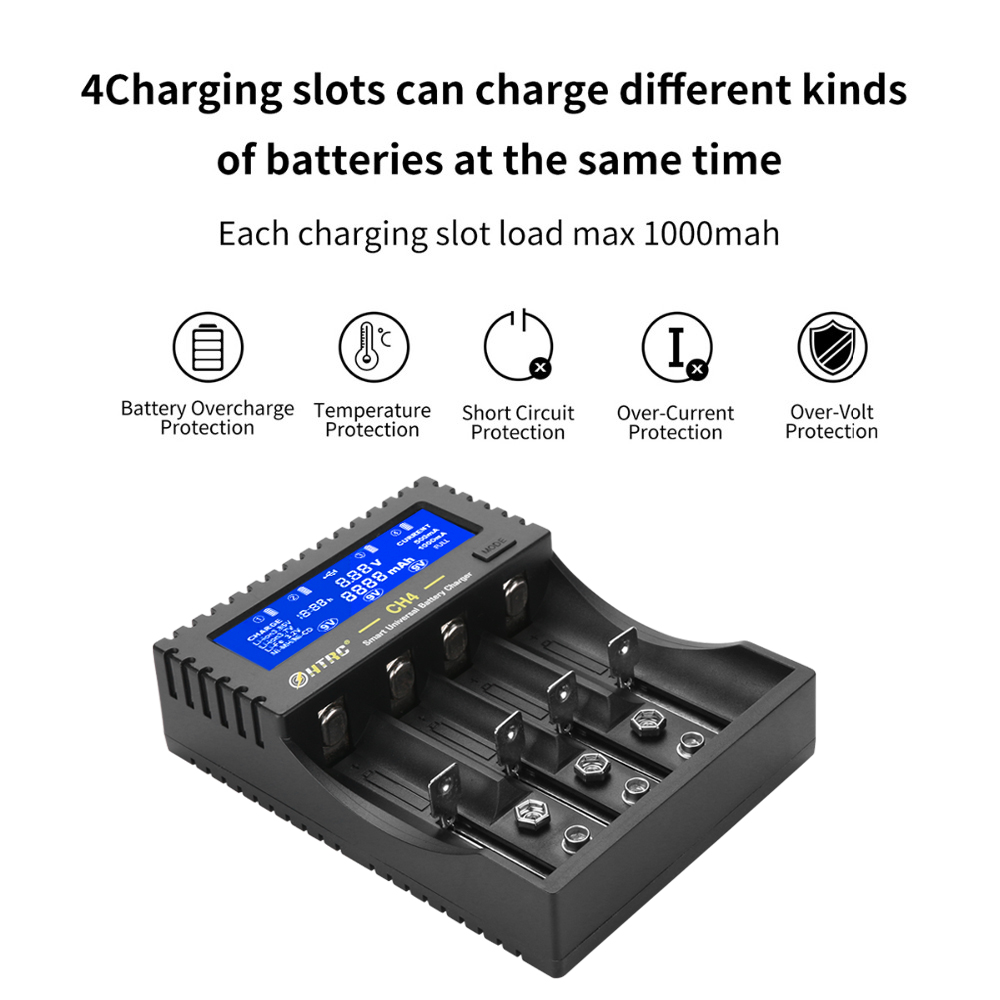

4charging slots can working for different type batteries in power charging time, each charging slot Provides 500mA and 1000mA charge current, 3 charging slots 9V(6F22) provides 100mA charge current

Features:

• Compatible with batteries of Li-ion(4.2v/4.35v)9V(6F22)LiFePO4(3.6v),Ni-MH/Ni-Cd(1.48v) 9V(6F22)

• Compatible with all different type of cylindrical rechargeable lithium battery

• Up to1000mA charging speed I a single slot

• High precision Calibration of voltage source

• Automatically stops charging upon charging completion

• Reverse polarity protection and short circuit prevention

• Automatically detects battery power status and displays charging progres

• Each battery slot controls and charges independently

• Support small capacity battery charging

• Support for lithium battery repair function

• Compatible with DCType-C、Micro Charging function Made of fire

• Designed by optimal heat dissipation

• Excellent circuit design

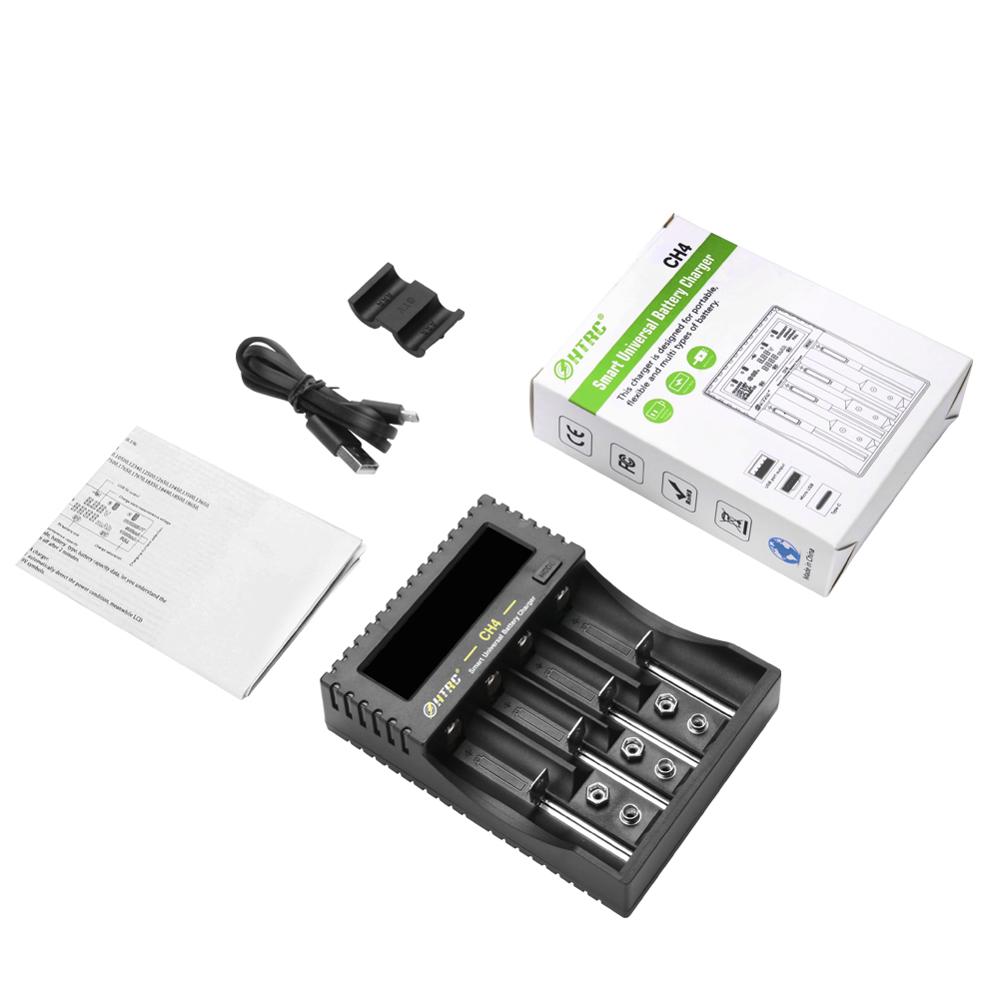

Package include:

1* Battery charger

1* USB cable

Parameters:

Input voltage :Type-C/MicroDC  5V 2A

Output Voltage :4.35±0.1%/4.2V±0.1%/1.48V±0.1% 9V(6F22)±0.1%

Output Current: Li-ion:1000mA*2(High)/500mA*4(Low)

Ni-MH/Ni-Cd:1000mA*2(High)/500mA*4(Low)

9V(6F22):100mA*3

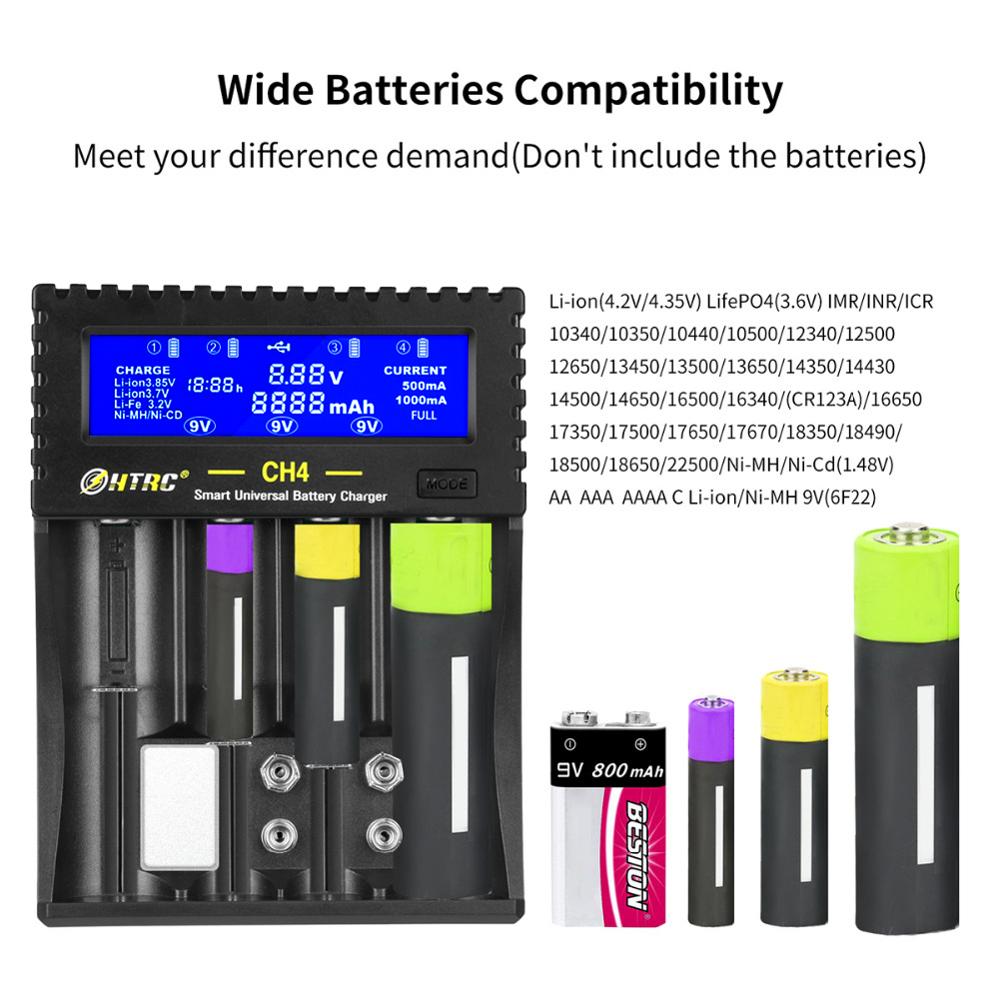

Compatible with:

Li-ion/IMR/INR/ICR/LiFePO4:

10340,10350,10440,10500,12340,12500,12650,13450,13500,13650,14350,14430,14500,14650,16500,16340(RCR123), 16650, 17350,17500,17650,17670,18350,18490,18500,18650,18700,20700,22500,22650,25500,26500,26650 9V(6F22)

NI-MH/Ni-Cd: AA, AAA, AAAA, C 9V(6F22)

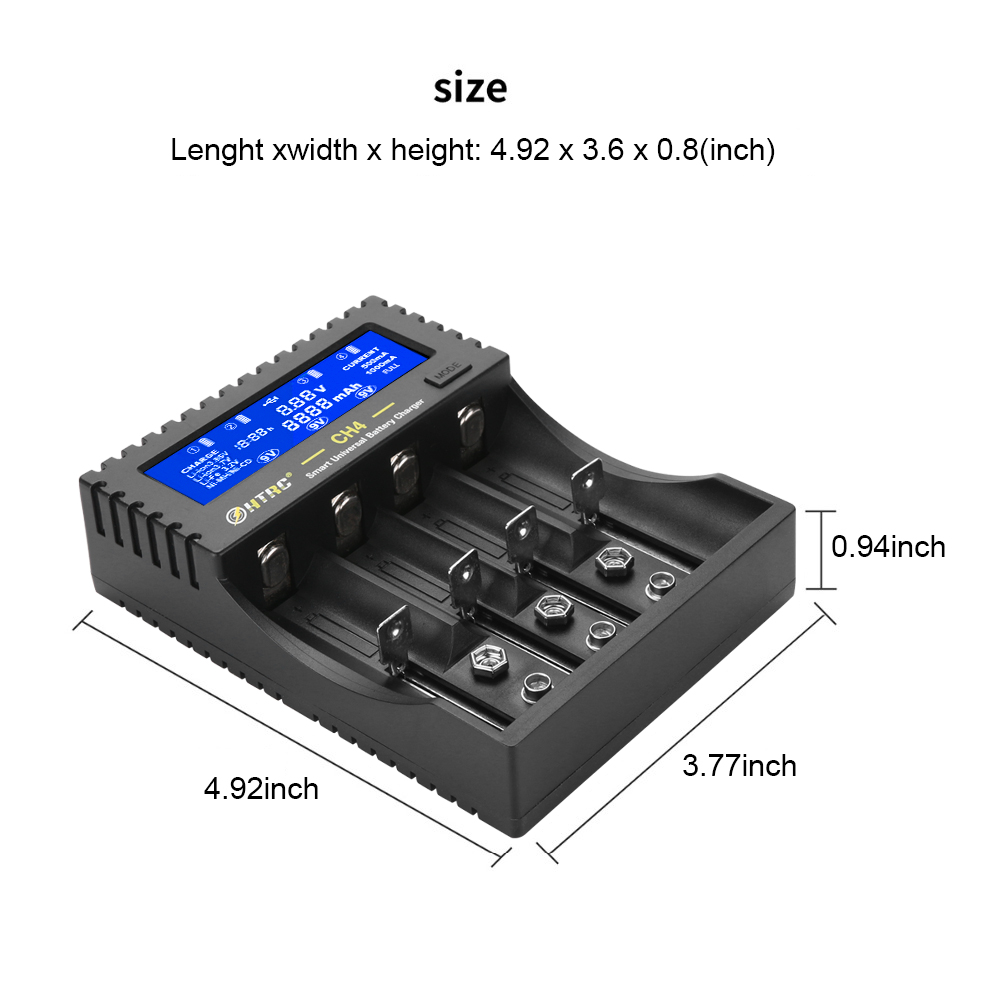

Size: 126.6mm*97mm*33mm(L*W*H)

(No battery included)

(The Charger is by HTRC brand now  ,please know that before you buy it )

Feedback :

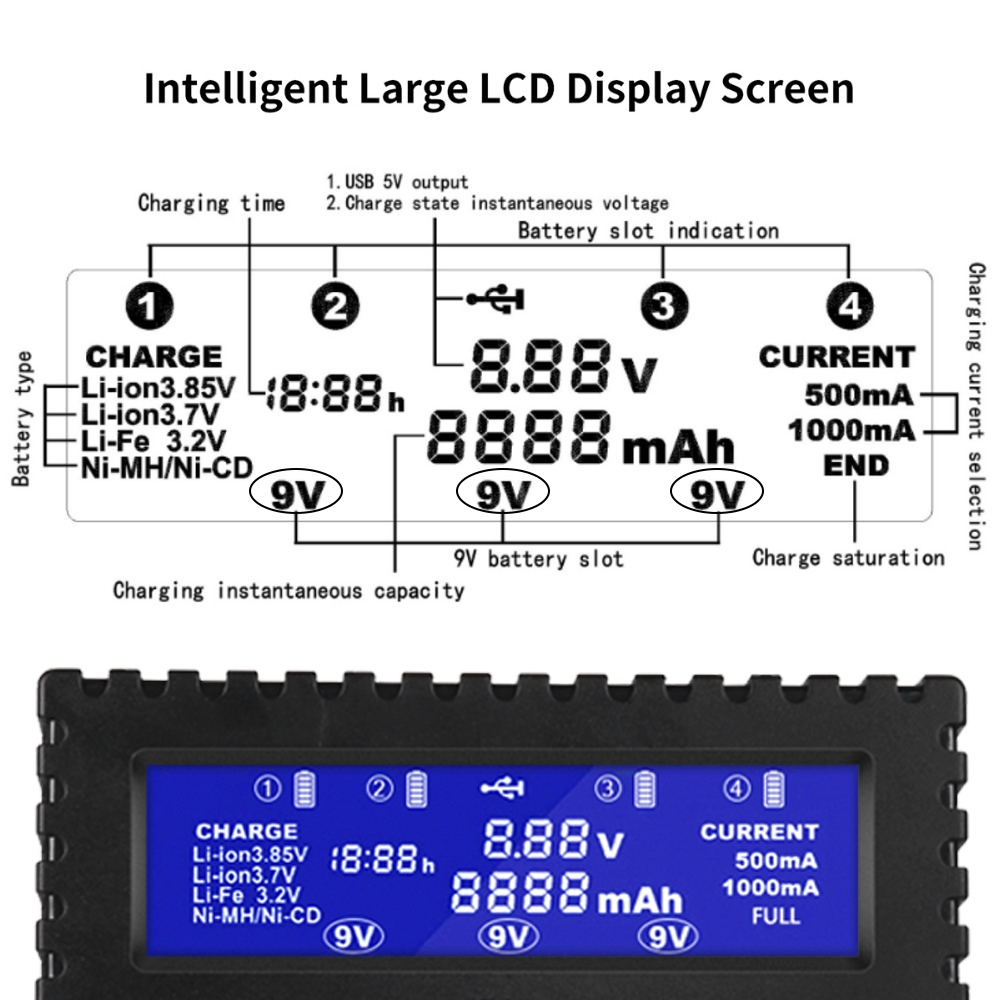

LCD Display Introduction:
