Защитная плата для литий-ионного аккумулятора 18650

Notice:
Product details may vary due to different production batches. If you understand the difference, please buy carefully.
Please allow 1-5mm difference due to manual measurement.
Item colors may appear slightly different on computer monitors because monitors are not calibrated the same

1: The successful start of the drill requires 3 15C-20C power batteries, or 6 10C-15C power batteries (ordinary 18650 cannot start the drill!!).For 0V and 12.6V cables, use more than 3mm2 copper wire (nickel plates cannot be used!!)!

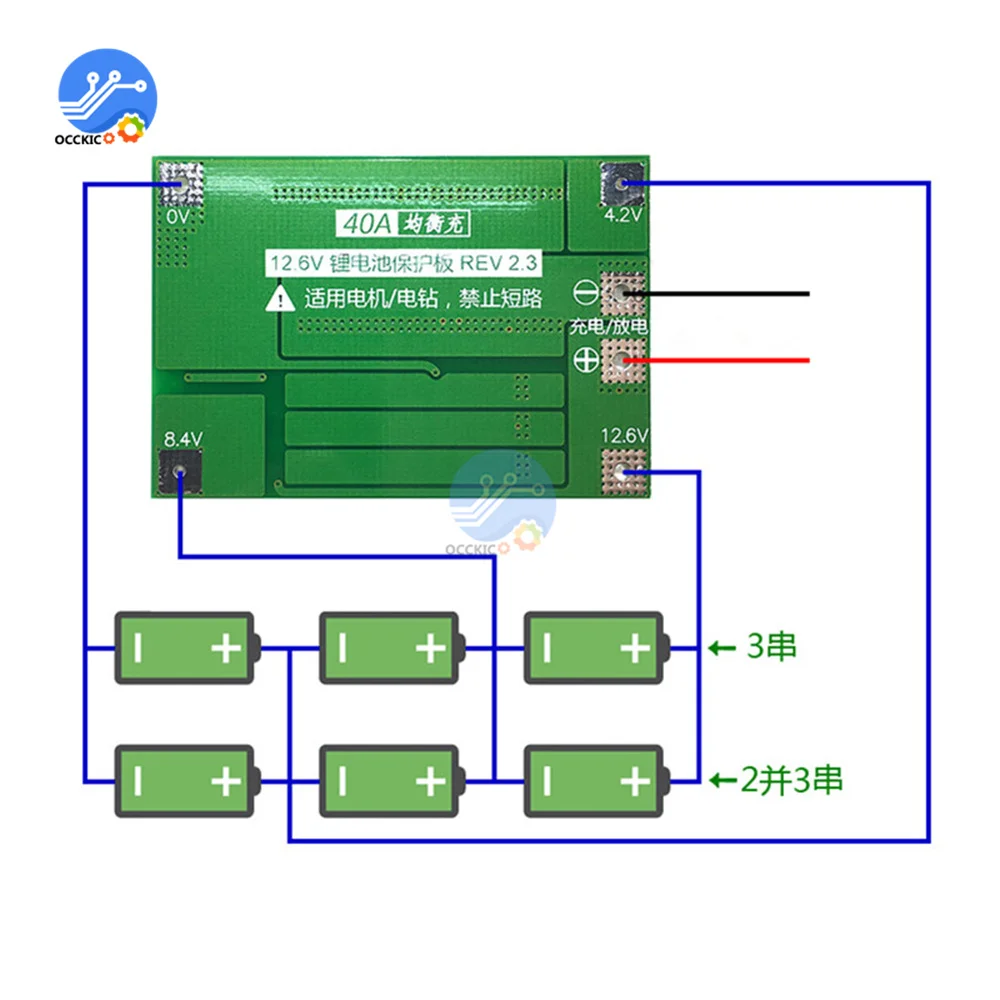

2: Strictly follow the map wiring 0V, 4.2V, 8.4V, 12.6V, 16.8V, do not deliberately short-circuit.
3: When using a load with a brushed motor, please try to connect a non-polar capacitor (withstand voltage above 25V, capacity 10uF-100uF) to the positive and negative terminals of the motor to prevent reverse spikes of the motor. Break the MOS tube.
4: When using 4 groups of batteries in series, please ensure that the voltages of each group of batteries are different, if they are not the same, please fill each battery separately, and then use in series. During the discharge test, the battery pack cell voltage drops faster.


Balanced charging is just an auxiliary function, try not to mix good batteries with bad batteries! The closer the capacity/resistance of the 3 groups of batteries is, the better! (2 batteries are good + 1 battery is used badly = 3 batteries are used badly).


4S 40A Balanced/Enhanced

Integrate 10 low-load resistance MOS tubes, continuously discharge 40A, 100mA balance current, suitable for electric drill/sprayer/LED light/low power inverter.


Scope of application: suitable for lithium batteries with a nominal voltage of 3.7V and a full voltage of 4.2V, including 18650, 26650, and polymer lithium batteries
Product size: 45*56*3.4mm (enhanced version), 45*60*3.4mm (balanced version)
Product weight: 14.5g (enhanced version), 12.5g (balanced version)
Charging voltage: 16.8V-18.1V
Continuous discharge current (upper limit): 40A (if the heat dissipation environment is not good, please reduce the load current)
Continuous charging current (upper limit): 20A
It is suitable for electric drills with starting current below 80A and power below 230W. The balanced version has a balanced charging function.

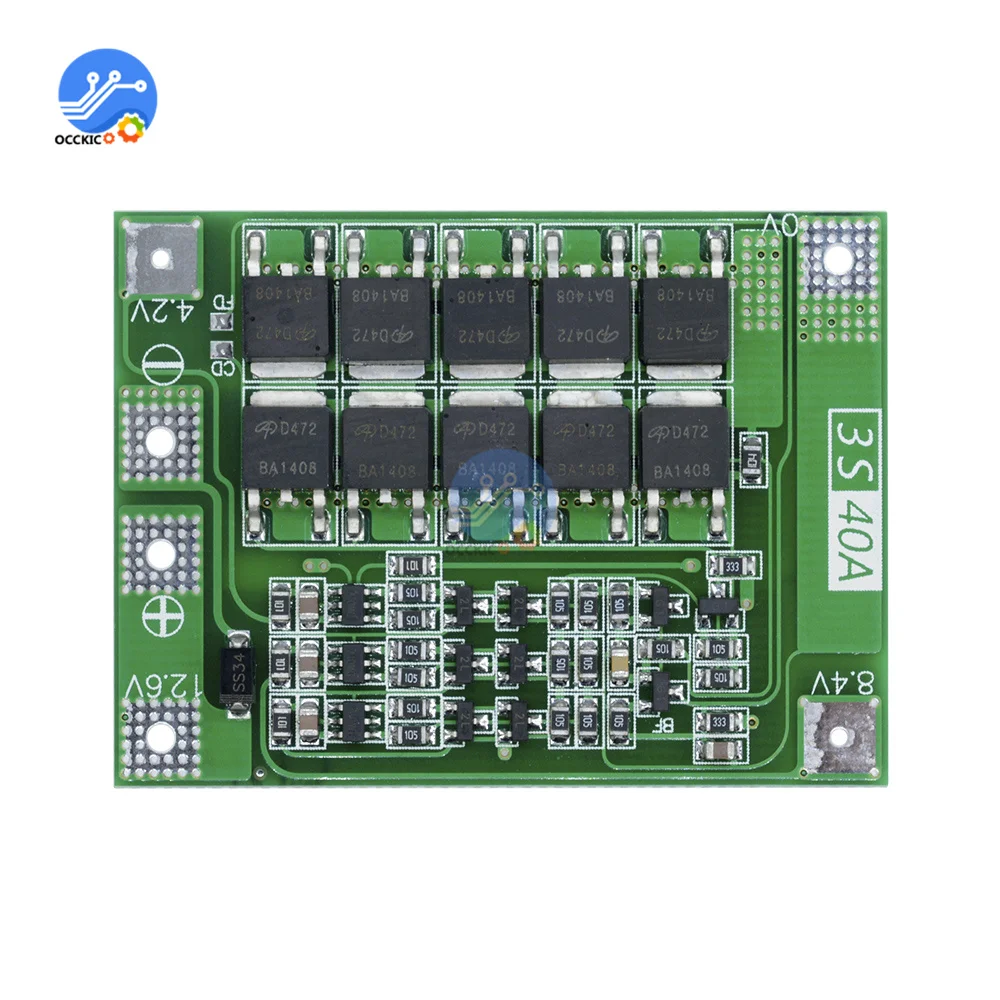

3S 40A Enhanced

Enhanced version: used for starting current below 80A and power below 135W for drilling rigs.


3S 40A 12.6V 40A lithium battery protection board (with recovery function - automatic recovery)
Scope of application: nominal voltage 3.6V, 3.7V lithium battery (including 18650, 26650, polymer lithium battery)
Product size: 42*55*3.4mm (enhanced version)
Product weight: 8.8g (balanced version)
Charging voltage: 12.6V - 13.6V
Continuous discharge current (upper limit): 40A (if the heat dissipation environment is not good, please reduce the load current)
Continuous charging current (upper limit): 20A


3S 40A Balanced

This Balance is the new upgraded version:
1. Enhance the anti-interference function,
2. Reduce high current heat by 30%,
3. The starting power is increased from 135W to 170W (3S40A)

3S 40A 12.6V 40A lithium battery protection board (with recovery function - automatic recovery)
Scope of application: nominal voltage 3.6V, 3.7V lithium battery (including 18650, 26650, polymer lithium battery)
Product size: 42*55*3.4mm Balanced version: 42*60*3.4mm
Product weight: 8.8g Balanced version: 9g
Charging voltage: 12.6V - 13.6V
Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current)
Continuous charging current (upper limit): 20A

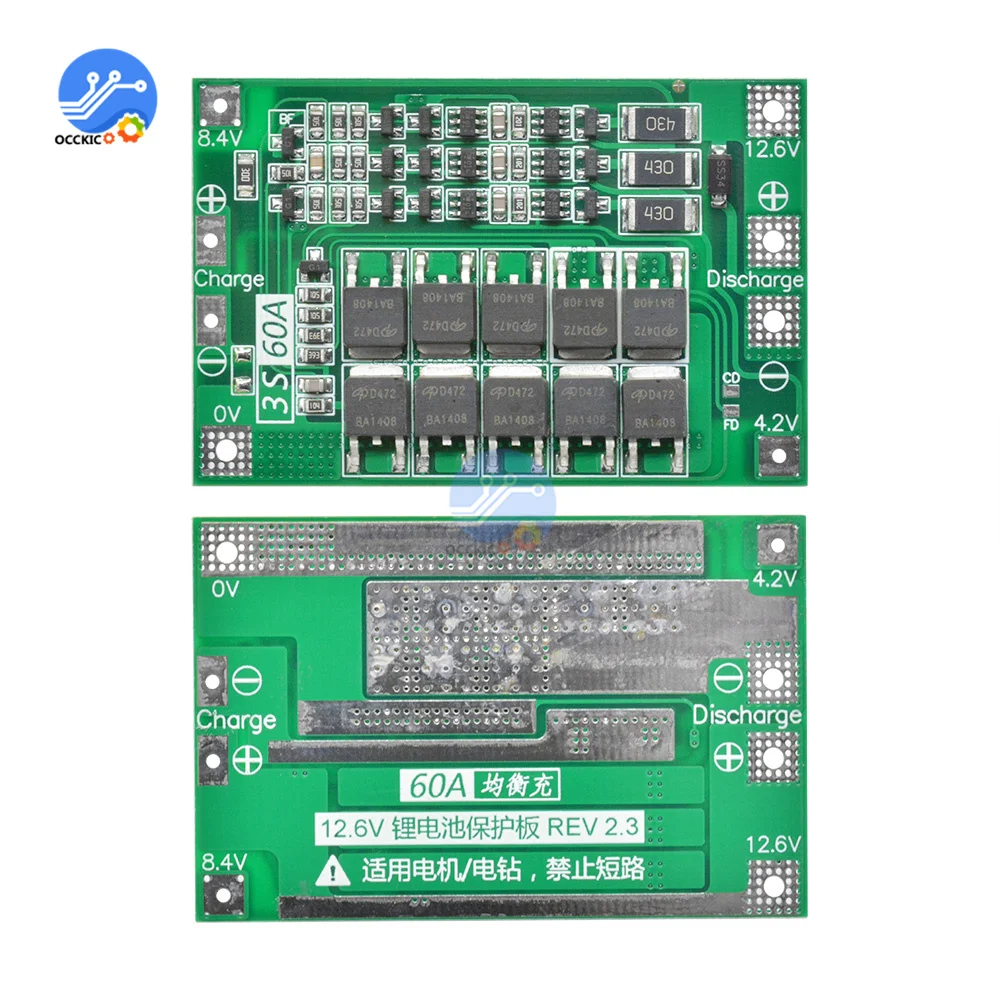

3S 60A Balanced/Enhanced

3S 12.6V 60A lithium battery protection board
Scope: Suitable for lithium battery with 3.7V nominal voltage and 4.2V limited charge voltage. (includes 18650,26650, polymer lithium battery)
Size:41*55*3.4mm(Enhanced version),41*62*3.4(Balanced version).
Weight:8.8g(Enhanced version),9.8g(Balanced version).
Charging voltage: 12.6V - 13.6V
Continuous discharge current (upper limit): 60A (if the cooling environment is not good, please reduce the load current)
Continuous charge current (upper limit): 15A
Enhanced version: suitable for electric drill with starting current below 120A and power below 260W .(without balanced charging function)
Balanced version: suitable for electric drill with starting current below 120A and power below 260W .(with balanced charging function)

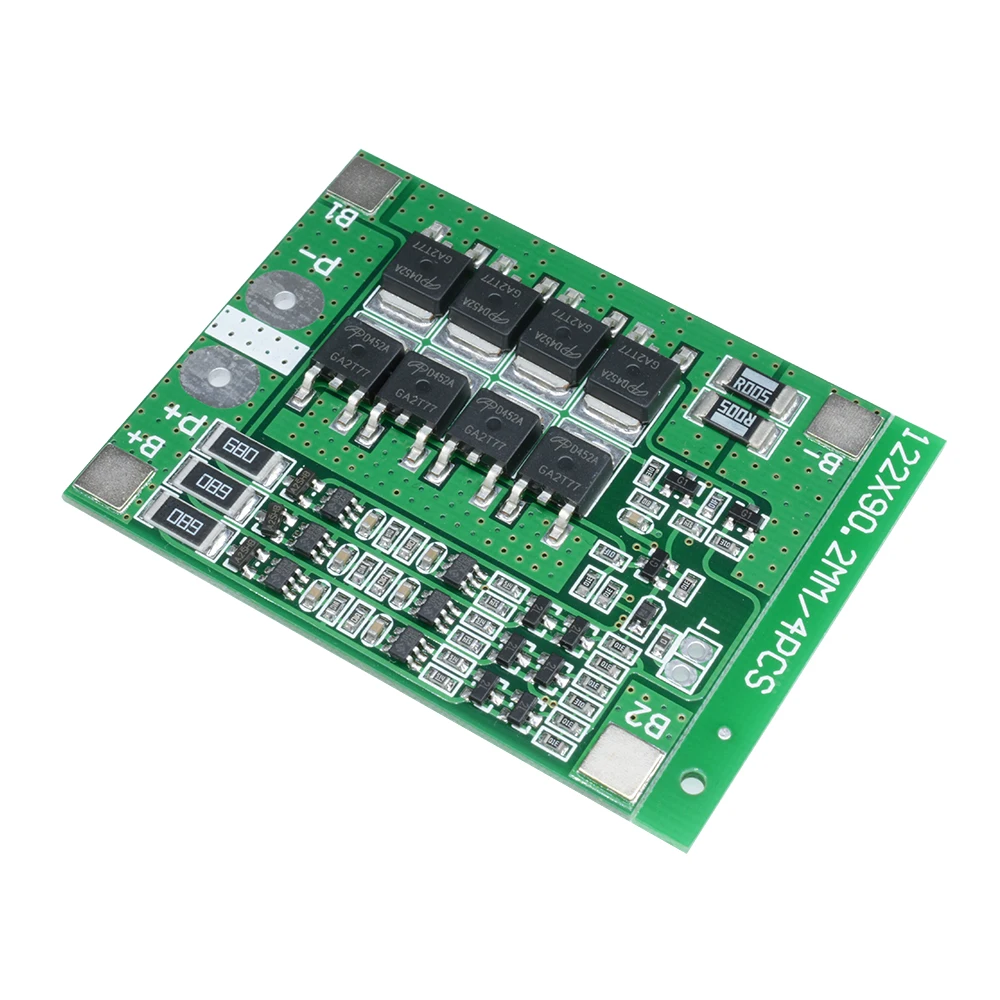

3S 25A Balanced

Size: about 56mm*45mm*1.2mm
Overvoltage range: 4.25-4.35v±0.05v
Overdischarge voltage range: 2.3-3.0v±0.05v
Maximum working current: 0-25A
Maximum transient current: 34-40A
Quiescent current: less than 30uA
Internal resistance: less than 100mΩ
Working temperature: -40---+50℃
Storage conditions: -40-- + 80℃
Effective life: more than 30,000 hours
Short circuit protection: yes, delayed self-recovery


Precautions:

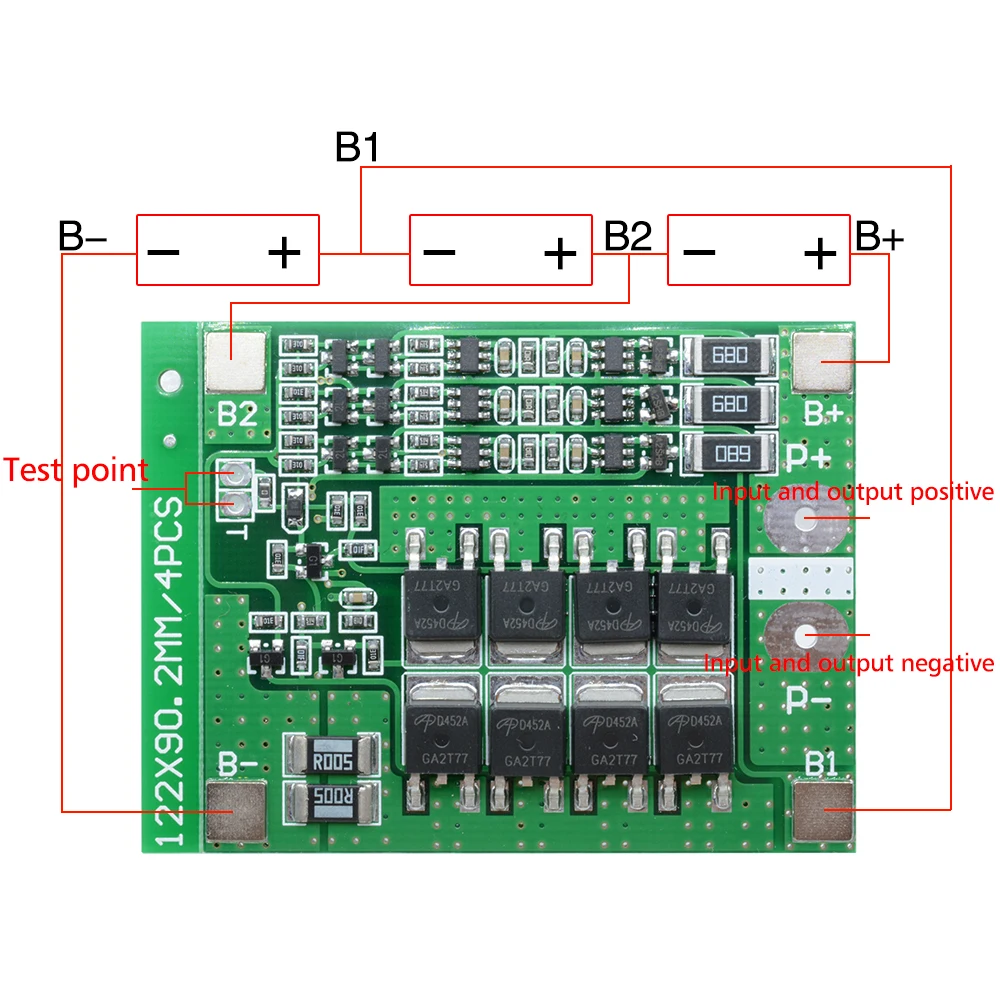

Strictly follow the diagram: 0V (B-) 3.7V (B1) 7.4V (B2) 11.1V (B+), do not intentionally short-circuit.
After the line is connected, it needs to be charged first, and then output.
When batteries are connected in series with groups of 3, make sure that each battery has the same voltage. If not, please fill in each set of batteries and use them.
Do not mix good batteries and batteries.
The larger the capacity of the battery internal resistance, the better.
Do not mix good and bad batteries. 3 The internal resistance of the battery capacity is closer to the better. Before buying, please understand the professional knowledge of this module

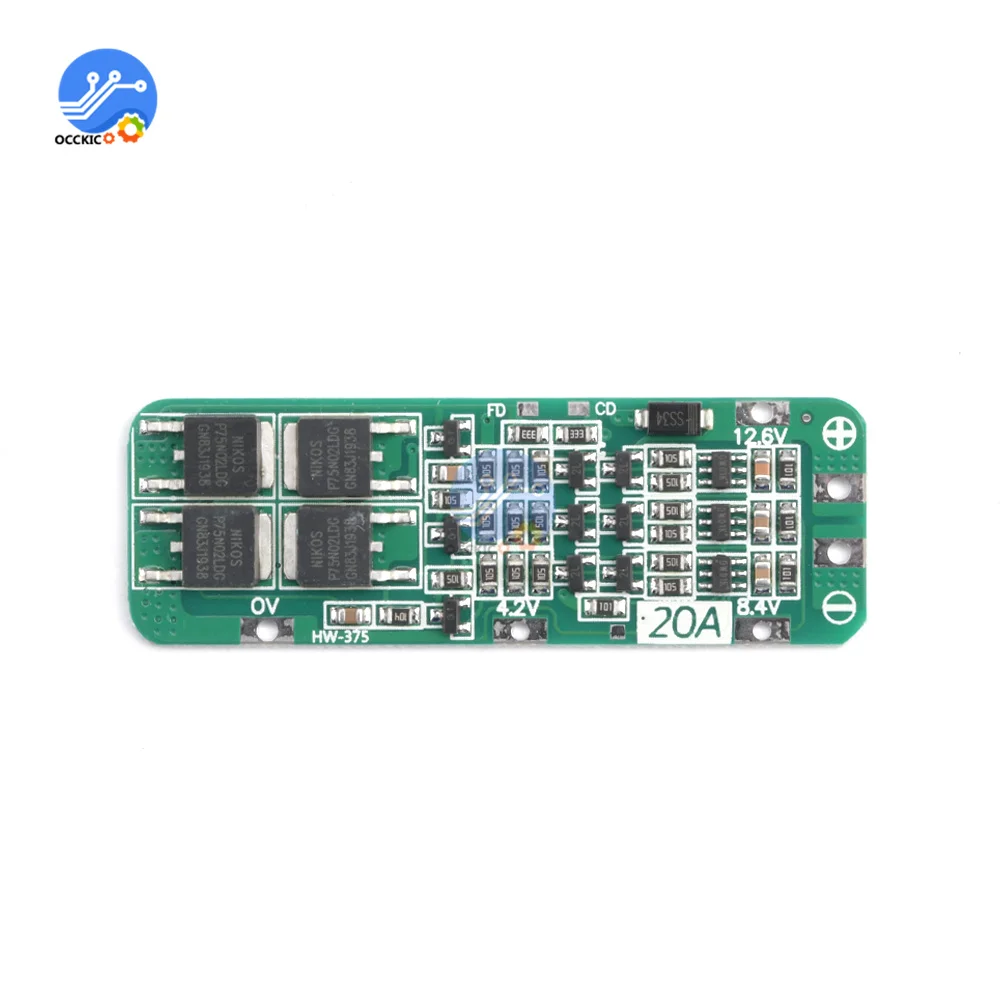

3S 20A

Module name: 3S 12.6V lithium ion lithium battery 18650 charger protection PCB board
Scope of application: suitable for 3.6V 3.7V nominal voltage lithium batteries (including 18650, 26650 lithium polymer batteries)
Product size: 59*20*3.4mm
Product weight: 4.4g
Charging voltage: 12.6V
Maximum output current: 20A
Maximum output power/charging power: 252W

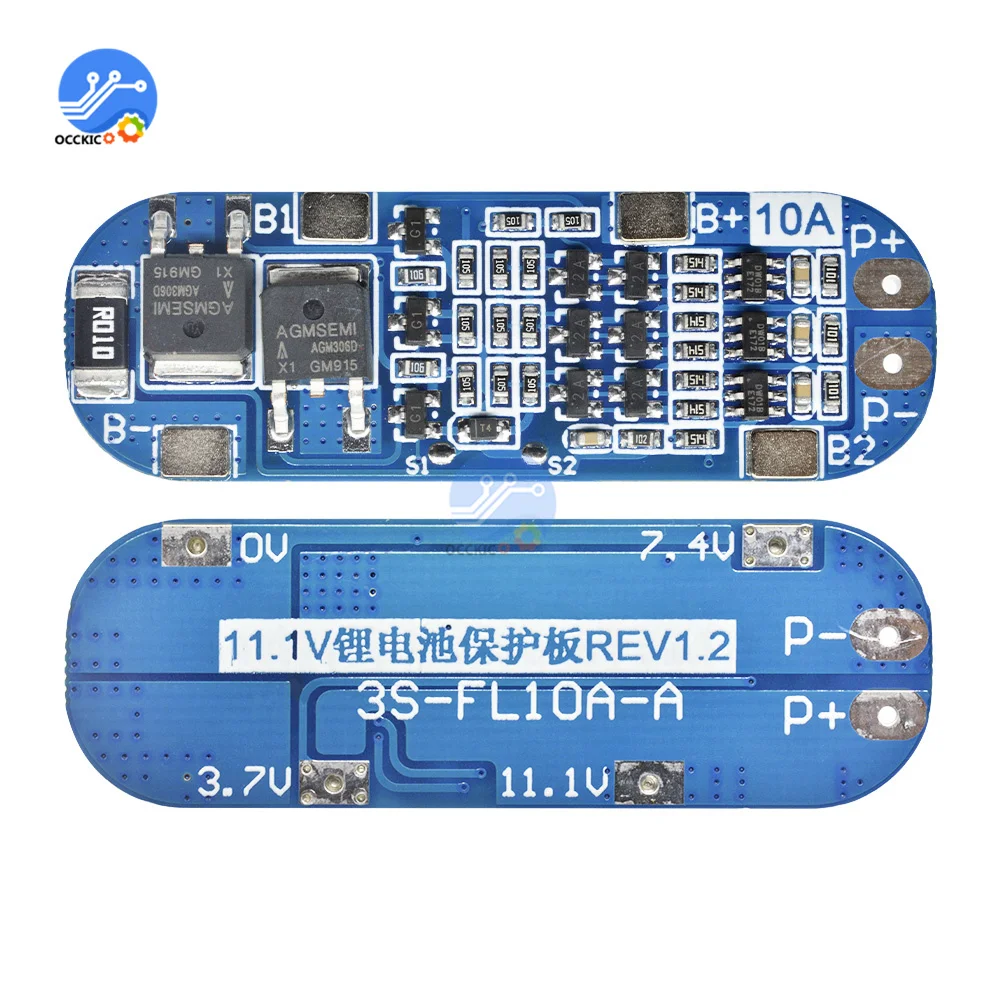

3S 10A

Notice:
This protection board cannot be used for iron ion polymer batteries, hand drill battery packs, electric fish machine battery packs, electric bicycle battery packs, 2 pieces connected in series with 24V, motors above 775 (4A), 1W fisheye LED lights, used for Customers who purchase the above combination please pay attention! .


The power ranges described apply to the following products:
Massager battery pack, LED light backup power supply, 12V electronics, solar street light battery pack, monitoring backup power supply, and other products.
Note: For products with a current above 3A, the battery discharge rate should be above 3C.
Rate calculation formula: 1C rate battery, 2000 capacity is equal to 2AH*1=2A upper limit working current.
3C rate battery, 2000 capacity is equal to 2AH*3=6A upper limit working current.
In use, the battery will heat up, that is, the battery rate is not applicable. In this case, it must not be used for a long time, and the battery will be damaged quickly.


Precautions:
1: Strictly connect 0V (B-), 3.7V (B1), 7.4V (B2), 11.1V (B+) according to the diagram, do not intentionally short-circuit!
2: After the line is connected, it needs to be charged first, and then there will be output.
3: When connecting 3 groups of batteries in series, please ensure that the voltage of each group of batteries is the same, if not, please fully charge each group of batteries separately and then use them in series. During the discharge test, the group of batteries with a rapid voltage drop is the poor battery.


Parameter:
Overcharge voltage range: 4.25-4.35v±0.05v
Size: 53*17*4.0mm
Over discharge voltage range: 2.3-3.0v±0.05v
Working current: 0-8A
Working temperature: -40---+50℃
Instantaneous current: 11-13A
Storage conditions: -40-- +80℃
Quiescent current: less than 30uA
Effective life: more than 30000 hours
Internal resistance: less than 100mΩ
Short circuit protection: can be protected, delayed self-recovery.
The size and device description of the protection board;
The size of the protection board is 53*17*4.0mm; the components are 2110-CB protection chip and AOD472*2
